Alpha®Wet Electric
Portable Polisher
Instruction Manual
MANUAL
VERSION 3
2
TABLE OF CONTENTS
Introduction................................................................................................................ 3
About Symbols.................................................................................................... 3
Safety Instructions .................................................................................................... 3
For Safe Operation.............................................................................................. 3
Additional Precautions for Using the AWP-158...................................................... 6
About Double Installation................................................................................... 7
Preparation Before Operation............................................................................ 8
Laws and Regulations of Noise Levels............................................................. 8
AWP-158 Overview ................................................................................................... 9
Specications...................................................................................................... 9
Standard Accessories....................................................................................... 10
Before Use................................................................................................................ 10
Preparation and Inspection.............................................................................. 10
Removal Procedures......................................................................................... 13
How to Polish..................................................................................................... 13
Maintenance and Inspection .................................................................................. 15
How to Replace Carbon Brushes..................................................................... 16
Services and Warranty Information ....................................................................... 17
Repair ................................................................................................................. 17
Loaner Program................................................................................................. 17
Need More Information ..................................................................................... 17
AWP-158 Schematic ................................................................................................ 18
AWP-158 Parts List.................................................................................................. 19
EC Declaration of Conformity ................................................................................ 22
Product Registration Card...................................................................................... 23
3
INTRODUCTION
Thank you for purchasing the Alpha®Wet Polisher. Please read this instruction manual
thoroughly to ensure safety and correct use of the polisher. Keep this manual in a place
where operators can access it easily whenever necessary.
ABOUT THE SYMBOLS
Accordingtothehazardlevel,allsafetynotesinthismanualareclassiedinto“DANGER”,
“WARNING”,and“CAUTION”.
DANGER! Deathorseriouspersonalinjuryisimminentwhenhandlingthis
polisher incorrectly.
WARNING! Thereisapossibilityofdeathorseriouspersonalinjurywhen
handling this polisher incorrectly.
CAUTION! Thereisapossibilityofpersonalinjuryorpropertydamagewhen
handling this polisher incorrectly.
Note: Insomesituations,failingtoobserveWARNINGnotescouldresultin deathor
seriouspersonalinjury.Besuretoreadandobservethesafetynotestoensure
safety and correct use of the polisher.
ELECTRICAL SYMBOLS
The following show the symbols used for tool.
V Volts
A Amperes
Hz Hertz
~ or a.c. Alternating Current
n0 No load speed
…/min Revolution or reciprocation per minute
kg Kilograms
Protective Earth
4
CAUTION!
The following are important notes for products, operation, and maintenance applicable to
this polisher.
SAFETY INSTRUCTIONS
Read all these instructions before attempting to operate this product.
Save these instructions in a safe place for future reference.
Warning:Whenusing electrictools, basicsafetyprecautionsshould alwaysbe followedto
reducetheriskofre,electricshock,andpersonalinjury,includingthefollowing.
FOR SAFE OPERATION
1. Keep work area clean
Clutteredareasandbenchesinviteinjuries.
2. Consider work area environment
Do not expose power tools to rain. Do not use power tools in damp or wet locations
withoutGFCIprotection.Keepworkareaswelllit.Donotusethetoolinpresenceof
ammableliquidsorgases.
3. Guardagainstelectricshock
Prevent bodycontact withgrounded surfaces.For example:pipes, radiators,ranges,
and refrigerator enclosures; use grounded outlets.
4. Keep children and visitors away
Donot letvisitors contact toolor extensioncord. Allvisitors shouldbe keptaway from
work area. Keep out of reach of children.
5. Tool Storage
Whennot inuse, toolsshould bestored ina securedry location.Alockedstorage area
or high shelf out of children’s reach is ideal.
6. Do not force the tool
Itwilldothejobbetterandbesaferattherateforwhichitwasintended.
7. Use the right tool
Donotforceasmalltoolorattachmenttodothejobofaheavy-dutytool.Donotuse
the tool for purposes it is not designed for – (for example – do not use circular saw for
cutting tree limbs or logs.)
8. Dress properly
Donotwearlooseclothingorjewelry.Itemssuchasthesecanbecaughtinmoving
parts. Rubberglovesandnon-skidfootweararerecommendedwhenworkingoutdoors.
Wear protective hair covering to contain long hair.
9. Use safety glasses
Always wear safety glasses and if necessary, a face or dust mask also.
10. Do not abuse the electrical cord
Nevercarry thetool bythe electricalcord orpull itto disconnectfrom receptacle. Keep
the electrical cord away from heat, oil and sharp edges.
5
11. Secure workpiece
Use clamps or a vise to hold workpiece rather than using your hands.
12. Do not overreach
Keep proper footing and balance at all times.
13. Maintain tools with care
Keep tools sharp and clean for better and safer performance. Follow instructions for
lubricating and changing accessories. Inspect the electrical cord periodically and
if damaged, have it repaired by authorized service facility. Inspect extension cords
periodically and replace if damaged. Keep handles dry, clean and free from oil and
grease.
14. Disconnect tools
Disconnectthetoolfromthepowersupplywhennotinuse,beforeservicing,andwhen
changing accessories, such as blades, bits, cutters.
15. Removeadjustingkeysandwrenches
Checktoseethatkeysandadjustingwrenchesareremovedfromthetoolbefore
turning it on.
16. Avoid unintentional starting
Donotcarryaplugged-intoolwithngeronswitch.Besuretheswitchisoffwhen
plugging in.
17. Outdoor use extension cords
When tool is used outdoors, use only extension cords intended for use outdoors and
so marked.
18. Stay alert
Use caution and do not operate tool when you are tired or on medication.
19. Check for damaged parts
Beforefurther useof thetool, aguard orother partthat isdamaged shouldbecarefully
checked to determine that it will operate properly and perform its intended function.
Check for alignment of moving parts, breakage of parts, mounting, and any other
conditions that may affect its operation.A guard or other part that is damaged should
be properly repaired or replaced by an authorized service center unless otherwise
indicated elsewhere in this instruction manual. Have defective switches replaced by
authorized service center. Do not use the tool if it cannot be turned on and off by the
switch.
20. Warning
Theuseofanyotheraccessoryorattachmentotherthanrecommendedinthisinstruc-
tionmanualorthecatalogmaypresentariskofpersonalinjuryandcouldvoidthe
warranty.
21. Onlyqualiedtechniciansshouldrepairthistool
This electric tool is manufactured in accordance with the standard safety rules. Only
expertsmay carryout therepair ofelectric tools;otherwise, itmay causeconsiderable
danger for the operator.
6
ADDITIONALPRECAUTIONSFORUSINGTHEAWP-158
In addition to the general safety notes described on the preceding pages, please read and
observe the following precautionary notes before using the polisher.
DANGER!
1. Check the working voltage.
Besurethevoltageavailableatpoweroutletmatchesspeciedvoltageonthename-
plate.Ifthepolisherisusedwithhighervoltagethanspecied,themotorwillburnout.
Anyattemptstodosomaydamagethepolisherorcauseanaccidentorinjury.
2. Inspect all polishing discs.
Never use cracked, chipped or damaged polishing discs.
3. Hold the polisher tightly at start-up.
Failuretodosomaycauseaninjuryduetohighimpactatinitialstartup.
4. Stop using the polisher immediately when noticing any malfunctions or any
suspicious abnormal noises.
Turn the power switch OFF and contact your dealer or Alpha Professional Tools for
repair.
5. Handle the polisher with care.
If you accidentally drop the polisher, do not use it until checking that it is not cracked,
deformed, or damaged in any way.
6. Donotpourwateroranyliquidsontoorinsidethepolisher.
It may cause electric shocks.
7. Do not hold the polisher in a vice.
8. Do not touch any rotating parts.
Never touch the polishing disc of the polisher during operation with your hands.
9. Donotleavethediscwhilespinningonthebench,oororsurfaceofyour
workpiece.
Itmaycauseanaccidentorinjury.
7
WARNING!
10. Attach the backer pad and polishing disc correctly by following the procedure
in this instruction manual.
Attaching the polishing discs incorrectly may cause an accident.
11. Observe any suspicious abnormal noises when a polishing disc is attached for
thersttimeandpolisheristurnedON.
Itmaycausebodilyinjuryifthepolishingdisciesoff.
12. Do not touch the polishing disc while spinning.
The polishing disc spins very fast and you may hurt yourself.
13. Be careful of your surroundings when working in high places.
When working in high places, make sure there are no people below. Do not to trap the
powersupply cord onanything ordrop thepolisher orany materials,otherwise,Itmay
cause an accident.
ABOUT DOUBLE INSULATION
This polisher is designed with double insulation. Two insulations are used between the
conductorandtheouterbodyofthepolisher. AnElectricPolisherwiththedoubleinsulation
highlyimprovessafetyfromelectricshocks.Donotattachorreplaceunspeciedpartsand
do not assemble incorrectly. This may cause the insulation to malfunction.
8
PREPARATION BEFORE OPERATION
1. GFCIInformation.
– SincetheAlpha®WetPolisherisdesignedwithdoubleinsulation,anin-lineGFCIis
provided as a standard accessory. For your safety and to prevent possible electric
shocks,itisstronglyadvisedtotesttheGFCIonaregularbasis.
Note:TheGFCImustbeusedforyoursafetywhenthispolisheris
used anywhere in a damp environment, when used with water, or
when it is used on metal plates, steel frames or platens.
Never attach a damaged extension cord to the polisher.
Note: Use the appropriate extension cord as referred below. The
table shown below is for 115V use. For 220V use, the maximum
length of a cord may be twice as long as the cord for 115V.
LAWSANDREGULATIONSOFNOISELEVELS
Pleaseobservelocal lawsand regulationsregarding noiselevel inorder toavoid disturbing
surroundingareas.Installasoundproofwallifrequiredtocomplywiththelocallawsand
regulations.
Gauge/AWG Maximum Length
1.25mm230 Ft / 10m
2mm245 Ft / 15m
3.5mm290 Ft / 30m
DANGER!
9
Handle A
(C-Handle)
Polishing Disc
RubberGuard
Power Switch
Flat Polishing Caster
SPECIFICATIONS
Working Power Supply ................................................ Single-phase AC, 50/60 Hz
Voltage........................................................................... 110V / 220V
Amperage...................................................................... 7.8A / 3.8A
Wattage.......................................................................... 800W
Motor ............................................................................. Single-phase
No Load......................................................................... 3,000 R.P.M.
Polishing Disc Size ...................................................... 4”/100mm
Arbor.............................................................................. 5/8-11”/M14-2/M16-2
Weight ........................................................................... 6lbs / 2.7kg
Cord............................................................................... 10ft / 3m single-phase cable
AWP-158 OVERVIEW
10
STANDARD ACCESSORIES

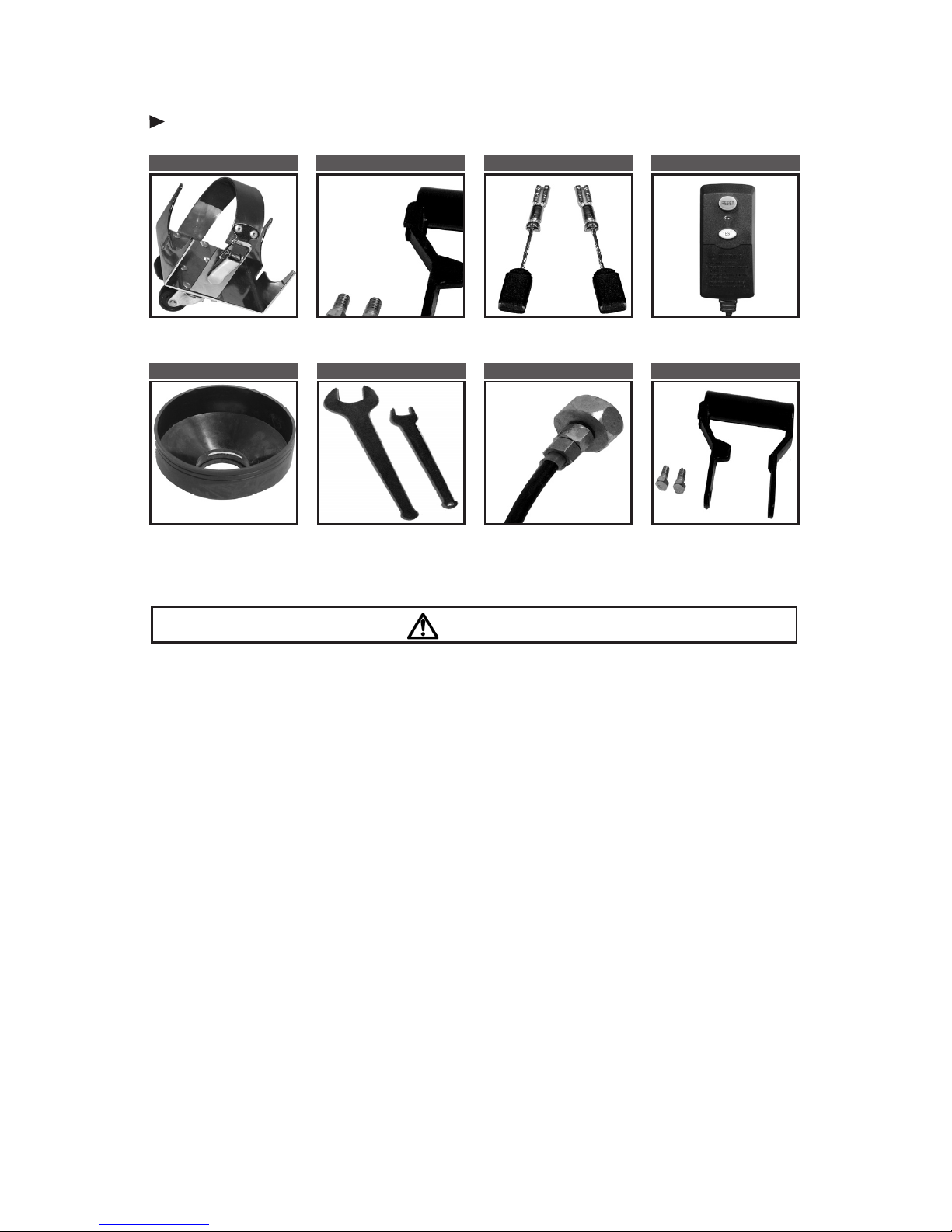

Flat Polishing Center Side Handle Carbon Brushes GFCI
Rubber Guard Wrenches Hose Fitting C-Handle
BEFORE USE
DANGER!
Beforeusing thepolisher, checkthe followingitems. In particular, checkitems 1to 5before
plugging the power supply cord into the power outlet.
1. Check the working voltage.
– Besurethevoltagespeciedonthenameplateisthevoltageavailableatthepower
outlet.Ifthepolisherisusedwithhighervoltagethanspecied,themotorwillburnout.
Any attempts to do so may damage the polisher and/or cause an accident.
2. Make sure the ON/OFF switch is off.
– If you plug in the power supply cord without realizing that the switch is ON, the
polisher will start and may cause an accident.
– When the switch is slid forward, the polisher is turned ON.
– When it is slid backward, the polisher is turned OFF.
– Make sure the switch is slid backward in OFF position before plugging
the cord in the power outlet.
3. Inspect the protective disc cover.
– Do not remove the rubber guard. It will protect you if the polishing disc breaks and
against being splashed with water.
– Besuretormlyattachthepolishingdiscoranyoptionalaccessory.
4. Inspect the backer pad and polishing disc.
Ce manuel convient aux modèles suivants
3
Table des matières
Autres manuels Alpha Sander
Alpha
Alpha VSP-320 Manuel utilisateur
Alpha
Alpha GDSA-06 Manuel utilisateur
Alpha
Alpha VSP-120 Manuel utilisateur
Alpha
Alpha AIR-658 Manuel utilisateur
Alpha
Alpha VSP-320 Manuel utilisateur
Alpha
Alpha VSP-230 Manuel utilisateur
Alpha
Alpha SPD4KIT Manuel utilisateur
Alpha
Alpha VSP-340 Manuel utilisateur
Alpha
Alpha AIR-658 Manuel utilisateur
Alpha
Alpha WSPKIT Manuel utilisateur
