Allview AX3 Party Manuel utilisateur

Allview AX3 Party

User manual…………………3

Pъководство за употреба…35

Οδηγός Χρήστη……………63

Manual de utilizare……….108

Power button

Включване

Volume buttons

Сила на звука

Earphones jack

Гнездо за слушалки

Back camera

Задна Камера

SIM slot

Слот за SIM картата

MicroSD slot

Слот за MicroSD карта

Loud speaker

Високоговорител

Receiver

Приемник

Front camera

Предна камера

Microphone

Микрофон

Πλήκτρο ενεργοποίησης

Buton pornire/oprire

κουμπιά έντασης

Butoane volum

Υποδοχή ακουστικών

Mufa casti

πίσω κάμερα

Camera spate

υποδοχή της κάρτας SIM

Slot SIM

Υποδοχή κάρτας MicroSD

Slot MicroSD

μεγάφωνο

Difuzor

ακουστικών

Casca

μπροστινή κάμερα

Camera fata

Μικρόφωνο

Microfon

User manual

Allview

AX3

Party

Foreword

Thank you for purchasing our product.

These operational guidelines for the user, to ensure you a quick and convenient to

use, read the instructions carefully before use.

This player is a specialized top quality portable player product with a series of

remarkable functions. There will be no separate notice in the case of any change in

content of this text.

This company will continue to provide new functions for the development of the

product, and there will be no separate change in the case of any change in the

product’s performance and functions. While this unit is used as a mobile hard disk,

this company will not be held liable for the security of files saved in the disk.

If the actual setup and the application methods are not identical to those as set forth

in this manual, please access to the latest product information of this company's

website.

Key Functions

 Capacitive touch screen, support multi-touch;

 Support WIFI, 3G wireless Network;

 Integrates dual cameras, front 0.3 mpx, back 3,2 mpx

 Network video conversation and support photography function;

 Adopt android 4 system;

 Support auto rotation the screen horizontally or vertically;

 Support Web browsing, chat online, online video, online games and download

etc;

 Support ten thousands games and programs download and install.

 Supporting lyric synchronous display;

 Supports maximum 720P HD resolution video file putout

 Supporting picture browsing, rotation and lantern slide playing in multiple

formats;

 Support E-book function, playing in multiple formats;

 USB2.0 high rate transmission;

 Built-in microphone and long time recording;

 Supporting firmware upgrade;

 Supporting Micro SD Card; Support OTG function, can expand storage space

Basic Operation

Power

In the shutdown state, long press " " button boots

Power

off

In the power on state, long press the " " key 3 seconds then pop-up device

options, select " Power off " for shut down.

Sleep

the machine under normal operating conditions, Short press the power button, Into

hibernation, Now, Screen will close. Short press the power button again, Be able to

resume normal mode. When the time being use this MID can enable this feature when,

To reduce power consumption.

Power

reset

If there is shutdown to the player in the process of operation, you can turn off and

restart the player by pressing "reset" key.

Screen time

out

If you do not contact the player within the set time, and do no operate by the button,

the contact screen will be automatically turns off.

In any state, short press " " button and for activation; Then skid the lock upwards

to the green of spotted which will accomplish to access to the upper interface.

If it is necessary to deactivate the contact screen time out function, you can set the

[Screen time out] option under [display] function into "Never ".

Using the Micro SD

card

After this unit is connected with the computer, you will find two moving disks.

The first one is the built-in memory disk for this unit and the other is the disk for the

Micro SD card. If no card is inserted, the second disk can not be opened. This unit

supports the extension of the Micro SD card from 128MB to 32GB.

Inserting and Pulling out the Micro SD

card

Inserting:

Put the Micro SD card face up (side with words), and slightly force the card into

the socket of the card, i.e. connecting the unit. Under this state, you can play the

content in the Micro SD card.

Pulling:

Slightly push the Micro SD, and it will bounce by a section, and then you can take it

out.

Caution:

Please perform inserting and pulling operation when power is off! Otherwise, it

will lead to the loss or damage to the files within the unit! If no card is inserted, the

computer will be unable to perform read and write operation for the disk notes of the

later removable disk (Micro SD card).

Battery:

High capacity Polymer battery is used for this unit.

The duration available of the battery power depends on volume, types of playing

files and operation of batteries. The player can be set up by the user as "user define

power off time" or "display setup" to save batteries.

Charging:

This unit can be recharged by USB port, you can also use DC Charger:

Take out the DC charger, plug it into the wall outlet with AC 220V, then plug in the

DC jack into the device DC-in jack.

Warnings for charging:

1. A new battery may be empty and not charged before you get the device.

2. If the device is not used for long time, it is better to charge it to full capacity

every 2 or 3 months during storage.

Power adapter is a key component of the portable player, which play a crucial role

in keeping the portable player’s normal work and protecting your security when using

the player, a long-term customer surveys and after-sales service Practice shows that

the malfunction of the portable player In many cases were caused by using

inappropriate accessories, in particular the power adapter.

Use the substandard power adapter will shorten the life of the portable player by

considerably, the voltage instability will seriously affected the normal work of the

portable player and bring permanent damage on the player’s performance and

reliability, Use the substandard power adapter will also reduced the vocal quality of

the players, shutdown the player when you using it, In addition, Use the substandard

power adapter will cause combustion and explosion which will disserve the safety of

the consumers.

Gravity induction and horizontal 、vertical

screen switch

through the clicked " ", open/locking gravity induction and horizontal

、

vertical screen switch function.

Return to

main interface

In any interface, touch icon " " to access to main interface.

Return to upper interface

or menu

In any interface, touch icon " ", click the "" key to access to upper interface

or menu. You can also click short press the " " key to accomplish it.

Points for Attention

1. Do not use the player in exceptionally cold or hot, dusty, damp or dry

environments.

2. Do not allow the player to fall down while using it.

3. Please charge your battery when

A. Battery power icon shows an empty icon;

B. The system automatically shuts down and the power is soon off when you

switch on the unit once again;

C. There is no response if you operate on any key

4. Please do not disconnect power abruptly when the player is being formatted or

in the process of uploading or downloading. Otherwise it may lead to the error in the

program.

5. When this unit is used as a moving disk, the user shall store or export files in

the proper file management operation method. Any improper operation method may

lead to the loss of files, for which this Company will be held no liable.

6. Please do not dismantle this unit by yourself. If there is any inquiry, please

contact the dealer.

7. There will be no separate notice in the case of any change in the functions and

performance of this product.

Warning: We take no responsibility for situations where the phone is used other

than as provided in the manual.

Our company reserves the right to make changes in the content of the manual without

making this fact public. These changes will be posted on the company website to the

product it amends.

The contents of this manual may be different from that in the product. In this last

case will be considered.

To avoid the problems that might occur with the service shops approved by Visual

Fan Ltd. (because Visual Fan reserves the right to stop the collaboration with any

service shop which was previously approved and mentioned in the waranty card on

the date on which the product batch was sold on the market), before taking a product to

the service shop, please check the updated list of approved service shops on Allview

website at the section: “Support&Service – Approved service”.

Main interface

The main interface is separated into 5 screen display. Slide screen left or right

which will accomplish to flip file.

 Change desktop wallpaper

Press on a blank space on The main interface, can pop up desktop wallpaper

Settings menu

 Display all functional icon

Short press the icon will display the installed functions icon, click on

corresponding functional icon to be able to access the function menu. In the main menu,

the system can be set to run existing applications, install a new application, start the

touch calibration, music player, video player, web browsing, games and other

operations.

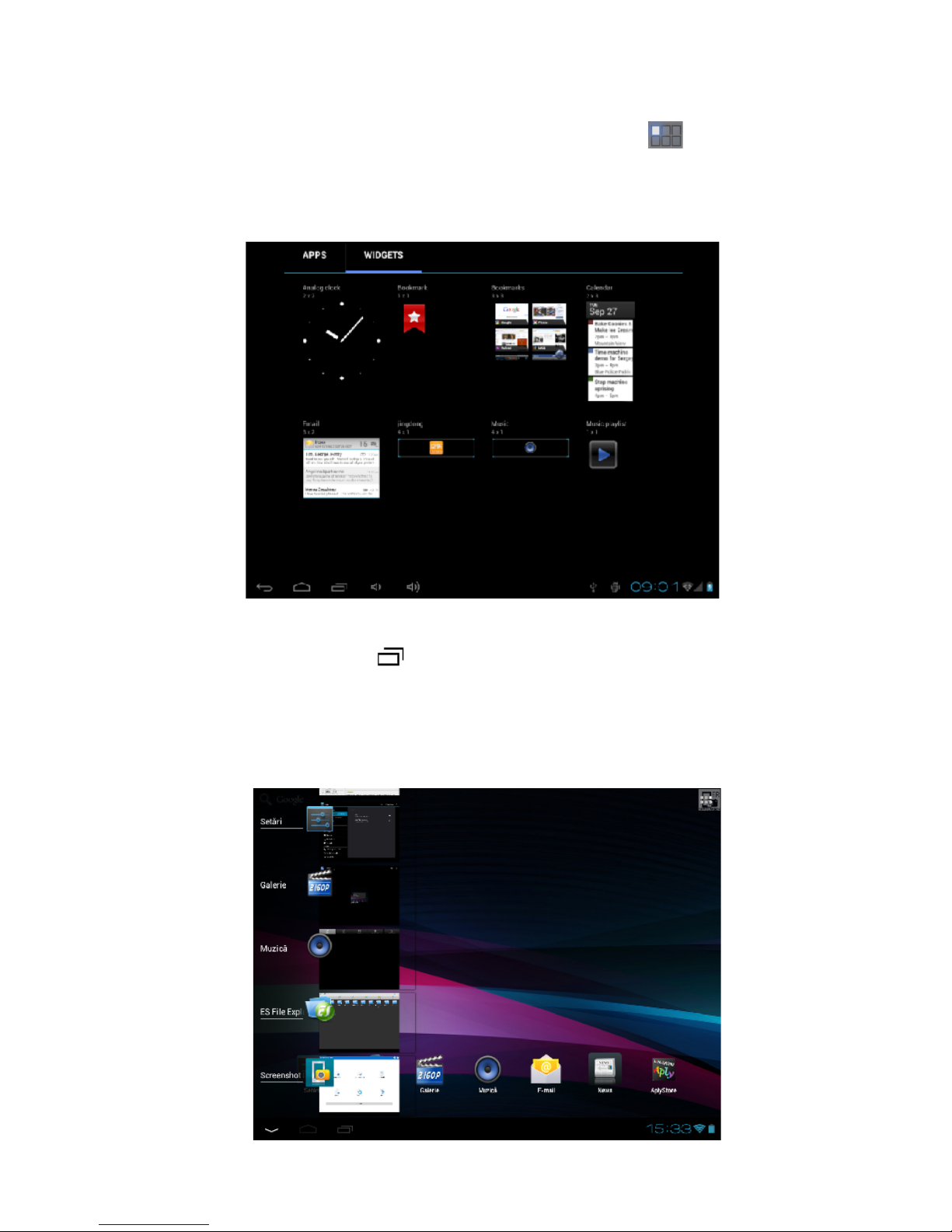

 Add window small plugin

The main interface, touch the screen on the right side of the " " control icon, and

then click above on the screen " WIDGETS" long according to select small plugin, can

add to desktop .

 Display the background programs that are running

Any interface, click the " " icon to the left of the screen, pop up the

background is run the program list, click on the program icon, can switch over to the

background of the open programming interface. To right sliding program icon, can

close this program in the operation.
