Allremote Wireless Technology 970 Series Manuel
BULB REPLACEMENT
：
1. This searchlight use H3 base Bulb (Xenon or Halogen).
2. Release the front frame to take Lens and Reflector out.
3. Replace the bulb.
＊IMPORTANT NOTE：
Human
H
ands should not touch glass tube to avoid
bulb life reduced.
SAFTY NOTICE
：
◎ H.I.D. bulb do NOT switch on and off within 5 seconds or it will reduce bulb and
electronic board life
◎ Magnetic mount is designed for portable usage.
It’s dangerous to use this searchlight while sailing or driving without installation.
◎ FCC RULE Part. 15.21：The changes or modifications not expressly approved by the party
responsible for compliance could void the
user’s authority to operate the equipment.
◎ This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
◎ This searchlight is a Radio Frequency (RF) device which operates on Channel
433.92MHz.It will send out RF energy when it is on operating.
1. RF energy may affect some electronic equipment.
2. Some electronic equipment on vehicle or boats may be affected by RF energy.
Packing included
：
Model 970 Searchlight
Optional Control Accessory
Handheld Wireless Remote Control Unit
TX-SL003B-2 (Dual Speed Function)
Handheld Wired Control
Dash-mount Wired Control
Wired Toggle(Joystick) Control Panel ME-03-0008 V.MAY14
Multi-Function Motorized Searchlight
Model 970 Series
Instruction Guide
FEATURES
：
440 degree Rotation 120 degree Tilt
Programmable Handhold Wireless Remote Control Unit
UV Ray and Saltwater Resistant
Be applied in
Security, Sports, Working and Boating Multi-Function.
SPECIFICATION
：
Housing Color : Black / White

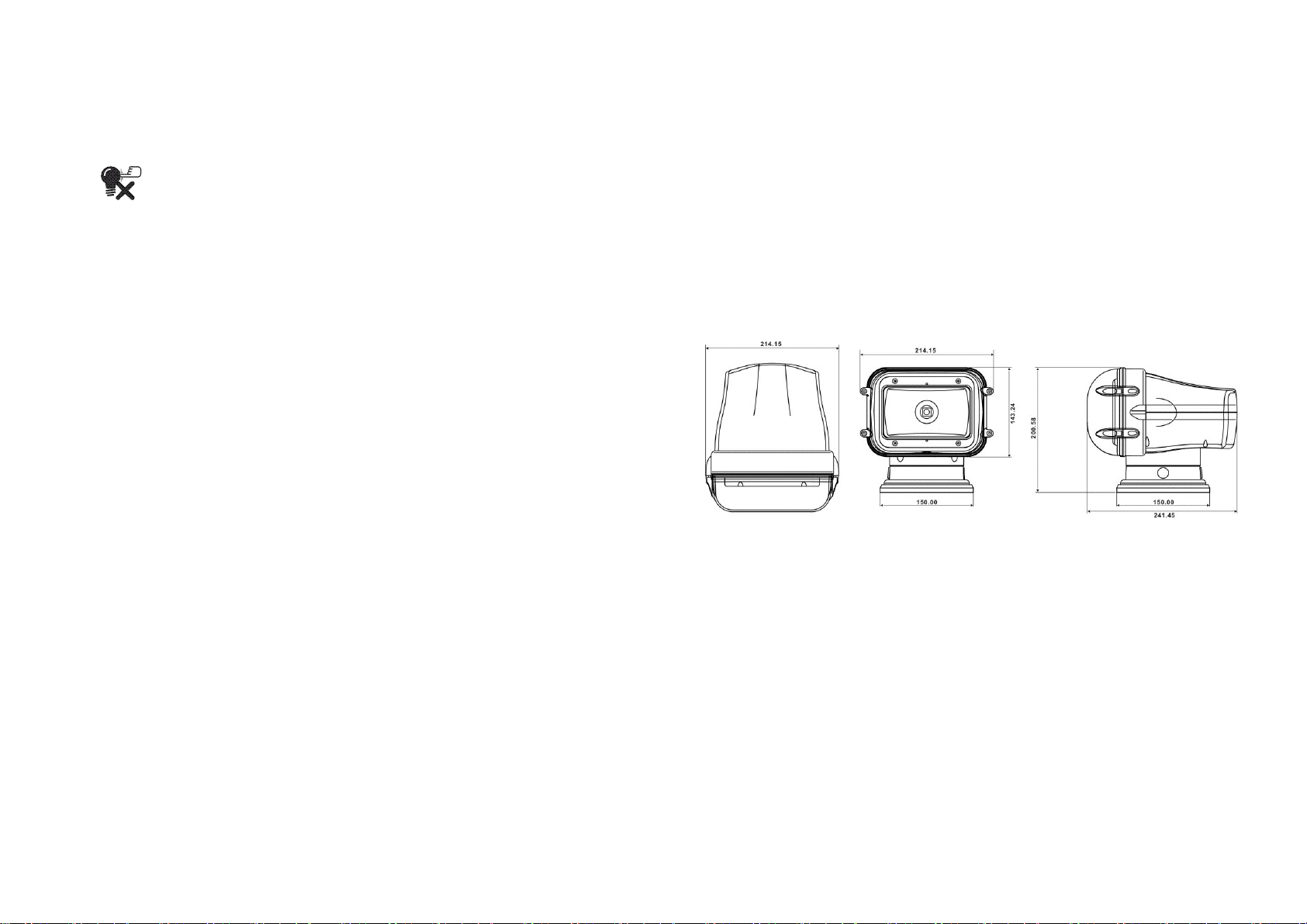

Dimension：
Unit：mm
Bulb
：
Halogen Bulb Type H3 12V 55W
12V DC 55W 5.6Amps / 24V DC 70W 2.8Amps
Xenon Bulb (High-Intensity Discharge)
12V/24V DC 35W 9.5 Amp Max at cold start;
3.5 amp max steady operation at 12v
3 amp max steady operation at 24v
Beam Pattern: Spot
Performance：440 degree Rotation / 120 degree Tilt
Radio Frequency
：433.92MHz
Wireless Remote Battery: 23A*2pcs
Wireless Remote Operation Distance: 65 Meters
Power
：DC 12V / 24V
Weight
：2.3Kgs / 5.1 lbs (Permanent Mount)
2.7Kgs / 6.0 lbs (Magnetic Mount)
INSTALLATION
：
Unit：mm
Permanent
Mount
Dash
-
mount
Wired
Control
Handheld Wired Control socket
Wired/Wireless Toggle Con
trol
WIRED CONTROL SPEED SWITCH FOR DUAL SPEED MODEL
：
Press Right and left button at same time to switch speed.

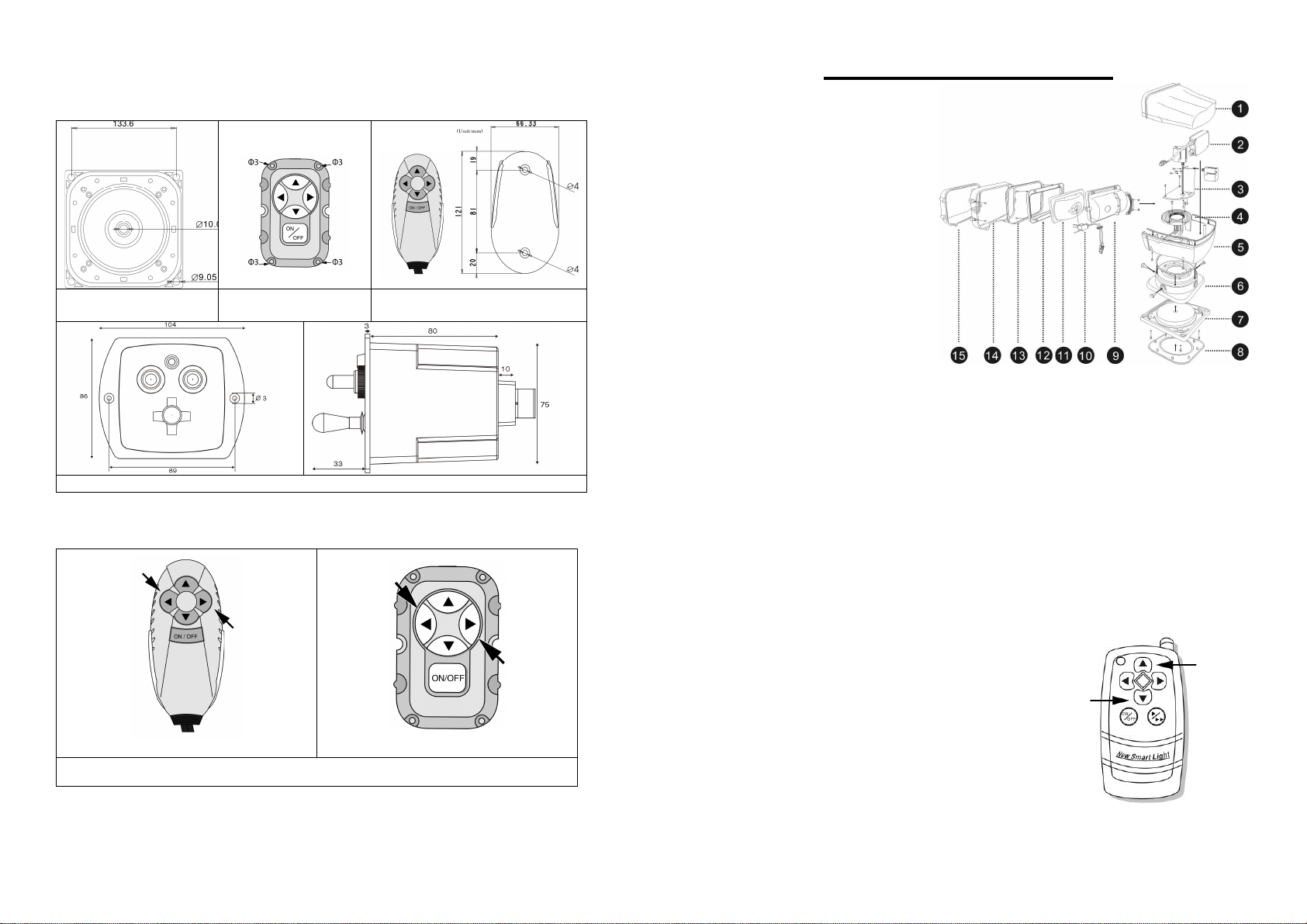

970 Series Lights Exploded View
No.1:
Upper Housing
No.2: Ballast (HID Type)
No.3: Motor Holding Structure
No.4: Rotation Gear Ring
No.5: Lower Housing
No.6: Upper Base
No.7: Middle Base
No.8: Lower Base
No.9: Horizontal Holding
Structure
No.10: Lens and Reflector
No.11: Reflector
No.12: Front Frame
No.13: Waterproof Cover Rubber
No.14: Waterproof Cover Frame
No.15: Waterproof Cover
HANDHELD WIRELESS REMOTE PROGRAMMING PROCESS
：
1. Switch off DC Power.
2. Make sure there is NO RF transmitter operating at the same time.
3. Switch on DC Power then press Remote up ▲ and down ▼button once
synchronously.
4. Searchlight will blink times to accept the Remote.
5. To program the second Remote (Each searchlight
accept 4 units Remote at most ), within five seconds,
press the second Remote up and down button after the
first Remote acknowledged .
