Installation Guide

Removable Power Supply and Fan

AT-PWR01

AT-PWR02

AT-PWR05

AT-FAN01

AT-FAN03

Removable Power Supply and Fan

Installation Guide

AT-PWR01

AT-PWR02

AT-PWR05

AT-FAN01

AT-FAN03

Download the complete document set from

www.alliedtelesis.com/support/software

Removable Power Supply and Fan

Removable Power Supply and Fan Installation Guide

Document Number C613-04057-00 REV L

reproduced without prior written permission from Allied Telesis, Inc.

Allied Telesis, Inc. reserves the right to change specifications and other

information in this document without prior written notice. The information

provided herein is subject to change without notice. In no event shall Allied

Telesis, Inc. be liable for any incidental, special, indirect, or consequential

damages whatsoever, including but not limited to lost profits, arising out of or

related to this manual or the information contained herein, even if Allied Telesis,

Inc. has been advised of, known, or should have known, the possibility of such

damages.

Allied Telesis, AlliedWare, AlliedWare Plus, and SwitchBlade are trademarks or

registered trademarks in the United States and elsewhere of Allied Telesis, Inc.

Adobe, Acrobat, and Reader are either registered trademarks or trademarks of

Adobe Systems Incorporated in the United States and/or other countries.

Microsoft and Visio are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries. Additional brands,

names and products mentioned herein may be trademarks of their respective

companies.

Installation Guide

Contents

About this Guide .............................................................................................................. 4

Compatible Switches ....................................................................................................... 4

Package Contents ............................................................................................................. 5

Installing a Power Supply Unit or Fan .......................................................................... 6

Connecting an AC power supply .................................................................................. 9

Connecting a DC power supply .................................................................................. 11

Checking LEDs ................................................................................................................ 13

Removing a Power Supply Unit or Fan ...................................................................... 15

Troubleshooting .............................................................................................................. 16

Obtaining Documentation and Resources ............................................................... 17

Standards .......................................................................................................................... 19

EC Declaration of Conformity .................................................................................... 20

Removable Power Supply and Fan

About this Guide

This Installation Guide describes how to install the following PSUs and fans:

■AT-PWR01 PSU, either AC or DC power supply unit

■AT-PWR02 PSU, AC o nly

■AT-PWR05 PSU, AC o nly

■AT-FAN01, fan-only module

■AT-FAN03, chassis fan module

Compatible Switches

The following table shows which models of PSUs and fans are appropriate for

individual switches.

You can download complete documentation for these switches from

www.alliedtelesis.com/support/software. For more information about the

documentation and other resources, see “Obtaining Documentation and

Resources” on page 17.

Switch PWR01 PWR02 PWR05 FAN01 FAN03

AT-8948 !!

x900-48FE !!

x900-48FS !!

AT-9924T !!

AT-9924SP !!

AT-9924Ts !!

x900-24XT !!

x900-24XT-N !!

x900-24XS !!

SwitchBlade®x908 !!

Installation Guide

Package Contents

Depending on the model, switches are shipped with a single supply unit (PSU),

either AC or DC. Some models also have fan-only modules (FOM), chassis fan

modules, or blanking plates.

■The AT-8948, AT-9924Ts, x900-24XT, x900-24XT-N, and x900-24XS

switches have a PSU and a FOM installed.

■The x900-48FE, x900-48FS, AT-9924T, and AT-9924SP switches have a PSU

and a blanking plate installed.

■The SwitchBlade®x908 is shipped with dual chassis fan modules and

blanking plates, but no PSUs.

The following items are included with each factory-installed PSU. Contact your

authorised Allied Telesis distributor or reseller if any are damaged or missing.

■one AC power cord (AC models)

■one power cord retaining clip (AC models)

■one warranty card

The following items are included with PSUs when purchased separately:

■one AC power cord (AC models)

■one power cord retaining clip (PWR01 and PWR02 AC models only)

■one clip-on ferrite core (PWR05 only)

■this Installation Guide

■one warranty card

The following items are included with fans when purchased separately:

■this Installation Guide

■one warranty card

Removable Power Supply and Fan

Installing a Power Supply Unit or Fan

Use these instructions to install PSUs, chassis fan modules and FOMs.

■Do not combine PWR01 and PWR02 PSUs in the same switch.

■Do not combine AC and DC PSUs in the same switch.

Before you begin

■Read the safety information for the switch.

Safety information is in the x900 Series Switch and SwitchBlade®x908

Installation and Safety Guide. You can download this document from

www.alliedtelesis.com/support/software.

■Gather necessary tools and equipment.

You will need an appropriate flat-bladed or Phillips (#1) screwdriver to tighten

or loosen the captive screws.

■Verify the package contents if you have not already done so.

See “Package Contents” on page 5. Contact your authorised Allied Telesis

distributor or reseller if items are damaged or missing.

■Remove the unit from its packing material in an anti-static environment.

Caution Follow correct anti-static procedures. Failure to do so could

damage the PSU, fan, or switch. If you are unsure about correct procedures,

contact your authorised Allied Telesis distributor or reseller.

Caution When adding or replacing power supplies, keep your hands and

fingers out of the power supply bays. After installing a PWR05 power supply,

use a screwdriver to tighten the captive screw such that a screwdriver will be

required to remove the PSU at a later date.

Installation Guide

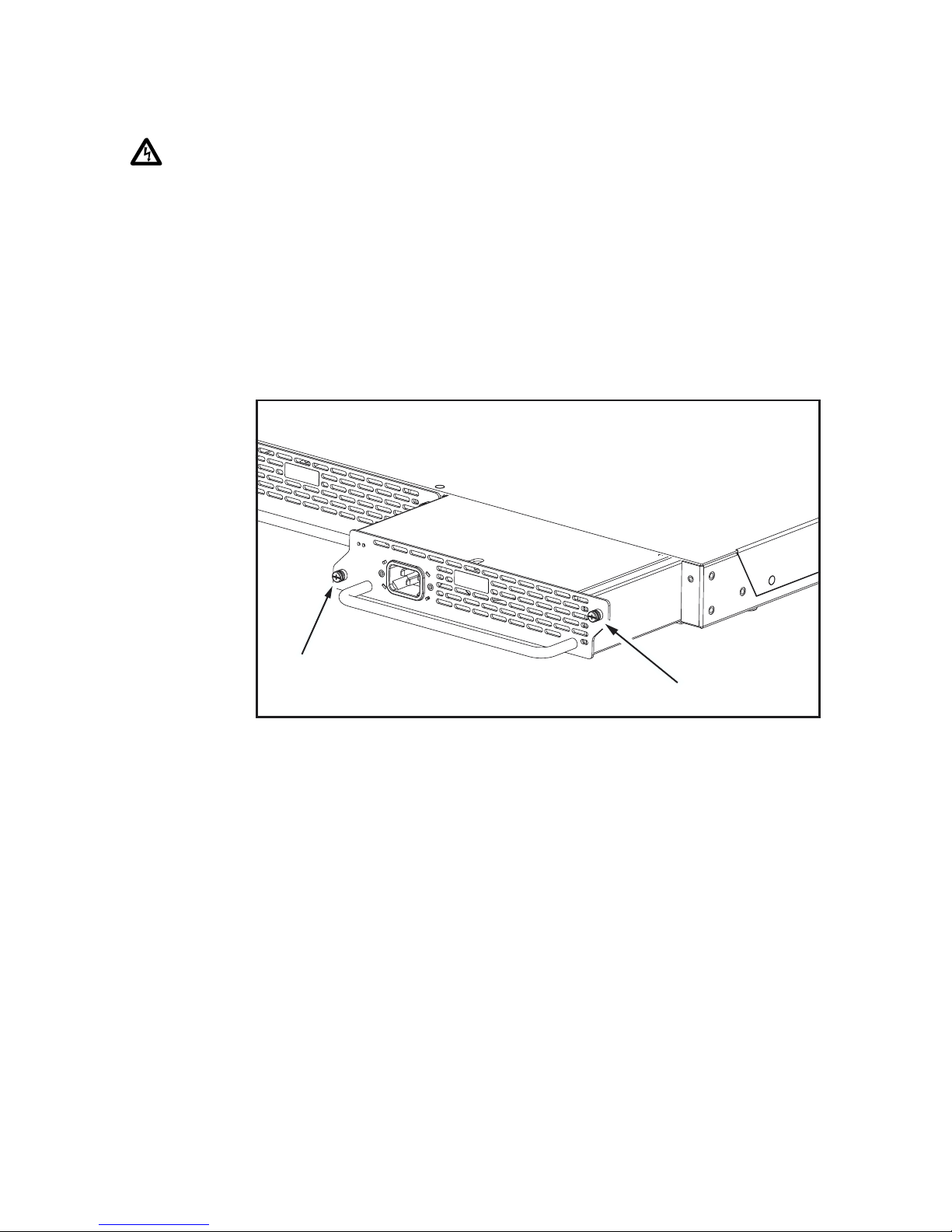

Installing a PWR01, PWR02, or FAN01

1. If you are replacing a PSU, disconnect the power cord from the currently

installed PSU before removing it.

For AC PSUs, turn off the main power source to the PSU and disconnect

the power cord.

For DC PSUs, push the Run/Standby control and release it to the Off

position. When the Run/Standby control is not depressed, it is off.

Disconnect the supply cable wires from the circuit breaker.

2. Remove the current PSU, fan, or blanking plate from the switch.

Loosen the captive screws until fully loosened.

If a unit is already in the bay, slide it out slowly and carefully. Support the

unit from underneath as you remove it to prevent it from falling.

Cover empty bays with a blanking plate because dust and debris could

overheat or damage the unit and switch.

3. Insert the new PSU or fan unit, and carefully slide it into the bay.

Insert it slowly, being sure to keep it straight. Firmly press the unit until the

faceplate engages, or nearly engages, the chassis. Forcing a misaligned unit

into the bay is likely to damage both the unit and chassis.

Note that when you have only one PSU installed in the AT-9924T and

AT-9924SP switches, it must be installed in bay 2 to optimise cooling.

4. Secure the unit in the switch by tightening the captive screws on the

faceplate.

Captive screw

PSU

Switch

Removable Power Supply and Fan

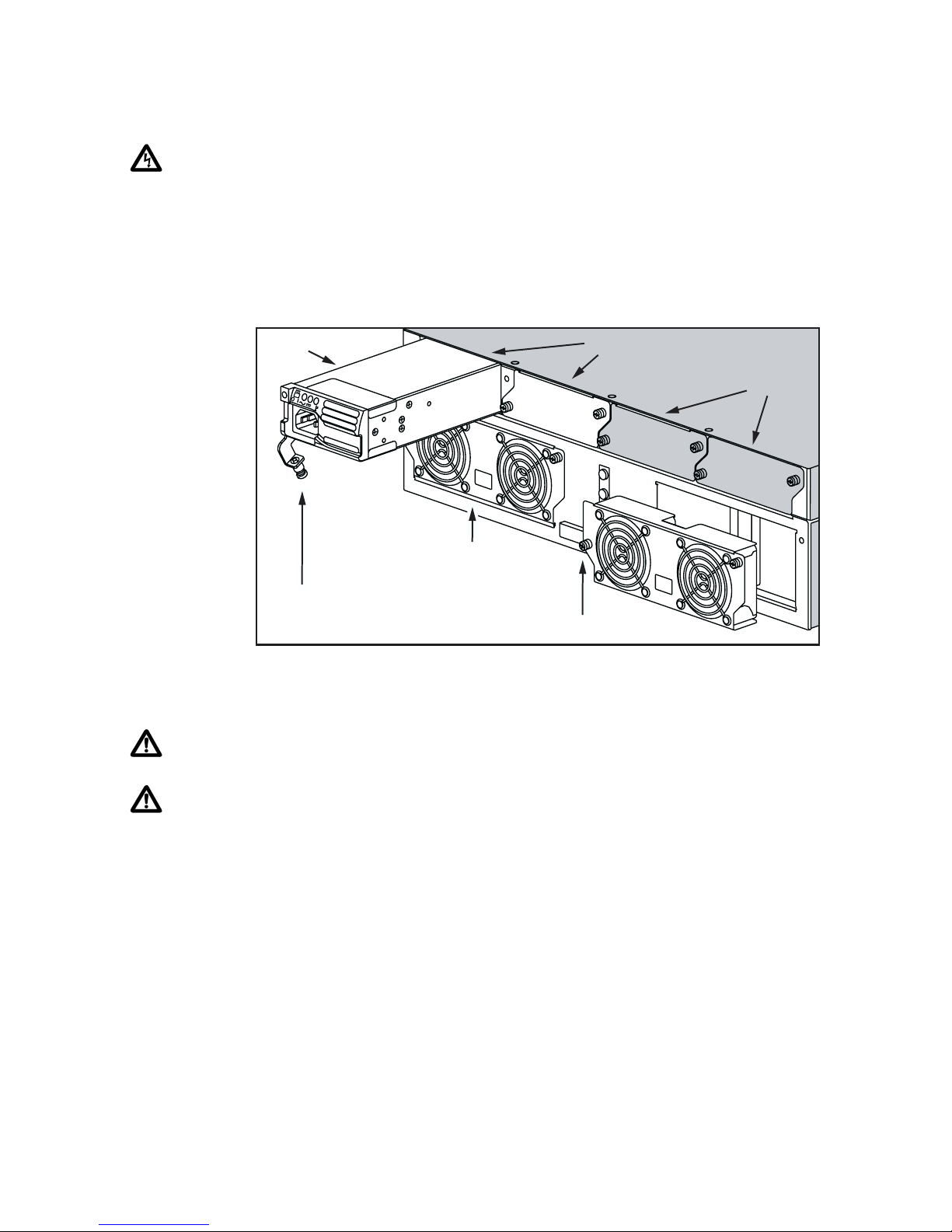

Installing a PWR05 or FAN03

1. If you are replacing a PSU, turn off the main power source to the PSU and

disconnect the power cord before removing it.

The DC earthing connection is not necessary for the SwitchBlade x908 when

using AC PSUs because the chassis is grounded through the power cords.

2. Remove the current PSU, fan module, or blanking plate from the switch.

Using a screwdriver, loosen the captive screw(s) until fully loosened.

If a unit is already in the bay, slide it out slowly and carefully. Support the

unit from underneath as you remove it to prevent it from falling.

Avoid the spinning blades on chassis fan modules. Contact may cause

personal injury or damage the unit.

Cover empty bays because dust and debris could overheat or damage the

unit and switch. Do not operate the switch for extended periods without

functioning chassis fan modules. Doing so will cause the switch to overheat

and shut down, and may damage the switch.

3. Insert the new PSU or chassis fan module, and carefully slide it into the bay.

If you are installing a PSU, unlock the latch on the PSU first by loosening the

captive screw.

Insert the PSU or fan module slowly, being sure to keep it straight. Firmly

press the unit until the faceplate engages, or nearly engages, the chassis.

Forcing a misaligned unit into the bay may damage both the unit and chassis.

4. Secure the unit in the switch by tightening the captive screw(s) on the

faceplate. On the PWR05, use a screwdriver to tighten the captive screw

such that a screwdriver will be required to remove the PSU at a later date.

Captive screw

PSU bays

PSU

Captive screw

Chassis fan

Service

access

panels

Installation Guide

Connecting an AC power supply

Follow these instructions to connect an AT-PWR01, AT-PWR02, or AT-PWR05

AC PSU to an AC power supply:

Warning The AT-PWR01 AC PSU has a fuse rating of 250V, 5A for FH101 and

FH102.

Warning The AT-PWR01 AC PSU has double pole/neutral fusing. Electric

shock is possible since there are dual primary fuses, one on the phase circuit and

one on the neutral circuit. If the neutral opens, the phase may still be live.

Warning For SwitchBlade x908 AC models the grounding stud on the rear of

the unit is for supplemental grounding only. The system must be supplied by a

grounded 3 wire AC source through the power supply cord.

Connecting a PWR01 or PWR02

1. Plug the supplied AC power cord into the power inlet on the PSU and

attach the retaining clip.

2. Connect the power cord to the main power source.

3. The PSU LED on the front panel of the switch lights green. If the LED does

not light, refer to the Hardware Reference for troubleshooting information.

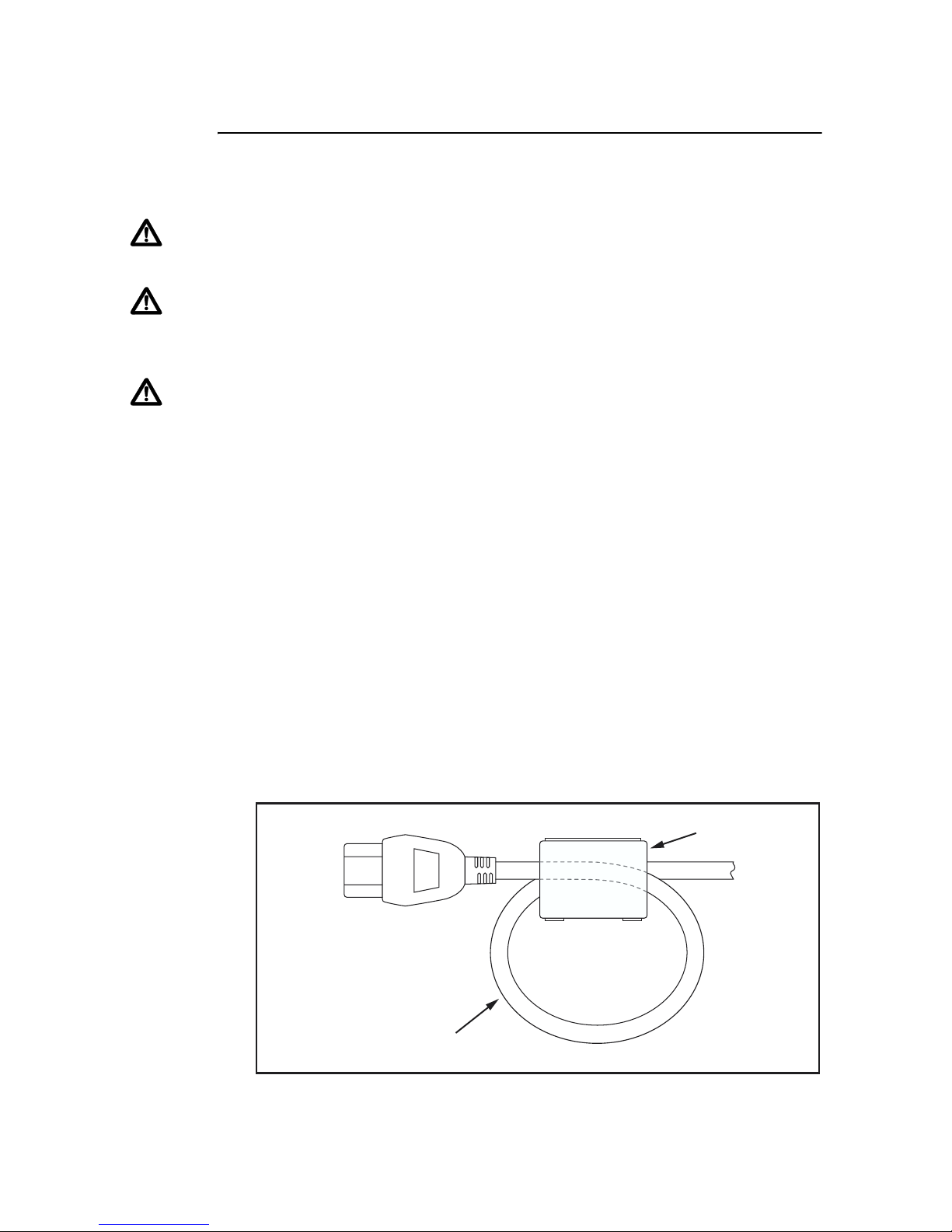

Connecting a PWR05

1. Form a loop in the supplied AC power cord at the PSU end and clip the

ferrite core over the looped cord, as shown in the following illustration.

This keeps the ferrite core in its correct position, close to the PSU.

2. Plug the AC power cord into the power inlet on the PSU.

Looped power cord

Ferrite core

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Allied Telesis Alimentation

Allied Telesis

Allied Telesis AT-PWR01 Manuel utilisateur

Allied Telesis

Allied Telesis CONVERTEON AT-PWR14 Manuel utilisateur

Allied Telesis

Allied Telesis AT-BRPS8000 Manuel utilisateur

Allied Telesis

Allied Telesis AT-RPS3204 Manuel utilisateur

Allied Telesis

Allied Telesis AT-PWR10 Manuel utilisateur

Allied Telesis

Allied Telesis AT-8516F/SC Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-9408LC/SP Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-RPS8000 Manuel utilisateur

Allied Telesis

Allied Telesis AT-PWR01 Manuel utilisateur

Allied Telesis

Allied Telesis AT-PWR11 Manuel utilisateur

Allied Telesis

Allied Telesis AT-RPS3204 Manuel utilisateur

Allied Telesis

Allied Telesis AT-RPS3000 Manuel utilisateur

Allied Telesis

Allied Telesis IE048-480 Manuel utilisateur

Allied Telesis

Allied Telesis AT-PWR4 Manuel utilisateur

Allied Telesis

Allied Telesis AT-WDRPS-80 Manuel utilisateur

Allied Telesis

Allied Telesis AT-8524POE Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-PWR4 Manuel utilisateur

Allied Telesis

Allied Telesis AT-WDRPS-10 Manuel utilisateur

Allied Telesis

Allied Telesis AT-PWR01 Manuel utilisateur

Allied Telesis

Allied Telesis CONVERTEON AT-PWR15 Manuel utilisateur

Allied Telesis

Allied Telesis SWITCHBLADE 4000 Manuel utilisateur

Allied Telesis

Allied Telesis AR740 RPS Manuel utilisateur

Allied Telesis

Allied Telesis AT-8400 Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-RPS9700 Manuel utilisateur

Manuels Alimentation populaires d'autres marques

Monacor

Monacor PS-12CCD Manuel utilisateur

VOLTIMA

VOLTIMA MagicBox 15 Manuel utilisateur

Agilent Technologies

Agilent Technologies 6032A Manuel utilisateur

Miller

Miller Auto Deltaweld 452 Manuel utilisateur

BCP

BCP PUOUBK Feuille d'instructions

HC 2210 Manuel utilisateur

Puls

Puls CT5.241 Manuel utilisateur

OCZ

OCZ ZX1250W Manuel utilisateur

iseg

iseg ECH 238 Manuel utilisateur

Power

Power XXL A Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 6631B Manuel utilisateur

Renogy

Renogy PHOENIX 300 Manuel utilisateur

HP 6200B Manuel de service

Epson

Epson Stylus Scan 2500 Manuel d'utilisation

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuel utilisateur

Puls

Puls MiniLine ML50.100 Manuel utilisateur

Puls

Puls AS-Interface SLA4.100 Manuel utilisateur

Kenwood

Kenwood PS-60 Manuel utilisateur
