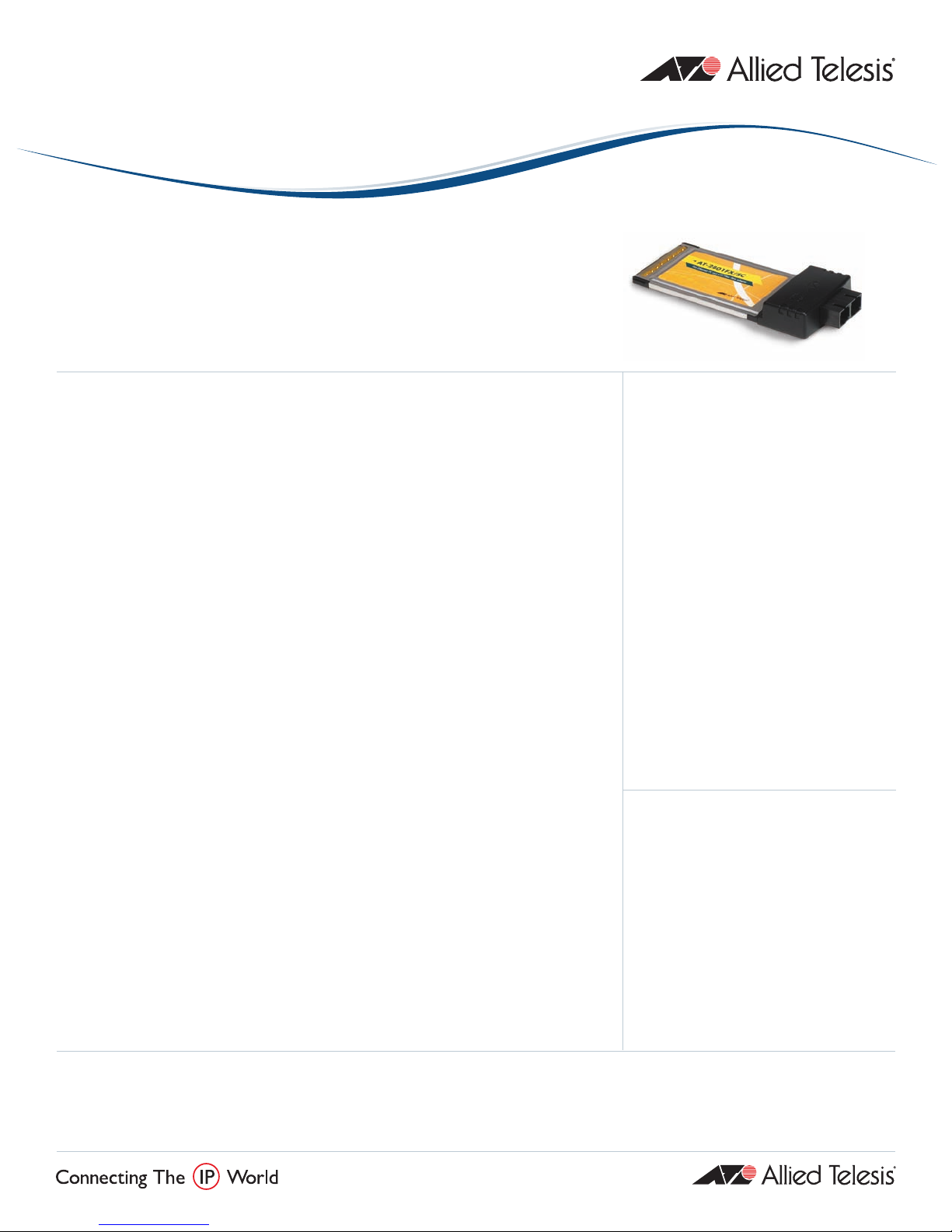

Datasheet | Network Adapter Cards

AT-2801FX

Fast Ethernet PCMCIA Fiber Adapter Card

T-2801FX/xx-001

100BaseFX 32-bit Ethernet adapter

Mobile Connectivity Through Fiber

Allied Telesis’ AT-2801FX PCMCIA card is

designed to provide notebook computerswith

network connections through a high speed

fiber-optic link via a 32-bit PCMCIA interface.

The AT-2801FX card features an ST or SC fiber

connection, supports the Microsoft Windows

2003 and XP operating systems, and is compliant

with industry standards.

Single Piece, Solid Enclosure for

High Reliability

Allied Telesis’ AT-2801FX comes with a variety

of reliability features.The single-piece, integrated

design of the AT-2801FX endures frequent

usage with no damage to the fiber connectors,

making the card a solid solution for militaryand

government usage.

Comprehensive Software Support

Allied T

elesis’ AT

-2801FX adapter cards

feature software to assist users with network

setup and configurations. An offline user diag-

nostics program provides system administrators

and engineerswith a valuable tool to analyze

the network adapter and check data. And finally,

the AT-Setup program simplifies controlling and

configuring all AT-2801FX adapters.

Specifications

LED Status Indicators

Link ON 100Mbit/s connection

OFF No connection

FDX ON Full-Duplex

OFF Half-Duplex

PC Interface

PC card standard release 8.1 and

68 pin connector

Network Connector

Full-duplex or half-duplex mode

100BaseFX ST or SC Fiber connector

Driver Support

Windows 2K

Windows XP

Windows 2003

Power Characteristics

+5V

Environmental Specifications

Operating Temp. 0°Cto 40°C

Operating Humidity 5% to 90%

Physical Characteristics

Dimensions 16 x 54 x 120 mm

(H x W x D)

Weight 0.1 lb

Standards & Compliance

IEEE Std 802.3u Standard for Fast Ethernet

IEEE Std 802.3x Standard for 802.3 full

duplex operation

PC Card Standard Release 8.1

PCMCIA Release 2.x

Electrical/Mechanical Approvals

FCC/EN55022 Class B

VCCI B

TUV

CSA

C-Tick

EN55024 (Immunity)

Key Features

•100Mbps Fiber port with SC or ST connector

•32-bit PC Card w/68pin connector

•Half- or full-duplex operation

•FlowControl (802.3x)

•Advanced Power Management (ACPI)

•SupportWake-on-LAN (WOL) function

and remote wake-up

•PCI 2.2 compliant

•Supports Microsoft Windows 2003 and XP

•RoHS Compliant

USA Headquarters |19800 North Creek Parkway |Suite 200 |Bothell |WA 98011 |USA |T: +1 800 424 4284 |F: +1 425 481 3895

Asia-Pacific Headquarters |11 Tai Seng Link |Singapore |534182 |T: +65 6383 3832 |F: +65 6383 3830

www.alliedtelesis.com

©2006 Allied Telesis Inc. All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners. 617-00570-00 Rev. H

Ordering Information

AT-2801FX/xx-001

100BaseFX 32-bit Ethernet adapter

Where xx = ST for ST Fiber Connector

=SC for SC Fiber Connector
