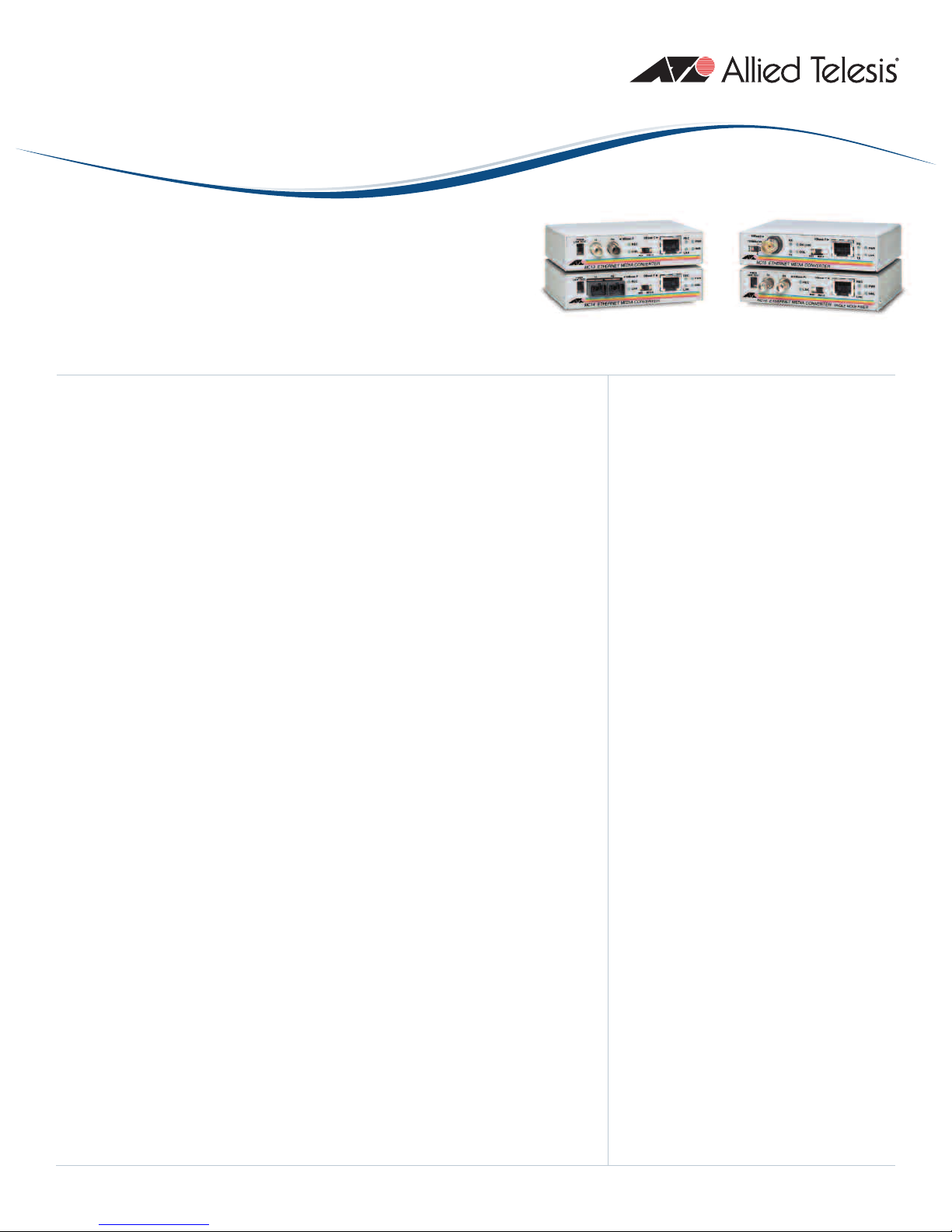

Datasheet | Media Converters

AT-MC13

UTP to fiber ST Ethernet media converter

AT-MC14

UTP to fiber SC Ethernet media converter

AT-MC15

UTP to BNC Ethernet media converter

AT-MC16

UTP to fiber ST single-mode Ethernet media

converter

Fiber Connections

The Allied Telesis range of Ethernet media

converters provides a complete family of

conversion devices, allowing users to extend the

size of UTP networks with the use of fiber

cabling. Supporting all major fiber connectors,

with support for both multi and single-mode

fiber, these converters can be used to extend

networks with up to 15km of fiber.

Auto-Negotiation and MissingLink™

When connecting media converters to auto-

negotiating Fast Ethernet switches, these media

converters (except the AT-MC13 and AT-MC14)

will automatically connect the link in either

Ethernet full or half-duplex mode, allowing the

link to be established with the greatest

bandwidth. In addition, the MissingLinkTM feature

(except AT-MC15) allows switches or hubs with

redundant link capability to be inter-connected

with these media converters, as a failure in one

fiber link will be signalled to the switch, allowing

the second link to become active.

Simple Installation

All the media converters with a UTP

connection feature an internal MDI/MDI-X

switch, allowing the converter to be connected

to either a PC, hub or switch, with a simple UTP

cable.The media converters also allow the

installer to test the integrity of the fiber

connection, byforcing the converters to

communicate over the fiber cable.This ‘Link Test’

feature allows installers to check for cable faults

without the need for expensive fiber optic test

equipment.

Standalone or Rack-mounted

Each small media converter is powered by an

external power supply unit for use in standalone

applications. Where multiple media converters

are being used, up to 12 standalone devices can

be inserted into a low-cost rack-mount chassis,

allowing all the converters to be powered by a

single internal power supply. In critical

applications, a second load sharing internal

power supply can be installed into the rack-

mount chassis.

Key Features

•Half and full-duplex operation

(excluding AT-MC15, half-duplex only)

•Rack-mountable using optional AT-MCR12,

AT-TRAY4 or AT-TRAY1 chassis

•MDI/MDI-X

•MissingLink™ (excluding AT-MC15, N/A)

•Link Test (excluding AT-MC15, N/A)

MC1x Series

Ethernet Media Converters

Allied T

elesis www.alliedtelesis.com

Technical Specifications

Status Indicators

Front Panel

Power (PWR) Indicates power is applied to the

converter

Link (LNK) (2) Indicates a valid receive link

exists

Receive (REC) (2) Indicates valid data being

received by converter

Normal (NML) Indicates product is working in

normal mode

On Line Indicates BNC port is connected

to an active 10Base2 segment

(AT-MC15 only)

Collision (COL) Indicates BNC port is sensing a

collision signal (AT-MC15 only)

Packet Transmission Characteristics

Round Trip Delay 0.4µs Maximum

Bit Error Rate (BER) <10-12

Twisted Pair Interface

Transmitter Typical Worst

Peak Differential

Signal Amplitude 2.5v 2.2 to 2.8v

Transmitter Jitter ±3.2ns

Harmonics Content 27dB below fund

Common Mode 4v

Output Voltage:

Silence 0v +50mv

Link Test Pulse 130ns 105 to 135ns

Output Impendance 100

Ω

85 to 115

Ω

UTP Length 100m

Receiver:

Receiver Threshold -400mv -300 to 585mv

Differential Noise 300mv

Power Characteristics

External Power Supply 100-240V AC, 50/60Hz +/-3%

Input Supply Voltage 12vDC +/-5%

Max Current .5

Power Consumption 6W

Environmental Specifications

External Power Supply 120V AC, 60Hz (US model)

240V AC, 50Hz (European models)

Input Supply Voltage 12vDC

Max Current 500mA

Power Consumption 6W

Physical Characteristics

Dimensions 10.5cm x 9.5cm x 2.5cm

(W x D x H) (4.12” x 3.75” x 1.0”)

Weight 294g (10.4oz)

Electrical/Mechanical Approvals

EMC FCC Class A

Safety UL-Cul, CSA/CSA, NRTL, TUV,

CE compliant

Ordering Information

AT-MC13-xx

UTP to fiber Media Converter with ST fiber connectors

AT-MC14-xx

UTP to fiber Media Converter with SC fiber connectors

AT-MC15-xx

UTP to BNC Media Converter

AT-MC16-xx

UTP to fiber Media Converter with ST single-mode fiber

connectors

Where xx = 10 AC Power supply, US power cord

20 AC Power supply, European power cord

30 AC Power supply, UK power cord

40 AC Power supply, Australian power cord

MC1x Series |Ethernet Media Converters

USA Headquarters |19800 North Creek Parkway |Suite 200 |Bothell |WA 98011 |USA |T: +1 800 424 4284 |F: +1 425 481 3895

Asia-Pacific Headquarters |11 T

ai Seng Link |Singapore |534182 |T: +65 6383 3832 |F: +65 6383 3830

www.alliedtelesis.com

elesis Inc.All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners. 617-00274-00 Rev F
