Allen + Roth KELLERTON Manuel utilisateur
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
1
EB13444
ATTACH YOUR RECEIPT HERE
Serial Number ____________ Purchase Date ____________
allen + roth®is a registered trademark
of LF, LLC. All Rights Reserved.
wFMDPNJOHtTPQIJTUJDBUFEtJOTQJSJOH
TM
Lowes.com/allenandroth
ITEM #0459544
KELLERTON
CEILING FAN
MODEL #LP7942LBZ
Español p. 24
2
Lowes.com/allenandroth
TABLE OF CONTENTS
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Hardware Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Initial Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Wiring Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Final Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Blade Balancing Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Care And Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3
Lowes.com/allenandroth
PACKAGE CONTENTS
J
O
K
F
G
H
L
M
N
I
B
C
D
E
A
PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY
A Motor 1 H Socket Plate Assembly 1
B Hanger Bracket 1 I Glass 1
C Downrod 1 J Blade Arm 5
D Ceiling Canopy 1 K Blade 5
E Canopy Screw Cover 1 L Bulb 1
F Motor Coupling Cover 1 M Remote 1
G Light Plate Assembly 1 N Receiver Unit 1
O Battery 1
4
Lowes.com/allenandroth
HARDWARE CONTENTS (shown actual size)
AA BB CC DD EE FF
Screw
Qty. 11 Washer-Head
Screw
Qty. 16
Fiber
Washer
Qty. 16
Wire
Connector
Qty. 4
Balance
Kit Kit (not
shown to size)
Qty. 1
Hanger Ball
Set Screw
(preassembled to
Downrod (C))
Qty.1
GG HH II
Hanger Ball Pin (preassembled
to Downrod (C))
Qty. 1
Downrod Clip
(preassembled to Downrod
(C))
Qty. 1
Downrod Pin (preassembled to
Downrod (C))
Qty. 1
JJ KK LL
Downrod Support Set Screw
(preassembled to Motor (A))
Qty. 2
Shoulder Screw
(preassembled to Hanger
Bracket (B))
Qty. 2
Adapter Plate Screw (preassembled
to Motor (A))
Qty. 3
MM
Light Plate Screw
(preassembled to the Light
Plate Assembly (G))
Qty. 3
5
Lowes.com/allenandroth
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
• Make sure all electrical connections comply with local codes, ordinances, or the National Electrical
code. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar
with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the ends of the blades to any obstruction.
• If you are mounting the fan to a ceiling outlet box, use a METAL octagonal outlet box.
• Secure the box directly to the building structure. The outlet box and its support must be able to
support the moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• For supply connections, if the conductor of a fan is identified as a grounded conductor, then it
should be connected to a grounded conductor power supply. If the conductor of a fan is identified
as an ungrounded conductor, then it should be connected to an ungrounded conductor power
supply. If the conductor of a fan is identified for equipment grounding, then it should be connected
to an equipment-grounding conductor.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and the receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
Note: For a Class A digital device, statements of 15. 105(a) must be included when appropriate for
the device in question.
• The net weight of this fan is: 19.95 lbs.
WARNING:
• Do not install or use this fan if any part is damaged or missing.
• To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12 gauges or there is more than one house wire to connect to the two fan
lead wires, consult an electrician for the proper size wire connectors to use. Before cutting, drilling
or hammering, verify their location. If needed, contact your electrician, plumber or service person.
6
Lowes.com/allenandroth
SAFETY INFORMATION
To reduce the risk of ¿re, electric shock, or personal injury, do not bend the blade arms when
installing them, balancing the blades, or cleaning the fan. Do not insert foreign objects between the
rotating fan blades. Mount the fan to an outlet box marked “ACCEPTABLE FOR FAN SUPPORT”
and use mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting ¿xtures are not acceptable for fan support and may need to be replaced. Consult
a quali¿ed electrician if in doubt.
This fan is to be used in dry locations only.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Phillips screwdriver, 1/4 in. Àathead screwdriver, wire
strippers and step ladder
Helpful Tools (not included):AC tester light, do-it-yourself wiring handbook and wire cutters
INITIAL ASSEMBLY INSTRUCTIONS
1. Loosen the preassembled hanger ball set screw (FF)
until the hanger ball falls freely down the downrod
(C). Remove the preassembled hanger ball pin (GG)
from the downrod (C) and remove the hanger ball
portion of the downrod (C). Retain the hanger ball pin
(GG) and hanger ball for later.
Hardware Used
FF Hanger Ball Set
Screw x 1
GG Hanger Ball Pin x 1
1
GG
C
FF
'RQRWRSHUDWHWKLVIDQZLWKDYDULDEOH5KHRVWDWZDOOFRQWUROOHURUGLPPHUVZLWFK'RLQJVRFRXOG
result in damage to the ceiling fan's remote control unit.
7
Lowes.com/allenandroth
INITIAL ASSEMBLY INSTRUCTIONS

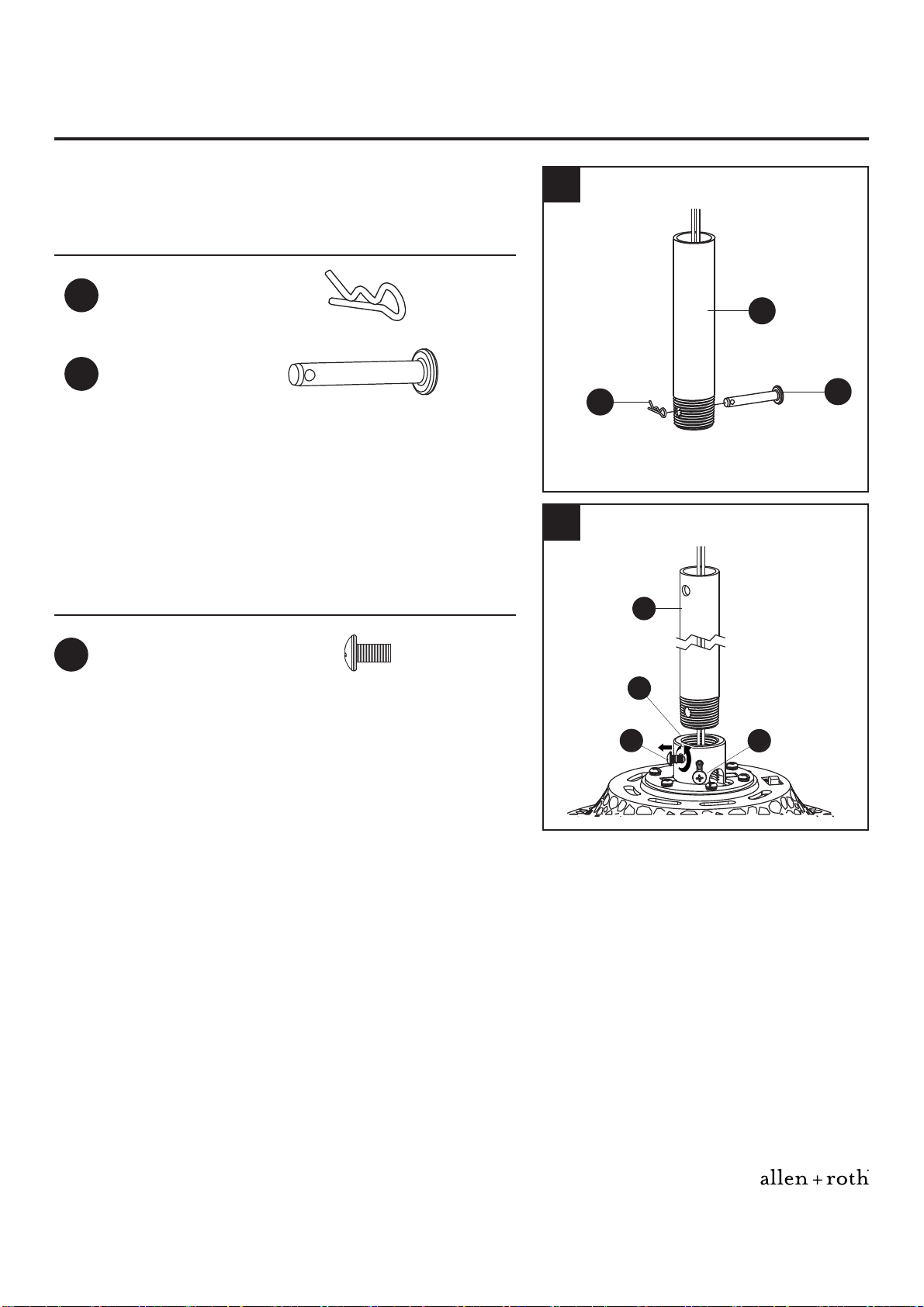

2. Remove the preassembled downrod clip (HH) and
downrod pin (II) from the bottom of the downrod (C).
Retain these two parts for later.
Hardware Used
HH Downrod Clip x 1
II Downrod Pin x 1
2
C
II
HH
3. Loosen the two preassembled downrod support
set screws (JJ) on the motor (A). Route the black,
blue, and white wires from the motor (A) through the
downrod (C).
Hardware Used
JJ Downrod Support
Set Screw x 2
3
C
A
JJ JJ
8
Lowes.com/allenandroth
INITIAL ASSEMBLY INSTRUCTIONS
4. Thread the downrod (C) into the downrod support of
the motor (A). Align the holes in the downrod support
of the motor (A) with the holes in the downrod (C)
e-install the downrod pin (II). Secure the downrod pin
(II) with the downrod clip (HH). Tighten the downrod
support set screws (JJ) back into the motor (A).
WARNING: It is critical the downrod pin (II) is properly
installed and the motor housing set screws (JJ) are
securely tightened. Failure to do so could result in the fan
falling.
Hardware Used
HH Downrod Clip x 1
II Downrod Pin x 1
JJ Downrod Support
Set Screw x 2
4
HH
C
A
II
JJ
5. Route the wires through the motor coupling cover (F),
canopy screw cover (E) and ceiling canopy (D). 5
D
E
F
9
Lowes.com/allenandroth
INITIAL ASSEMBLY INSTRUCTIONS
6. Route the wires through the previously removed
hanger ball. Insert the previously removed hanger
ball pin (GG) through the two holes in the downrod
(C) and align the hanger ball so the hanger ball
pin (GG) is captured in the groove in the top of the
downrod (C). Pull the hanger ball up tight against
the hanger ball pin (GG). Securely tighten the
preassembled hanger ball set screw (FF).
CAUTION: A loose set screw could result in a wobbly fan.
Hardware Used
FF Hanger Ball Set
Screw x 1
GG Hanger Ball Pin x 1
6
C
A
C
GG
FF
7. Cut off excess lead wire approximately 6 to 9 in.
above the top of the downrod (C). Strip insulation off
1/2 in. from the end of each lead wire. 7
C
10
Lowes.com/allenandroth
INITIAL ASSEMBLY INSTRUCTIONS
8. Securely attach the hanger bracket (B) to the outlet
box (not included) using the outlet box screws and
washers supplied with the outlet box.
WARNING: To avoid possible electrical shock, be
sure electricity is turned off at the main fuse box before
hanging.
WARNING: If you are not sure if the outlet box is
grounded, contact a licensed electrician for advice, as it
must be grounded for safe operation.
WARNING: The fan must hang with at least 7 ft. of
clearance from the floor to blades.
WARNING: The outlet box must be securely
anchored. The hanger bracket must seat firmly against
the outlet box. If the outlet box is recessed, remove
wallboard until the bracket contacts the box. If the bracket
and/or outlet box are not securely attached, the fan could
wobble or fall.
8
B
9. Carefully lift the fan assembly and seat the hanger
ball of the downrod (C) on the hanger bracket (B). Be
sure the groove in the ball is lined up with the tab on
the hanger bracket (B).
WARNING: Failure to seat the tab in the groove could
cause damage to electrical wires and possible shock or a
fire hazard.
WARNING: To avoid possible shock, do not pinch
wires between the hanger ball assembly and the hanger
bracket.
9
B
C
