Alienware X51 Manuel utilisateur

Alienware X51

Service Manual

Computer Model: Alienware X51 R3

Regulatory Model: D05S

Regulatory Type: D05S003

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

CAUTION: A CAUTION indicates either potential damage to

hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of

Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned

herein may be trademarks of their respective companies.

2015 - 10

Rev. A00

Contents

Before working inside your computer..........................6

Before you begin .................................................................................................6

Safety instructions..............................................................................................6

Recommended tools............................................................................................7

After working inside your computer............................. 9

Technical overview.............................................................. 10

Inside View Of Your Computer...........................................................................10

Removing the side panel....................................................11

Procedure............................................................................................................11

Replacing the side panel................................................... 13

Procedure...........................................................................................................13

Removing the processor cooling-assembly............14

Prerequisites......................................................................................................14

Procedure...........................................................................................................14

Replacing the processor cooling assembly............. 18

Procedure...........................................................................................................18

Post-requisites.................................................................................................. 18

Removing the wireless card............................................ 19

Prerequisites......................................................................................................19

Procedure...........................................................................................................19

Replacing the wireless card............................................. 21

Procedure...........................................................................................................21

Post-requisites..................................................................................................23

Removing the memory module.................................... 24

Prerequisites.....................................................................................................24

Procedure..........................................................................................................24

Replacing the memory module.....................................26

Procedure..........................................................................................................26

Post-requisites.................................................................................................. 27

Removing the hard drive..................................................28

Prerequisites.....................................................................................................28

Procedure..........................................................................................................28

Replacing the hard drive.................................................. 33

Procedure..........................................................................................................33

Post-requisites..................................................................................................33

Removing the graphics card.......................................... 34

Prerequisites.....................................................................................................34

Procedure..........................................................................................................34

Replacing the graphics card...........................................39

Procedure..........................................................................................................39

Post-requisites..................................................................................................39

Removing the solid-state drive.................................... 40

Prerequisites.....................................................................................................40

Procedure..........................................................................................................40

Replacing the solid-state drive.....................................43

Procedure..........................................................................................................43

Post-requisites..................................................................................................44

BIOS setup program............................................................45

Overview............................................................................................................45

Entering System Setup ....................................................................................45

System Setup Options......................................................................................45

Boot sequence................................................................................................... 51

Changing boot sequence for the current boot............................................51

Changing boot sequence for future boots..................................................52

Flashing the BIOS................................................................. 53

Getting help and contacting Alienware....................54

Self-help resources........................................................................................... 54

Contacting Alienware....................................................................................... 55

Before working inside your

computer

NOTE: The images in this document may differ from your computer

depending on the configuration you ordered.

Before you begin

1 Save and close all open files and exit all open applications.

2 Shut down your computer.

– Windows 10: Click or tap Start → Power → Shut down.

– Windows 8.1: On the Start screen, click or tap the power icon →

Shut down.

NOTE: If you are using a different operating system, see the

documentation of your operating system for shut-down instructions.

3 Disconnect your computer and all attached devices from their electrical

outlets.

4 Disconnect all cables such as telephone cables, network cables and so on,

from your computer.

5 Disconnect all attached devices and peripherals, such as keyboard, mouse,

monitor, and so on, from your computer.

6 Remove any media card and optical disc from your computer, if applicable.

7 After the computer is unplugged, press and hold the power button for 5

seconds to ground the system board.

Safety instructions

Use the following safety guidelines to protect your computer from potential

damage and ensure your personal safety.

WARNING: Before working inside your computer, read the

safety information that shipped with your computer. For

more safety best practices, see the Regulatory Compliance

home page at www.dell.com/regulatory_compliance.

WARNING: Disconnect all power sources before opening the

computer cover or panels. After you finish working inside

the computer, replace all covers, panels, and screws before

connecting to the power source.

CAUTION: To avoid damaging the computer, ensure that the

work surface is flat and clean.

CAUTION: To avoid damaging the components and cards,

handle them by their edges and avoid touching pins and

contacts.

CAUTION: You should only perform troubleshooting and

repairs as authorized or directed by the Dell technical

assistance team. Damage due to servicing that is not

authorized by Dell is not covered by your warranty. See the

safety instructions that shipped with the product or at

www.dell.com/regulatory_compliance.

CAUTION: Before touching anything inside your computer,

ground yourself by touching an unpainted metal surface,

such as the metal at the back of the computer. While you

work, periodically touch an unpainted metal surface to

dissipate static electricity, which could harm internal

components.

CAUTION: When you disconnect a cable, pull on its connector

or on its pull tab, not on the cable itself. Some cables have

connectors with locking tabs or thumb-screws that you

must disengage before disconnecting the cable. When

disconnecting cables, keep them evenly aligned to avoid

bending any connector pins. When connecting cables,

ensure that the ports and connectors are correctly oriented

and aligned.

CAUTION: Press and eject any installed card from the media-

card reader.

Recommended tools

The procedures in this document may require the following tools:

• Philips screwdriver

• Flat-head screwdriver

• Plastic scribe

After working inside your

computer

CAUTION: Leaving stray or loose screws inside your

computer may severely damage your computer.

1 Replace all screws and ensure that no stray screws remain inside your

computer.

2 Connect any external devices, peripherals, and cables you removed before

working on your computer.

3 Replace any media cards, discs, and any other parts that you removed

before working on your computer.

4 Connect your computer and all attached devices to their electrical outlets.

5 Turn on your computer.

Technical overview

WARNING: Before working inside your computer, read the

safety information that shipped with your computer and

follow the steps in Before working inside your computer.

After working inside your computer, follow the instructions

in After working inside your computer. For more safety best

practices, see the Regulatory Compliance home page at

www.dell.com/regulatory_compliance.

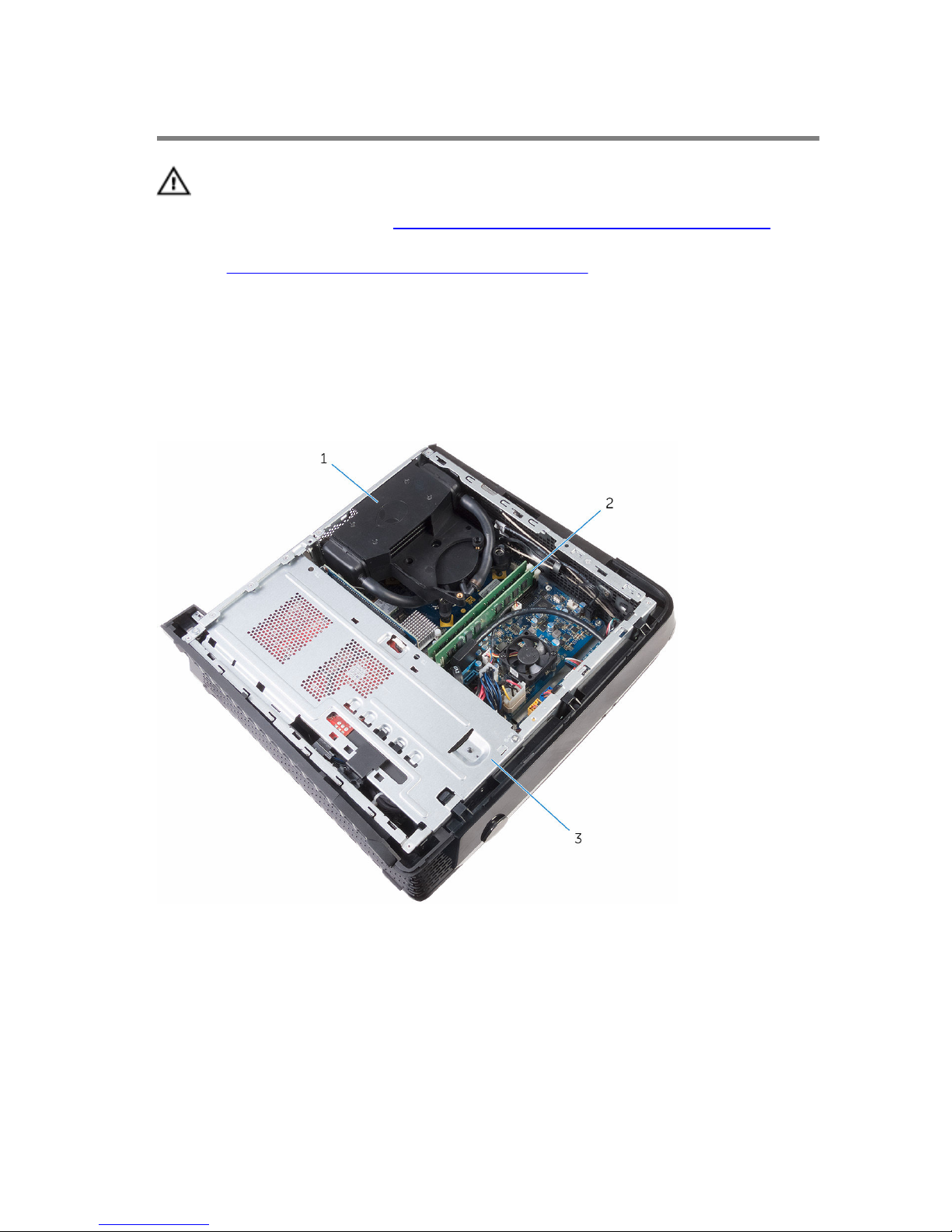

Inside View Of Your Computer

1 processor cooling assembly 2 memory modules

3 riser cage
