Algo 8188 Manuel utilisateur

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 1 www.algosolutions.com

8188 SIP Ceiling Speaker

FW Version 1.0

Installation & Configuration

Order Codes

8188 Ceiling Speaker White

8188-B Ceiling Speaker Black

8188-TBR T-Bar Support Bracket

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 2 www.algosolutions.com

Table of Contents

IMPORTANT SAFETY INFORMATION......................................................................................................5

ABOUT THE ALGO SIP 8188 CEILING SPEAKER........................................................................................6

GETTING STARTED - QUICK INSTALL & TEST...........................................................................................7

CEILING INSTALLATION ..........................................................................................................................8

AIR HANDLING SPACES UL2043..............................................................................................................9

SUSPENDED INSTALLATION ...................................................................................................................9

WEB INTERFACE...................................................................................................................................10

SIP PAGING ONE SPEAKER ...................................................................................................................10

SIP PAGING MULTIPLE SPEAKERS (USING MULTICAST) ........................................................................11

SIP PAGING MULTIPLE SPEAKERS (USING INDIVIDUAL SIP EXTENSIONS) .............................................12

MULTICAST PAGE ZONES .....................................................................................................................12

POLYCOMTM GROUP PAGING...............................................................................................................13

SIP ACTIVATED NOTIFICATION.............................................................................................................14

SIP RING EVENT ..................................................................................................................................14

SIP MESSAGE WAITING EVENT ...............................................................................................................14

SUBSCRIBE/NOTIFY ..............................................................................................................................14

RELAY/SWITCH ACTIVATED NOTIFICATION..........................................................................................14

RELAY/SWITCH ACTIVATED SIP CALL....................................................................................................14

AUDIO ALARM (LEVEL) ACTIVATED SIP CALL........................................................................................14

WIRING CONNECTIONS........................................................................................................................15

NETWORK CONNECTION ........................................................................................................................15

TERMINAL BLOCK RELAY IN....................................................................................................................15

TERMINAL BLOCK RELAY OUT .................................................................................................................15

BLUE LED INDICATOR...........................................................................................................................15

RESET BUTTON.....................................................................................................................................15

WEB INTERFACE LOGIN........................................................................................................................16

BASIC SETTINGS TAB - SIP ....................................................................................................................17

SIP DOMAIN (PROXY SERVER)................................................................................................................17

RING/ALERT MODE..............................................................................................................................17

PAGE FUNCTION ..................................................................................................................................17

PAGE EXTENSION .................................................................................................................................17

AUTHENTICATION ID ............................................................................................................................18

AUTHENTICATION PASSWORD.................................................................................................................18

BASIC SETTINGS TAB - FEATURES .........................................................................................................18

RING TONE.........................................................................................................................................18

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 3 www.algosolutions.com

RING LIMIT.........................................................................................................................................19

PAGE MODE .......................................................................................................................................19

PAGE TIMEOUT ...................................................................................................................................19

PAGE TONE ........................................................................................................................................19

G.722 SUPPORT..................................................................................................................................19

BASIC SETTINGS TAB –AUDIO..............................................................................................................20

RING SPEAKER VOLUME ........................................................................................................................20

PAGE SPEAKER VOLUME ........................................................................................................................20

AMBIENT NOISE COMPENSATION ............................................................................................................20

AUTOMATIC GAIN CONTROL (AGC).........................................................................................................21

AUDIO DELAY .....................................................................................................................................21

MULTICAST IP ADDRESSES...................................................................................................................21

BASIC SETTINGS TAB - MULTICAST (MASTER SETTINGS) ......................................................................22

MULTICAST MODE (MASTER SELECTED)....................................................................................................22

MASTER ZONE ....................................................................................................................................22

ZONE DEFINITION IP ADDRESS &PORT.....................................................................................................23

POLYCOMTM GROUP PAGING MASTER......................................................................................................23

BASIC SETTINGS TAB - MULTICAST (SLAVE SETTINGS)..........................................................................24

MULTICAST MODE (SLAVE SELECTED).......................................................................................................24

SLAVE ZONES ......................................................................................................................................24

ZONE DEFINITION IP ADDRESS &PORT.....................................................................................................25

POLYCOMTM GROUP PAGING SLAVE.........................................................................................................25

ADVANCED SETTINGS TAB - NETWORK................................................................................................26

PROTOCOL .........................................................................................................................................26

VLAN MODE......................................................................................................................................26

VLAN ID...........................................................................................................................................27

VLAN PRIORITY ..................................................................................................................................27

DIFFERENTIATED SERVICES (6-BIT DSCP VALUE) .........................................................................................27

ADVANCED SETTINGS TAB –ADMIN ....................................................................................................28

PASSWORD.........................................................................................................................................28

CONFIRMATION ...................................................................................................................................28

DEVICE NAME .....................................................................................................................................28

INTRODUCTION SECTION ON STATUS PAGE ................................................................................................28

LOG LEVEL..........................................................................................................................................29

LOG METHOD .....................................................................................................................................29

LOG SERVER........................................................................................................................................29

HARDWARE WATCHDOG .......................................................................................................................29

SNMP SUPPORT (V1GET ONLY) .............................................................................................................29

ADVANCED SETTINGS TAB –TIME........................................................................................................30

TIME ZONE .........................................................................................................................................30

NTP TIME SERVERS..............................................................................................................................30

ADVANCED SETTINGS TAB –PROVISIONING........................................................................................31

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 4 www.algosolutions.com

MD5 CHECKSUM.................................................................................................................................32

GENERATING A GENERIC CONFIGURATION FILE ............................................................................................32

GENERATING A SPECIFIC CONFIGURATION FILE.............................................................................................33

ADVANCED SETTINGS TAB –TONES .....................................................................................................34

RING TONE FILES INCLUDED IN MEMORY...................................................................................................34

UPLOADING CUSTOM RING TONES (WAV FILES) ........................................................................................34

ADVANCED SETTINGS TAB - SIP............................................................................................................35

OUTBOUND PROXY ..............................................................................................................................35

STUN SERVER ....................................................................................................................................35

REGISTER PERIOD (SECONDS)..................................................................................................................35

KEEP-ALIVE METHOD ............................................................................................................................36

SERVER REDUNDANCY FEATURE ..............................................................................................................36

BACKUP SERVER #1..............................................................................................................................36

BACKUP SERVER #2..............................................................................................................................37

POLLING INTERVALS (SECONDS)...............................................................................................................37

POLL ACTIVE SERVER ............................................................................................................................37

AUTOMATIC FAILBACK ..........................................................................................................................37

POLLING METHOD................................................................................................................................37

SYSTEM TAB - MAINTENANCE..............................................................................................................38

DOWNLOAD CONFIGURATION FILE...........................................................................................................38

RESTORE CONFIGURATION FILE ...............................................................................................................38

RESTORE CONFIGURATION TO DEFAULTS ...................................................................................................38

REBOOT THE DEVICE .............................................................................................................................38

FIRMWARE IMAGE ...............................................................................................................................39

MD5 CHECKSUM.................................................................................................................................39

SYSTEM - NETWORK LOGGING.............................................................................................................39

SPECIFICATIONS...................................................................................................................................40

FCC COMPLIANCE STATEMENT ............................................................................................................41

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 5 www.algosolutions.com

Important Safety Information

INSTALLATION

An improperly installed 8188 Ceiling Speaker could fall from the ceiling

and cause serious injury or death. The four screw mounting clamps will

adequately support the speaker if the ceiling material is sufficiently

strong. An optional T-bar mounting bracket (Algo 8188-TBR) is

recommended for acoustic ceiling tile and may be required for

compliance with local building code. A ¼-20 threaded insert nut on top

of the speaker housing can accept an eye-bolt (not supplied) for chain

or cable support and additional safety.

Local building codes may require one or more additional safety

measures, particularly in earthquake prone regions.

EMERGENCY COMMUNICATION

If used in an emergency communication application, the 8188 Ceiling

Speaker should be routinely tested. SNMP supervision is recommended

for assurance of proper operation. Contact Algo for other methods of

operational assurance including the use of the integrated microphone

for automated “sound to air” acoustic testing.

DRY INDOOR LOCATION ONLY

The 8188 Ceiling Speaker is intended for indoor dry locations only. For

outdoor locations Algo offers weatherproof speakers and strobe lights.

CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant

network PoE switch must not leave the building perimeter

without adequate lightning protection.

No wiring connected to the 8188 Ceiling Speaker may leave the

building perimeter without adequate lightning protection.

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 6 www.algosolutions.com

About the Algo SIP 8188 Ceiling Speaker

The 8188 Ceiling Speaker is a SIP compliant and multicast capable IP

speaker suitable for voice paging, notification, and background

music.

The 6.5” (165mm) coaxial speaker is G.722 wideband capable and

music capable using a fullband codec. An integrated microphone

provides talkback capability and ambient noise detection for

automatic level control.

Dual SIP extensions provide both voice paging and notification (ring)

capability. One or both extensions can be registered with any

Communication Server (hosted or enterprise) that supports 3rd party

SIP Endpoints.

Multiple speakers in a SIP environment require only one speaker to

registered speaker to page and simultaneously stream multicast

audio to the other speakers.

The 8188 Ceiling Speaker is configured using central provisioning

features or by accessing a web interface using browsers such as

Google Chrome, Firefox, or Internet Explorer.

What is Included

8188 Ceiling Speaker

Trim ring (white if 8188, black if 8188-B)

Speaker grill (white if 8188, black if 8188-B)

Tool for grill removal and reset

Protective wiring cover and screws

Pluggable terminal block for relay input and output

Getting Started Sheet

Hole cut-out template

What is not Included

T-bar support bracket (Algo 8188-TBR)

Wall switch (Algo 1202 or 1203)

Hardware for cable or chain suspension

This Installation Guide (www.algosolutions.com/8188/Guide)

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 7 www.algosolutions.com

Getting Started - Quick Install & Test

This guide provides important safety information which should be

read thoroughly before permanently installing the speaker.

1. Connect the 8188 SIP Ceiling Speaker to an IEEE 802.3af compliant

PoE network switch. The blue LED will remain on until boot up is

completed –about 30 seconds.

2. After the blue LED turns off, press the reset switch (RST) to hear the

IP address over the speaker. The IP address may also be discovered

by downloading the Algo locator tool to find Algo devices on your

network: www.algosolutions.com/locator

3. Mount the speaker per the instructions in this guide.

4. Access the 8188 Ceiling Speaker web page by entering the IP address

into a browser (Chrome, IE, Firefox etc) and login using the default

password algo.

5. Enter the IP address for the SIP server into the SIP Domain field

under the BASIC SETTINGS > SIP tab.

6. Enter the page SIP extension and password. (Note the speaker

supports two SIP extensions. The page extension auto-answers for

paging. The ring extension plays a WAV file over the speaker without

answering.)

7. Make a call to the speaker by dialling the page SIP extension from a

telephone. The speaker should auto-answer, play the default pre-

announce WAV file, and open a speech path.

8. Carefully install the protective grill working around the grill until fully

installed and flush with the housing.

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 8 www.algosolutions.com

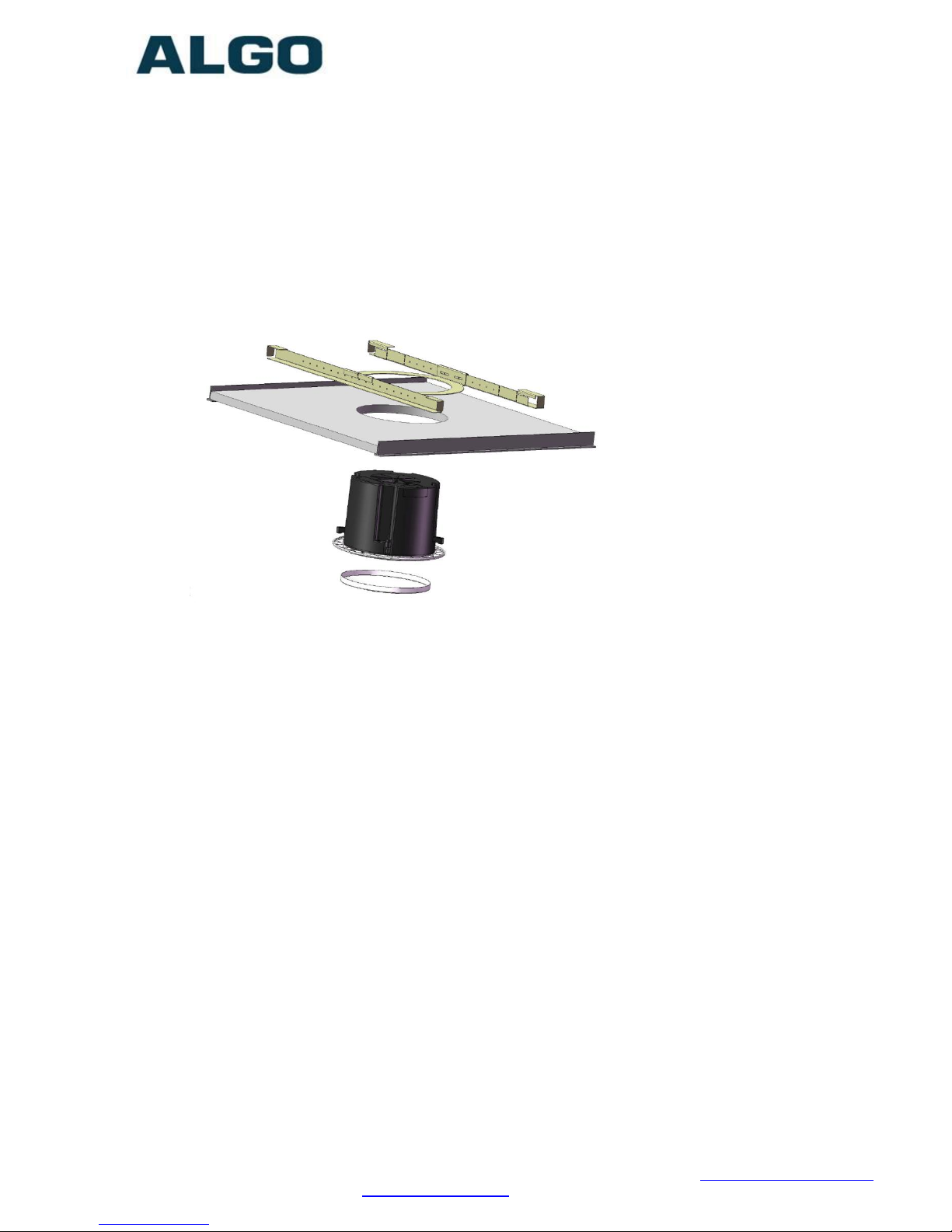

Ceiling Installation

The 8188 Ceiling Speaker is intended to be mounted in a T-bar acoustic

tile or gypsum ceiling. The speaker may also be suspended using a chain

or cable (see section –Suspended Installation).

An optional T-Bar support bracket (8188-TBR) is available that can

transfer the speaker weight onto the T-bar rails. Installation instructions

are provided with the support bracket.

The speaker is shipped with the metal protective grill removed for

convenience. This provides access to the four Phillips head screws that

operate the four clamps. The clamp screws must be sufficiently loose to

allow clamps to rotate and clear the ceiling material thickness. When

tightened, the clamps are locked to prevent rotating. Removal of the

speaker from the ceiling requires the clamps to be sufficiently loosened

before they can rotate in to pass through the 8” (20.5cm) hole.

The removable trim ring must be snapped into location flush with the front

surface of the speaker. Lay the trim ring on a flat surface with the ribs

facing down and place the speaker in the middle with the speaker facing

up. Align the four tabs with the cavities on the speaker housing and slide

the trim ring up the speaker housing until it snaps into place flush with the

top.

An 8” (20.5 cm) round hole is required in the ceiling. The wiring

connections are easiest made prior to mounting if possible.

Network connection is made by inserting a RJ45 plug into the jack on top

of the housing. Wire connections for relay input and output (if used) are

made using the 4 position pluggable terminal block provided.

The protective wiring cover may be attached after connections are made.

The cover helps prevent any water drips from HVAC or roof leaks from

entering the enclosure, as well as keeping dust out of the connections.

The cover also provides additional strain relief for the wiring.

With connections made, lift the housing into the ceiling and tighten the 4

clamps using a #2 Phillips screwdriver until snug.

Do NOT Over-tighten the clamps. If the clamp screws are over-

tightened after the trim ring is snug, the trim ring may detach from the

housing requiring the speaker to be removed from the ceiling and the trim

ring re-attached.

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 9 www.algosolutions.com

After installation and testing, gently work the speaker grill into its friction fit

position and ensure it is evenly flush to the housing around the edge. The

speaker grill is intentionally tight to prevent falling from the ceiling.

A tool supplied with the 8188 Ceiling Speaker can be used to remove the

grill. If lost, a small Allen key or heavy duty paperclip bent into an L shape

can be used to remove the grill by pulling close to the edge.

Air Handling Spaces UL2043

The 8188 Ceiling Speaker was tested and found to be compliant with

UL2043 requirements by an independent NRTL registered lab and is

therefore suitable for installation in air handling spaces. A copy of the test

report is available by request.

Suspended Installation

To suspend the 8188 Ceiling Speaker from a ceiling or truss you will need

additional materials not included with the speaker:

¼” -20 Eye-bolt

Thread locking adhesive

Load bearing cable or chain

For suspended installations, the trim ring is not used. The four clamps

may also be removed for aesthetics. The back housing and grill may be

painted if desired but ensure the speaker and wire connectors are properly

masked.

Document 90-00067 A Algo Communication Products Ltd (604) 454-3792

2014-09-12 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com

Page 10 www.algosolutions.com

Apply a thread locking adhesive and install a ¼-20 eyebolt (not included)

into the threaded nut insert on the top of the speaker housing. Screw the

eye-bolt in completely (3/8”) and use a thread locking adhesive to prevent

the bolt from working itself out.

Suspend the speaker using chain or cable rated to support at least 3 x the

weight of the speaker and preferably capable of supporting 200 lb (91 kg)

loads in case the speaker is used for support while on a ladder. Secure the

cable or chain to the speaker and ceiling or truss properly to ensure a safe

installation.

Wiring exits from the protective cover towards the center of the housing

to be run up the cable or chain and dressed neatly using cable ties.

Web Interface

The 8188 Ceiling Speaker is configurable the using web interface or

provisioning features.

After boot up the blue LED will turn off and the speaker will have

obtained an IP address. If there is no DHCP server the 8188 Ceiling

Speaker will default to the static IP address 192.168.1.111.

Press the reset switch (RST next to the LED) momentarily to hear the

IP address over the speaker. The reset switch will not cause a reset

unless pressed during power up.

The IP address may also be discovered by downloading the Algo

locator tool to find Algo devices on your network:

www.algosolutions.com/locator

Enter the IP address (eg 192.168.1.111) into a browser such as

Google Chrome, Firefox, or Internet Explorer (other than IE9). The

web interface should be visible and the default password will be algo

in lower case letters.

SIP Paging One Speaker

The 8188 Ceiling Speaker can be registered as a third party SIP

extension with a hosted or enterprise Communications Server

supporting 3rd party SIP endpoints.

To register the speaker with the SIP server, use the Basic Settings 

SIP tab in the web interface to enter the Communication Server IP
