ALFATRON ALF-5X/12X-4KCAM

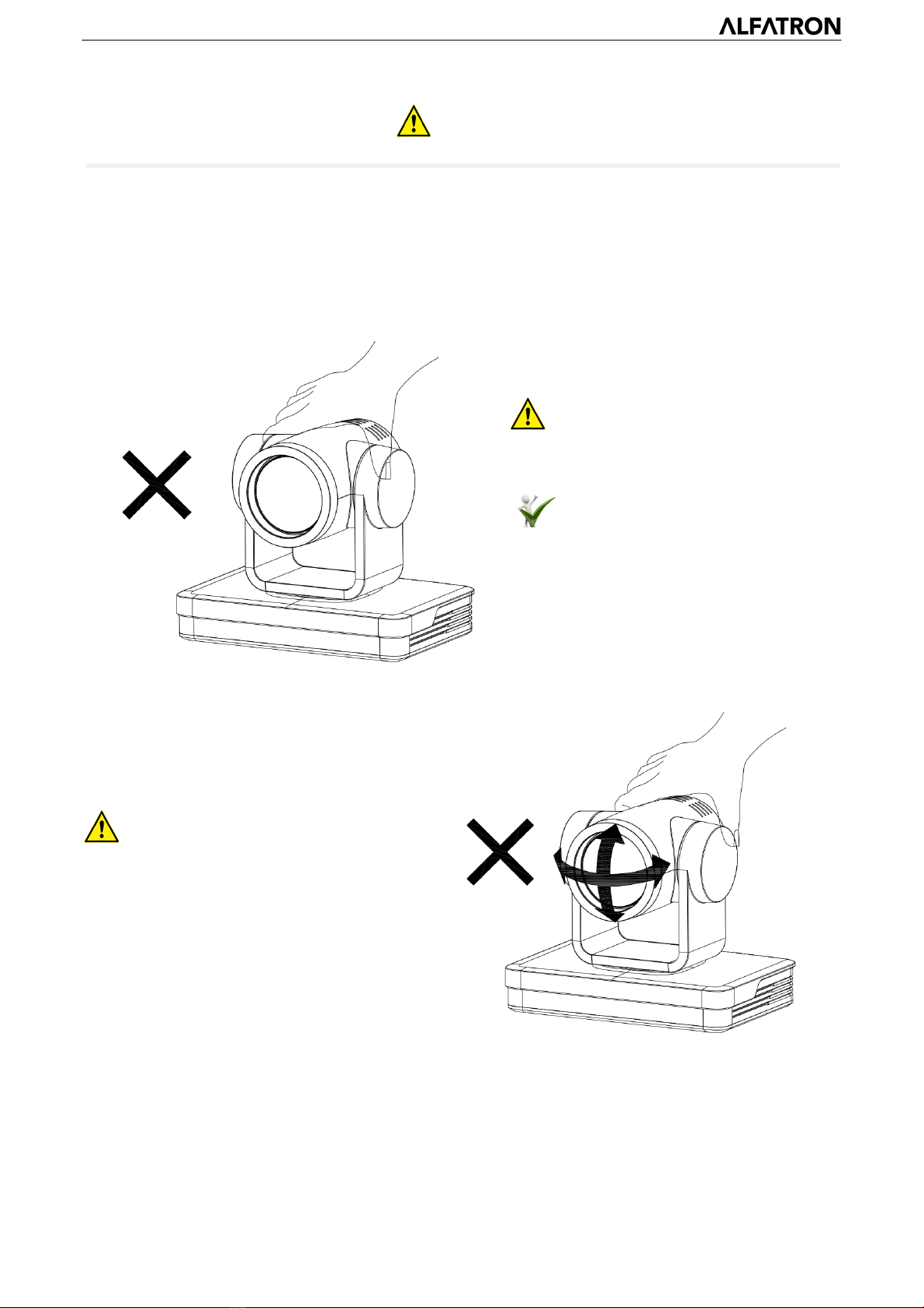

Warning
Improper operations may damage the product structure and result in
mechanical failure. Please note the following tips.
Do not move the camera by
grabbing the head.
Move the camera by holding
the bottom with one or both hands.
Please do not rotate the lens
and holder manually no matter the
camera is power on or off; otherwise
it may damage the camera structure
and result in failure of camera
self-check and unable to start the camera.
ALFATRON ALF-5X/12X-4KCAM
Content
ALFATRON ELECTRONICS GMBH GERMANY................................................................................................ 1
ALF-5X / 12X-4KCAM ............................................................................................................................................. 1
1. CAMERA INSTALLATION...........................................................................................................................- 3 -
1.1 CAMERA INTRODUCTION .......................................................................................................................... - 3-
1.2 INTERFACES AND CONNECTION .............................................................................................................. - 4-
1.3 MOUNTING BRACKETS ........................................................................................................................... - 5-
2. PRODUCT OVERVIEW..................................................................................................................................- 8 -
2.1 DIMENSION.................................................................................................................................................... - 8-
2.2 ACCESSORY ................................................................................................................................................... - 8-
2.3 RS-232 INTERFACE........................................................................................................................................ - 9-
2.5 MAIN FEATURES .......................................................................................................................................... - 11 -
2.6 TECHNICAL PARAMETERS............................................................................................................................ - 12 -
3. REMOTE CONTROL ....................................................................................................................................- 14 -
REMOTE CONTROL INSTRUCTIONS:REMOTE CONTROL IS DIVIDED INTO TWO TYPES:INFRARED REMOTE CONTROL
AND WIRELESS REMOTE CONTROL.PLEASE READ THE FOLLOWING CONTENTS ACCORDING TO THE ACTUAL
REMOTE-CONTROL TYPE.................................................................................................................................... - 14 -
3.1 CODE MATCHING FOR WIRELESS REMOTE CONTROL ................................................................................. - 14 -
3.2 Keys Introduction for IR Remote Control.........................................................................................- 15 -
3.3 MENU INTRODUCTION................................................................................................................................ - 17 -
4. NETWORK CONFIGURATION ..................................................................................................................- 19 -
4.1 NETWORK CONNECTION ........................................................................................................................... - 19 -
4.2.1 Web Client.........................................................................................................................................- 20 -
4.3 STREAMING ................................................................................................................................................. - 22 -
5. SERIAL PORT COMMUNICATION AND CONTROL.............................................................................- 25 -
5.1 VISCA PROTOCOL RETURN COMMAND ...................................................................................................... - 25 -
5.2 VISCA Protocol Control Command...................................................................................................- 25 -
5.3 VISCA PROTOCOL INQUIRY COMMAND...................................................................................................... - 28 -
5.4 PELCO-D PROTOCOL COMMAND LIST ......................................................................................................... - 30 -
5.5 PELCO-P PROTOCOL COMMAND LIST.......................................................................................................... - 30 -
6. MAINTENANCE AND TROUBLESHOOTING ..........................................................................................- 32 -
6.1 CAMERA MAINTENANCE ............................................................................................................................. - 32 -
7. WARRANTY ..................................................................................................................................................- 34 -
ALFATRON ALF-5X/12X-4KCAM
- 1 -
Attention
NOTE: This equipment has been tested and was found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment can generate and radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference through one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the distance between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressly approved by the party responsible for compliance, could void the
user's authority to operate the equipment.
Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
ALFATRON ALF-5X/12X-4KCAM
- 2 -
This manual introduces in detail the functions, installation and operation for this PTZ camera.
Please read this manual carefully before installation and use.
1. Cautions
1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during
transportation, storage and installation.
1.2 Housing of this product is made of organic materials. Do not expose it to any liquid, gas or solids
which may corrode the shell.
1.3 Do not expose the product to rain or moisture.
1.4 To prevent the risk of electric shock, do not open the case. Installation and maintenance should only
be carried out by qualified technicians.
1.5 Do not use the product beyond the specified temperature, humidity or power supply specifications.
1.6 Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if
needed. Do not use strong or corrosive detergents to avoid scratching the lens and affecting the
image.
1.7 This product contains no parts which can be maintained by users themselves. Any damage caused
by dismantling the product by user without permission is not covered by warranty.
2. Electrical Safety
Installation and use of this product must strictly comply with local electrical safety standards.

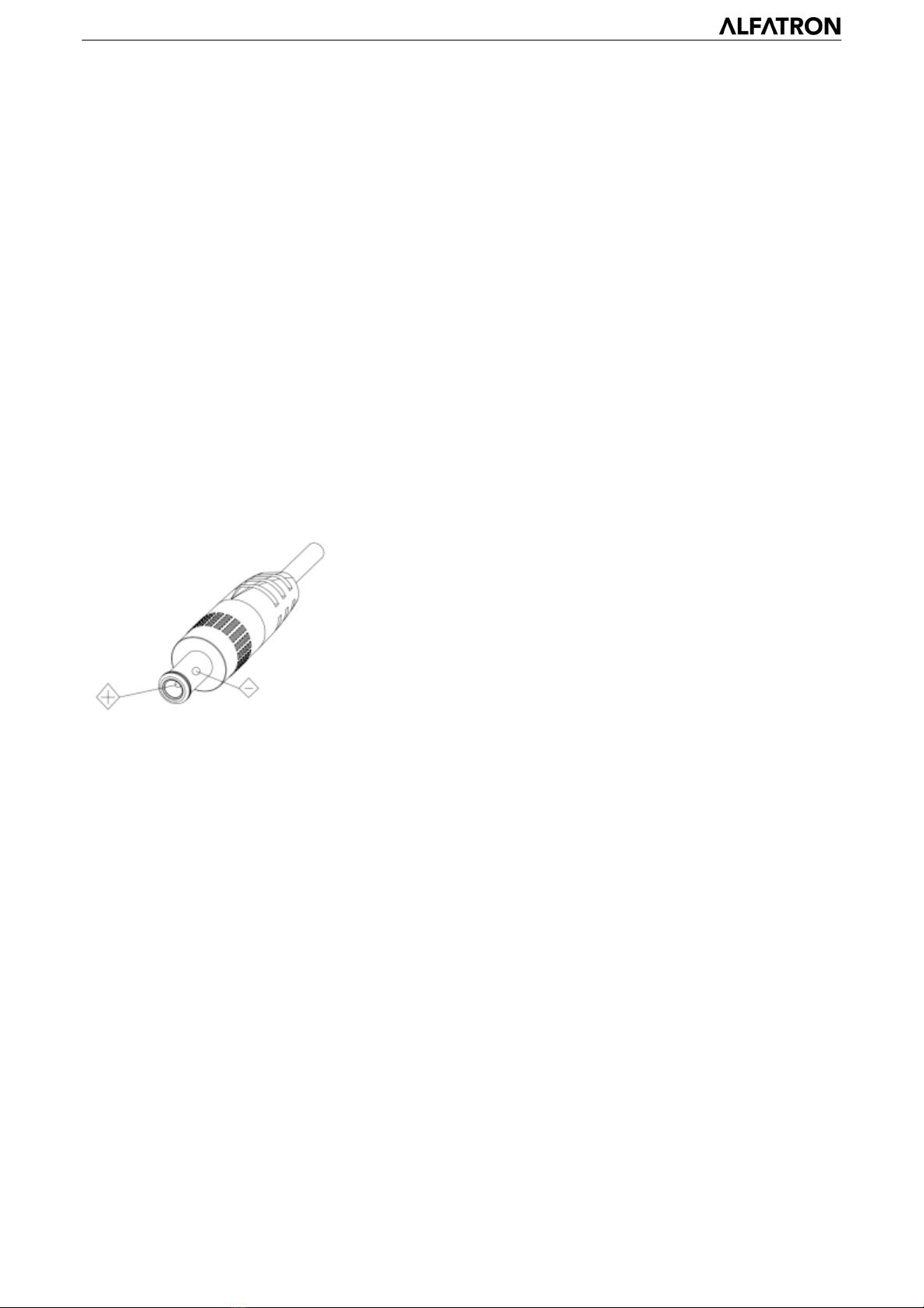

The power supply of the product is ±12V, the max electrical current is 2A .
3. Install
3.1 Do not rotate the camera head violently, otherwise it may cause mechanical failure.
3.2 This product should be placed on a stable desktop or other horizontal surface. Do not install the
product obliquely, otherwise it may display inclined image.
3.3 Ensure there are no obstacles within rotation range of the holder.
3.4 Do not power on before completely installation.
4. Magnetic Interference
Electromagnetic fields at specific frequencies may affect the video image. This product is Class A. It may
cause radio interference in household application. Appropriate measure is required.
ALFATRON ALF-5X/12X-4KCAM
- 3 -
1. Camera Installation
1.1Camera Introduction

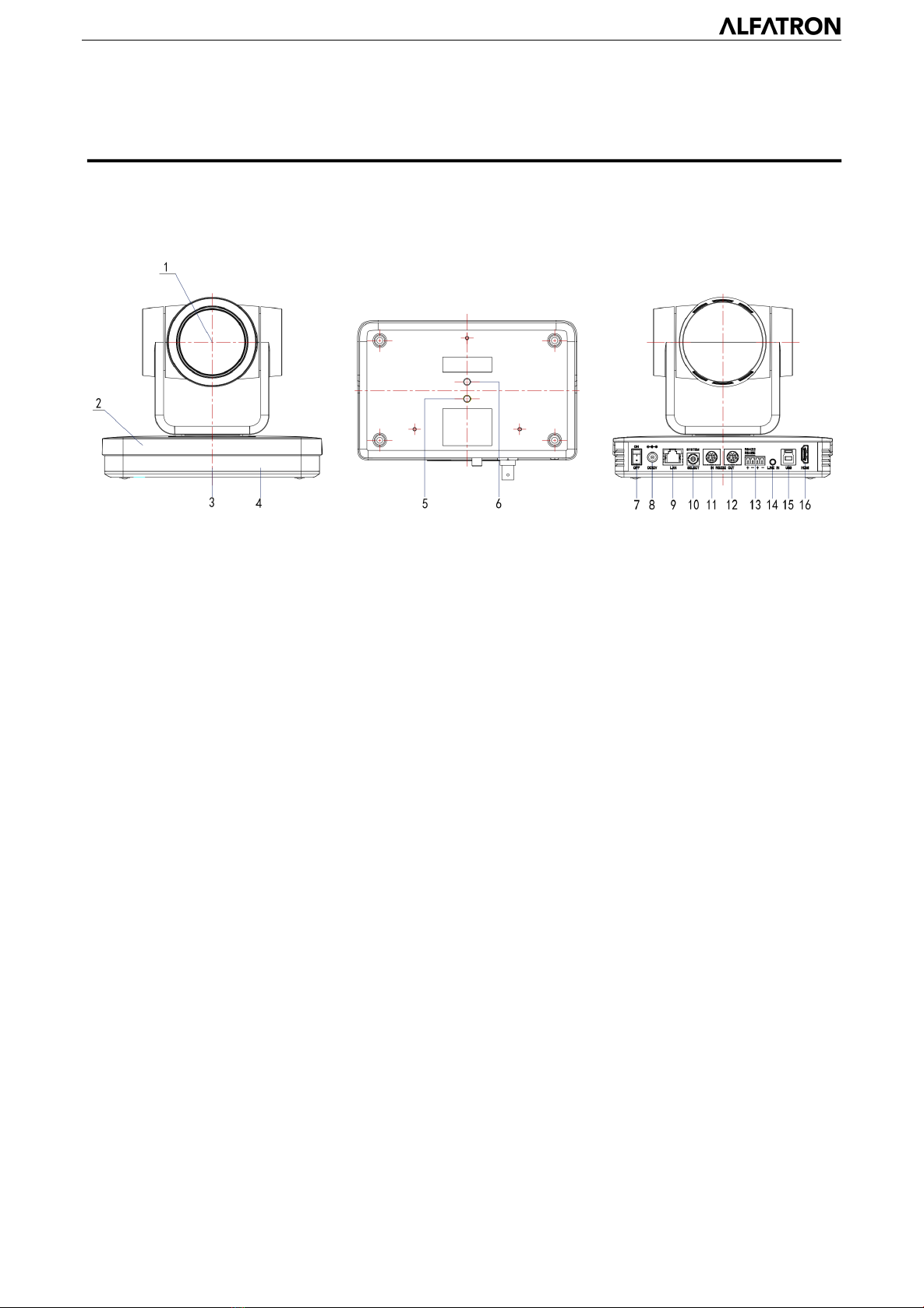

Figure 1.1 Product Interface
1.Camera Lens 7.Power Switch 13.RS422/RS485 Interface
2.Camera Base 8.DC12V Input Power Supply
Socket
14.Audio Input Interface
（
LINE-IN
）
3.Indicator Light 9.LAN Port 15.USB3.0 Interface
4.Infrared Receiver
10.Rotary DIP Switch 16.HDMI Output Interface
5.Tripod Screw Hole 11.RS232 Control
Interface(input)
6.Tripod Screw Hole 12.RS232 Control
Interface(output)
The default address selected by the remote control is 1. When the remote control transmits a signal
to the camera, the status indicator light on the camera flashes green;
If the remote-control address selection is wrong, the indicator light does not flash and the remote
control address is invalid.
ALFATRON ALF-5X/12X-4KCAM
- 4 -
1.2 Interfaces and Connection

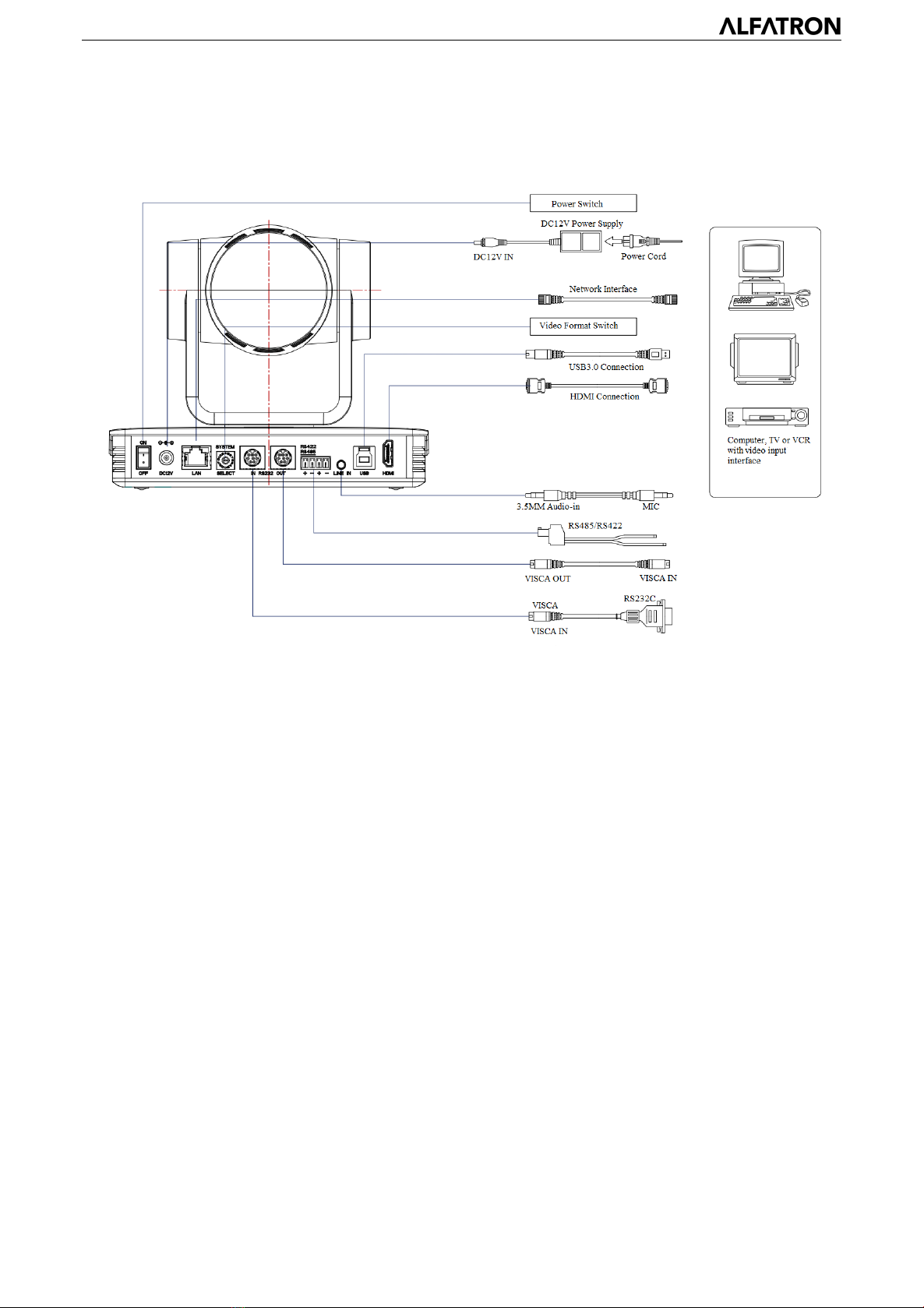

Figure 1.3 Wiring Diagram
1) After power on and self-warming, the camera will automatically return to the preset 0 position if it’s
pre-set.
2) The default address for the IR remote control is 1#. If the menu restored to factory defaults, the
remote-control default address will restore to 1#.
ALFATRON ALF-5X/12X-4KCAM
- 5 -
1.3 Mounting Brackets
Notes:
Ceiling or wall mounting brackets can only be mounted on a concrete wall.
For safety reason, plasterboard is not recommended.

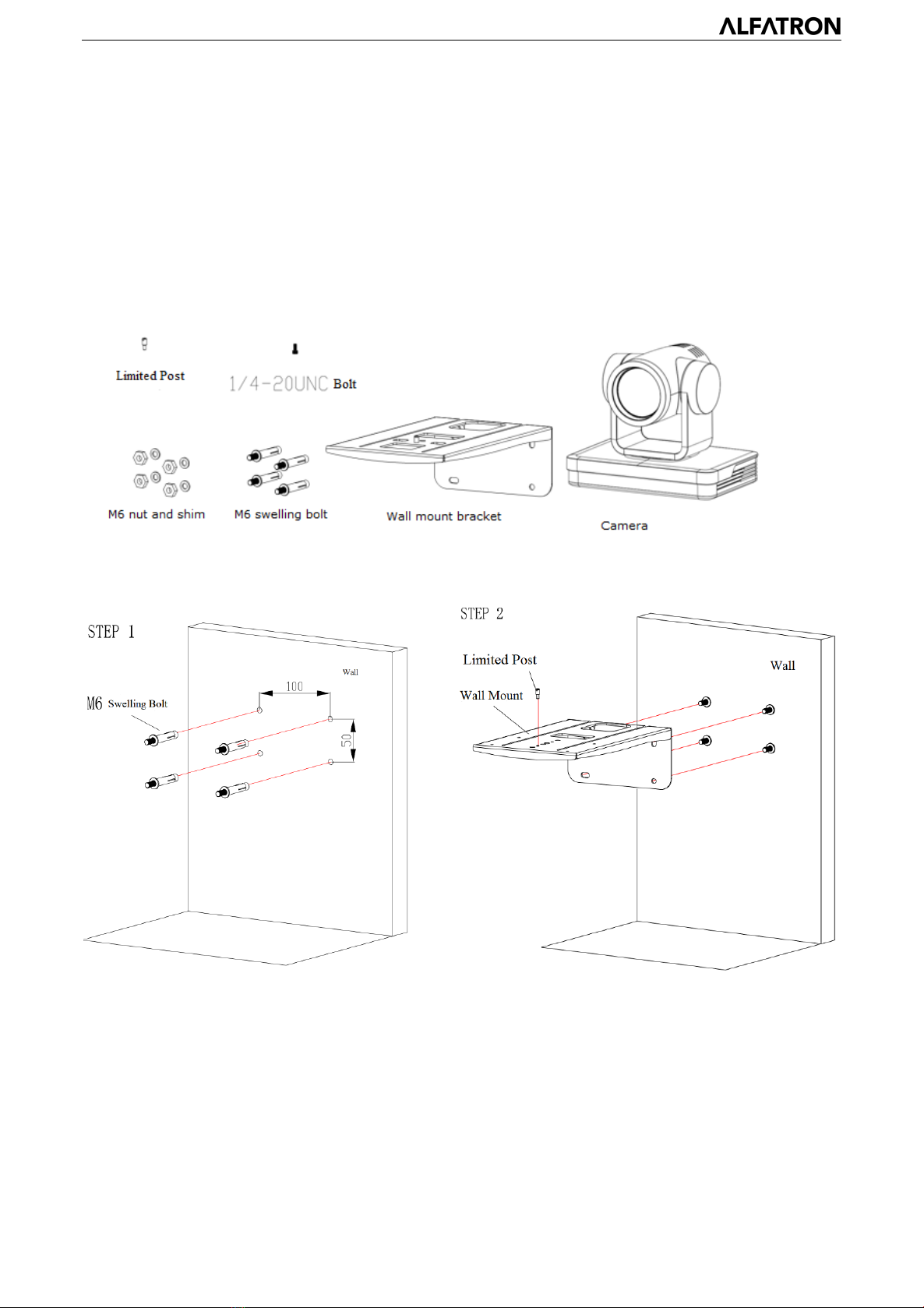

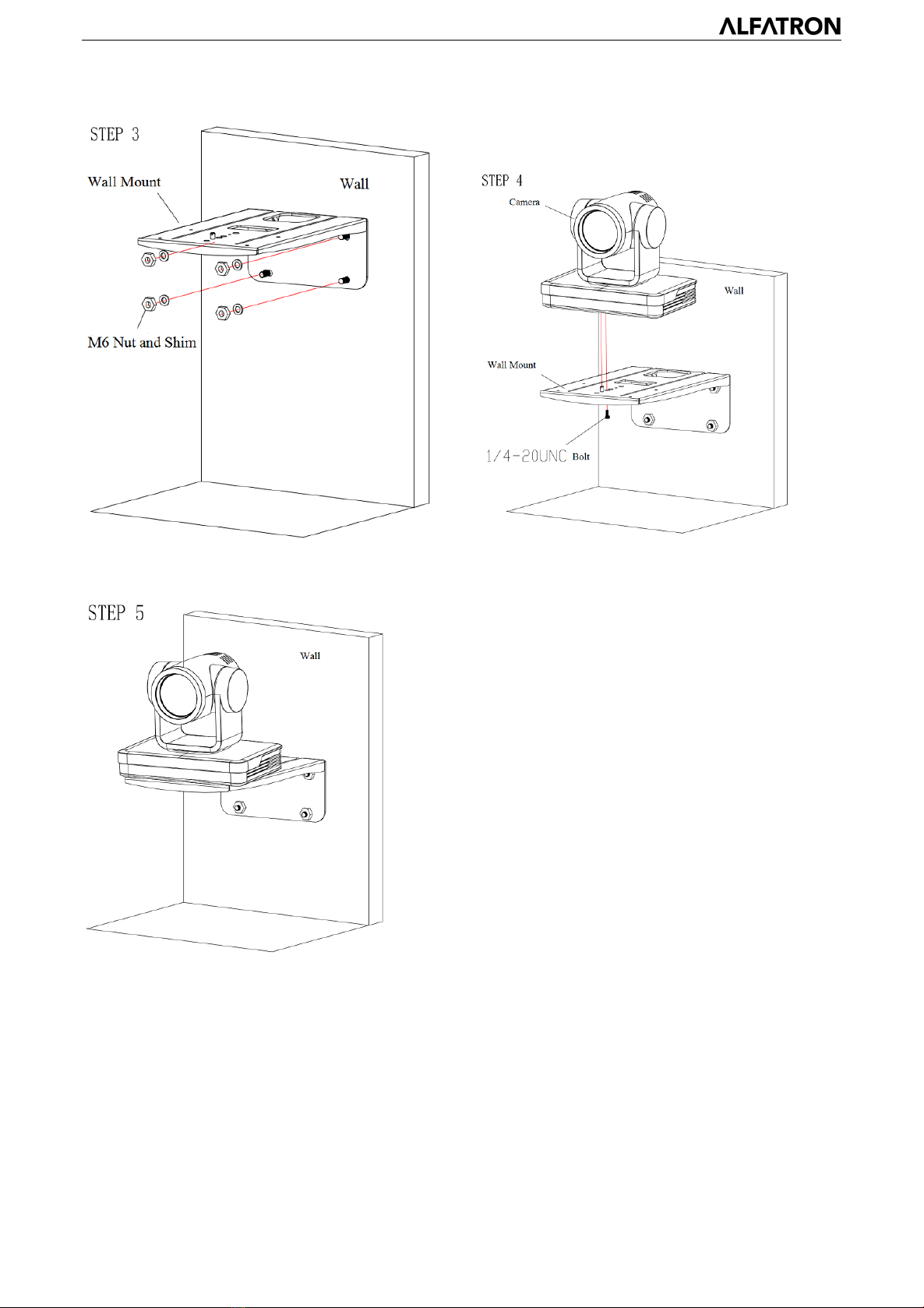

1）Wall Mounting
ALFATRON ALF-5X/12X-4KCAM
- 6 -
ALFATRON ALF-5X/12X-4KCAM
- 7 -

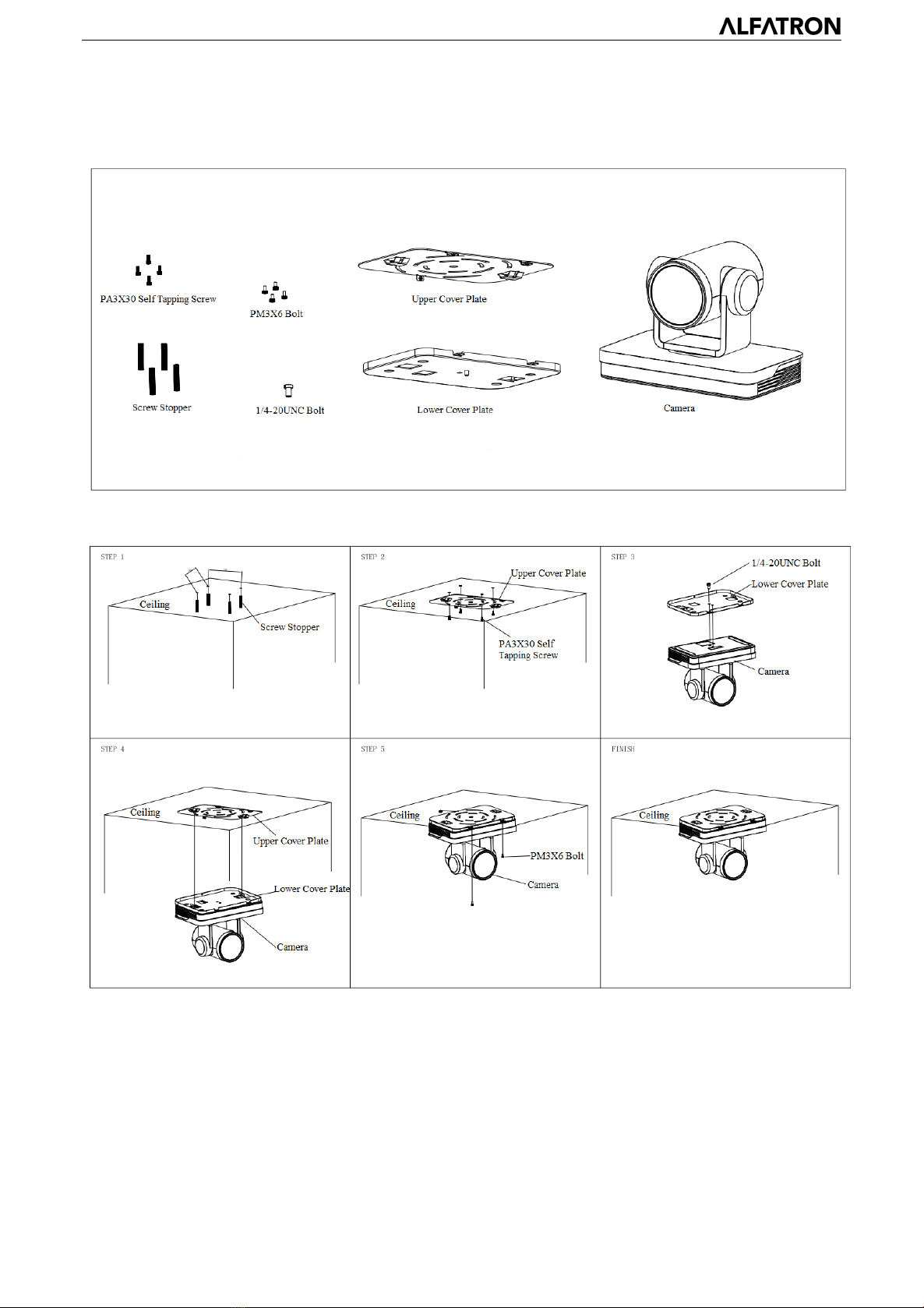

2）Ceiling Mounting
