User Guide
Congratulations on the purchase of your Workzone
®
Titanium High pressure washer
Accessory kit - Turbo Nozzle, Foam Sprayer & Multi Head Sprayer. When you open
your packaging, first remove all items and check there are no parts damaged or
missing. If you find anything wrong, do not operate the product until the parts have
been replaced or the fault has been rectified. Failure to do so could result in serious
personal injury.
Contents of packaging:
• 1 x Turbo Nozzle
• 1 x Foam Sprayer
• 1 x Multi Head Sprayer
Intended use of the High Pressure Washer Accessory Kit - Turbo Nozzle, Foam Sprayer
& Multi Head Sprayer:
NOTE: This product is for private domestic DIY use only.
It is not suitable for commercial or trade use.
• Multi Head Sprayer is suitable for multiplex nozzle pattern of spraying. Spray patterns 00 is
applicable for cleaning. Spray patterns 250 and 400 are applicable for watering. And the spray
patterns with the word “soap” is best suitable for soap spraying.
• Turbo Nozzle is suitable for delivering 360° of rotating water. It can be used to ground
cleaning, etc.
• Foam Sprayer bottle provides detergent suds for deeper cleaning of dirt.
WARNING! Please read and understand this instruction manual before use and
keep it for your future reference.
Assembly
Retract the collar at the end of the gun lance (not supplied), and insert the Turbo Nozzle /
Foam Sprayer / Multi Head Sprayer into the gun lance (not supplied). Be sure to insert the
Turbo Nozzle / Foam Sprayer / Multi Head Sprayer to the end. Release the collar to lock the
Turbo Nozzle / Foam Sprayer / Multi Head Sprayer. (See Fig. A1, A2, A3)
A1 A2 A3
2
AFTER SALESSUPPORT
1300 889 028 (toll free)
e-mail:
MODEL No.:
LB-TFM01 • 06/2019
Ed3
PLU: 9901

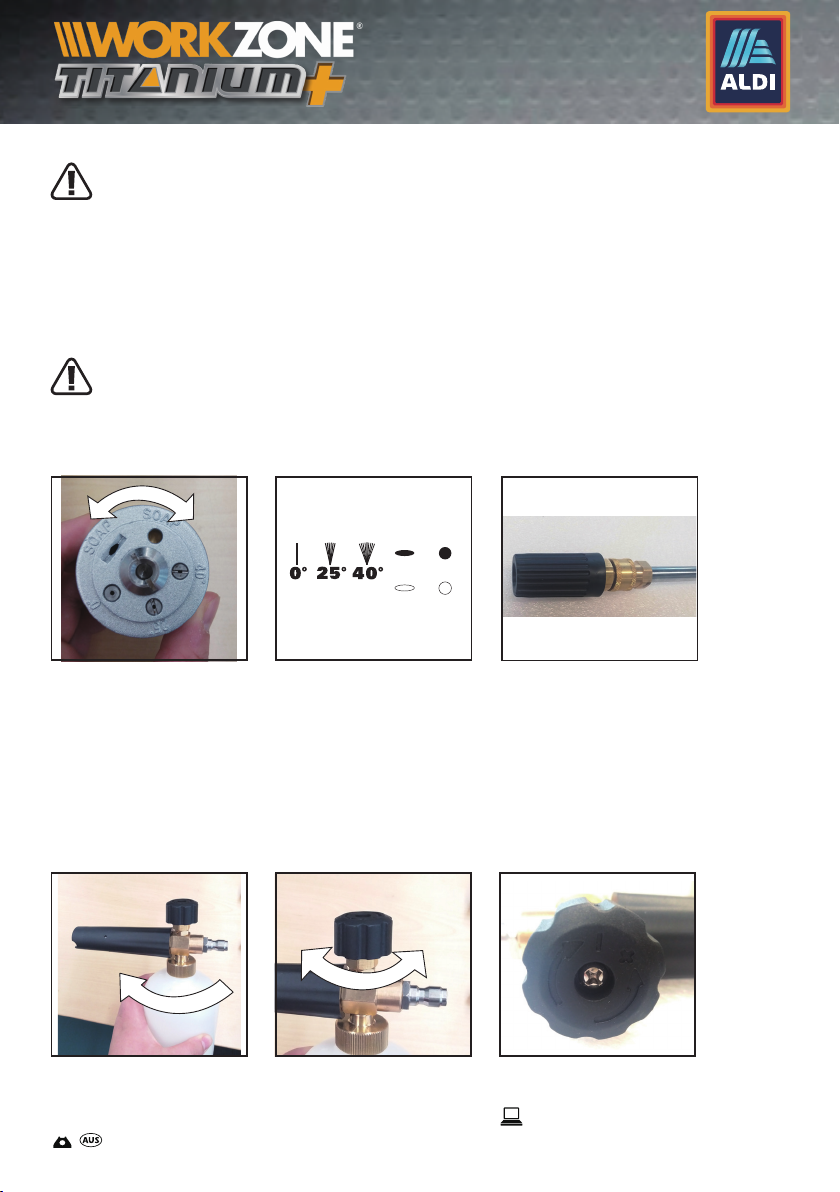

Operation
WARNING: Do not direct jet nozzle at yourself, at other people, animals,
live electrical equipment or at the the pressure cleaner itself.
1. Multi Head Sprayer
Selecting the nozzle pattern (See Fig. B1,B2)
- Choose a suitable nozzle pattern according to your work. Spray patterns 0ois applicable
for cleaning. Spray patterns 25oand 40oare applicable for watering. And the spray
patterns with the word “soap” is best suitable for soap spraying.
- Rotate the head of the Multi Head Sprayer to choose the required spray pattern.
WARNING: Do not shift the nozzle pattern when the tool is working.
2. Turbo Nozzle
The Turbo Nozzle delivers 360° of rotating water, which cleans a larger area than the 0°
water pattern during the same time period.(See Fig. C)
C
B1 B2
SOAP SOAP
3. Foam Sprayer
- Remove the white bottle by unscrewing it in clockwise direction.(See Fig. D1)
- Fill the white bottle with prepared soap
- Assemble the white bottle back into position.
- Adjust the rate of flow by turning the adjusting knob anti-clockwise to increase the
flow rate and turning it clockwise to decrease the flow rate. (See Fig. D2, D3)
- Adjust the width of spraying by rotating the long nozzle clockwise to narrow the width
and rotating the long nozzle anti-clockwise to expend the width. (See Fig. D4, D5, D6)
D1 D2 D3
Adjusting knob
3
AFTER SALESSUPPORT
1300 889 028 (toll free)
e-mail:
MODEL No.:
LB-TFM01 • 06/2019
Ed3
PLU: 9901 LB-TFM01 • 06/2019
D4 D5 D6
Long nozzle
Maintenance, cleaning and storage
WARNING: Before making any cleaning or maintenance procedures to the Turbo
Nozzle / Foam Sprayer / Multi Head Sprayer ensure the Turbo Nozzle / Foam Sprayer
/ Multi Head Sprayer is removed from the gun lance (not supplied).
Inspect the product for damaged or worn parts before each use. Do not operate it if you
find damaged or worn parts. Contact Customer Service for replacement parts.
Never use water or chemical cleaners to clean your Turbo Nozzle / Foam Sprayer / Multi
Head Sprayer. Wipe clean with a dry cloth.
Disconnect the Turbo Nozzle / Foam Sprayer / Multi Head Sprayer before storage. Ensure
the storage area is free from excessive humidity and dust. Always store Turbo Nozzle /
Foam Sprayer / Multi Head Sprayer in a dry place.
Service Support
If you have any issues with your product, please call us on our Customer Service Support
Technical Specifications
High pressure washer acc Combo kit:
Multi Head Sprayer Turbo Nozzle Foam Sprayer
Dimension 68*45*45mm 93*33*33mm 165*85*280mm
Weight 0.12kg 0.17kg 0.46kg
Working Pressure 2300psi
Max Pressure 2650psi
Description of symbols
The instruction manual, rating plate, or on the product itself, may show these symbols.
To reduce the risk of injury, user must
read instruction manual
Caution/Warning: Read all safety
warning s and instructions.
Wear protective gloves.
Wear ear protection
Wear eye protection
Wear breathing protection
4
AFTER SALESSUPPORT
1300 889 028 (toll free)
e-mail:
MODEL No.:
LB-TFM01 • 06/2019
Ed3
PLU: 9901
These represent important information about the product or instructions on its use.
Warranty
Your new Workzone®Titanium High Pressure Washer Accessory Kit - Turbo Nozzle, Foam
Sprayer & Multi Head Sprayer. will more than satisfy your expectations.
It has been manufactured under stringent Workzone®Titanium Quality Standards to meet
superior performance criteria.
You will find your new High Pressure Washer Accessory Kit - Turbo Nozzle, Foam Sprayer &
Multi Head Sprayer. easy and safe to operate, and, with proper care, it will give you many
years of dependable service.
CAUTION. Carefully read through this entire instruction manual before using your new
Workzone®Titanium High Pressure Washer Accessory Kit - Turbo Nozzle, Foam Sprayer & Multi
Head Sprayer.
Take special care to heed the Cautions and Warnings.
Your Workzone®Titanium High Pressure Washer Accessory Kit - Turbo Nozzle, Foam Sprayer
& Multi Head Sprayer has many features that will make your job faster and easier. Safety,
performance, and dependability have been given top priority in the development of this High
Pressure Washer Accessory Kit - Turbo Nozzle, Foam Sprayer & Multi Head Sprayer, making it
easy to maintain and operate.
Environmental protection
Recycle unwanted materials instead of disposing of them as waste. All tools,
hoses and packaging should be sorted, taken to the local recycling centre and
disposed of in an environmentally safe way.
What your 1 year warranty means
Great care has gone into the manufacture of this product and it should therefore provide you
with years of good service when used properly.
In the event of product failure within its intended use over the course of the first 1 year after
the date of purchase, we will remedy the problem as quickly as possible once it has been
brought to our attention. In the unlikely event of such an occurrence, or if you require any
information about the product please contact us via our after sales support services, details of
which can be found in this user guide and on the product itself. After Sales Support TEL: 1300
889 028. Please refer to the enclosed Warranty Certificate for further details.
ALDI guarantees that our exclusive brand products are developed to our stringent quality
specifications. If you are not entirely satisfied with this product, please return it to your
nearest ALDI store, within 60 days from the date of purchase, for a full refund or replacement,
or take advantage of our after sales support by calling the supplier’s Customer Service Hotline.
Made in China
Workzone® Titanium is a registered trademark of ALDI Stores
DISTRIBUTED BY:, ALDI STORES, 1 SARGENTS ROAD, MINCHINBURY NSW 2770
www.aldi.com.au
