Alcatel ONE TOUCH 4005D Manuel utilisateur

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

1/29

Beetle lite edge

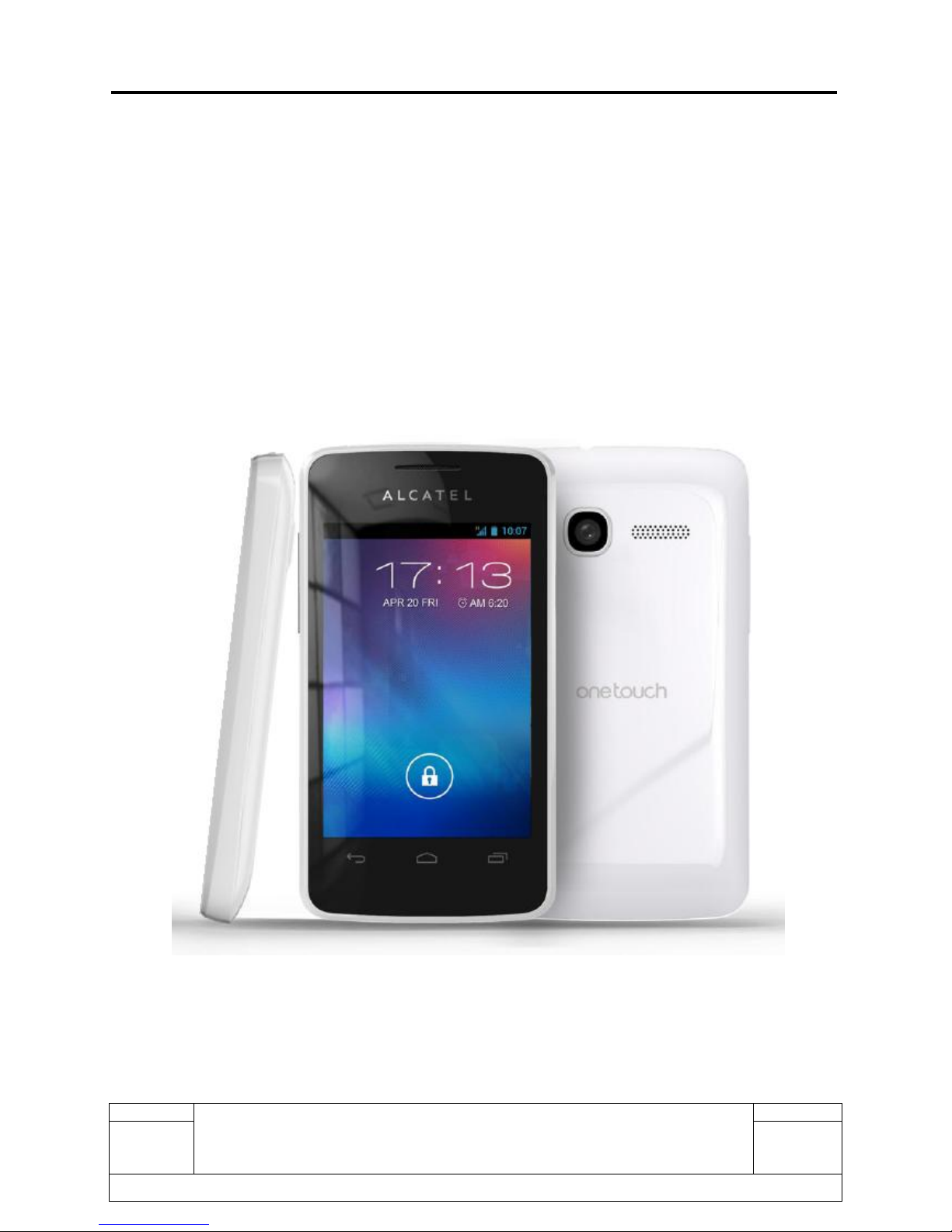

ONE TOUCH 4005D

Note: this manual is non-contractual and TCT Mobile Limited can modify it without prior notice on

the characteristics of described equipments.

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

2/29

1.2

2013-8-30

Added the TP repair part(page 17/18)

Echo Huang

Zhili. Hu

1.1

2013-7-1

Adding the part of blank label

Echo Huang

Zhili. Hu

1.0

2013-01-21

Updated according to CPM‟s comment

Zzhenqing

Echo Huang

Zhili Hu

0.1

2013-01-04

Preliminary draft

Zzhenqing

Echo Huang

Zhili Hu

Rev.

Date

Modification description

Prepared By

Checked By

Approved By

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

4/29

1 Level 2 repair process

Reassembly

Record in BIG

End

Retest

Start

Visual Inspection

Warranty Check

Pretest & Failure confirm

SW Upgrade

Disassembly

L2 Repair

Retest

Function test

PCBA Replace

Restore User Information

Back up user data

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

5/29

2 Warranty Check and Visual Inspection

2.1 Warranty confirmation of L1

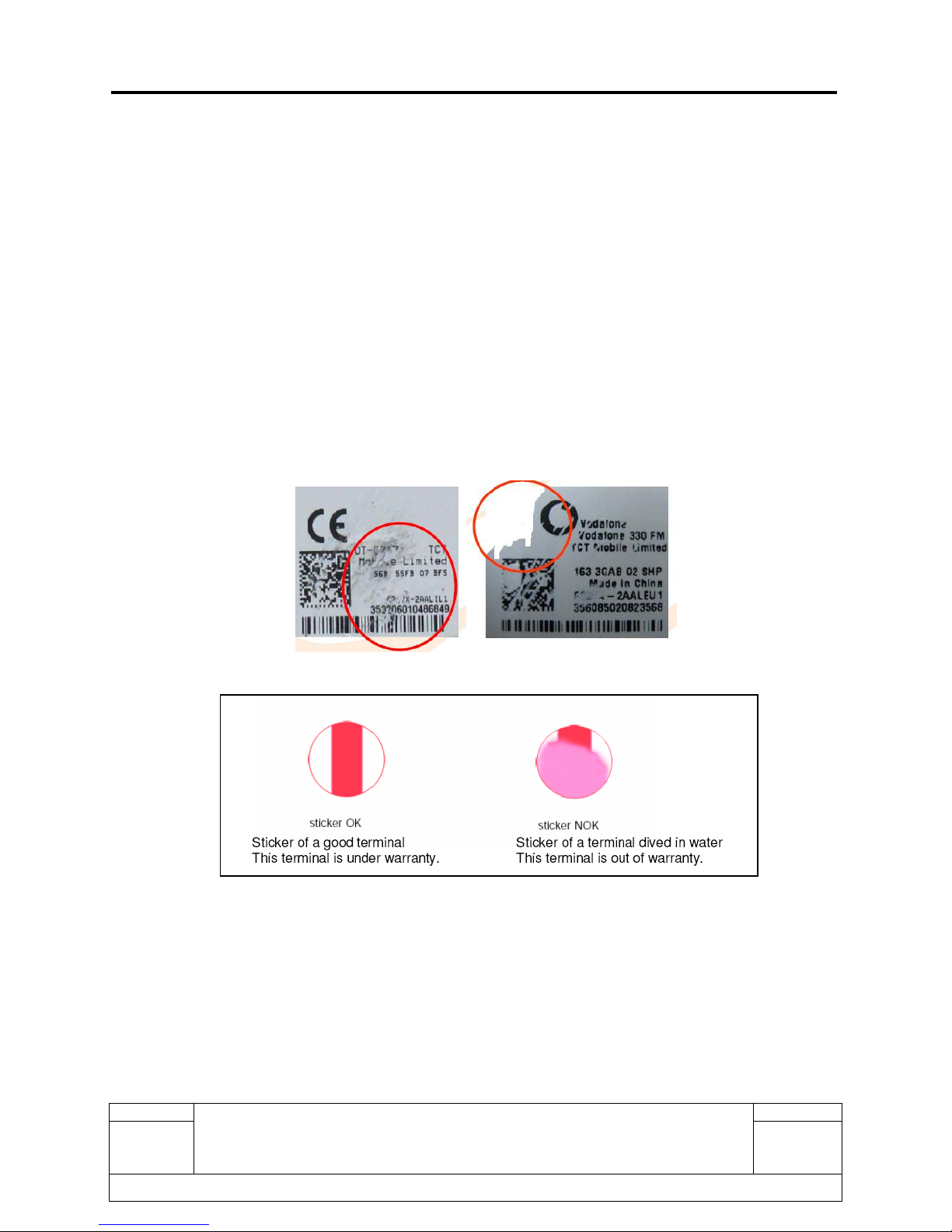

1) IMEI sticker check:

a) The IMEI number MUST be the same with the one on the IMEI sticker. If not, it‟s out of warranty

policy

b) IMEI label should not be

Removed

Scratched

Unreadable

Un-approved or un-provided by Alcatel.

2) Humidity sticker: Liquid detection on humidity sticker.

2.2 Visual mechanical check

Mechanical warranties check items:

1) Corrosion

Corrosion on the USB connector, SIM connector, and other metal surfaces。

2) Hole (diameter > 1mm)

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

6/29

Holes on any surface, including the front casing, furnished frame, battery cover, touch Lens,

keypad…

3) Bump

Bumps (diameter > 1mm) on any surface, including front casing, decorate frame, battery

cover, touch Lens, keypad, etc.

4) Scratch

Scratches (length > 3mm) on any surface, including the front casing, decorate frame, battery

cover, touch Lens, keypad, etc.

5) Distortion

Bend, twisted or crushed on the h/s, cover/casing or connectors, etc.

6) Broken

Touch broken, casing/cover broken, etc.

7) Dropped

Keypad tear off, touch lens, connectors dropped, etc.

8) Gap

External physical damage relating to abnormal use, like front case and frame opened

9) Others

Damage caused by disassembly ,wrong part assembly, loss of components

Use in abnormal environment like high temperature causing plastic melts

2.3 Pretest

1) Check that the SIM card is set correctly.

2) Insert the battery.

3) Power on the cell phone.

4) If the cell phone cannot power on, visually check the condition of the battery connector. Replace

it if necessary.

5) If the cell phone asks to input NCK code, this means it is SIM locked and can only be worked

with dedicated SIM card. Use the correct SIM card.

6) Enter the phone code if necessary.

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

7/29

7) After the phone power on, test step by step with the auto test code:

Press *#2886# in dial screen and select “Auto” to start the auto test, then you will see the

interface displaying the version. Press “Pass”to continue.

If one of the test failed, it will ask you “Restart?”, press “YES”to restart the auto test from the first

one and “NO”to exit the auto test, while “NEXT”to continue the auto test.

TRACABILITY Test

I. You can get some information such as IMEI, BSN, BT, WIFI, CU, H/S PN…

II. Press “Pass” to continue.

TP

I. “Please draw the yellow data”according to instructions and it will show “TEST

RESULT: OK!”

II. Press “PASS”to continue.

LCD MIRE/BLACK/GREYCHART/WHITE

I. You will see the LCD color changes if it functions well

II. Press “Pass” to continue.

LCD BackLight Level

I. The screen backlight will be flashing if it functions well.

II. Press “Pass” to continue.

KEYPAD.

I. Press the key displayed on the screen. The key on the screen will disappear

when you press it if it functions well

II. Press “Pass” to continue;

Flash LED Light Test.

I. The light near the camera will flashing.

II. Press “Pass” to continue.

CAMERA IMG

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

8/29

Press “Pass”to continue if the camera functions well

CAMERA IMG FRONT

Press “Pass”to continue if front camera functions well

CAMERA LED

I. Camera LED will be turned on if functions well.

II. Press “Pass” to continue.

MELODY

I. You will hear the melody if it functions well.

II. Press “Pass” to continue.

HEADSET

I. Insert the headset and you will hear FM if functions well

II. Press "Pass" to continue

III. Remove headset according the instruction and it will say “Headset tested”if it

functions well;

IV. Press “Pass”to continue

USB

I. Insert USB cable and the phone will detect “Charger: OK”“USB: OK”if it

functions well

II. Remove USB cable according to the instruction and then press "Pass" to

continue

VIBRATOR

I. You can feel the phone‟s vibrating if it functions well.

II. Press “Pass” to continue.

G-SENSOR

I. Screen will display “put the handset up and towards up”, follow this prompt

screen will display left arrow, right arrow, up arrow, down arrow and face

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

14/29

4.3 Disassembly process

The steps of disassembly ONE TOUCH 4010 are as below.

This module should only be disassembled from bottom to top.

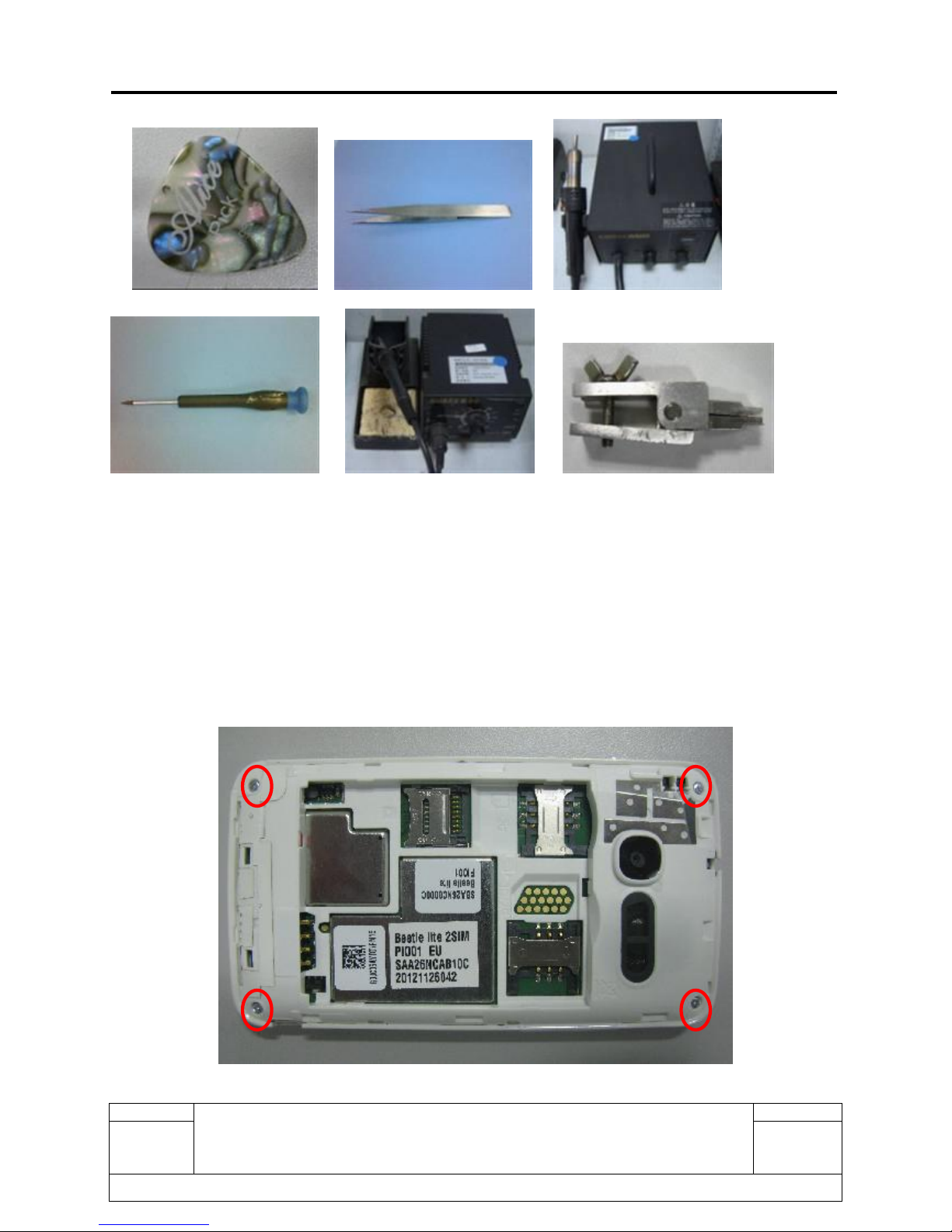

Step 1: Remove the battery cover and battery.

Step 2: Take off the 4 screws from the furnished frame by screw driver

Plastic Flake

Tweezers

Hot wind gun

Screwdriver

(TORX6)

Soldering iron

Camera Jig

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

15/29

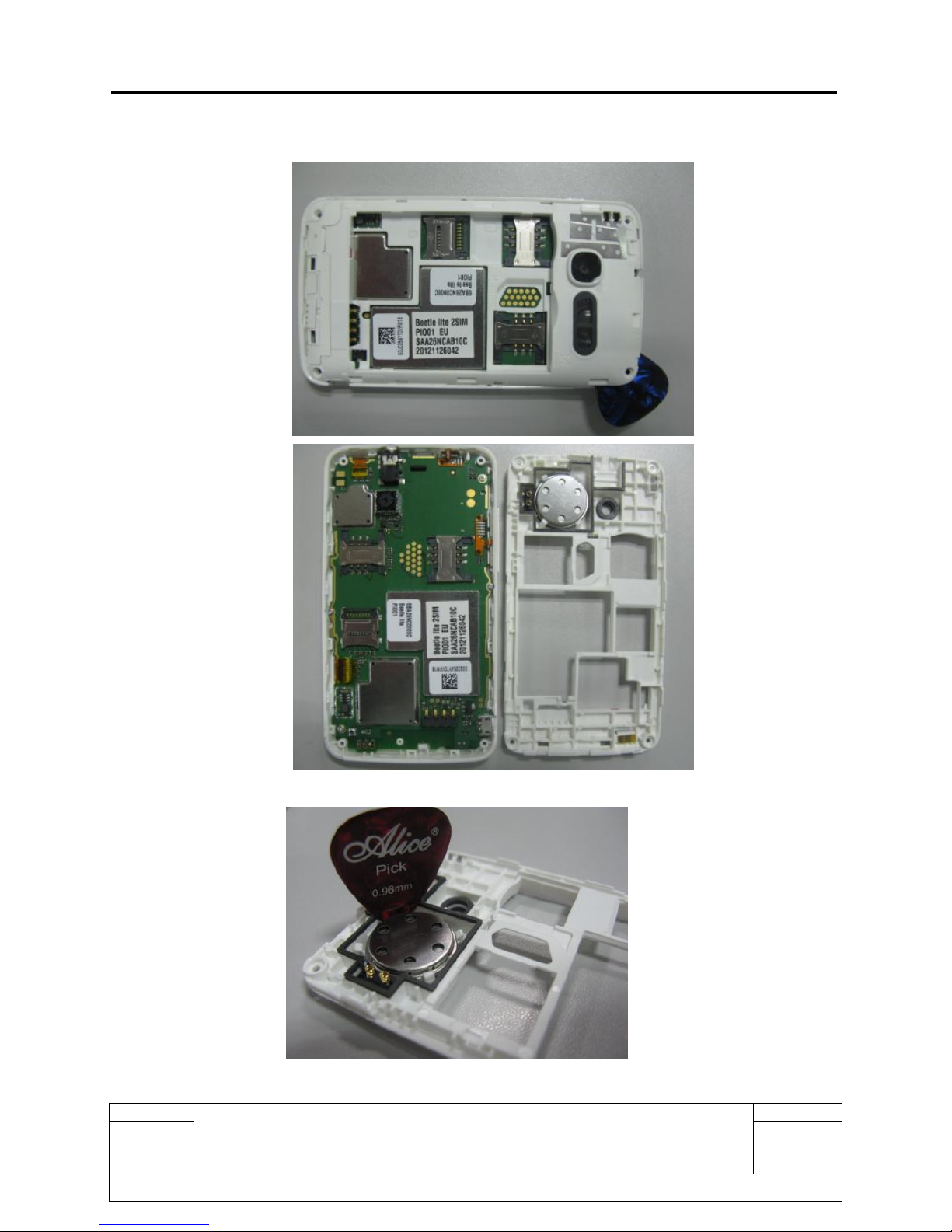

Step 3: Pry the furnished frame up by plastic flake. Then separate the furnished frame from furnished front

casing.

Step 4: Remove speaker with plastic flake

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 4005DLevel 2 Repair Document

Page

1.2

16/29

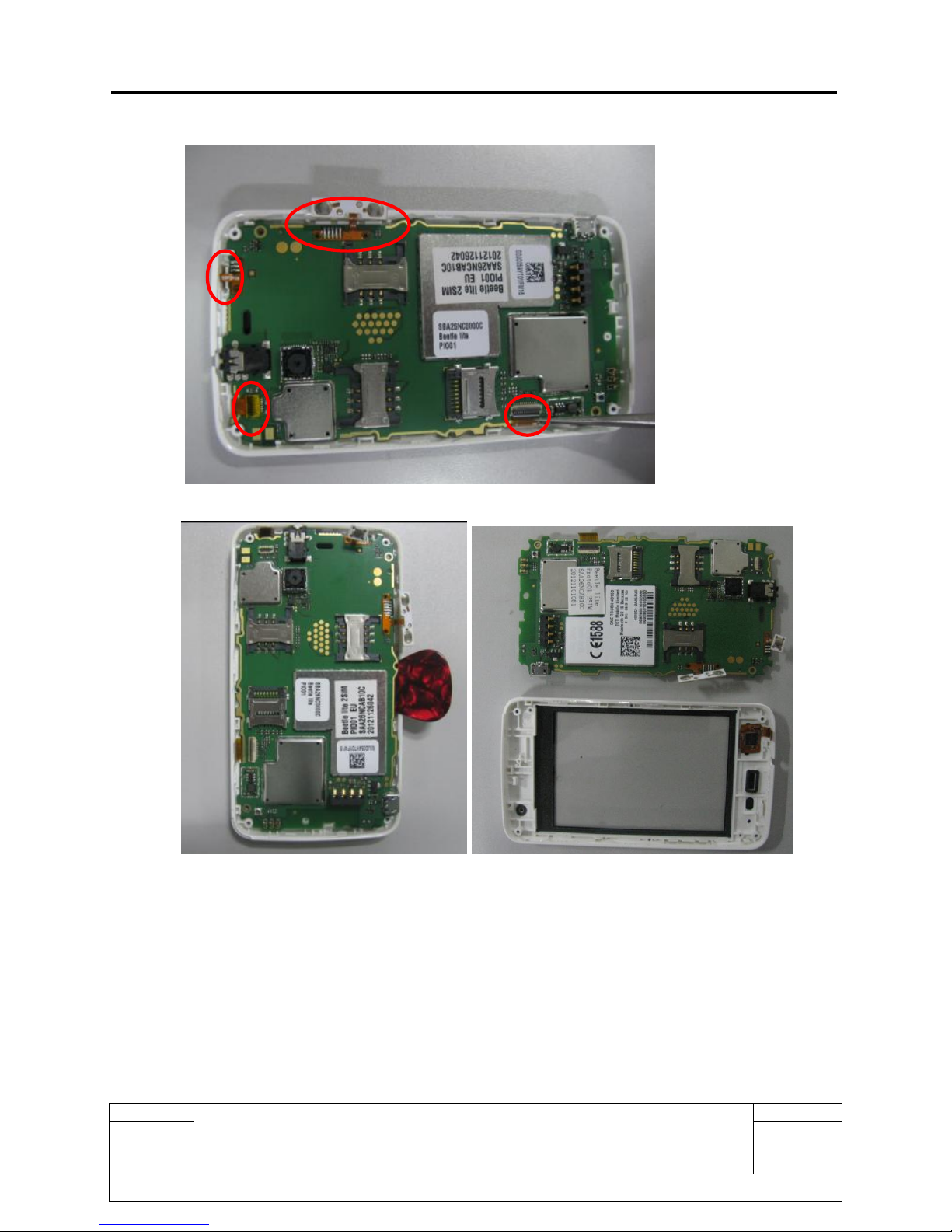

Step 5: Separate below FPCs with BTB connector socket by using tweezers.

Step 6: Remove PCBA from furnished front casing by using plastic flake.

Step 7: Remove camera from main PCBA by using camera jip.
