From Bicom Systems Wiki

Contents

1 Introduction

■

2 Requirements

■

2.1 Identifying Phone Model

■

2.2 Phone Firmware

■

2.3 DHCP Server

■

2.4 PBXware Version

■

3 Installation

■

3.1 Power Adapter

■

3.2 Power over Ethernet (PoE)

■

3.3 Find the Phone's IP Address

■

3.4 Reset to Factory Settings

■

4 Registering Phone

■

4.1 Manual Configuration

■

4.2 Auto Provisioning

■

5 Additional Configuration Template

■

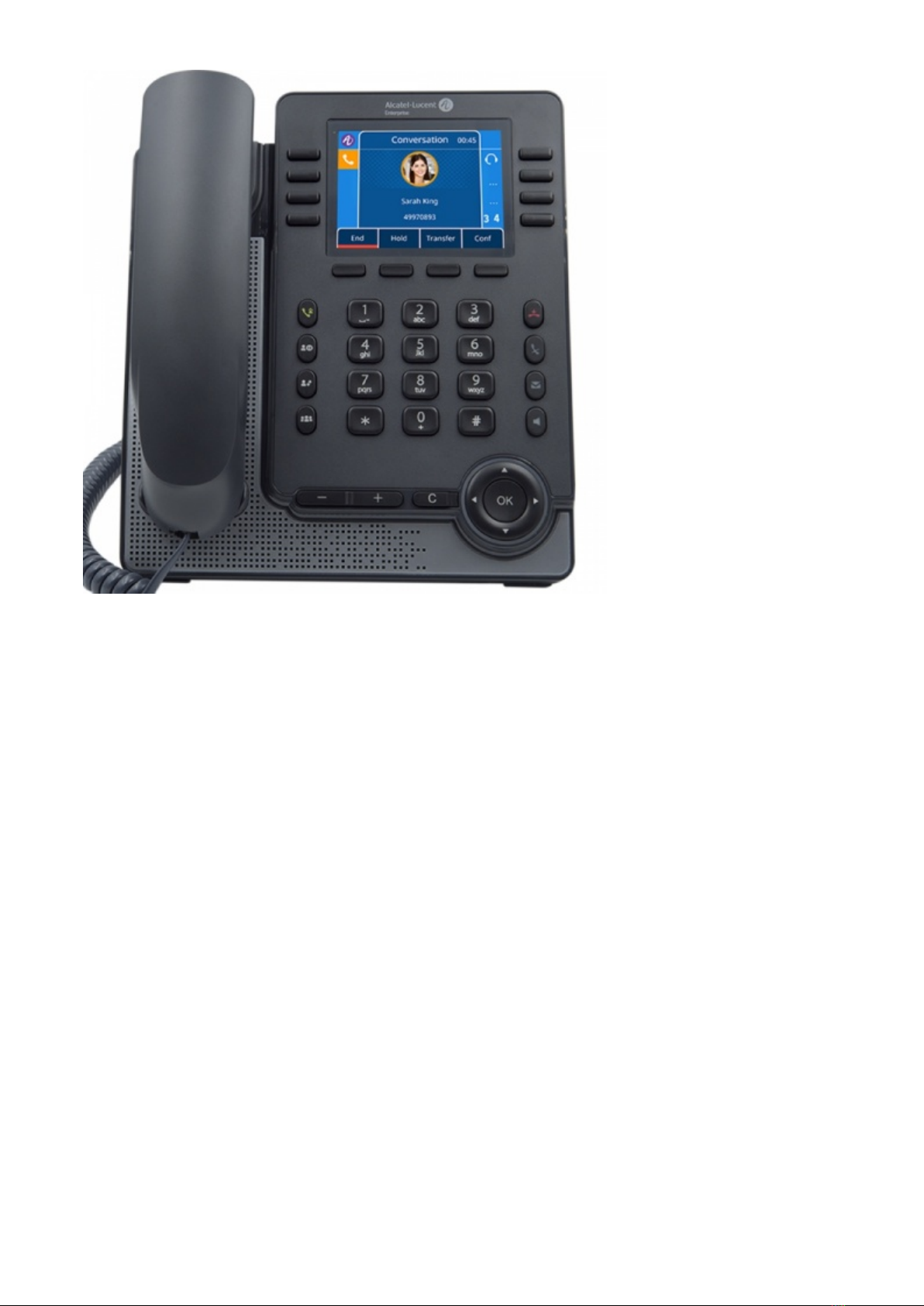

Introduction

This configuration guide is written as a general guide on how to configure the Alcatel-Lucent

M7 phone model to work with PBXware 5.3.9 and 6.4.

Requirements

Identifying Phone Model

To start and successfully complete the registration of your Alcatel-Lucent phone, you need to

know which phone model to set up.

On the back of each Alcatel-Lucent phone, there is model information that you should check.

Although various phone models can have exactly the same requirements and installation

procedures, phone models can also have significantly different requirements and installation

procedures, so that is why it is important to know the model you own which results in you

setting up the device successfully.

Phone Firmware

Make sure that your phone is loaded with appropriate firmware version, 2.12.04.000.1720.

■

To find out the firmware version of the Alcatel phone model, open a new browser window and

■

enter the phone's IP address in order to access the phone's web administration interface login

screen. Example: http://192.168.1.22.

■

note that the factory default login details are as follows: username is admin and password is

123456.

DHCP Server

Fully configured and operational DHCP server.

PBXware Version

PBXware version 5.3.9

In order to find out the PBXware version:

■

Navigate to Settings: About.

■

On the top of About page, you may see a code similar to this one PBXware Edition: Multi-

Tenant Release: 5.3.9.0 (41a4f0e6) Running: 13.23.1-gc-2e09fa3d, Proxy v5.3.9

(231c5f3), API: 5.3, libmemcached version: 1.0.18, where Release denotes the current

version of your PBXware.

Installation

This section describes how to install and connect the phone to the electrical power and data

network as well as how to apply factory settings.

The following topics are covered:

Power Adapter

■

Power over Ethernet (PoE)

■

Factory Settings

■

Power Adapter

Connect the Network and Power

Connect the DC plug on the power adapter to the DC port on the phone and connect the other

■

end of the power adapter into an electrical power outlet.

Connect the Ethernet cable between the Internet port on the phone and the network port on a

■

router or switch to access LAN.

NOTE: If you are using Power over Ethernet (PoE), you do not need to connect the AC adapter.

Make sure that the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.

Power over Ethernet (PoE)

Connect the Network (only)

Using a regular Ethernet cable, your phone can be powered from a Power over Ethernet (PoE)

compliant router or switch.

Connect the Ethernet cable between the Internet port on the phone and an available port on

■

the in-line power router or switch.

NOTE: If you are using Power over Ethernet (PoE), you do not need to connect the AC adapter.

Make sure the Ethernet cable and router or switch is Power over Ethernet (PoE) compliant.

Find the Phone's IP Address

Find out your Alcatel phone's IP Address.

Press the OK button.

■

The IP address will be displayed on the top of display.

Reset to Factory Settings

This step is not required for brand new out-of-the-box phones, however, if the phone has been

already used, then it is a must.

Click Maintenance in the left-hand navigation menu.

■

Click the Reboot&Restore sub-section.

■

Click OK next to the 'Restore Factory' field to initiate action.

■

Wait for some time for a device to reset to factory settings.

■

NOTE: Do not unplug or remove power from the phone while it is updating firmware and

configuration.

Registering Phone

This section describes how to identify the Alcatel phone model, requirements that must be met,

and how to register the phone using manual configuration or auto-provisioning.

The following topics are covered:

Manual Configuration

■

Auto Provisioning

■

Manual Configuration

This section describes how to set the UAD settings, create a PBXware Extension and register

the phone.

The following topics are covered:

UAD Settings

■

Creating an Extension

■

Registering a Phone

■

UAD Settings

UAD settings

Open a new browser window and enter the IP address in order to access the PBXware's web

■

administration login screen. Example: http://192.168.1.10.

■

UAD settings

Navigate to Settings: UAD.

■

Make sure Alcatel M7 UAD is enabled. To check the UAD status, click the Edit icon

■

corresponding to your Alcatel phone.

Make sure Status is set to Active, Auto provisioning is set to No, and DHCP is set to Yes.

■

Click the Save button to save changes.

■

Creating an Extension

Creating Extension

Add an Extension

Navigate to Extensions. Click Add Extension.

■

The standard options window will be shown below.

■

Select the Alcatel phone model from the UAD select box.

■

Select Location: Local or Remote.

■

Local is for all Extensions registered on the LAN and Remote is for all Extensions

registered from remote networks, WAN, Internet etc.

Click the Next step button.

■

Extension values

Enter values into the required field text boxes.

REQUIRED FIELDS:

Name

■

Enter a name for the Extension being created. Example: John Smith.

E-mail

■

Enter the e-mail address associated with this Extension. This e-mail address will receive

all system notification messages. Example: [email protected]

Department

■

Department to which Extension belongs. Example: Sales.

Click the Save button.

■

Registering a Phone

This section describes how to register the Alcatel phone using Hostname or IP Address.

Hostname or IP Address

Open a new browser window and enter your phone IP address in order to access the phone's

■

web administration interface login screen. Example: http://192.168.1.22

■

note that the factory default login details are as follows: username is admin and password is

123456.

Click Account -> Basic.

■

Enter or set the following details into the respective fields.

■

REQUIRED FIELDS:

Account Active

■

Make sure the toggle button is enabled.

SIP Label Name

■

PBXware Extension user name. Example: John

Display Name

■

Usually the same number as the Register Name.

User Name

■

PBXware Extension number. Example 1003.

■

PBXware Extension number. Example 1003.

Password

■

The Secret of the Extension as received in the e-mail associated with this extension.

Example: _%Z4M3*Ts9y7. A password is generated automatically for each newly created

Extension.

SIP Server

■

Enter the Hostname or IP Address of PBXware.

- Example of a Hostname: voip.bicomsystems.com

- Example of an IP Address: 192.168.1.10

Click the Confirm button at the bottom of the page.

■

If everything is done as described above, you should have successfully registered your phone

■

to PBXware.

Dial *123 to verify the registration.

Auto Provisioning

This section describes how to set UAD settings, create a PBXware Extension and register the

phone using DHCP or Static IP address.

The following topics are covered:

UAD Settings

■

Creating an Extension

■

Registering a Phone

■

UAD Settings

UAD settings

Open a new browser window and enter the IP address in order to access the PBXware's web

■

administration login screen. Example: http://192.168.1.10.

■

UAD settings

Navigate to Settings: UAD.

■

Make sure Alcatel M7 UAD is enabled. To check the UAD status, click the Edit icon

■

corresponding to your Alcatel phone.

Make sure Status is set to Active, Auto provisioning is set to Yes, and DHCP is set to Yes.

■

Click Save to save changes.

■

Creating an Extension

Creating Extension

Add Extension

Navigate to Extensions. Click Add Extension.

■

The standard options window will be shown below.

■

Select Alcatel phone model from the UAD select box.

■

Select Location: Local or Remote.

■

Local is for all Extensions registered on the LAN and Remote is for all Extensions

registered from remote networks, WAN, Internet etc.

Click the Next step button.

■

Extension values

Enter values into the required field text boxes.

REQUIRED FIELDS:

Name

■

Enter a name for the Extension being created. Example: John Smith.

E-mail

■

Enter the e-mail address associated with this Extension. This e-mail address will receive

all system notification messages. Example: [email protected]

Auto Provisioning

■

Set to Yes.

MAC Address

■

Enter the Alcatel phone's MAC address. Example: 001565FF1536. The MAC address can

be found at the back of the phone.

Click Save.

■

Registering a Phone

This section describes how to register the Alcatel phone using DHCP, TFTP, or HTTP &

HTTPS.

DHCP

Configure DHCP

Make sure your DHCP router is configured to use option 66 to automatically instruct phones

■

with the URL for auto provisioning. For more information, please refer to the router

documentation or contact your network administrator.

Phone's first boot or user-initiated reboot

The auto-provisioning process will start during the phone's first boot or after the reboot

■

process has been initiated by the user. The DHCP server will instruct the phone from where to

pick up an appropriate configuration file. If everything is done as described above, you should

have successfully registered your phone to PBXware.

Dial *123 to verify registration.

TFTP or HTTP or HTTPS

Open a new browser window and enter the phone's IP address, e.g. http://192.168.1.22.

■

Enter username and password and press Confirm. NOTE: The factory default login details

■

are as follows: username is admin and password is 123456.

Click the Provision tab.

■

Click Auto Provision in the sub-menu.

■

Choose what server type you intend to use: HTTP, HTTPS, and Trivial FTP. NOTE: Our

■

recommendation is to use HTTP.

Enter http:// or https:// followed by Hostname or IP Address, then followed by

/prov in the DM URL and Backup DM URL fields.

Example of a Hostname using HTTP: http://abc.bicomsystems.com/prov

Example of a Hostname using HTTPS: https://abc.bicomsystems.com/prov

Example of an IP Address using HTTP: http://192.168.1.10/prov

Example of an IP Address using HTTPS: https://192.168.1.10/prov

Enter Auto Provisioning username and password into the Username and Password fields.

■

If you choose to use TFTP, enter tftp:// followed by Hostname or IP Address

Example of a Hostname: tftp://voip.bicomsystems.com

Example of an IP Address: tftp://192.168.1.10

Click the Confirm button at the bottom of the page.

■

Click the Auto Provision Now button.

■

A pop up window will show up, click OK to confirm.

■

You will have to wait a couple of seconds for the configuration to be updated. NOTE: Do not

■

power off your phone.

The auto-provisioning process will start during the phone's reboot process. The phone will pick

■

up an appropriate configuration file from PBXware. If everything is done as described above,

Table des matières

Autres manuels Alcatel-Lucent Téléphone IP

Alcatel-Lucent

Alcatel-Lucent 8088 Smart DeskPhone V2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent Alcatel 8 Series IPTouch 4068 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent DeskPhone 8001 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent ENTERPRISE 4018 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent Premium DeskPhone 8039s Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniTouch 8082 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent ALE-30h Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OpenTouch 8018 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent IP Touch 310 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent DeskPhone 8001 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent DeskPhone 8001 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniGenesys Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniPCX Office Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent ENTERPRISE 4018 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent ENTERPRISE 4018 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent IPTOUCH 300 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniTouch 8600 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OpenTouch Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent ALE-30h Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniTouch 8002 DeskPhone Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 8068 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent ENTERPRISE 4018 Manuel d'instructions

Alcatel-Lucent

Alcatel-Lucent 8028s Premium Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent M8 Manuel utilisateur

Manuels Téléphone IP populaires d'autres marques

Alcatel

Alcatel 4028 Manuel utilisateur

Polycom

Polycom Polycom VVX 600 Manuel utilisateur

Polycom

Polycom SoundPoint IP 450 Manuel utilisateur

Cisco

Cisco SPA-500 Series Manuel utilisateur

Polycom

Polycom SoundPoint IP 650 Manuel utilisateur

Proximus

Proximus Maestro 3016 IP Manuel utilisateur

Fanvil

Fanvil X4 Manuel utilisateur

Cisco

Cisco 7962 Manuel utilisateur

Snom

Snom 320 Manuel utilisateur

Yealink

Yealink Yealink SIP-T46G Manuel utilisateur

Avaya

Avaya 4625SW Manuel utilisateur

Yealink

Yealink SIP-T52S Manuel utilisateur

Nortel

Nortel 1140E Manuel utilisateur

Nexotek

Nexotek NT-P500 Manuel utilisateur

Avaya

Avaya Integral 5 R3.0 Manuel utilisateur

GE 28320EE2 - Dect 6.0 InfoLink 2 Manuel utilisateur

Avaya

Avaya 4600 Series Manuel de service

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manuel utilisateur
