Albasca MK-1200ZB Manuel utilisateur

Wireless Linear Imager Scanner

Configuration Guide

MK-1200ZB

- 3 -

Table of Contents

Chapter 1 System Information

1.1 About this manual 4

1.2 How to set up the parameter 4

Chapter 2 System Setup

2.1 Terminator 6

2.2 String Options (Prefix & Suffix) 7

2.3 Setup Insertion 8

Chapter 3 BarCode parameters setting

3.1 UPC-A 12

3.2 UPC-E 15

3.3 EAN-13 18

3.4 EAN-8 20

3.5 Code39 22

3.6 Codabar 25

3.7 Code93 29

3.8 Code128 31

3.9 Interleaved2 of 5 34

3.10 Industrial 2of 5 36

3.11 Matrix 2 of 5 38

3.12 China Postage 40

3.13 MSI/Plessey 42

3.14 Code 32 44

3.15 Code 11 46

3.16 Telepen 48

3.17 GS1 DataBar 50

Appendix 52

- 4 -

Chapter 1 - System Information

1.1 About this manual

This User's Guide provides detailed programming instructions. Barcode

scanners are factory programmed for the most common communication

setting. If you need to change these settings, programming is accomplished

by scanning the bar codes in this guide.

1.2 How to set up the parameter -I

(1) Scan Start Configuration

(2) Scan all necessary labels for parameters that meet your applications.

(3) Scan End Configuration to end the programming.

Start configuration End configuration

Default setting

Check Version

An asterisk (*) next to an option indicate the default setting.

- 5 -

1.2 How to set up the parameter - II

Most of time the scanner only requests one read of parameters when

changing to new values. You will hear two beeps when you successfully

set to the new values. But for some special parameters, multiple reads are

needed to complete the configuration. When use these special

parameters. In some cases, you might need to read one or more barcodes,

such as:

 Hexadecimal barcodes. For example: prefix, suffix, etc.

 Numeric barcodes. For example: inter-character delay, max/min length

To complete the change of setting you will need to read the “Confirm”

barcode after you read the parameter. Below is the flow chart to explain

two different configurations.

- 6 -

Chapter 2 - System setup

Start configuration End configuration

2.1 Terminator

ITEM OPTION

None

*CR+LF

Tab

Output Characters

- 7 -

2.2 String Options (Prefix & Suffix)

This section describes the alterations which can be made to the format of

the transmitted data string. A prefix and suffix of maximum 10 direct

input may be included in front and at the end of scanned barcode.

Format

{Prefix} {Code ID} {Bar Code} {Suffix}

How to set up a prefix?

To configure “## “as prefix

(1) Scan Start Configuration barcode

(2) Scan Preamble bar code

(3) Scan ‘#” twice from FULL ASCII table

(4) Scan Confirm configuration barcode

(5) Scan End Configuration barcode.

How to set up a suffix?

To configure “$$” as suffix

(1) Start configuration barcode

(2) Scan Postamble barcode

(3) Scan ‘$” twice from FULL ASCII table

(4) Scan Confirm configuration barcode

(5) Scan End configuration barcode.

- 8 -

2.3 Setup Insertion

This section describes how to setup the insertion of output.

NOTE :

 Max. 10 charters can be inserted each time

 Max. Insertion group is only two.

 Insertion group (01) or (02) can be used in different kinds of

barcodes at the same time

- 9 -

Example:

To insert character “A” before the third digit(3)

Make the decoded data: 12A3456789

How to set up a character you want to insert

(1) Scan Start Configuration barcode

(2) Scan “G1 Insertion character”

(3) Scan “4” and “1” from FULL ASCII Table

(4) Scan Confirm configuration barcode

(5) Scan End configuration barcode

How to set up position you wish to place the character

(6) Scan Start Configuration barcode

(7) Scan “G1 Character Position”

(8) Scan “0” and “3” from FULL ASCII Table (which presents the position)

(9) Scan Confirm configuration barcode

(10) Scan End configuration barcode

How to set up insertion for code 39

Go to chapter 3.5 (code 39)

(11) Scan Start Configuration barcode

(12) Scan “Insert group selection” bar code

(13) scan “0” and “1” from FULL ASCII Table

(which presents the group- 01 you just set up previously)

(14) Scan Confirm configuration bar code

(15) Scan End configuration barcode

- 10 -

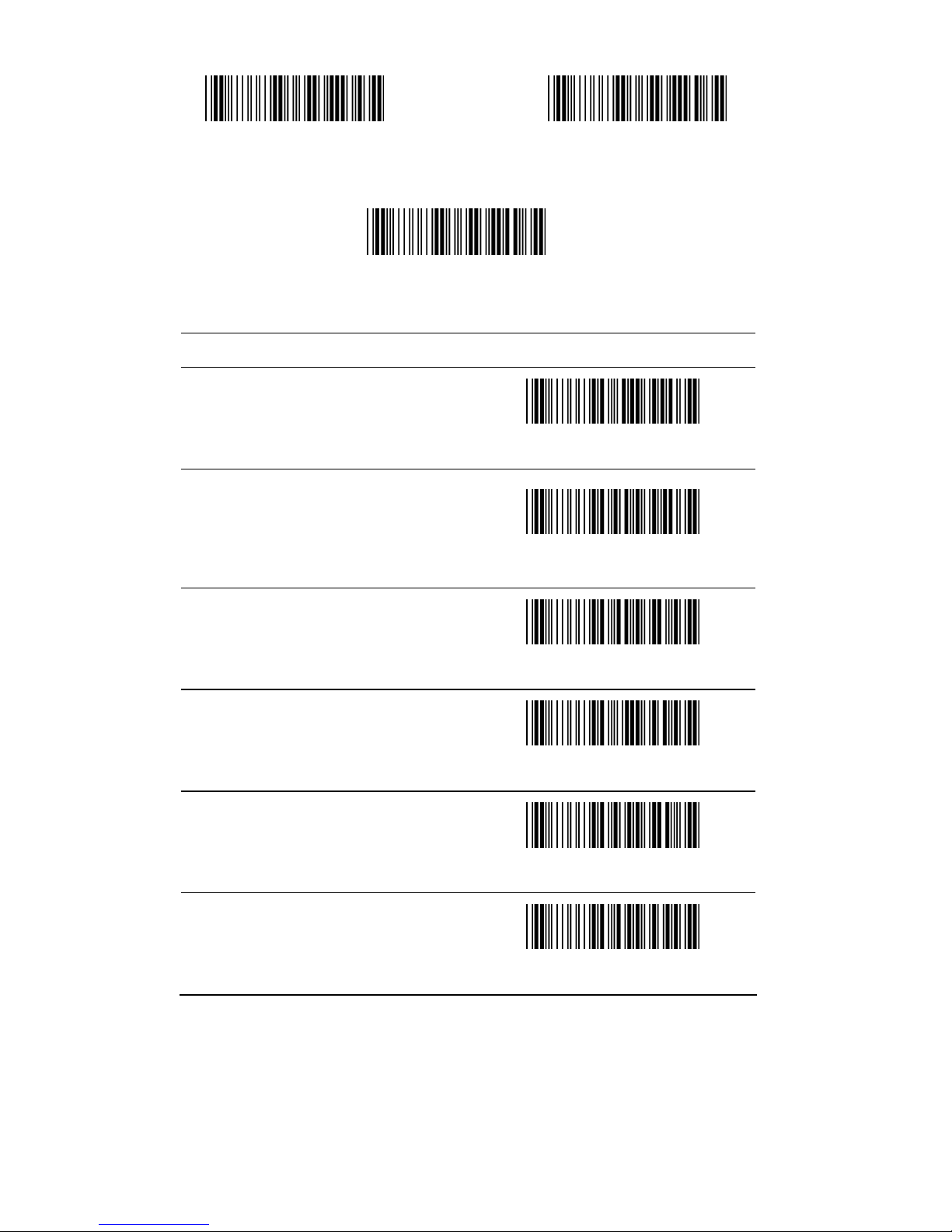

Start configuration End configuration

Confirm configuration

ITEM OPTION

Preamble

(Default：00)

Ref: Appendix

Postamble

(Default：00)

Ref: Appendix

G1 Insertion character

(Default：00)

Ref: Appendix

G2 Insertion character

(Default：00)

Ref: Appendix

G1 Character Position to be

inserted (Default：00)

Ref: Appendix

G2 Character Position to be

inserted (Default：00)

Ref: Appendix

- 11 -

Start configuration End configuration

ITEM OPTION

*Disable

Bar Code ID

Enable

* Read 1 Time

Accuracy

Read 2 Times

Negative bar codes

Positive and negative bar codes

*Positive bar codes

Code Type ID

UPC-A F Interleaved 25 N

UPC-E G Industrial 25 O

EAN-13 H Matrix 25 P

EAN-8 I China Postal Code Q

Code 39 J MSI/Plessey R

Codabar K Code 32 S

Code 93 L Code 11 T

Code 128 M

Telepen V
