USER MANUAL

Alb Filter® DUO

...naturally better water

Blaufaktor GmbH & Co. KG

Riedweg 12

D-78607 Talheim

www.alb-ﬁlter.com

info@alb-ﬁlter.com

Thank you very much for purchasing our

Alb Filter®DUO

To ensure correct installation and ecient operation

of the water ﬁlter, please follow the installation

instructions below.

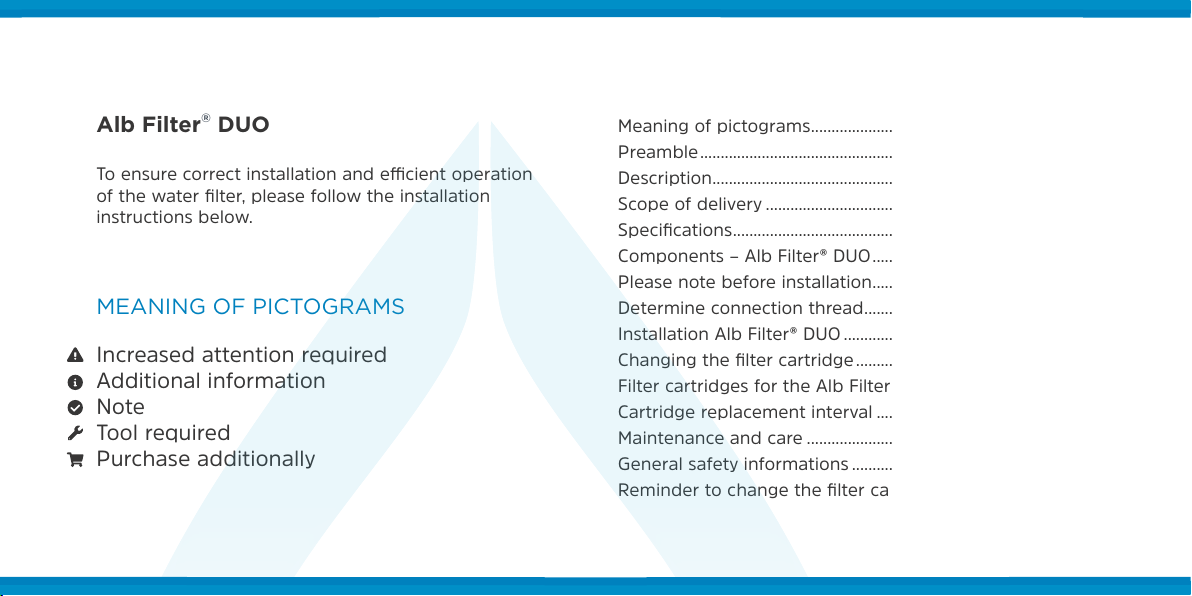

MEANING OF PICTOGRAMS

Increased attention required

Additional information

Note

Tool required

Purchase additionally

INHALT

Meaning of pictograms............................................................... 2

Preamble.......................................................................................... 4

Description....................................................................................... 5

Scope of delivery .......................................................................... 6

Speciﬁcations.................................................................................. 7

Components – Alb Filter®

DUO................................................ 8

Please note before installation................................................ 10

Determine connection thread.................................................. 10

Installation Alb Filter®

DUO ....................................................... 12

Changing the ﬁlter cartridge.................................................... 16

Filter cartridges for the Alb Filter® DUO............................... 20

Cartridge replacement interval ............................................... 20

Maintenance and care ................................................................ 21

General safety informations ..................................................... 22

Reminder to change the ﬁlter cartridge.............................. 24

2 3

PREAMBLE

Alb Filter® - a maer of heart.

We are pleased that you have chosen Alb ﬁlter.

Since 2001 we can look back on a great experience in the

ﬁeld of water treatment.

At a time when even the smallest part seems to come from

the Far East, we at Alb Filter stand for quality from the

centre of the Swabian Alb. A production site in southern

Germany, which is characterized by the highest standards

and precision in many areas.

We feel commied to our region and manufacture our pro-

ducts with our partners in the surrounding area.

A real piece of home - Made in Germany.

DESCRIPTION

The Alb Filter® DUO - a high quality water ﬁlter for

installation directly on the tap.

Alb Filter® DUO is ideal for:

• Drinking water treatment

• Preparation of food (cooking water)

• Cleaning of food

The water ﬁlter is installed directly on the kitchen faucet. For

this purpose the bypass is screwed to the standardized out-

let (M22 AG/M24 IG) instead of the jet regulator.

By means of a practical switch lever, it is possible to choose

between ﬁltered and unﬁltered water.

4 5

SPECIFICATIONS

• Design:

Water ﬁlter system for installation on ﬁings

• Material: Special alloy anodized, food grade

• Cartridge and capacity:

Depending on the selected version

• Connection of the inlet of the ﬁing:

Standard connection for ﬁings with M22x1 outlet thread

(female thread)

• Flow rate: approx. 5-11 liters per minute - depending on

cartridge type (at approx. 2-3 bar water pressure)

• Dimensions WxHxD: 115 x 125 x 69 mm

• Weight without cartridge: approx. 450 g

SCOPE OF DELIVERY

Note:

Please check that the delivery is complete before

commissioning - it consists of

• Alb Filter® DUO ﬁlter housing with aerator bypass and

changeover function

• Alb Filter® Cartridge

Further accessories as well as replacement ﬁlter cartrid-

ges, thread adapters and discount oers can be found at

www.alb-ﬁlter.com

6 7

Alb

f i lter

Made in Germany

Active

Alb

f i lter

Made in Germany

S/N 0000001

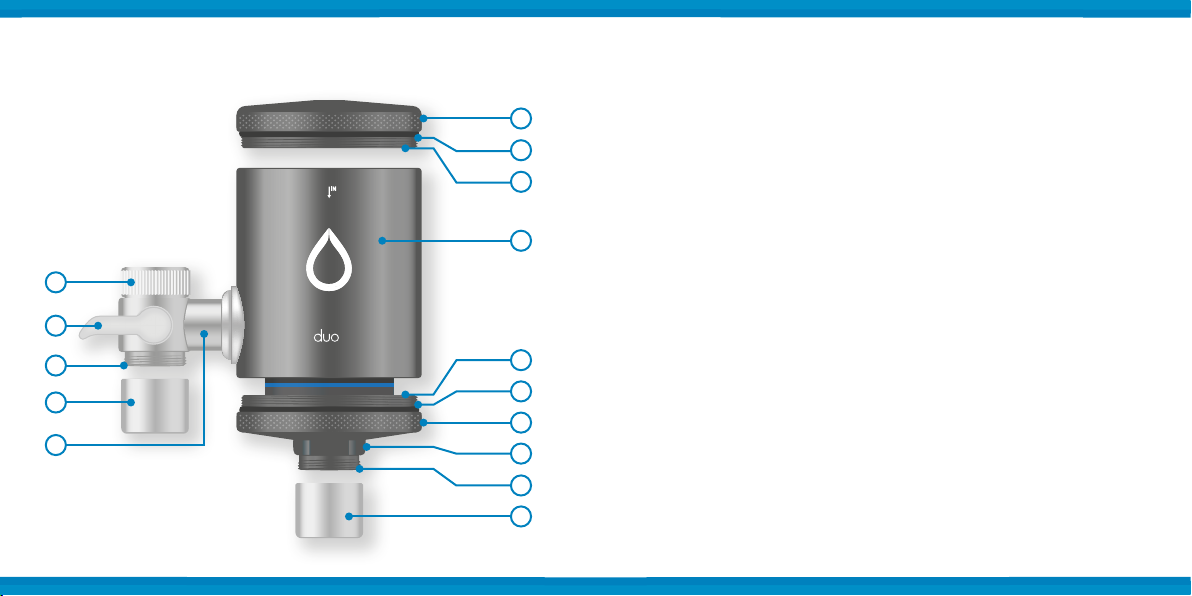

1. Upper cap

2. Sealing ring (top)

3. Threaded screw connection (upper sealing cap)

4. Filter body with internal thread on top and boom

5. Threaded connection with ripped union nut and head

seal for water ﬁlter ﬁings with standard connection

M22 x 1 female thread

6. Switching lever: Unﬁltered water / ﬁltered water

7. Aerator thread (external thread: M22 x 1)

8. Aerator with head seal (unﬁltered water)

9. Inlet bridge for ﬁlter housing with 4 mm allen hollow

screw and sealing ring.

10. Threaded screw connection (lower sealing cap)

11. Sealing ring (boom)

12. Lower cap with faucet aerator thread

13. Wrench width 24 mm for open-end wrench

14. Aerator thread (external thread: M22 x 1)

15. Aerator with head seal (ﬁltered water)

COMPONENTS – ALB FILTER®DUO

8 9

PLEASE NOTE BEFORE INSTALLATION

The Alb Filter® DUO has a standard M22 female thread, suitable

for most taps with M22 male thread. If your faucet does not

have a M22 external thread, you will need an adapter.

Adapter available at www.alb-ﬁlter.com

Shop Category: Accessories

DETERMINE CONNECTION THREAD

The two most common jet control variants are called M22 or

M24 in technical terms. Furthermore there are further sizes

e.g. M16, M18 and M21, which are however less common.

Online thread guide for more details at

www.alb-ﬁlter.com

Procedure for determining their connection thread:

1. Remove your aerator from the ﬁing. If necessary, use a

pipe wrench with jaw protection or a mounting key.

2. Measure the diameter of the thread on the tap.

Alternatively, measure the diameter at the unscrewed

aerator.

Ø (inner) mm Ø (outer) mm Type

16,9 17,8 M18 x 1

18,9 18,8 M19 x 1

20,9 21,8 M22 x 1

22,9 23,8 M24 x 1

10 11

Alb

f i lter

Made in Germany

Active

Alb

f i lter

Made in Germany

S/N 0000001

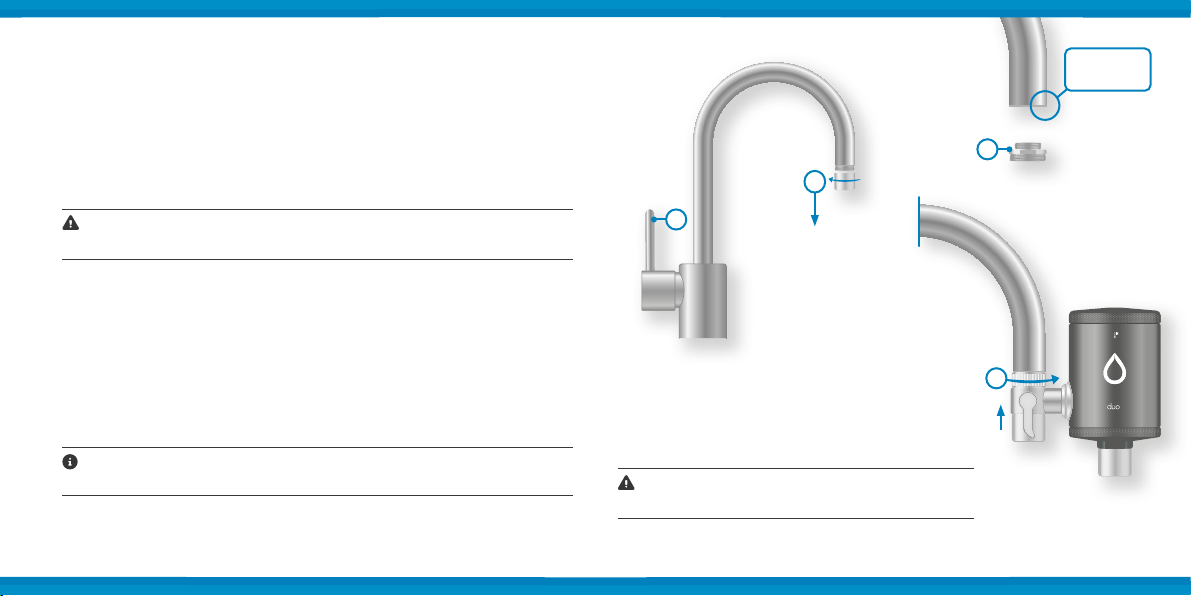

INSTALLATION ALB FILTER®DUO

Procedure:

1. Make sure that your water tap is closed (A). Remove the

Alb Filter® DUO from its packaging.

If the cartridge is not pre-installed, please follow the

instructions for changing the cartridge on page 16.

2. Remove the aerator of your faucet using a suitable tool.

(B)

3. Check the condition of the thread of your ﬁing and, if

necessary, remove lime and other deposits.

4. If your armature does not have a standard M22 external

thread, screw the previously determined thread adapter

into your armature. (C)

If you have any questions about the thread adapters, you

can contact us using the contact details on our website.

5. Screw the Alb Filter® DUO to your

faucet or adapter by turning the

serrated union nut. (D)

Aention: Avoid placing the union nut

on the thread at an angle.

Alb

f i lter

Made in Germany

Active

Al b

f i lter

Made in Germany

S/N 0000001

ATTENTION!

An adapter is

required!

12 13

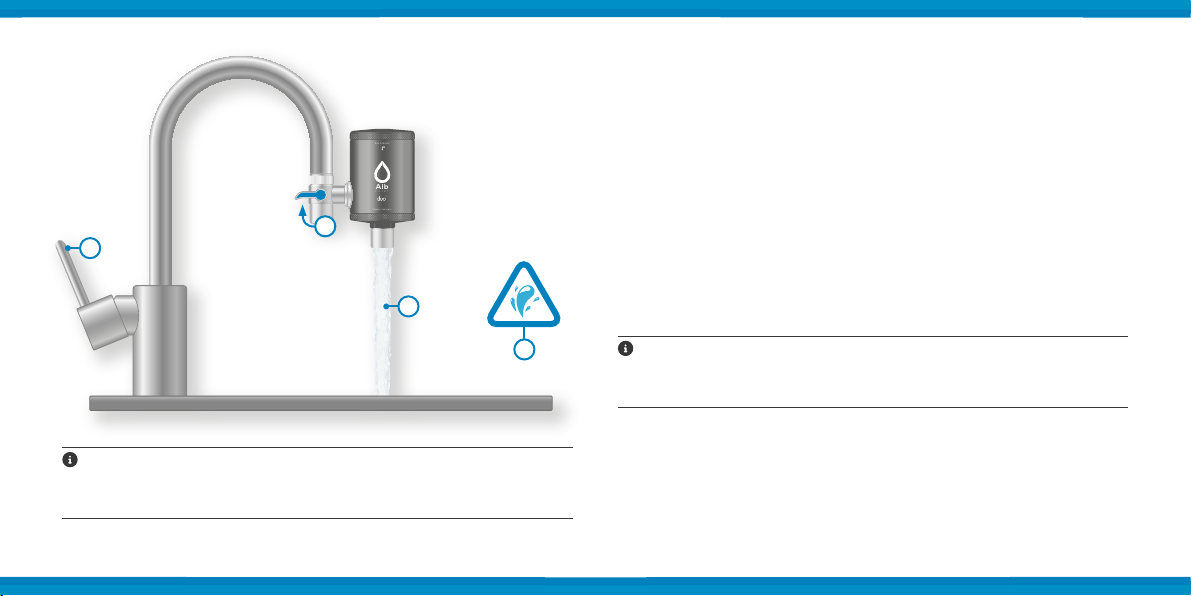

6. Check that the Alb Filter® DUO is correctly and ﬁrmly

aached to your faucet. If necessary, use a pair of pliers

with jaw protection to tighten the union slightly.

7. Before opening the water inlet of your faucet, make sure

that the switch lever is in vertical (downward) position.

Mode: Unﬁltered.

8. Set the switch lever to horizontal position (Mode:

Filtered) (E). Then slowly open the water inlet of your

faucet. (F)

9. Now let the water run through the water ﬁlter for 5

minutes to activate it. (G)

Production-related activated carbon dust may dissolve

during rinsing and slightly cloud the water during the

cartridge activation process.

10. Check the water ﬁlter housing and all connected

components for leaks. (H)

11. The Alb Filter® DUO is now ready for use.

Al b

f i lter

Made in Germany

Active

Alb

f i lter

Made in Germany

S/N 0000001

We recommend to mount the Alb Filter® DUO on the

right side or aligned to the front to make the switchover

function (ﬁltered/unﬁltered) easier to operate.

14 15

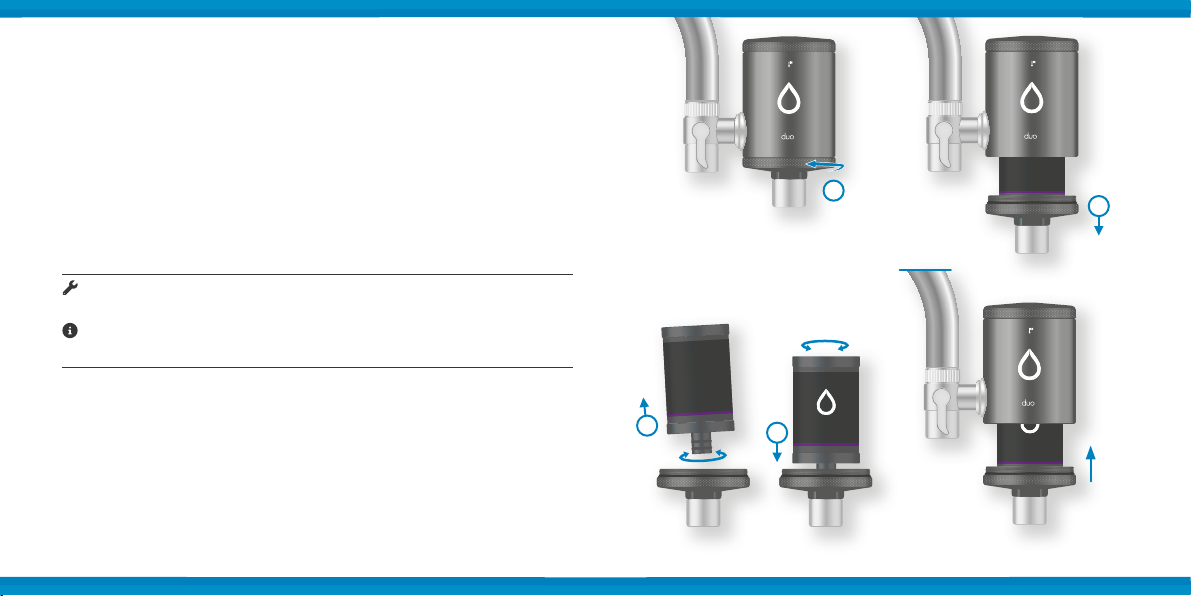

CHANGING THE FILTER CARTRIDGE

Procedure:

1. Close the inlet of your faucet.

2. Unscrew the lower cap of the Alb Filter® DUO from the

ﬁlter body. (A)

3. Pull the cap downwards. The ﬁlter cartridge becomes

visible. (B)

Please use a 24 mm open-end wrench if the cover is

tight. Use a cloth to avoid scratches.

The ﬁlter cartridge sits in the lower sealing lid with the

help of two O-rings (press ﬁt).

4. Now pull the ﬁlter cartridge out of the lower cap with a

slight turning movement. (C)

5. Press the new ﬁlter cartridge into the receptacle of the

lower cap with slight turning movements. (D)

Alb

f i lter

Made in Germany

S/N 0000001

Alb

f i lter

Made in Germany

Active

Alb

f i lter

Made in Germany

S/N 0000001

Alb

f i lter

Made in Germany

Active Plus+

Alb

f i lter

Made in Germany

Active Plus+

Alb

f i lter

Made in Germany

S/N 0000001

Alb

f i lter

Made in Germany

Active Plus+

Alb

f i lter

Made in Germany

Active Plus+

Alb

f i lter

Made in Germany

S/N 0000001

DAlb

f i lter

Made in Germany

Active Plus+

Alb

f i lter

Made in Germany

Active Plus+

Alb

f i lter

Made in Germany

S/N 0000001

16 17

If the ﬁlter cartridge is dicult to install, the sealing rings

of the ﬁlter cartridge should be weed with water or

vaseline/milking grease (food safe).

6. Screw the lower cap back onto the ﬁlter body and

tighten it hand-tight. A gap (1 mm) may be visible! (E)

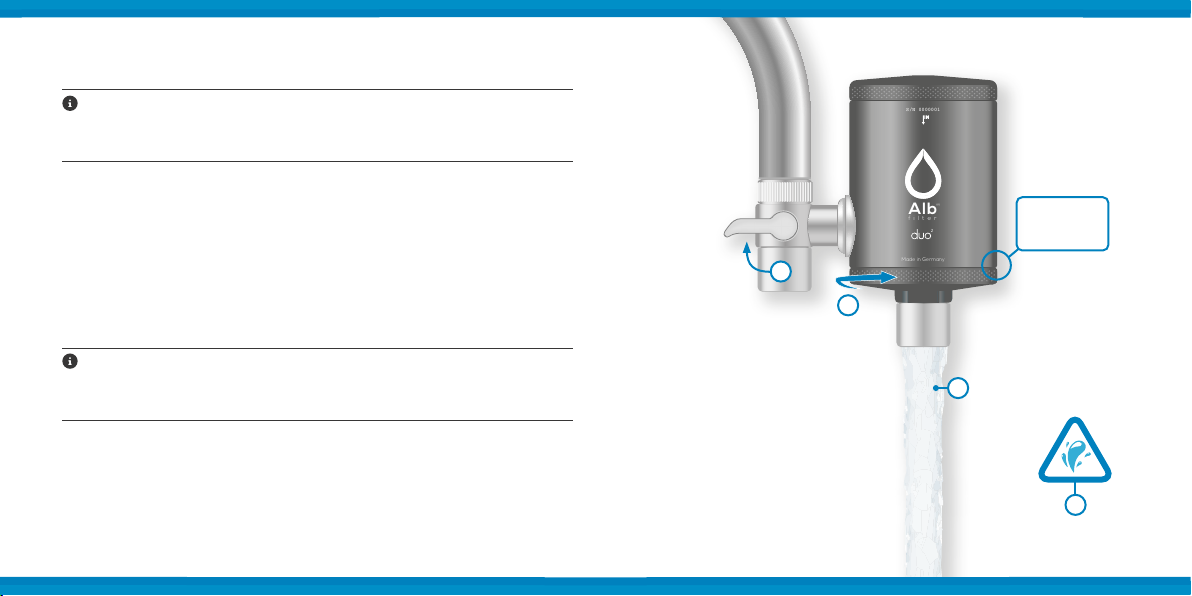

7. Move the switch lever to the horizontal position (Mode:

Filtered) (F). Then slowly open the water inlet of your

faucet.

8. Now let the water run through the water ﬁlter for 5

minutes to activate it. (G)

Production-related activated carbon dust may dissolve

during rinsing and slightly cloud the water during the

cartridge activation process.

9. Check the water ﬁlter housing and all connected

components for leaks. (H)

10. The Alb Filter® DUO is now ready for use.

Al b

f i lter

Made in Germany

Active

Alb

f i lter

Made in Germany

S/N 0000001

ATTENTION!

Avoid a slanted

positioning of

the threads.

18 19
