Alarm Lock DL-WINDOWS Manuel
1
EXAMPLE 1
ADD A PROX CARD TO A USER
The following describes the procedure to add a proximity
card to user "Sam Jones".
1. Click the "Add Cards" button.
2. In the Prox Card Enrolling dialog, select the cor-
rect Card Type.
3. In the Card No. field, type the number printed in ink
on the card surface.
4. In the Facility field, type the card Facility Code.
When using HID cards from Alarm Lock, select the
following:
•Card Type: "NAP36bit"
•Card No.: Type the number printed in ink on the
card surface
•Facility: "19"
5. Click "Build Card Data" button. Note: In this ex-
ample, Sam Jones is required to use both a PIN
and his proximity card to gain entry.
The user's name in the Global Users Screen is high-
lighted in yellow. The proximity card information is dis-
played in the bottom right area of the screen.
The proximity card information is also displayed in the
Lock Data screen:
DL-WINDOWS™
TIMEZONE SCHEDULING SCENARIO EXAMPLES
WI1633.02 8/07
345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ Symbol: NSSC
© ALARM LOCK 2007
2
EXAMPLE 2
ADDING PROX CARDS USING THE
"SEQUENTIAL ADD" FEATURE
(MULTIPLE USERS AT ONE TIME)
1. Select multiple users by clicking to highlight the
name of the first user:
2. Hold down the Shift key and click to highlight the
last name you want to add. All names will be se-
lected as shown in the image below:
3. Click the "Add Cards" button and the Prox Card
Enrolling dialog opens:
4. In the Prox Card Enrolling dialog, click to choose
the correct "Card Type" from the pull-down list, type
the starting "Card No." (printed in ink on the card
surface) and the Facility Code number. Check the
"Sequential Add" check box. In the Number of
Cards pop-up, type the number of cards to be en-
rolled and click "OK".
ADD ALL USERS TO ALL LOCKS
5. In the Global Users Screen, highlight the first name
in the list, hold down the shift key, and highlight the
last name in the list. Right-click the highlighted area.
In the menu that appears, click Add Selected Users
to All Locks.
All users will be added to all locks (indicated by the
Lock ID rectangles turning green, as shown in the im-
age below:)
The proximity card information and sequential Card
Codes are also displayed in the Lock Data screen:
3
EXAMPLE 3
COMMUNITY SWIMMING POOL
OPEN MAY 26 - SEPTEMBER 3
9:00AM - 10:00PM (7 DAYS A WEEK)
The strategy here is to assign these users to a Group,
and then enable or disable the Group at certain times.
With each user possessing their own individual HID Prox
Cards, program as follows:
1. Set up Administrative users, (Master, Manager,
DTM Download, etc.). Click "Add Administrative
Users" button. In the Set Administrative Users dia-
log, change factory codes to new codes.
2. Add all users to Lock #3 (named "Pool Gate"). Se-
lect users by clicking to highlight the first name,
holding the Shift key, and clicking to highlight the
last name, as shown in the example image below:
3. With all names highlighted, right-click the high-
lighted names and click "Add Users to a Lock". In
the Add Users pop-up, click "Yes".
4. In the Select Door Number pop-up, click the pull-
down list and select the lock (in this example, #3
"Pool Gate") and click "OK".
The image below displays all users added to Lock
3, "Pool Gate" (indicated by the Lock ID rectangles
turning green):
5. Use Groups to control access by first assigning
each user to Group 2. Click the "Set Group As-
signment" button for each user and check the
"Add/Remove from Group 2" checkbox:
6. Create Time Zones and Schedules to only allow
those users in Group 2 to access the Pool Gate
from 9:00 am – 10:00 pm during the Pool Season,
May 26 – September 3.
The following image displays Time Zone 3, detail-
ing the opening and closing times for all of June:
4
The following image displays Time Zone 4, detail-
ing the opening and closing times for all of July:
The following image displays Time Zone 5, detail-
ing the opening and closing times for all of August:
The following image displays Time Zone 6, detail-
ing the opening and closing times for the "opening
weekend", May 26 through May 31:
The following image displays Time Zone 7, detail-
ing the opening and closing times for the "closing
weekend", September 1 through September 3:
(Optional step): In order to ensure all of the time
zones have been scheduled correctly, click the
"Switch to Schedule View" button as shown:
(The image below is a continuation of the image
above).
5
Since this time zone/schedule example is in the fu-
ture, you must also take into consideration the "pre-
May 26" time period by disabling these Group 2 us-
ers for the period before May 26. This way, these
Group 2 users will be sent to the lock "disabled" and
waiting for May 26th enable date. These Group 2
users will likewise be disabled again on September
3rd at 10:00 pm.
Therefore, uncheck ("disable") the Group 2 users
via the Lock Data screen, as shown below.
6

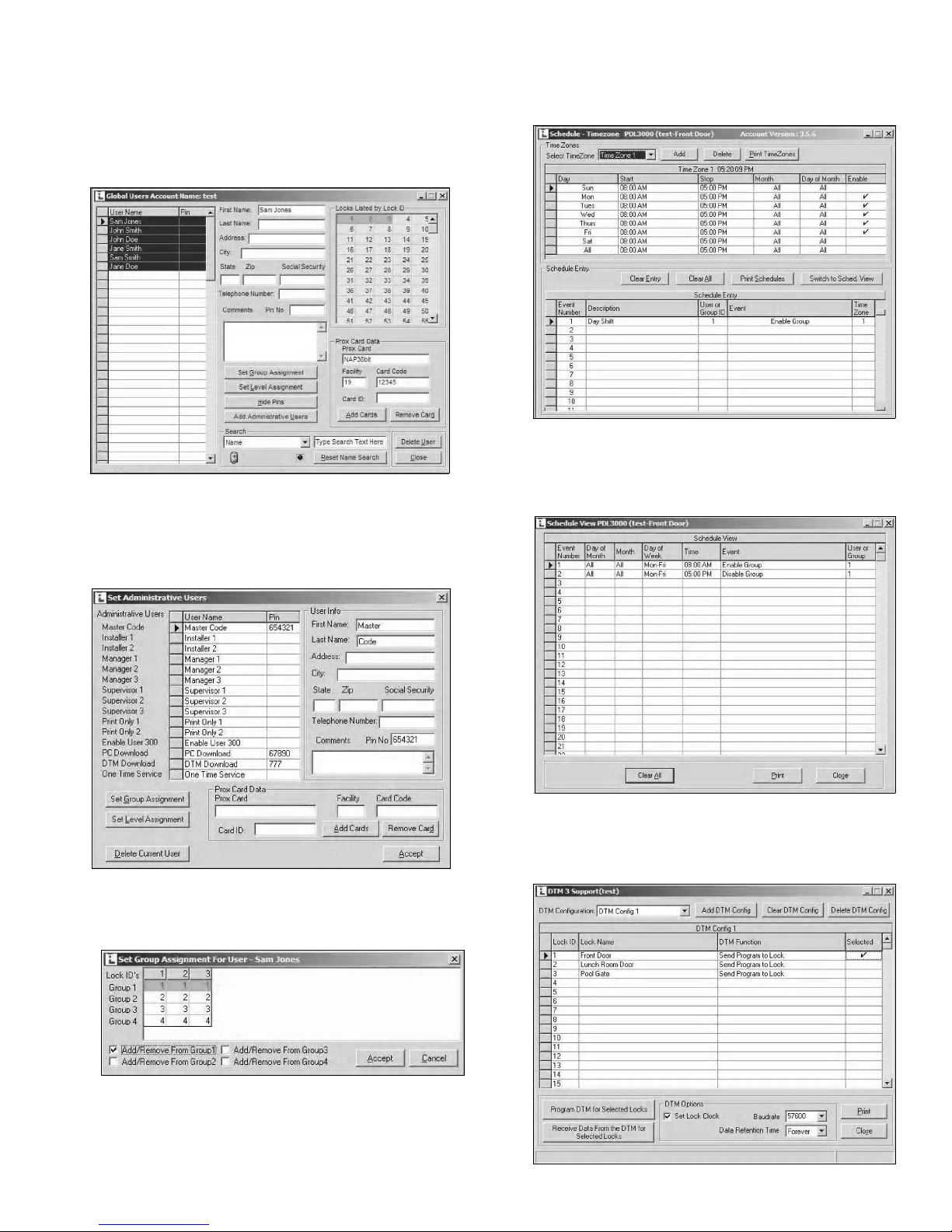

EXAMPLE 4
DAY - SHIFT
8:00AM - 5:00PM
MONDAY – FRIDAY
1. Set up users in the Global Users Screen:
2. Set up Administrative users (Master Code, Man-
ager/Supervisor Codes, DTM Codes, etc.). Click
"Add Administrative Users" button. In the Set
Administrative Users dialog, change factory
codes to new codes:
3. Add users to Group 1. Click the "Set Group As-
signment" button.
4. Create a schedule for the "Day Shift". For all users
added to Group 2, enable their individual codes/
Prox cards 8:00 am – 5:00 pm (Monday – Friday):
5. (Optional) Click the "Switch to Schedule View"
button to confirm the schedule was entered cor-
rectly:
6. Send program to lock "Front Door" using DTM.
Click "Program DTM for Selected Locks" button:
