Akw P12 Manuel utilisateur

Please read all instructions before installation and leave this document with the end user for future reference as

it contains important warranty information

P12 Shower Waste Pump

INSTALLATION MANUAL

General: 01905 823 298 | www.akw-ltd.co.uk2

TABLE OF CONTENTS

Table of Contents

Specification .........................................................................................................................................................................3

Dimensions............................................................................................................................................................................4

Main Components................................................................................................................................................................5

Plumbing Zone......................................................................................................................................................................6

Preparing the Pump .............................................................................................................................................................7

Plumbing Connections .................................................................................................................................................. 8 - 9

Setting Flow Direction .......................................................................................................................................................10

Electrical Installation..........................................................................................................................................................11

Commissioning Checks ....................................................................................................................................................12

Troubleshooting..........................................................................................................................................................13 - 14

Notes.....................................................................................................................................................................................15

Contact Us ...........................................................................................................................................................................16

Technical Support: 01905 560 219 3Order: 01905 823 299 |orders.akw-ltd.co.uk

SPECIFICATION

Specication

P12 Shower Waste Pump

Specification

Shower Compatibility

Electric Shower

Mixer Shower

Maximum Capacity 12 lpm

Ingress Protection IPX4

Inlet Connectors 22 mm

Outlet Connectors 22 mm

Max. Outlet head 2 m

Max. Inlet lift 350 mm

Variable Speed Yes (with P12D Controller)

Compatible Wastes 22 mm Outlet

Inlet/outlet direction Selectable

Supply 24v DC

General: 01905 823 298 | www.akw-ltd.co.uk4

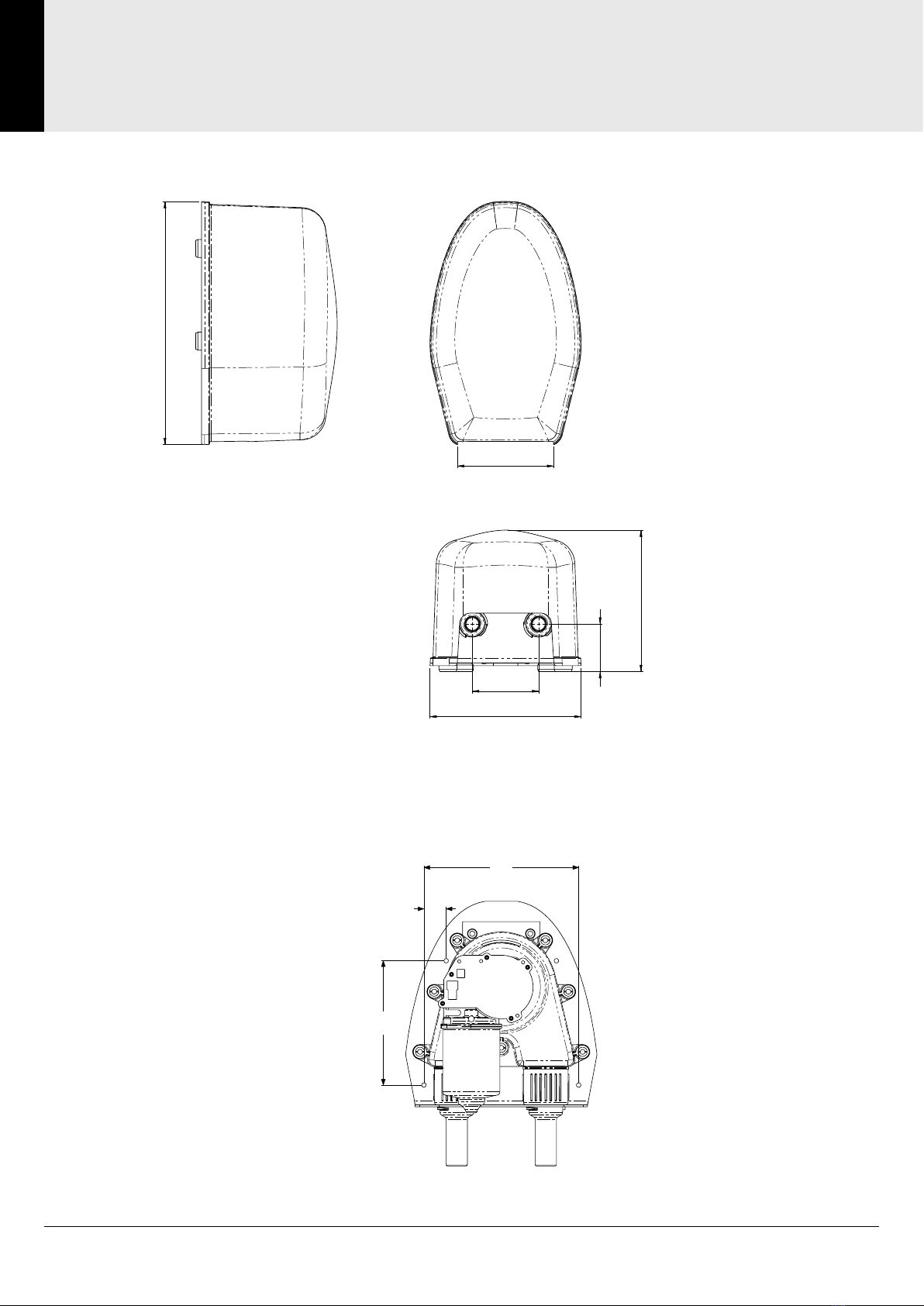

DIMENSIONS

Dimensions

133.2

209.5

92.0

66.0

196.2

337.3

Mounting Dimensions

160

129

Technical Support: 01905 560 219 5Order: 01905 823 299 |orders.akw-ltd.co.uk

MAIN COMPONENTS

Main Components

Conrm you have all the correct parts required. Ensure the volume of water from the shower does not exceed

the pumps drainage capacity. Note: Increased Head/Lift conditions will affect the pump’s performance.

Box Contents

Main Components

Pump Terminals

Latch

Cover

Pump

Wall Plate

Assembly

Inlet and Outlet

Connections

Wall Plate

Pump Motor

P12 Flexible Installation Kit -

Standard (see page 8)

X1 FS-X062 Flow Switch,

X2 Push-Fit Fittings

X1 Y Filter

X2 FS-X062 Flow Switch,

X4 Push-Fit Fittings

X2 Y Filter

Mixer Shower Electric Shower

General: 01905 823 298 | www.akw-ltd.co.uk6

PLUMBING ZONE

Plumbing Zone

This product is rated IPX4 and suitable to be installed within Zone 1 or Zone 2 of a shower room only if

these instructions are fully complied with. It must not be fitted within Zone 0.

The unit must be located away from the direct line of water jets.

Zone 1 lies above Zone 0 up to a minimum of 2.25m or to the height of the fixed shower head from the

finished floor level, which ever is greater.

If the shower has no tray then zone 1 extends to 1.2m around the fixed shower head.

Zone 2 is the area extending 0.6m beyond Zone 1 and up to the same height as Zone 1.

Diagram for guidance only - please refer to BS7671 for further details.

Technical Support: 01905 560 219 7Order: 01905 823 299 |orders.akw-ltd.co.uk

PREPARING THE PUMP

Preparing the Pump

Preparing Pump for mounting

1) Remove cover

2) Unscrew and open bracket with a 5 mm hexagonal key, then twist pipe connectors to unlock pump

3) Remove Pump from mounting plate

Fit to a finished surface.

Pipe connections must be easily accessible and

a clearance of 100 mm around the base and

sides is recommended. Using the back plate as a

template mark the fixing holes.

Drill and plug the wall taking care there are no

hidden cables or pipes. Use all the screw fixing

positions.

Mount the backplate to the finished surface and

attach pump component. Ensure it is secure by

locking the pipe connectors, closing the bracket

and tightening the bolt.

General: 01905 823 298 | www.akw-ltd.co.uk8

PLUMBING CONNECTIONS

Plumbing Connections

Note: Item 1 will need cutting down to create two hoses.

Illustrations below show the waste outlet direction going from

Left to Right - to change the direction, see page 10.

P12 Flexible Installation Kit - Standard (Stock Code: 05PP21)

Installation - Tray

Installation - Former

Item No. Title Qty.

1 3 m Flexible Hose 1

2 Ø43 mm Straight Solvent

Weld Coupler ABS

3 22 mm Pipe 2

4 Flexible Hose Collar 1

5 Pipe Coupling Kit 1

6 Hose Clamp 20-32 mm 4

43 mm Solvent

Weld Pipe

43 mm Solvent

Weld Pipe

Waste Tray

Former

Floor

Waste

Floor

Use item 4 to protect the

exible pipe when detailing

the oor covering

Technical Support: 01905 560 219 9Order: 01905 823 299 |orders.akw-ltd.co.uk

PLUMBING CONNECTIONS

Plumbing Connections

350 mm max.

LIFT

2 m max.

HEAD

Shower Head

Shower Tray/Waste

MINIMISE PIPEWORK LENGTH WHEREVER POSSIBLE.

DO NOT LEAVE EXCESS PIPE COILED UP BENEATH SHOWER TRAY

For best performance locate within 1m (39in) of shower and minimise the number of

lifts, bends and the length of all pipes connecting the pump to the waste outlet pipe.

Note: Increased Head/Lift conditions will affect the pump’s performance.

CAUTION

READ INSTRUCTIONS

BEFORE INSTALLING

THIS PRODUCT

Important: pipe connections must be easily accessed and pipework must be secured to prevent vibration and

noise.

General: 01905 823 298 | www.akw-ltd.co.uk10

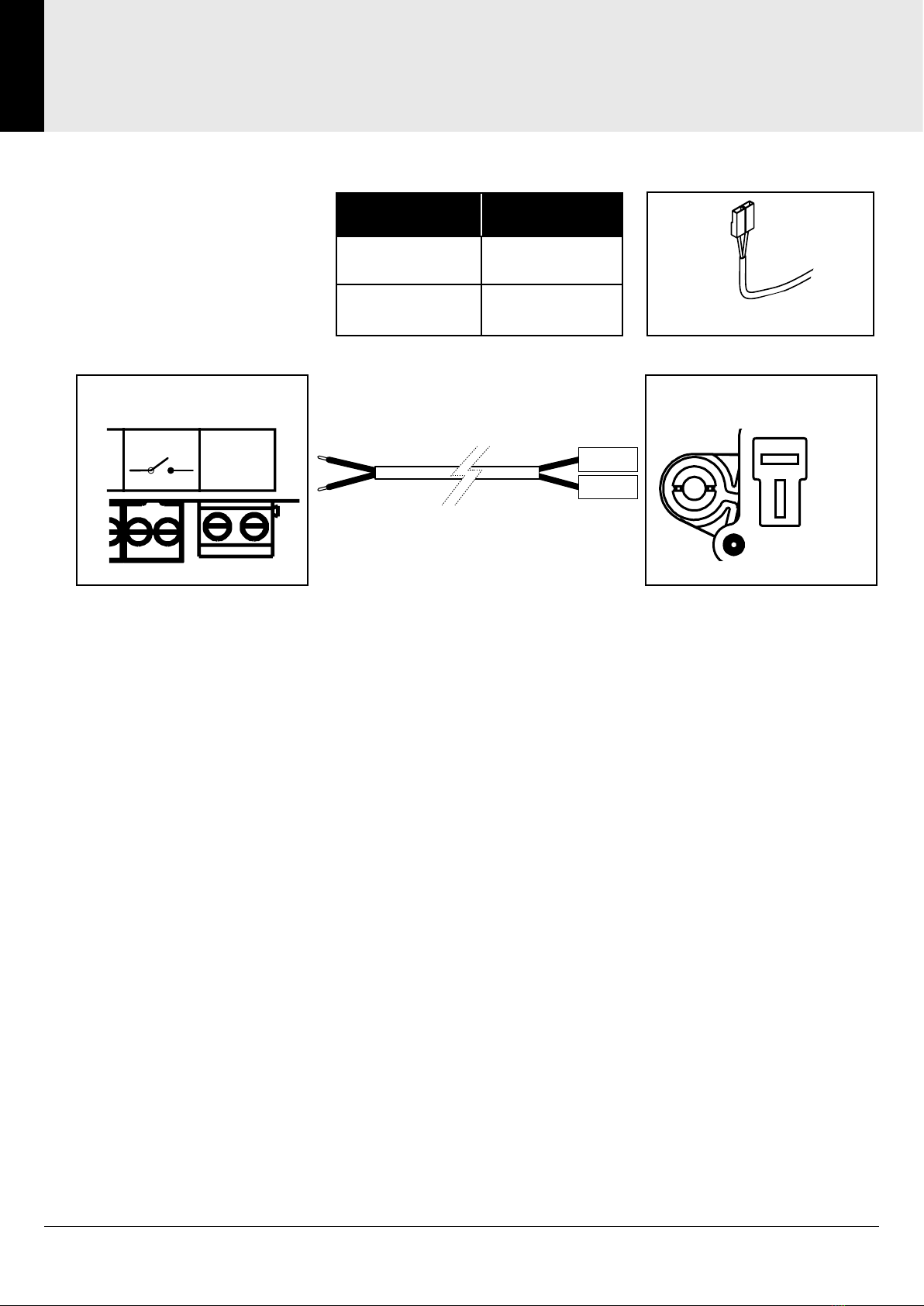

SETTING FLOW DIRECTION

Setting Flow Direction

Select the direction using the

table shown and connect the

pump cable to the P12 using

the spades and wire end to the

control interface.

Connection Flow Direction

A to A and B to B Left to Right

B to A and A to B Right to Left

Control Interface

SENSOR 1

0 S +

SENSOR 2 AUX PUMP

0 S +

P12 Pump

Pump Cable
