Akura TFT LCD TV/Monitor Manuel utilisateur

Dear Customers

Thanks for purchasing this TFT-LCD TV/Monitor. We strongly recommend

that you carefully read the safety and operation instructions before

operating your TV/Monitor. FOLLOW INSTRUCTIONS AND HEED ALL

WARNINGS

Safety information

__________________________________________________

Caution:

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

The crossed out “Wheelie bin” is intended to show that this

appliance must not be placed with ordinary household waste at the

end of its useful life. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, please keep

separate from other household waste and recycle it responsibly to

promote the sustainable reuse of material resources.

Household users should contact either the retailer where you

purchased the product, or their local government office for details of

where and how you can take this item for environmentally safe

re-cycling.

Business users should contact their supplier and check the terms

and conditions of the purchase contract. This product must not be

mixed with other commercial wastes for disposal

The lightening flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of un

–insulated “dangerous

voltage” within the products enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

Precautions

________________________________________________________

Please read the below precautions carefully before operating the unit.

Power cord protection:

1. Never use your appliance if the power cord has been damaged. Do not

put anything on the power cord, and keep the power cord away from

where people can easily trip over it.

2. Be sure to hold the plug , do not pull the cord when disconnecting the

appliance from an electric socket.

Placement:

1. Place the TV/Monitor on a stable surface such as a shelf or table.

2. Do not place in direct sunlight, near radiators or fires. Do not use in

areas of high humidity or in wet/damp areas. Do not splash with

liquids .

3. Do not hit or scratch the TV screen. It is made of a thin glass and may

break or become distorted.

4. If you wish to place the appliance in a cabinet or other casing, ensure

adequate ventilation of 40 mm in each direction. DO NOT COVER

VENTILATION SLOTS YOU MAY CAUSE A FIRE

Non-use periods:

1. Unplug the appliance supply and aerial (if external) when it is not to be

used for a long period, during thunderstorms or going on holiday.

2. If the appliance becomes wet or has liquid spilt inside. Unplug and

call a service engineer.

Foreign objects:

Never insert anything metallic into the cabinet openings of the appliance.

Doing so may cause the danger of electric shock or serious malfunction.

Cleaning:

Do not clean the front panel with petrol base fluids. Use a soft cloth with a

dilute solution of detergent. The case may also be cleaned with this

solution

Servicing:

1. If the LCD TV/Monitor does not operate normally –In particular, if there

are any unusual sounds or smells coming from the unit –unplug it

immediately and contact an authorized dealer or service center.

2. Make sure the service technician uses authorized replacement parts or

their equivalents. Unauthorized parts any cause fire, electrical shock,

or other hazard.

3. Following any service or repair, be sure the service technician

performs safety checks to certify that the TFT LCD TV/Monitor is in

safe operating order.

Unpacking

____________________________________________

Please make sure that the following items are included with your LCD

TV/Monitor. If any item is missing, please contact your dealer.

TFT LCD TV/ Monitor

Remote control

Operation manual

DC adapter

Power cord

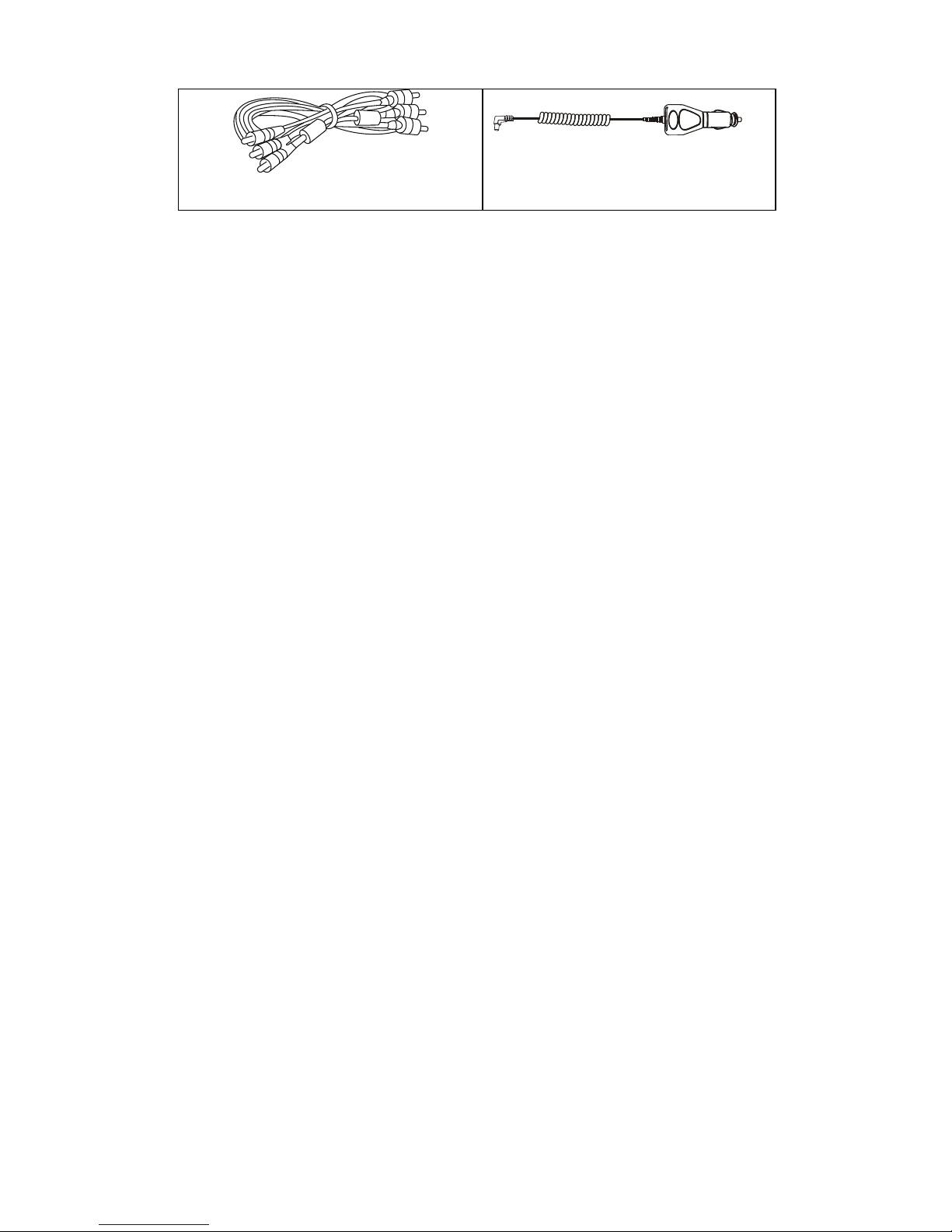

RCA cable

Car Cord

(Optional)

Table of contents

I. View of the TV/Monitor

II. Remote control reference guide

(1) Remote control function

(2) Remote control battery installation and cautions

III. Installation and connection

IV. TV/Monitor screen operation

(1) Basic operation

(2) View of the TV plays

(3) View of the AV signal sources

(4) View of the TELETEXT program

(Optional, if the unit has this function.)

(5) PC screen

V. Menu setting and adjustment

(1) Video mode setting

(2) Audio mode setting

(3) Time mode setting

(4) Tuner/Channel mode setting

(5) Options mode setting

VI. DVD player operation

VII. Other Operation

VIII. Trouble shooting

IX. Notes

X. Maintenance

XI. Specification

XII. Display modes

I. View of the monitor

Side view Front view

Back view

1. Remote sensor

2. Power indication light

3. Headphone jack

4. CH+ / Up button

5. CH- / Down button

6. VOL up / RIGHT button

7. VOL down / LEFT button

8. Menu button

9. TV/AV button (Function switch button)

10. Power button

11. DC input socket

12. VGA socket

13. SCART socket

14. S-video socket

15. Audio in (right) socket

16. Audio in (left) socket

17. Video in socket (RCA)

18. TV RF Tuner socket

19. DVD Play/Pause button

20. DVD Stop playing button

21. DVD open/close button

22. DVD disc slot

II. Remote control reference guide

(1) Remote control function

1. DVD open/close

2. Video out mode button

3. SLEEP button

4. 0-9 Numerical button

5. Program play button

6. Volume down button

7. Unit system menu button

8. Display status message button

9. DVD stop button

10. DVD ENTER/PLAY button

11. DVD fast rewind button

12. DVD fast forward button

13. DVD MENU display button

14. Direction button (Up)

15. Direction button (Left)

16. DVD system setup button

17. ANGLE button

18. Direction button (Down)

19. RANDOM play button

20. SUBTITLE function button

21. TELETEXT buttons

22. Key lock button

23. ZOOM function button 33. CH- button

24. Search disc play mode 34. Audioeffectbutton

25. TITLE/PBC button 35. Volume up button

26. SLOW PLAY button 36. CH+ button

27. Direction button (Right) 37. DVD function button

28. REPEATA-B button 38. -/- - button

29. REPEAT button 39. TV/AV function switch button

30. DVD skip backward 40. RECALL button

31. DVD skip forward 41. MUTE button

32. DVD PAUSE/STEP button 42. STANDBY button

●TELETEXT BUTTONS

Name

Function

Name

Function

To select TXT/TV mode

To show the sub page

Enter into TXT list mode

Freeze display

Display the hidden

information

INDEX

Menu display

Screen zooming

Page display or cancel

RED

Display red screen

GREEN

Display green screen

YELLOW

Display yellow screen

BLUE

Display blue screen

(2) Remote control battery installation and safety

Replace the batteries by following the below steps:

Requires one pair of AAA cells.

1. Open the battery cover as shown below:

2. Install the batteries into the battery tray observing the polarity

3. Close the battery cover

Caution:

1. Keep the batteries out of children‟s reach.

2. Don‟t attempt to recharge, short-circuit, disassemble, heat or throw the

batteries into the fire.

3. Always replace both batteries at the same time. Never mix new and old

batteries or batteries of a different type.

4. If you don‟t intend to use the remote controller for an extended period,

remove the batteries to prevent possible leakage and corrosion.

Notes:

1. Do not drop, apply shock or step on the remote control.

2. Do not spill water on the remote control.

3. Do not use the remote control for other equipments at the same time

4. If the TV does not operate even when operating the remote control

from a close range, you need to replace the batteries.

III. Installation and connection

Connect the LCD TV/monitor

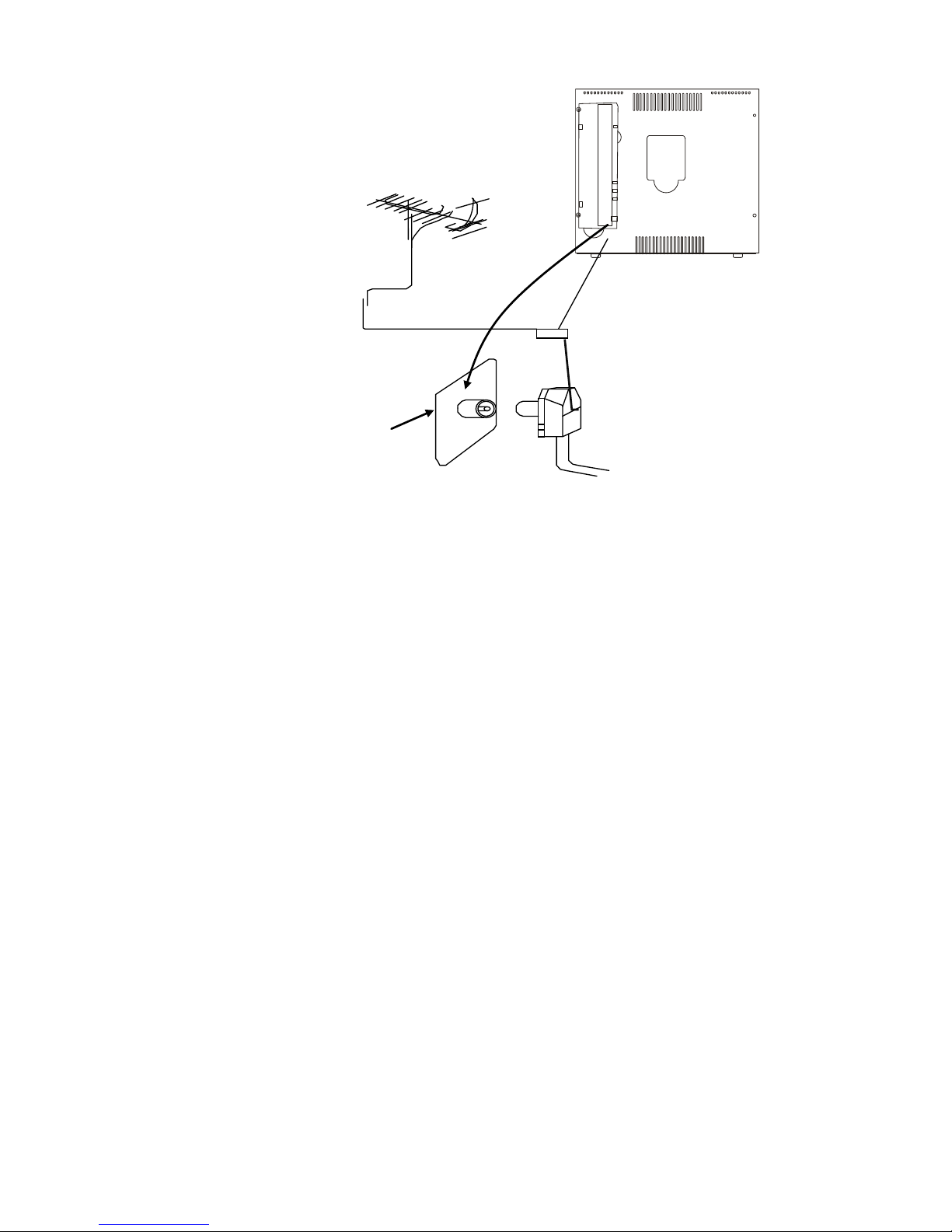

1. Connect the TVRF source to the antenna socket. TVRF signals

including: Freeview box, VCR or TV game. You can use a 75Ω

coaxial cable to connect the outdoor antenna.

Outdoor Antenna Connection:

2. Connect the audio sources (Including DVD, VCDR, CAMCORDER

and PC) to the AUDIO input jacks „L‟and „R‟.

3. Connect the video source to the VIDEO socket by RCA cable.

4. If the video source has a SCART output socket, you can connect the

signal to the monitor by the SCART cable.

5. Connect the video source to the S-VIDEO input socket of the monitor

by the S-video cable

6. Insert the AC power to the DC adapter, then connect 12V input socket

of the monitor to it‟s DC output plug.

7. When used as computer screen, connect the PC to the VGAsocket of

the monitor by the relevant cable.

IV. TV/Monitor screen operation

(1) Basic operation

1. Press the POWER button on the TV or the STANDBY button on the

remote control to switch on the power. The indication light will be blue

in colour. Press the POWER or STANDBY button again to switch the

power off and the light will be red in colour.

75 ΩCo-axial

cable

Antenna

input

75ΩCo-axial cable

UHF antenna

Co-axial antenna plug

2. The Picture settings, Sound settings, and previous channel will be

memorized when you switch off the TV to standby. The TV/Monitor will

re-start in the previous state when you switch on it again.

3. If you unplug the power cord to cut off the power supply completely, all

previous setting will be lost.

4. Press the V -or V + button to adjust the volume output. Press the V -

button repeatedly to decrease the volume; press the V + button

repeatedly to increase the volume from 0 to 100.

5. Press the SLEEP button to display the preset sleep time on the

screen.

Each press of the SLEEP button increments the timer by 30 minutes

(up to 120 mins)

(2) View the TV Options.

1. Press the P- or P+ button to select the previous or next channels; or

press the 0-9 buttons to enter a channel number directly, or press the

-/-- button until the screen display „--‟or „---‟, then use the 0-9 numerical

buttons to enter a channel number from 10 to 249.

2. Press the RECALL button on the remote control to select from the

present channel and the previous channel.

3. Press the PP button to select video out mode from the below 4 types

4. Press the MUTE button to cut off the sound , then the screen will show

the ““mark , press this button again to resume sound output..

5. Press the DISPLAY button to display the preset channel mode.

(3) View the AV signal sources (DVD/VCR/CAMCORDER)

Press the TV/AV button on the remote control, there will be a menu

displayed on the screen as follows:

User

Standard

Mild

Dynamic

Autres manuels pour TFT LCD TV/Monitor

Table des matières

Autres manuels Akura Téléviseur LCD

Akura

Akura APLDVD2221W-HDID Manuel utilisateur

Akura

Akura APLDVD1668 Manuel utilisateur

Akura

Akura APL21621W-HDID Manuel utilisateur

Akura

Akura APLDVD15421W-HDID Manuel utilisateur

Akura

Akura AAMT15LCD Manuel utilisateur

Akura

Akura APL1519W -HDID (MSD106) Manuel utilisateur

Akura

Akura APL2668FD Manuel utilisateur

Akura

Akura APL3268FD Manuel utilisateur

Akura

Akura APL15421W-HDID Manuel utilisateur

Akura

Akura ATL1510W Manuel utilisateur

Akura

Akura APL2YR2068U Manuel utilisateur

Akura

Akura APLDVD1368 Manuel utilisateur

Akura

Akura ACTF-DVD1570 Manuel utilisateur

Akura

Akura APL2323W-HDID Manuel utilisateur

Akura

Akura ADLTDVD3233 Manuel utilisateur

Akura

Akura APL3268FD4 Manuel utilisateur

Akura

Akura ACTF-DVD1770 Manuel utilisateur

Akura

Akura AH260LCD Manuel utilisateur

Akura

Akura AX1911W-HDID Manuel utilisateur

Akura

Akura APL2YR2068U Manuel utilisateur

Akura

Akura APL3268 (MSD106) Manuel utilisateur

Akura

Akura APLDVD1519W Manuel utilisateur

Akura

Akura AHLTV15 Manuel utilisateur

Akura

Akura APL2049W-HDID Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

Sony

Sony Bravia XBR-43X830C Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Sony

Sony Bravia KDL-V32XBR2 Manuel utilisateur
