Akura ATL1510W Manuel utilisateur

15"Wide Screen LCD TV

ATL1510W

Safety Information……………………………………………2

Product Features…………………………………………….4

Accessories…………………………………………………..4

Front View…………………………………………………….5

Rear View……………………………………………………..6

Remote Control………………………………………………7

Basic Installation…………………………………………….9

OSD Menu…………………………………………………..10

Sound Menu…………………………………………………11

Channel Menu……………………………………………….12

Function Menu……………………………………………….13

PC Menu…………………………………………………..…14

User Help Guide……………………………………………..15

Technical Specifications……………………………………16

Mains Plug wiring……………………………………………17

Wall bracket mounting instructions………………………..17

Safety Information

The lightening flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of un-insulated “dangerous

voltage” within the products enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user

to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

The crossed out “Wheelie bin” is intended to show that this appliance must not

be placed with ordinary household waste at the end of its useful life. To prevent

possible harm to the environment or human health from uncontrolled waste

disposal, please keep separate from other household waste and recycle it

responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where you purchased the

product, or their local government office for details of where and how you can

take this item for environmentally safe re-cycling.

Business users should contact their supplier and check the terms and conditions

of the purchase contract. This product must not be mixed with other

commercial wastes for disposal

1. THIS LABEL IS ATTACHED TO THE PLACE AS ILLUSTRATED TO INFORM

THAT THE APPARATUS CONTAINS A LASER COMPONENT.

2. THE WARNING LABEL INFORMING OF RADIATION IS PLACED INSIDE

THEn UNIT. AS SHOWN IN THE ILLUSTRATION. TO WARN AGAINST

FURTHER MEASURES ON THE UNIT. THE EQUIPMENT CONTAINS A

LASER RADIATING LASER RAYS ACCORDING THE LIMIT OF LASER

PRODUCT OF CLASS

This unit complines with European safety and electrical interference directives.

Safety Information cont.

Do not place the Tv on an unstable surface, it may tip over and cause injury or

damage to the LCD screen.

Do not place the tv in a cabinet where airflow is restricted, ensure the ventilation holes

are not covered to prevent overheating. Do NOT cover the DC mains adaptor, this will feel

warm to the touch and must be allowed to radiate the heat.

Do not use the Tv in wet or damp conditions, if water or liquids are allowed to enter the

case, disconnect the power and call the Technical Help line. Do not handle the Tv or Power

adaptor with wet hands.

During an Electrical storm or when going on holiday, disconnect from the mains supply and

aerial (if external or rooftop).

Do not place heavy objects on the mains lead or DC supply lead, do not place where they

can be stepped on, cut or damaged. If the leads do become damaged please call the

Technical Help Line for advice.

Do not drop or damage the Tv. If the casing becomes damaged it may cause a safety issue,

Do not open the case or Power adaptor, you risk a severe electric shock, injury or death.

Do not drop objects into the Tv ventilation slots or DVD disc slot. Should an object enter the

TV, contact the Technical Help Line for advice.

Do not place the Tv near heat sources such as radiators or direct sunlight

Cleaning the Tv. Disconnect from the supply before cleaning. Do NOT use petrol based or

chemical cleaning fluids. You may wipe with a soft damp cloth. For stubborn sticky dirt use

a dilute detergent solution..

LCD Screen. Do NOT use chemical solvents on the screen surface, sticky finger marks

must only be removed with a dilute detergent solution. Occasionally one or two bright dots

may be seen on the screen, this is not considered a fault.

- Inputs : Tuner, Scart, VGA, CVBS (video), Audio, S-Video, PC Audio

- Tv Systems : PAL (B/G,I,D/K). SECAM (B/G,D/K,L) for UK use PAL “I”.

- Memory. Up to 200 channels may be stored

- No Signal (Tv) Auto standby.

- Timer functions

- Programme exchange (swap)

- Power requirements (DC 12V 5 A (60W).

- LCD Screen 1440 x 900 pixels

- Tuning Range VHF / UHF 48 Mhz 847 Mhz

Users' Manual Remote Control Adapter Adapter Cable

1.Product Features

2.Accessories

TV/AV

CALL P-MODE

TXT MIX SUBP HOLD/TV /NICAM

REVEAL INDEX SIZE CANCEL

123

456

789

-/- --/- --/- -

CH+

CH-

VOL- VOL+

POWER

MUTE

SLEEP

RECALL

S-MODE

SYSTEM

RED GREEN CYAN

YELLOW

15"Wide Screen LCD TV

ATL151 0 W

1(IR)Infrared Receiver:Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press POWER to turn on and off.

The effective range of the I/R signal is approx 3 metres and an angle of +/- 30 deg.

2 The functions of the buttons are described as below:

MENU: Press to display the OSD menu, Press again to exit the menu.

CH-/CH+: Press to scan through channels. When pressing and holding down either button

user can scan channels quickly.

They are also can be used to move down/up in the OSD menu screen.

VOL-/VOL+: Press to adjust the volume.

they are also can be used to move left/right in the OSD menu screen.

VOL+ button can be used to skip forward to next menu.

TV/AV: Press to select the source: TV,AV,SVIDEO,PC,SCART

Power: Turn on/off the TV set.

3.Front View

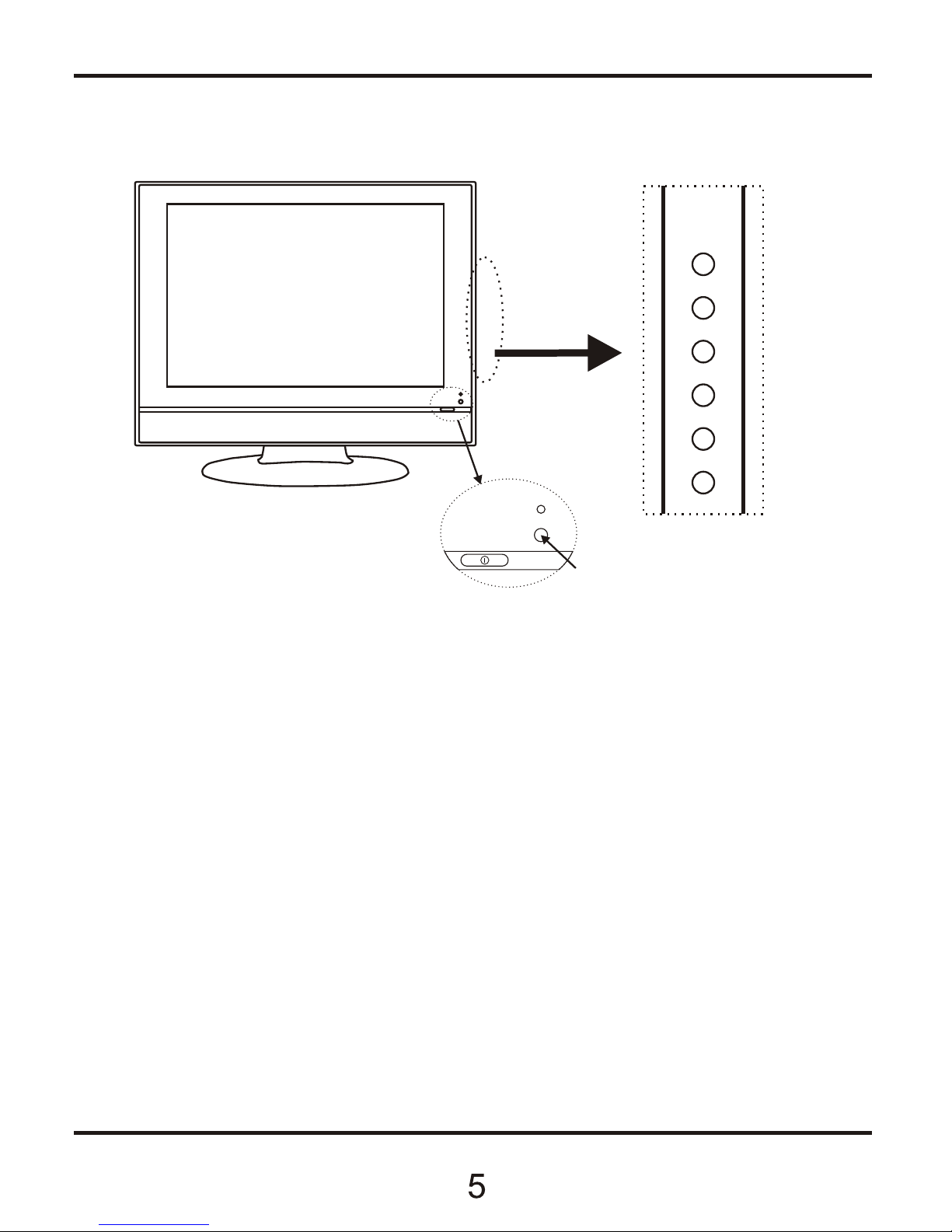

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

CH-

CH+

VOL-

VOL+

TV/AV

Led Indicator

Power Remote control window

(keep clear)

4.Rear View

Power : Connection to Power adaptor.

SCART : Composite video and Audio input from VCR or other devices.

PC Audio : Audio connection from PC.

VGA : PC Monitor display input. Connect to your Pc Mini D15 pin connector.

AV-R,AV-L (Phono): Right and Left Audio input from other sources such as Camcorder.

Video : CVBS video input from other sources such as Camcorder.

S-Video In : Alternative High Quality Video only (sound via AV-R,AV-L).

RF : Tuner / Antenna RF input.

5. Remote control

Note:

1. Fit two AA batteries, making sure that they are the correct way round, as marked on the case.

2. Aim the remote control at the window to keep the right side of the screen, and keep the window

clear at all times.

3. Do not press the buttons on the remote control too quickly-allow time for the set to respond.

SYSTEM: press to adjust

TV's color & audio norm:

BG/DG/I/LL

TV/AV

CALL P-MODE

TXT MIX SUBP HOLD/TV /NICAM

REVEAL INDEX SIZE CANCEL

123

456

789

-/- --/- --/- -

CH+

CH-

VOL- VOL+

POWER

MUTE

SLEEP

RECALL

S-MODE

SYSTEM

RED GREEN CYAN

YELLOW

(Only on TV mode)

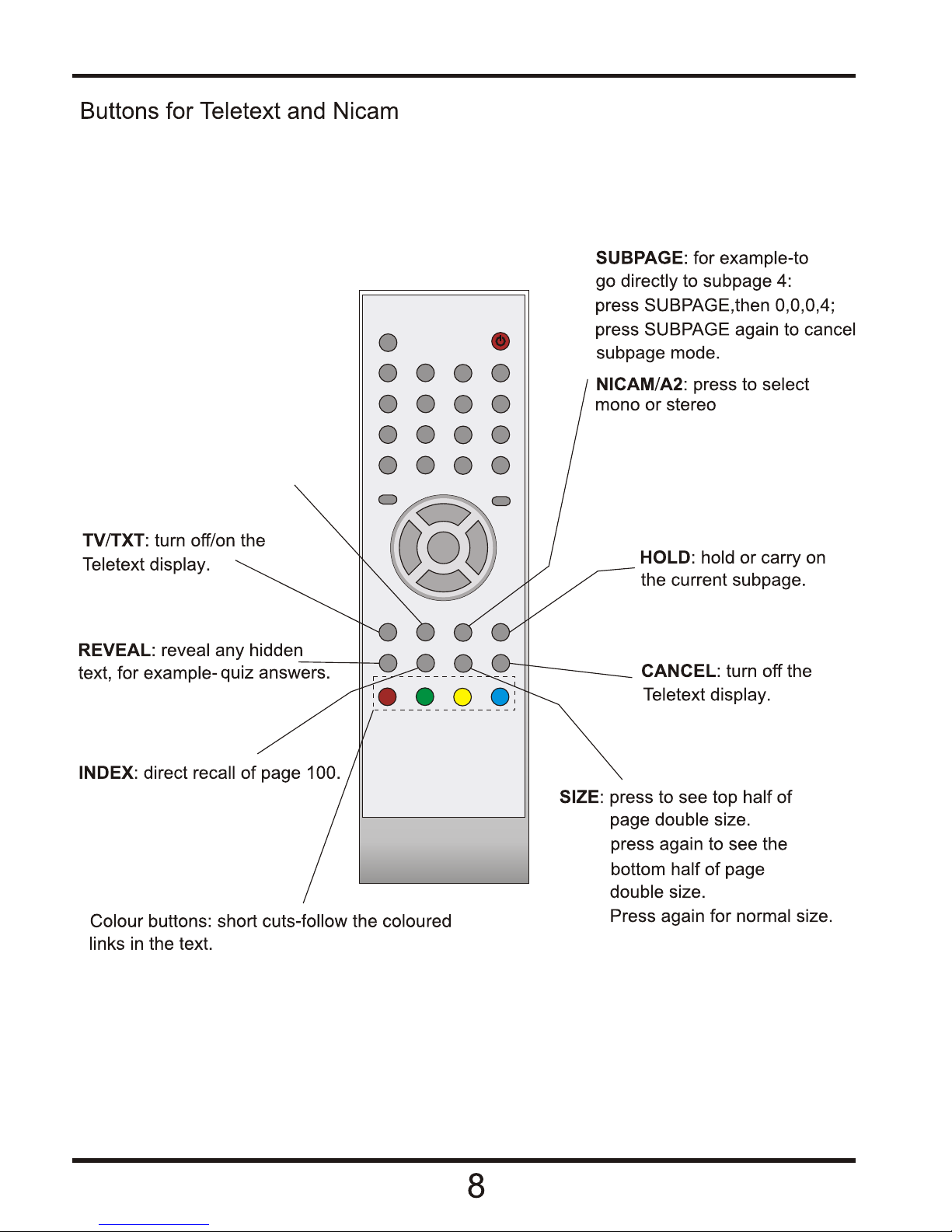

MIX: display Teletext on

top of the nprmal TV picture

Battery Disposal.

When the batteries are exhausted and

need replacing, do NOT break open or

throw on a fire.

Contact your local waste authority for

disposal instructions, do not throw in

the domestic waste.
