akira CT-29TP9AS Manuel utilisateur
C
C
Co
o
ol
l
lo
o
ou
u
ur
r
r
T
T
TV
V
V
S
S
Se
e
er
r
rv
v
vi
i
ic
c
ce
e
e
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
2
Model No: CT-29TP9AS-5P60
Version 1.0
M
M
Mo
o
od
d
de
e
el
l
l:
:
:
C
C
CT
T
T-
-
-2
2
29
9
9T
T
TP
P
P9
9
9A
A
AS
S
S
C
C
Ch
h
ha
a
as
s
ss
s
si
i
is
s
s:
:
:
5
5
5P
P
P6
6
60
0
0
3
Model No: CT-29TP9AS-5P60
Version 1.0
CONTENT
SAFETY NOTICE ................................................................................................................................... 4
TECHNICAL SPECIFICATION ............................................................................................................. 5
GENERAL SPECIFICATION................................................................................................................. 6
CHASSIS BLOCK DIAGRAM ............................................................................................................... 7
CHASSIS WIRING DIAGRAM............................................................................................................ 17
PBC BOARD ......................................................................................................................................... 18
SERVICE ADJUSTMENT .................................................................................................................... 21
MECHANICAL DISASSEMBLY......................................................................................................... 30
SCHEMATIC DIAGRAM..................................................................................................................... 33
TROUBLE SHOOTING CHART.......................................................................................................... 34
4
Model No: CT-29TP9AS-5P60
Version 1.0
SAFETY NOTICE
SAFETY PRECAUTIONS
1. An isolation transformer should be connected in the power line between the receiver and the AC
line when a service is performed on the primary of the converter transformer of the set.
2. Comply with all caution and safety-related notes provided on the cabinet back, inside the cabinet,
on the chassis or the picture tube.
3. When replacing a chassis in the cabinet, always be certain that all the protective devices are
installed properly, such as control knobs, adjustment covers or shields, barriers, isolation resistor-
capacitor network etc. Before returning any television to the customer, the service technician must
be sure that it is completely safe to operate without danger of electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is
specially constructed to limit X-RADIATION emissions. For continued X_RADIATION protection,
the replacement tube must be the same type as the original including suffix letter. Excessive high
voltage may produce potentially hazardous X-RADIATION. To avoid such hazards, the high voltage
must be maintained within specified limit. Refer to this service manual, high voltage must be
maintained within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement made in any area of a receiver.
Components indicated by mark ! in the parts list and the schematic diagram designate components in
which safety can be of special significance. It is particularly recommended that only parts designed on
the parts list in this manual be used for component replacement designated by mark !. No deviations
from resistance wattage or voltage ratings may be made for replacement items designated by mark !.
5
Model No: CT-29TP9AS-5P60
Version 1.0
TECHNICAL SPECIFICATION
FEATURES
• Hyper-Band Tuner
• 100-Channel Memories
• NTSC Playback
• Front or Side AV Input
• Rear AV Input/Output
• S-Video Input
• On-Screen display
• Sleep Timer
• Auto Search/Store/Shut-off
• Full Function Remote Control
• 8W x 2 speakers
• 685(W) x 493(D) x 702(H) mm
• Weight: 52kg
• Options
o DVD-Component Input
o Fastext
o MTS
o NICAM/German Stereo
o Wide Power Supply
6
Model No: CT-29TP9AS-5P60
Version 1.0
GENERAL SPECIFICATION
POWER CONSUMPTION 150W MAX
STANDBY POWER CONSUMPTION 5W
RECEIVER SYSTEM D/K; I; B/G; M
COLOUR SYSTEM PAL/ SECAM / NTSC
VISION INTERMEDIATE FREQUENCY 38.9MHz
4.5 MHz (M)
5.5 MHz (B/G)
6.0 MHz (I)
6.5 MHz (D/K)
5.85 MHz (NICAM B/G, D/K)
6.55 MHz (NICAM I)
INTER-CARRIER FREQUENCY
5.74 MHz (GERMAN STEREO)
CHROMA IF FREQUENCY PAL/NTSC 34.47 / 35.32 MHz
ANTENNA TYPE DIN TYPE 75 OHM
VHF-1 A-0; E2-E4; S1-S9 CH 44.25-161.25 MHz
VHF-2 S10-S41; E5-E12 CH 168.25-163.25MHz
CHANNELS RECEIVING
UHF E21-E69 CH 471.25-863.25 MHz
TUNING SYSTEM VS TUNING
1 AV IN+1 AV OUT; 1 FRONT AV INPUT
1 S-VIDEO IN, 1 YUV IN (OPTION);
AV IN/OUT
21 PIN SCART (OPTION)
Y/C IN-----y 1.0 0.2Vp-p 75 ohm c: 0.7Vp-p 75 ohm
VIDEO IN ----1.0 0.2Vp-p 75ohm
AUDIO IN ---- 0.2V (r.m.s)
VIDEO OUT ---- 1.0 0.2Vp-p 75ohm
AUDIO OUT ----0.2V (r.m.s)
RGB IN: -----0.7Vp-p
AV IN/OUT SPECIFICATION
YUV ---- Y 1.0Vp-p; U 0.7Vp-p; V 0.7Vp-p
OSD LANGUAGE ENGLISH, RUSSIAN, IRANIAN, ARABIC,
ITALIAN, TURKIC, GERMAN, FRANCE
TELETEXT LANGUAGE PAN-EUROPEAN, CYRILLIC 2, IRANIAN,
ARABIC
AUDIO OUTPUT POWER >5W (1KHz, 0.5v INPUT, 10% THD)
SAFETY AUTHENTICATION STANDARD CB/ CE
LED INDICATOR POWER ON
HAND SET TYPE HS08 HS09
HAND SET POWER SUPPLY BATTERY 3V UM-3/R6/AA x2
COLOUR PICTURE TUBE 25” – 38” 110 DEGREE TUBE
REMOTE CONTROL DISTANCE 5m
7
Model No: CT-29TP9AS-5P60
Version 1.0

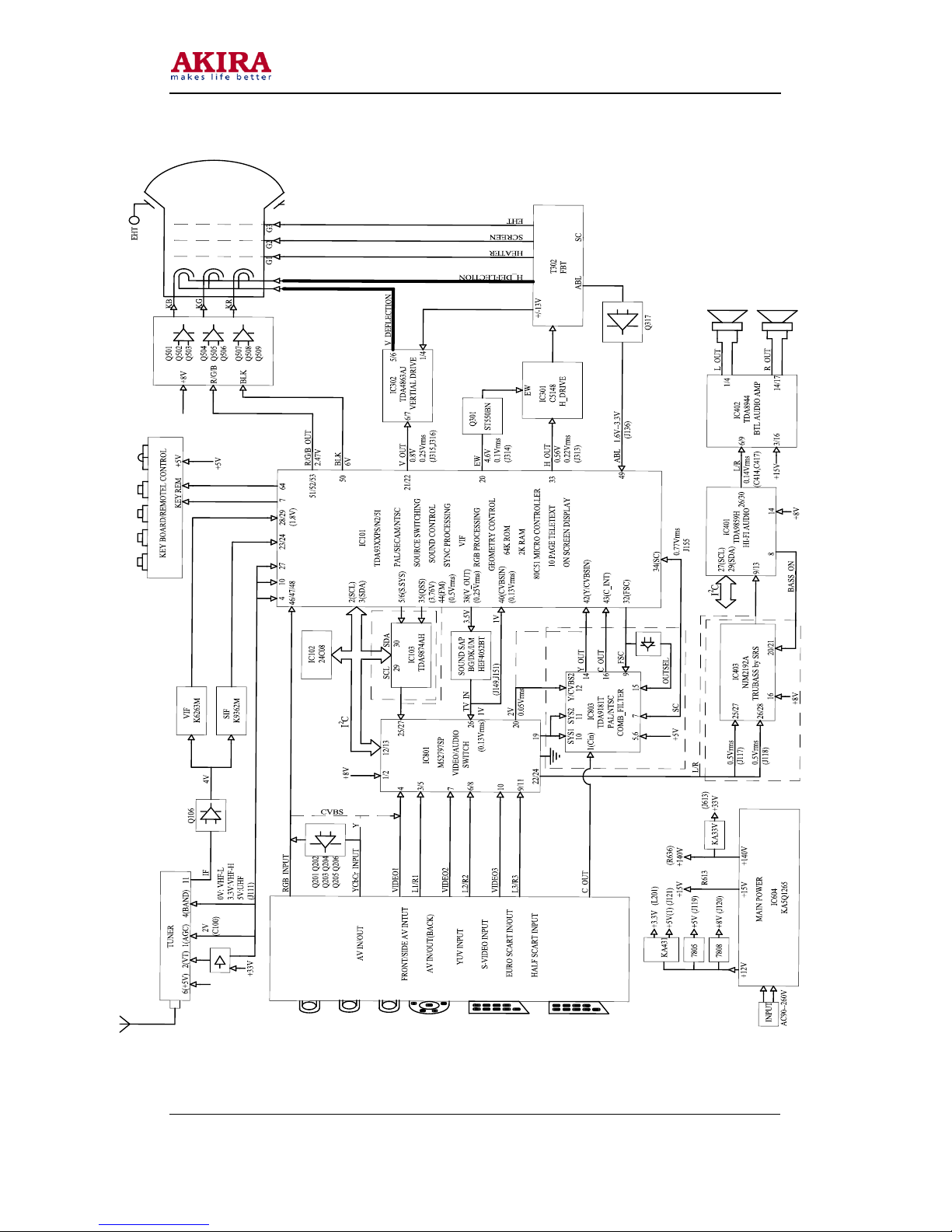

CHASSIS BLOCK DIAGRAM
8
Model No: CT-29TP9AS-5P60
Version 1.0

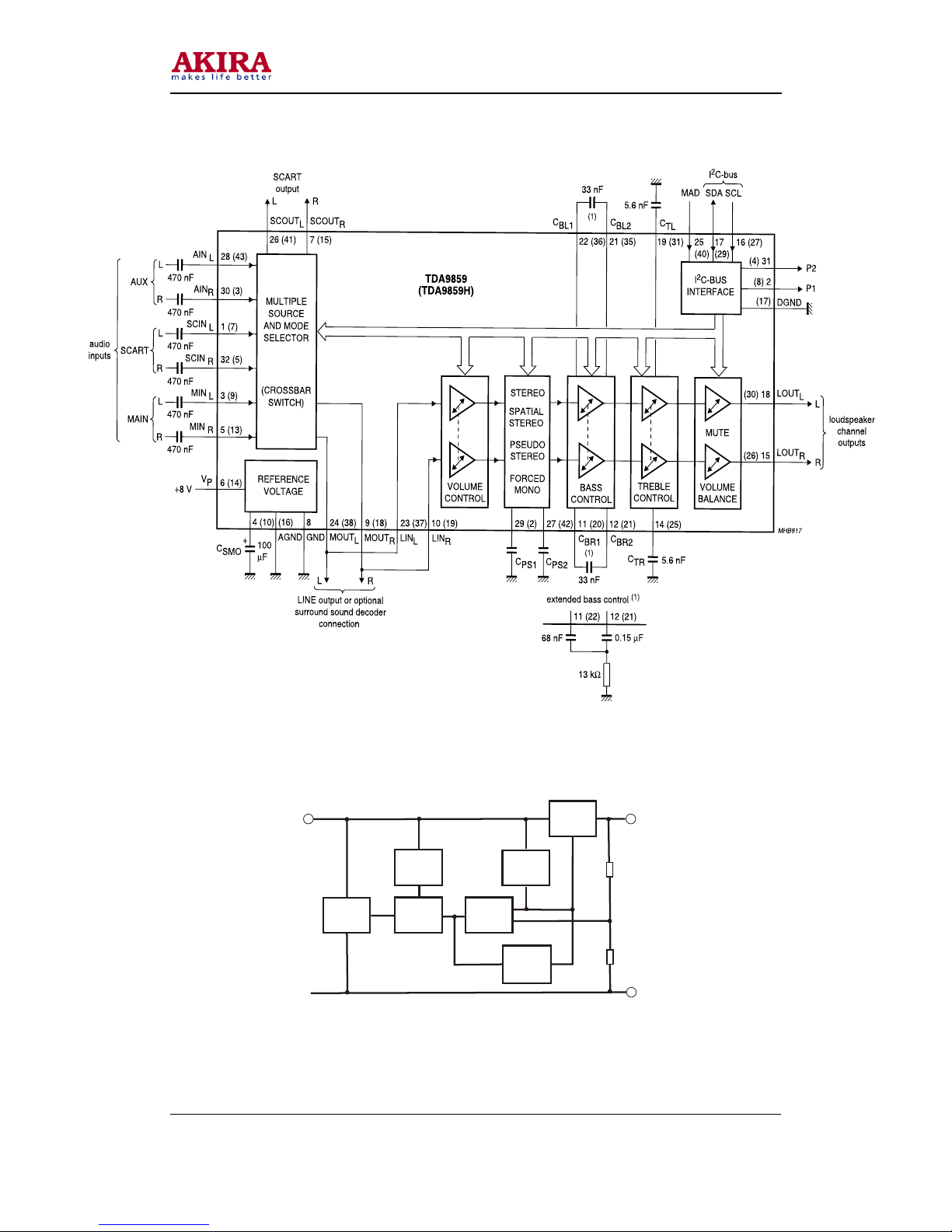

IC 401 (UNIVERSAL HI-FI AUDIO PROCESSOR) TDA9859H
IC605. IC606 <REGULATORS> L7800 SERIES
1
INPUT
2
OUTPUT
SERIES
PASS
ELEMENT
SOA
PROTECTION
REFERENCE
VOLTAGE
ERROR
AMPLIFIER
THERRMAL
PROTECTION
STARTING
CIRCUIT
CURRENT
GENERATOR
REFERENCE
VOLTAGE
3
GND
9
Model No: CT-29TP9AS-5P60
Version 1.0

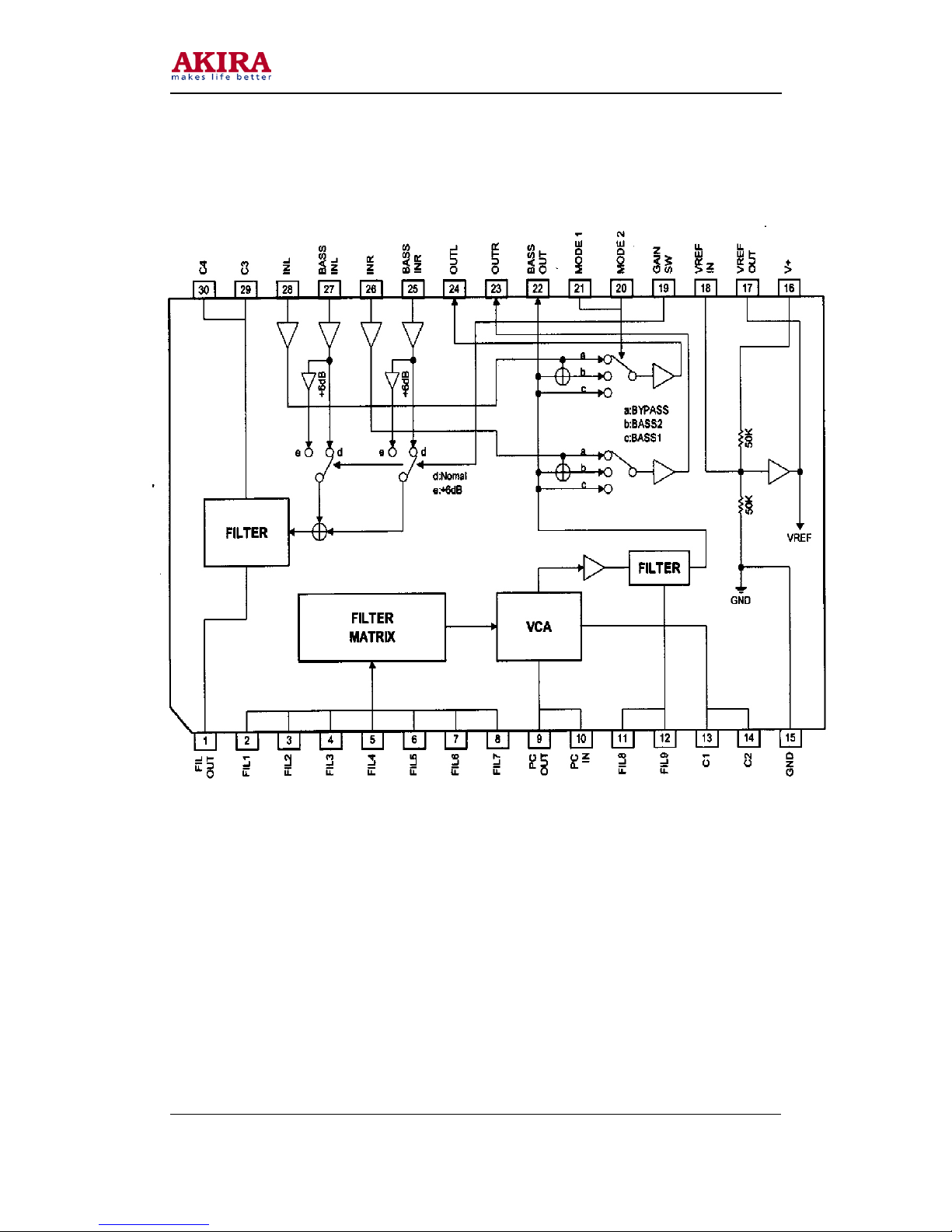

IC 402 (SRS TRUBASS) NJM2192 AM
10
Model No: CT-29TP9AS-5P60
Version 1.0

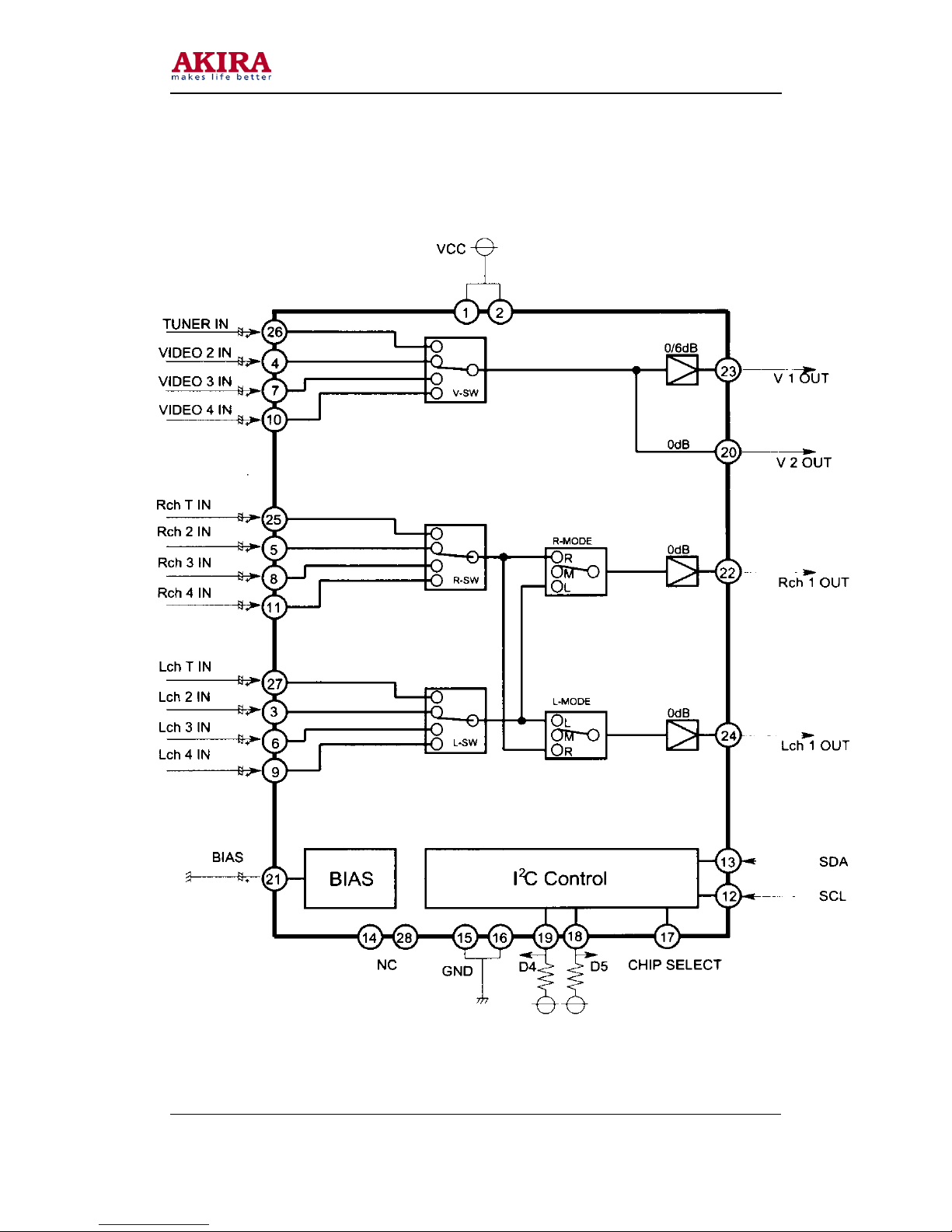

IC 401 (AV SWITCH W/IIC BUS CONTROL) M52797SP
