Index

1. Intended use

2. Safety

o2.1. Labels in this manual

o2.2. General safety instructions

3. Preparations for use

o3.1. Unpacking

o3.2. Package contents

4. Installation

o4.1. Install batteries

o4.2. Connecting the system

o4.3. Connecting random equipment

o4.4. Connecting to the mains

5. Functions

o5.1. Remote control

o5.2. AMD350 Microset

6. Operation

o6.1. Quick start

o6.2. General setup menu operation

o6.3. DVD/CD functions

o6.4. Radio functions

o6.5. USB functions

o6.6. LINE-IN

o6.7. Operation with BLUETOOTH

7. Cleaning and maintenance

o7.1. Handle and care of a disc

8. Technical data

9. Disposal of used electrical and electronic equipment

1.Intended use

The Microset plays music from CDs, and music, videos and photos from DVDs and USB. The appliance shows

photos from Kodak picture CDs as well. The appliance also offers the option to rip CDs. The Microset can be

operated via Bluetooth. Read the manual with care before using it for the first time.

The DVD Microset plays music from CDs and music, videos and photos from DVDs and USB. The Microset can

be controlled by bluetooth. Read the manual carefully before the first use.

DVDs and DVD appliances are manufactured under the worldwide agreed DVD regional code system that the

appliance will operate only with corresponding disc of the same regional code. If the code number on the label of

a DVD does not match that on the label alongside, the DVD will not play on this appliance.

The appliance has built in copyright protection technology that prevents copying from a disc to any media. If a

video recorder is connected to the appliance, the video output image will be distorted during recording.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby

Because of the great variety of products with USB ports and their sometimes quite manufacturer-specific

functions we can neither guarantee that all devices will be recognised, nor that all operating options that are

possible in theory will actually work.

2.Safety

2.1. Labels in this manual

WARNING A warning means that injury or death is possible if the instructions are not obeyed.

CAUTION A caution means that damage to the equipment is possible.

A note gives additional information, e.g. for a procedure.

The appliance functions as a portable media player. The screen of the appliance can be folded up and down as

well as rotated. This appliance lets you open music files (MP3/WMA), video files (MPEG-4) and photo files

(JPEG). These files can be accessed via DVD, CD and USB. The appliance contains a built-in rechargeable

battery.

2.2. General safety instructions

WARNING Do not put force on the appliance. The appliance can fall and can cause serious injury.

CAUTION Do not spill any liquid on the appliance.

WARNING Do not insert any objects in the ventilation holes.

CAUTION Do not block the ventilation holes.

This appliance is double insulated; therefore no earth wire is required. Always check that the mains voltage

corresponds to the voltage on the rating plate.

This appliance employs a laser system. To prevent direct exposure to the laser beam, do not open the appliance.

Visible laser radiation when open and interlock defeated.

3.Preparations for use

3.1. Unpacking

Unpack the appliance carefully.

Check the package contents as described below. If any item is missing, please contact your reseller.

Remove the labels from the front panel carefully if present.

We recommend that you retain the original carton and packing materials in case it ever becomes necessary to

return your product for service. This is the only way to safely protect the product against damage in transit. If you

do dispose of the carton and the packing materials, please remember to recycle with due care to the environment.

3.2. Package contents

The following items are included in the received package:

1 x AMD320 DVD Micro System

2 x Speaker

1 x Remote control

2 x Batteries (AAA)

1 x A/V cable

2 x speaker wire

If any item is missing, please contact your reseller.

4.Installation

4.1. Install batteries

Install batteries

Remove the battery cover.

Insert the batteries matching the (+) and (-) polarity markings.

CAUTION Incorrect installation can cause battery leakage and corrosion which will damage the appliance.

Corrosion, oxidation, battery leakage and any other gradually acidic defect of this nature will invalidate the

guarantee.

4.2. Connecting the system

Connect the speakers to the appliance.

To connect the aerial (75Ω) to the appliance:

4.3. Connecting random equipment

Connect the tv

Use one of the cables as presented in the image below.

4.4. Connecting to the mains

Connect the appliance to the mains.

Switch on the appliance.

5.Functions

5.1. Remote control

1. STANDBY button

2. Digit buttons

3. GOTO button

4. PLAY / PAUSE button

5. SETUP button

6. PBC button

7. PROGRAM button

8. OSD button

9. FAST FORWARD / REWIND button

10. TITLE button

11. Arrow buttons

12. AUDIO button

13. SLOW button

14. SOUND EFFECT button

15. USB button

16. REPEAT button

17. A-B REPEAT button

18. L/R/STEREO button

19. ANGLE button

20. MUTE button

21. V-MODE button

22. SOURCE SELECT button

23. NEXT / PREVIOUS button

24. VOLUME button (+/-)

25. SUBTITLE button

26. ENTER button

27. MENU button

28. STEP button

29. RESET button

30. ZOOM button

31. STOP button

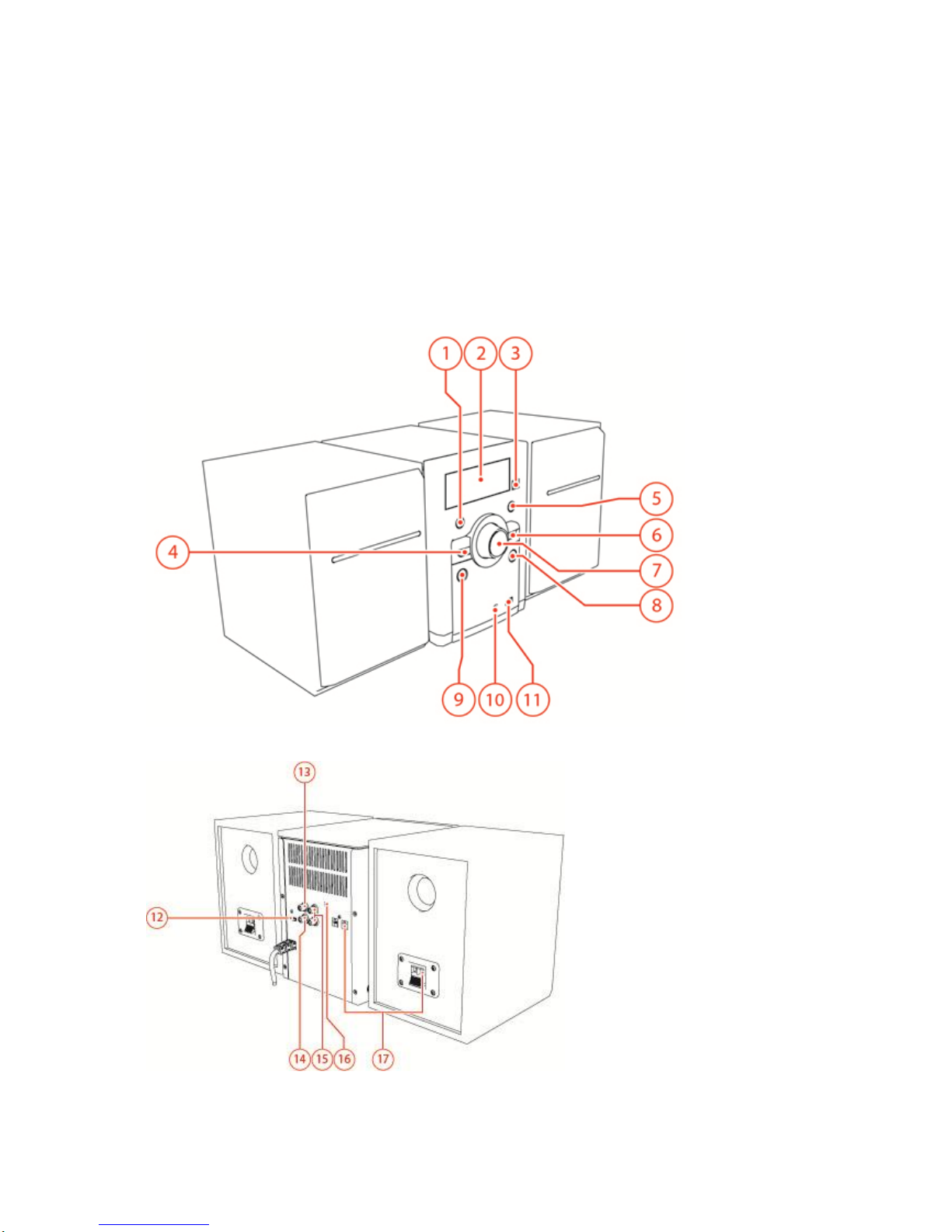

5.2. AMD350 Microset

1. PLAY/ PAUSE

2. DISPLAY SCREEN

3. REMOTE CONTROL SENSOR

4. PREVIOUS

5. STOP

6. NEXT

7. VOLUME +/-

8. SOURCE

9. STANDBY

10. AUX IN

11. USB 2.0 slot

12. HDMI

13. COAXIAL DIGITAL AUDIO OUTPUT

14. COMPOSITE VIDEO OUTPUT

15. LEFT / RIGHT AUDIO INPUT

16. FM wire antenna

17. Connection to speakers
