3
QXA6630
Safety1.
Intended use1.1
The Micro Music System plays music from CD and radio. Read the manual
carefully before rst use.
Labels in this manual1.2
! WARNING
A warning means that injury or death is possible if the instructions
are not obeyed.
! CAUTION
A caution means that damage to the equipment is possible.
i
A note gives additional information, e.g. for a procedure.
General safety instructions1.3
! WARNING
Do not put force on the appliance. The appliance can fall and can
cause serious injury.
! CAUTION
Do not spill any liquid on the appliance.
! WARNING
Do not insert any objects in the ventilation holes.
! CAUTION
Do not block the ventilation holes.
i This appliance is double insulated; therefore no earth wire is required.
Always check that the mains voltage corresponds to the voltage on
the rating plate.
L This appliance employs a laser system. To prevent direct exposure
to the laser beam, do not open the appliance. Visible laser radiation
when open and interlock defeated.
4
Preparations for use2.
Unpacking2.1
● Unpack the appliance carefully.
● Check the package contents as described below. If any item is missing,
please contact your reseller.
● Remove the labels from the front panel carefully if present.
i We recommend that you retain the original carton and packing
materials in case it ever becomes necessary to return your product
for service. This is the only way to safely protect the product
against damage in transit. If you do dispose of the carton and the
packing materials, please remember to recycle with due care to the
environment.
Package contents2.2
The following items are included in the received package:
1 Micro Music System
2 Speakers
1 Remote control
2 Batteries (AAA)
1 Operator manual
i
If any item is missing, please contact your reseller.
Installation3.
● Put the appliance on a horizontal at surface.
● Connect the speakers to the appliance.
Read the paragraph "Installing the speakers".
● Connect the appliance to the mains.
● Install the batteries in the remote control.
Read the paragraph "Remote control".
5
QXA6630
!
CAUTION
● Do not put the appliance near a heat source.
● Do not expose the appliance to direct sunlight.
i This appliance is equipped with rubber feet to prevent it from
moving. The feet are made from non-migrating material specially
formulated to avoid leaving any marks or stains on furniture.
However, certain types of furniture polishes, wood preservatives or
cleaning sprays cause the rubber to soften and leave marks or a
residue on the furniture, and potentially risk the surface to become
damaged. To prevent damage to wooden surfaces, we recommend
that you apply self-adhesive pads to the bottom of the rubber feet
before installation.
Installing the speakers3.1
The cables and terminals are colour-coded:
Red wires connect to red terminals (+). -
Black wires connect to black terminals (-). -
● Place the speakers on a horizontal at
surface. Place the speakers close
enough to the appliance to be able to
connect the wires.
Connection to the appliance
● Lift the latches to open the terminals.
● Connect the wire ends of the speakers to
the appliance matching the (+) and (-)
polarity markings.
● Press the latches to lock the wire ends.
+
-
+
-
RL
6
Remote control3.2

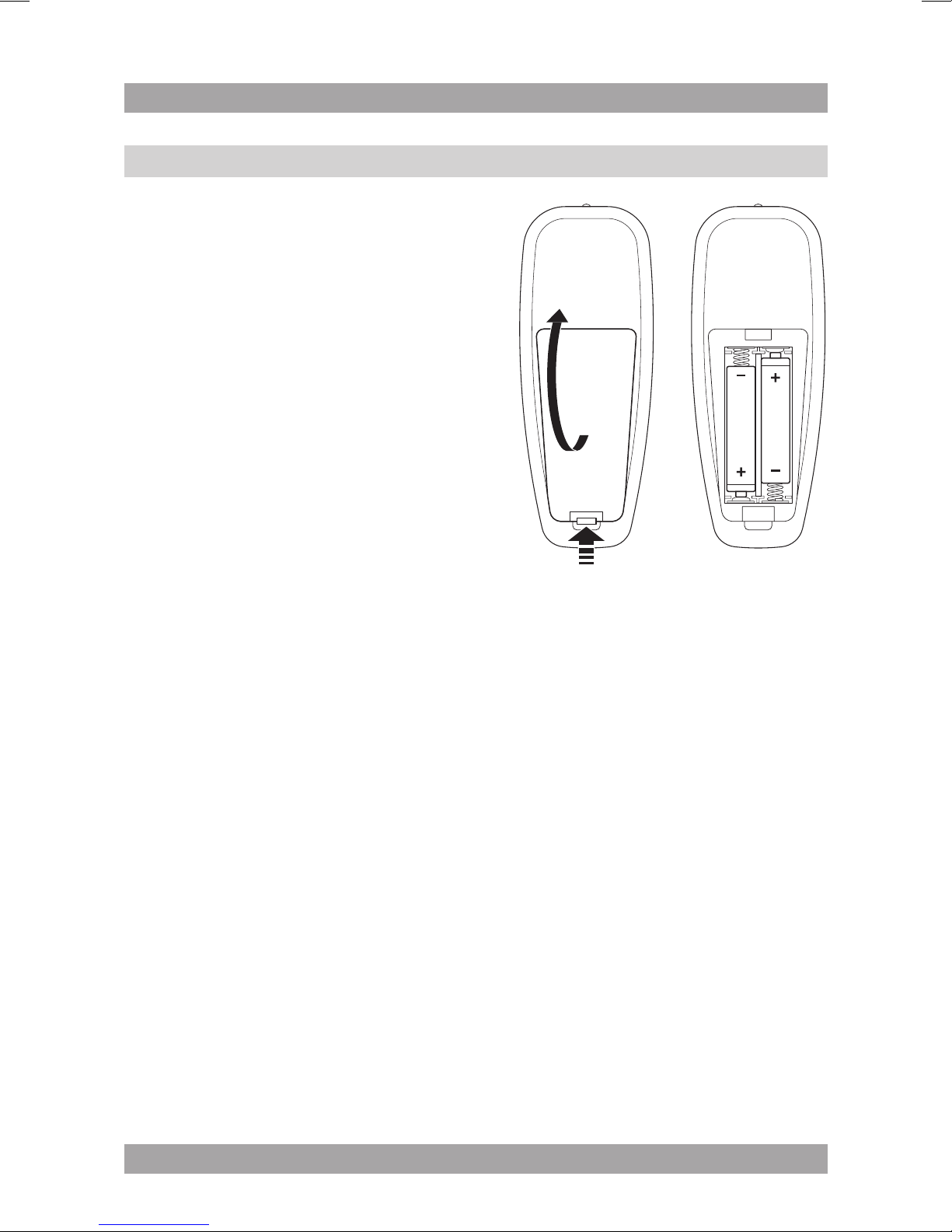

Install batteries
● Remove the battery cover.
● Insert the batteries matching the
(+) and (-) polarity markings.
● Re-install the battery cover.
! CAUTION
Incorrect installation can
cause battery leakage and
corrosion which will damage
the appliance. Corrosion,
oxidation, battery leakage and
any other gradually acidic
defect of this nature will
invalidate the guarantee.
7
QXA6630
Functions4.
Front panel4.1
1 FUNCTION switch
2 NEXT button
3 PROGRAM button
4 PREV button
5 AUX IN jack
6 VOLUME dial
7 Headphone jack
8 STOP button
9 REPEAT button
10 PLAY/PAUSE button
11 TUNING dial
12 Display
13 Remote control sensor
14 CD compartment
15 OPEN button
Back panel
16 Master power switch
PROGRAM REPEAT
/
AUX
5 6 7
1 13 12 111514
10
9
8
2
3
4
16
8
Remote control4.2
17 PROGRAM button
18 PLAY/PAUSE button
19 PREV button
20 REPEAT button
21 STOP button
22 NEXT button
Operation5.
Master power switch5.1
The appliance is equipped with a master power switch (16) located at the
back panel.
● Set the switch into the ON position prior to taking the appliance into
operation.
● Set the switch into the OFF position prior to disconnecting from the mains.
i When the appliance is not in use, we recommend to switch the
appliance off at the master power switch.
22
21
20
17
18
19
9
QXA6630
General functions5.2
● To switch on the appliance, slide the switch (16) to the ON position.
To switch off the appliance, slide the switch (16) to the OFF position.
● To select the source mode (CD, AUX IN, AM, FM), slide the FUNCTION
switch (1) to the desired position.
● To adjust the volume level, turn the VOLUME dial (6) until the desired
level is set.
● To connect an external audio device, insert the cable plug in the AUX IN
jack (5).
● To connect a headphone, insert the cable plug in the headphone jack (7).
Radio functions5.3
● To select the radio band, slide the FUNCTION switch (1) to the AM or FM
position.
● To select a frequency or radio station, turn the TUNING dial (11) until the
desired frequency is set.
i To improve the reception of the FM frequency, extend the aerial
antenna. To improve the reception of the AM frequency, turn the
appliance.
CD functions5.4
● To select the CD function, slide the FUNCTION switch (1) to the CD position.
● To insert a CD:
Press the OPEN button (15) to open the CD compartment (14). -
Insert the CD with the label upwards. -
Close the CD compartment (14). -
The display shows the total number of tracks on the CD.
● To start playback, press the PLAY/PAUSE button (10) once.
During playback, the following functions are available:
● To select a track, press the PREV button (4) or the NEXT button (2) until
the desired track is set.
● To search for a specic point on the disc, hold the PREV button (4) or the
NEXT button (2) until the point is reached and release the button.
10
● To pause playback, press the PLAY/PAUSE button (10) once. To resume
playback, press the PLAY/PAUSE button (10) again.
● To stop playback, press the STOP button (8).
i
The CD functions can also be operated with the remote control.
Using the REPEAT function
● Press the REPEAT button (9) (during play) to repeat the current track.
● Press the REPEAT button (9) again to repeat all tracks.
● Press the REPEAT button (9) again to exit the function.
Using the PROGRAM function
To use the PROGRAM function for CD, the playback must be in STOP mode.
● To play a list of tracks (max. 20) in a program, press the PROGRAM
button (3).
● Press the PREV button (4) or the NEXT button (2) to select a desired track.
● Press the PROGRAM button (3) to conrm the selection. Repeat the
previous step to select more tracks and conrm every selection with the
PROGRAM button (3).
● Press the PLAY/PAUSE button (10) to start the program.
● To play the program again, press the PROGRAM button (3) after the
program has nished. Press the PLAY/PAUSE button (10) to start the
program again.
● To view the program in stop mode, press the PROGRAM button (3).
● To stop the program during playback, press the STOP button (8) once.
● To delete the program during the playback, press the STOP button (8) twice.
i
A program is also deleted when the CD compartment is opened.
