Akai CA016A-9008U Manuel utilisateur

EN - ENGLISH

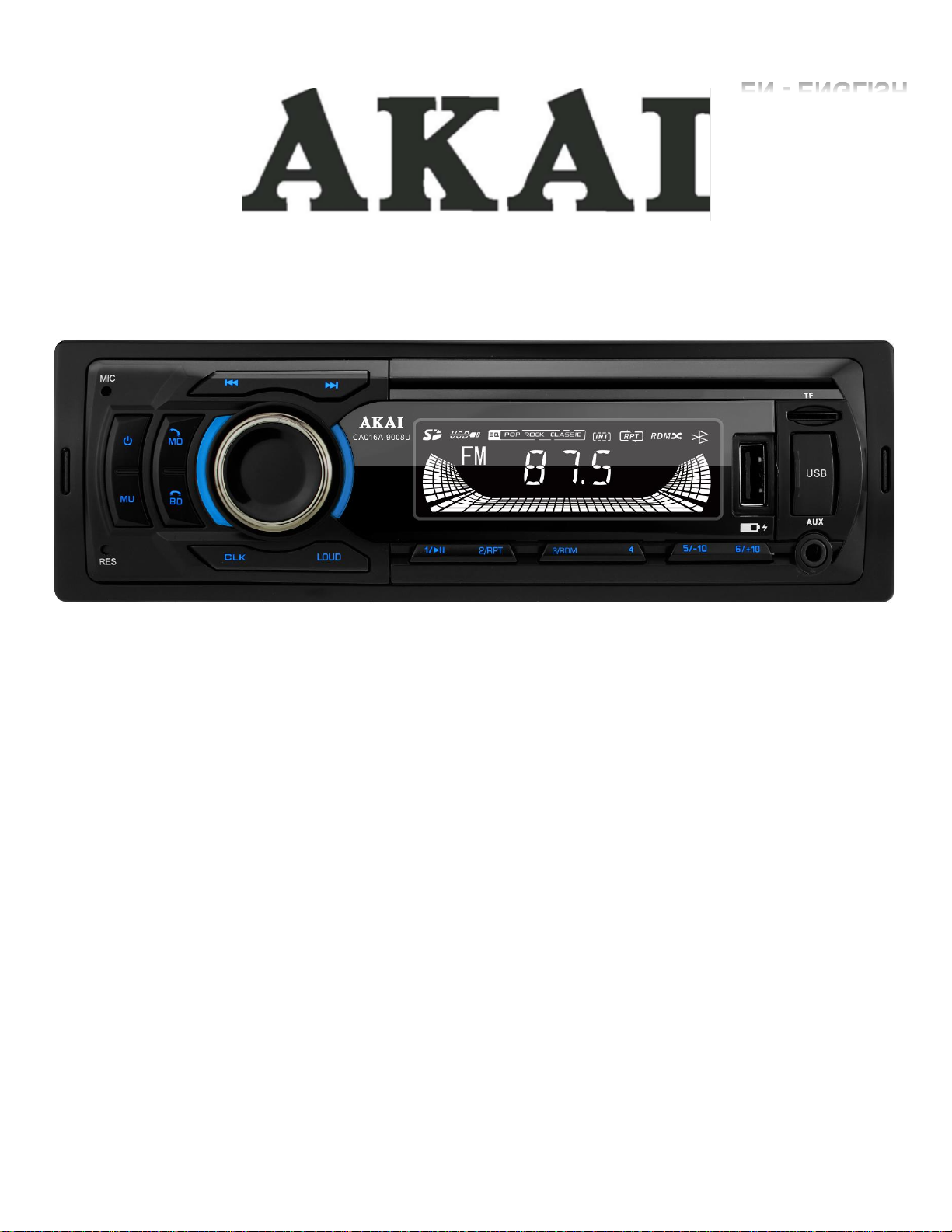

CA016A-9008U

Multi-media MP3 Car Player

Please read the Instruction Manual carefully before using this product.

EN - ENGLISH

P-1

PANEL FUNCTION

Power On/Off

In any mode press shortly CLK button to display the clock. Press and hold CLK button to go to

clock adjustment mode. Hour digits will blink. Rotate VOLUME regulator to adjust hours. Press

CLK button to go to minute adjustment; minute digits will blink. Rotate VOLUME regulator to

adjust minutes.

Radio receiving:

Short press to automatically tune to lower frequency radio. Long press to manually tune to lower

frequency radio.

Mp3 playing:

Short press to play the previous song.

Long press to manually fast rewind.

Radio receiving:

Short press to automatically tune to higher frequency radio.

Long press to manually tune to higher frequency radio.

Mp3 playing：

Short press to play the next song.

Long press to manually fast forward.

Radio receiving:

Short press for radio pre-stored in channel 1.

Long press to store current radio channel.

Mp3 playing:

Short press for pause/ play function.

EN - ENGLISH

P-2

Mp3 playing:

Short press for radio pre-stored in channel 2.

Long press to store current radio channel.

Radio receiving:

Short press for repeat play function.

Mp3 playing:

Short press for radio pre-stored in channel 3.

Long press to store current radio channel.

Radio receiving:

Short press for random play function.

Radio receiving:

Short press for radio pre-stored in channel 4.

Long press to store current radio channel.

Radio receiving:

Short press for radio pre-stored in channel 5.

Long press to store current radio channel.

Mp3 playing:

Short press to fast backward 10 tracks.

Long press to access the previous folder.

Radio receiving:

Short press for radio pre-stored in channel 6.

Long press to store current radio channel.

Mp3 playing:

Short press to fast forward 10 tracks.

Long press to access the next folder.

EN - ENGLISH

P-3

Switch between Radio / MP3 Play / AUX IN/Bluetooth.

MUTE

Press LOUD button shortly and repeatedly to set loudness on or off.

Rotate the volume knob to adjust the volume.

Short press to select the following functions and rotate the knob to adjust the parameters:

VOLUME

0- - - 40

BAS

-7---+7

TRE

-7---+7

BAL

L10---R10

FAD

R10---F10

LOUD

ON---OFF

OFF-FLAT-ROCK-POP-CLASSIC-

JAZZ

LOCAL

LOCAL-DX

STEREO

STEREO-MONO

Note: In radio mode, STEREO and LOCAL will display

Radio receiving:

Short press to switch the radio band.

Long press to automatically search and store.

Mp3 playing:

Short press BD to enter track search mode. SCH will be displayed. Press number buttons (1~6) to

input the number of needed track. Or rotate VOLUME regulator to select figures of the track number.

Press VOLUME(SELECT) button to start playback of the selected track.

BLUETOOTH

1.Open the machine and use the Bluetooth on your mobile phone to search for CAR-BT, connect

and enter “0000”

EN - ENGLISH

P-4

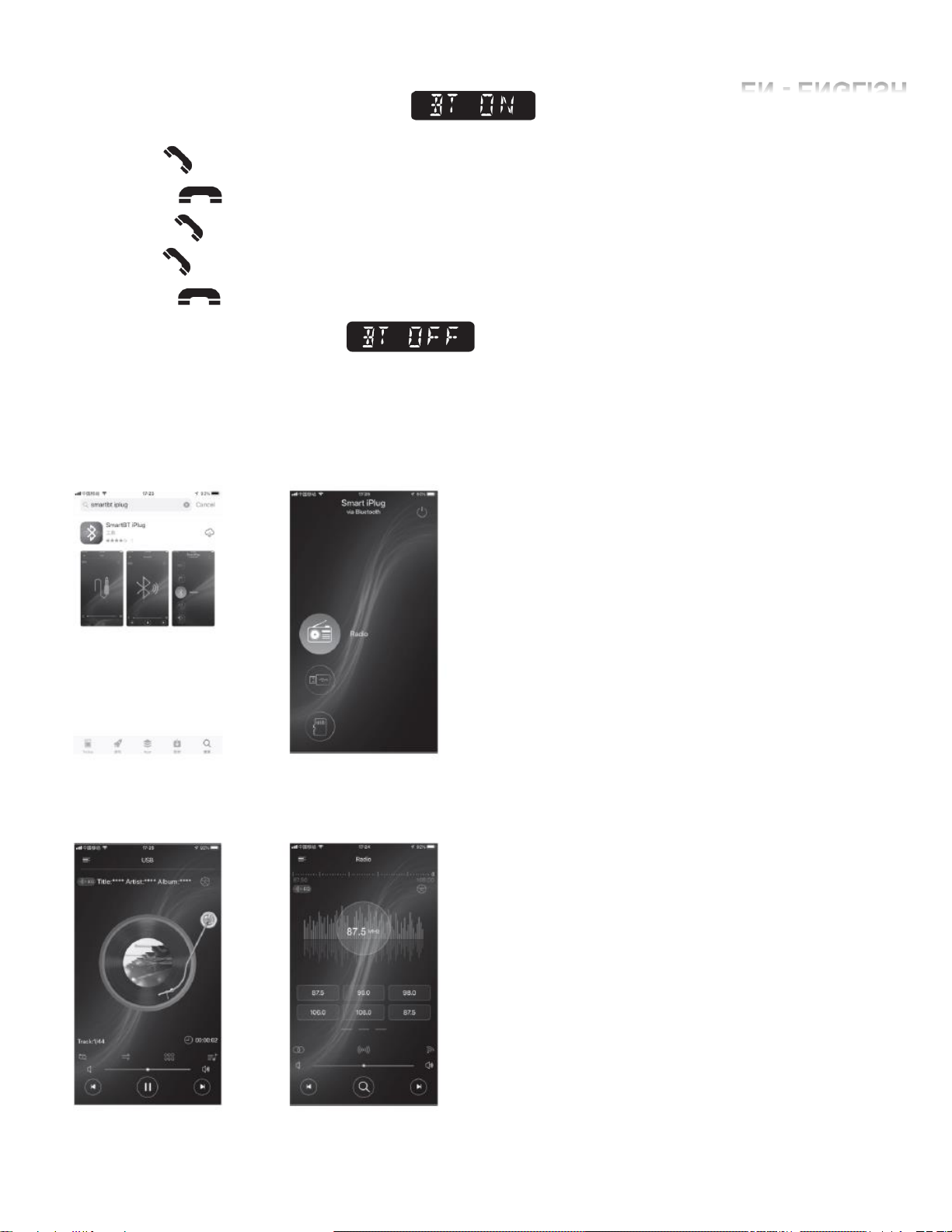

2.When Bluetooth is successfully paired will be displayed.

Short press 1to PLAY/PAUSE mobile phone music.

Short press to answer the phone.

Short press to hang up the phone.

Short press to switch between Bluetooth and mobile phone when calling.

Long press to call back the last call record.

Long press to connect/disconnect Bluetooth.

3.When Bluetooth disconnects, will be displayed.

APP OPERATION

The SmartBT iplug App is the ultimate wireless controller of your Product.

You ean search "Smartbt iplug" on Apple Store or Google Play Store and install into your Smart

phone.

EN - ENGLISH

P-5

INSTALLATION

If the angle of the unit is greater than 60 degrees,

this unit may not reach optimum performance. （A）

Front installation （B）

1.Instrument board

2.Metal mantle. After putting the mantle into the

instrument board, bend the steel of the mantle and

fix it onto instrument board.

3.Fastening bolt

Rear Installation (C)

1.Instrument board

2.Nut

3.Spring washer

4.Bolt

5.Fastening bolt

6.Fixed steel

7.Flat washer. In order to improve the

anti-interference, please fix onto the under-frame

of the car. Bend the steel if necessary.

UNLOAD THE UNIT (D)

1.Please remove the front frame, when removing this model.

2.Insert the keys into the slots on both side until a locking

sound is heard.

3.Pull out the keys and the unit.

EN - ENGLISH

P-6

TROUBLESHOOTING

Before resorting to service, check the following troubleshooting guide.

Ensure that all connections are correct and secure and that all operating procedures have been

followed.

PROBLEMS

CAUSES AND SOLUTION

No power

Check the fuse. Replace if necessary.

The display or the buttons do not

work

Switch off. Check all connections and then

power on again.

Cannot receive radio

Check antenna connection.

Radio reception is poor

Check that the antenna is fully extended and that

it is not broken. Extend or replace if necessary.

Cannot read USB and

SD card

The file format is not available / USB and SD card

have been damaged.

Note: If you are unable to resolve the problem after checking this guide, please call the supplier or an

authorized service center.

NEVER attempt to repair or service this unit yourself.

TECHNICAL DATA

The unit

Power source

12V(10.8-15.1V) DC Negative pole earth

Speaker

4-8Ω

High power

machines

Max output

25Wx4

Output rating

20Wx4

Frequency scope

87.5-108MHZ

Sensitivity

≤26dB

MP3

Sensitivity

≥35dB

Frequency

(100HZ-10KHZ) ±6dB

Harmonic voltage distortion(1KHz)

≤5%

Channel separation

≥35dB

Stereophonic reproduction channel balancing

≤3dB

EN - ENGLISH

P-7

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on the product or packaging means that the product should not be treated as household

waste. Do not throw garbage at the end of its life, but take it to a collection center for recycling. in

this way you will help to protect the environment and be able to prevent any negative consequences

that it would have on the environment and human health.

To find your nearest collection center:

-Contact local authorities

- Access the website: www.mmediu.ro

- Request additional information from the store where you purchased the product.

RO - ROMANA

CA016A-9008U

Player auto MP3 multi-media

Va rugam sa cititi cu atentie manualul de instructiuni inainte de folosirea

acestui produs.

RO - ROMANA

P-1

FUNCTIILE PANOULUI

Pornire/oprire alimentare

In orice mod, apasati scurt butonul CLK pentru afisarea ceasului. Apasati si tineti apasat butonul

CLK pentru a intra in modul de reglare a ceasului. Cifrele pentru ora vor licari. Rotiti butonul de

VOLUM pentru a regla orele. Apasati butonul CLK pentru a putea regla minutele; cifrele pentru

minute vor licari. Rotiti butonul pentru VOLUM pentru a regla minutele.

Receptie radio:

Apasati scurt pentru a regla automat aparatul pe frecvente radio joase. Apasati lung pentru a regla

manual aparatul pe frecvente radio joase.

Redare Mp3:

Apasati lung pentru a reda melodia anterioara.

Apasati lung pentru derularea rapida inapoi, in mod manual.

Receptie radio:

Apasati lung pentru a regla automat aparatul pe frecvente radio inalte. Apasati lung pentru a regla

manual aparatul pe frecvente radio inalte.

Redare Mp3：

Apasati scurt pentru a reda melodia urmatoare.

Apasati lung pentru derularea rapida inainte, in mod manual.

Receptie radio:

Apasati scurt pentru a preseta postul de radio pe canalul 1.

Apasati lung pentru a memora postul curent de radio.

Redare Mp3:

Apasati scurt pentru a pune pe pauza/pentru redare.
