ACTIVE SPEAKER

SC-A48

S/M Code No. 09-994-328-6R1

AU(B)

SERVICE MANUAL

REVISION

This Service Manual is the “Revision Publishing” and replaces “Simple Manual”

SC-A48 AU<B>(S/M Code No.09-994-328-6T1)

DATA

REF. NO PART NO. KANRI DESCRIPTION

NO.

ACCESSORIES/PACKAGE LIST

1 88-YP7-905-010 IB,U(ESF)

2 87-B30-219-010 AC ADAPTOR,AC-D1301UNC

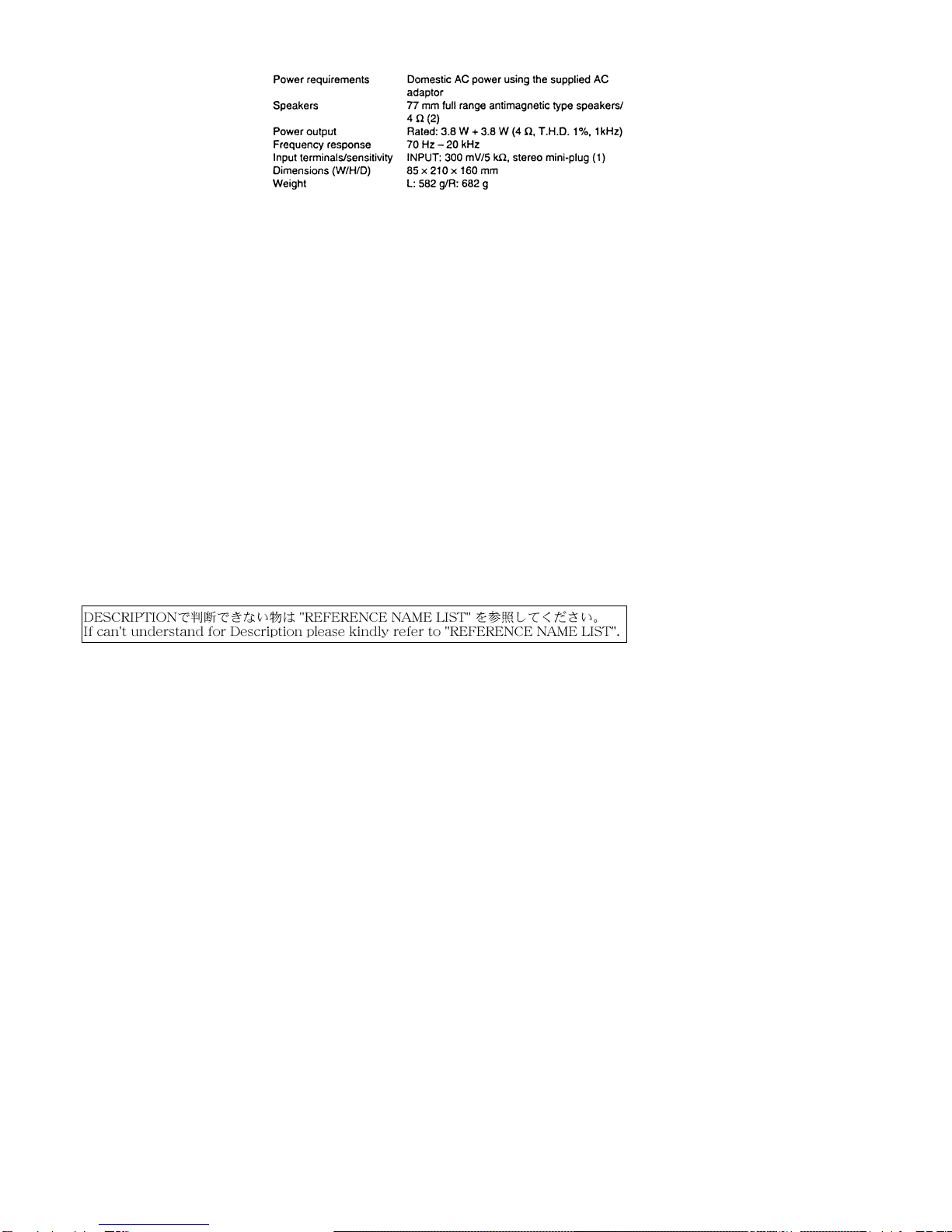

SPECIFICATIONS

•

Design and specifications are subject to change without

notice.

REF. NO PART NO. KANRI DESCRIPTION

NO.

REF. NO PART NO. KANRI DESCRIPTION

NO.

ELECTRICAL MAIN PARTS LIST

87-017-982-010 IC,BA5412

87-A20-946-040 C-IC,MM1434XF

87-017-888-080 IC,NJM4558MD

TRANSISTOR

89-318-155-080 TR,2SC1815 (0.4W)

DIODE

87-017-120-080 ZENER,HZS9C3

87-020-465-080 DIODE,1SS133 (110MA)

87-017-978-080 DIODE,1N4003

MAIN C.B

C1 87-010-178-080 CHIP CAP 1000P

C2 87-010-178-080 CHIP CAP 1000P

C3 87-010-401-080 CAP, ELECT 1-50V

C4 87-010-401-080 CAP, ELECT 1-50V

C5 87-010-401-080 CAP, ELECT 1-50V

C6 87-010-401-080 CAP, ELECT 1-50V

C7 87-010-405-080 CAP, ELECT 10-50V

C8 87-010-402-080 CAP, ELECT 2.2-50V

C9 87-010-197-080 CAP, CHIP 0.01 DM

C10 87-010-197-080 CAP, CHIP 0.01 DM

C11 87-010-197-080 CAP, CHIP 0.01 DM

C12 87-010-197-080 CAP, CHIP 0.01 DM

C13 87-010-405-080 CAP, ELECT 10-50V

C14 87-010-405-080 CAP, ELECT 10-50V

C17 87-010-400-080 CAP, ELECT 0.47-50V

C18 87-010-400-080 CAP, ELECT 0.47-50V

C21 87-010-405-080 CAP, ELECT 10-50V

C22 87-010-405-080 CAP, ELECT 10-50V

C23 87-010-178-080 CHIP CAP 1000P

C24 87-010-178-080 CHIP CAP 1000P

C25 87-010-237-080 CAP, ELECT 1000-16V

C26 87-010-237-080 CAP, ELECT 1000-16V

C27 87-010-380-080 CAP, ELECT 47-16V

C28 87-010-380-080 CAP, ELECT 47-16V

C29 87-010-380-080 CAP, ELECT 47-16V

C30 87-010-380-080 CAP, ELECT 47-16V

C33 87-010-384-080 CAP, ELECT 100-25V

C34 87-010-405-080 CAP, ELECT 10-50V

C35 87-010-101-080 CAP, ELECT 220-16

C36 87-010-405-080 CAP, ELECT 10-50V

C37 87-010-385-080 CAP, ELECT 220-25V

C38 87-010-405-080 CAP, ELECT 10-50V

C39 87-010-401-080 CAP, ELECT 1-50V

C40 87-010-401-080 CAP, ELECT 1-50V

C41 87-016-081-080 C-CAP,S 0.1-16 RK

C42 87-010-260-080 CAP, ELECT 47-25V

C43 87-010-379-080 CAP, ELECT 22-16V

J1 87-099-399-010 JACK,DC TYPE-4 N-EIAJ

J2 87-YP6-609-010 JACK,3.5 BLK ST

PR1 87-A90-726-080 PROTECTOR,1.6A 491SERIES 60V

S1 84-SP3-623-010 SW,PUSH 2-2-2

S2 84-SP3-623-010 SW,PUSH 2-2-2

VR1 87-YP5-622-010 104-10KA-11001,VR RTRY 10KAX2

VR2 87-YP5-622-010 104-10KA-11001,VR RTRY 10KAX2

LED C.B

D4 88-YP6-615-010 153-L-34GD,LED L-34GD GRN

• Regarding connectors, they are not stocked as they are not the initial order items.

The connectors are available after they are supplied from connector manufacturers upon the order is received.

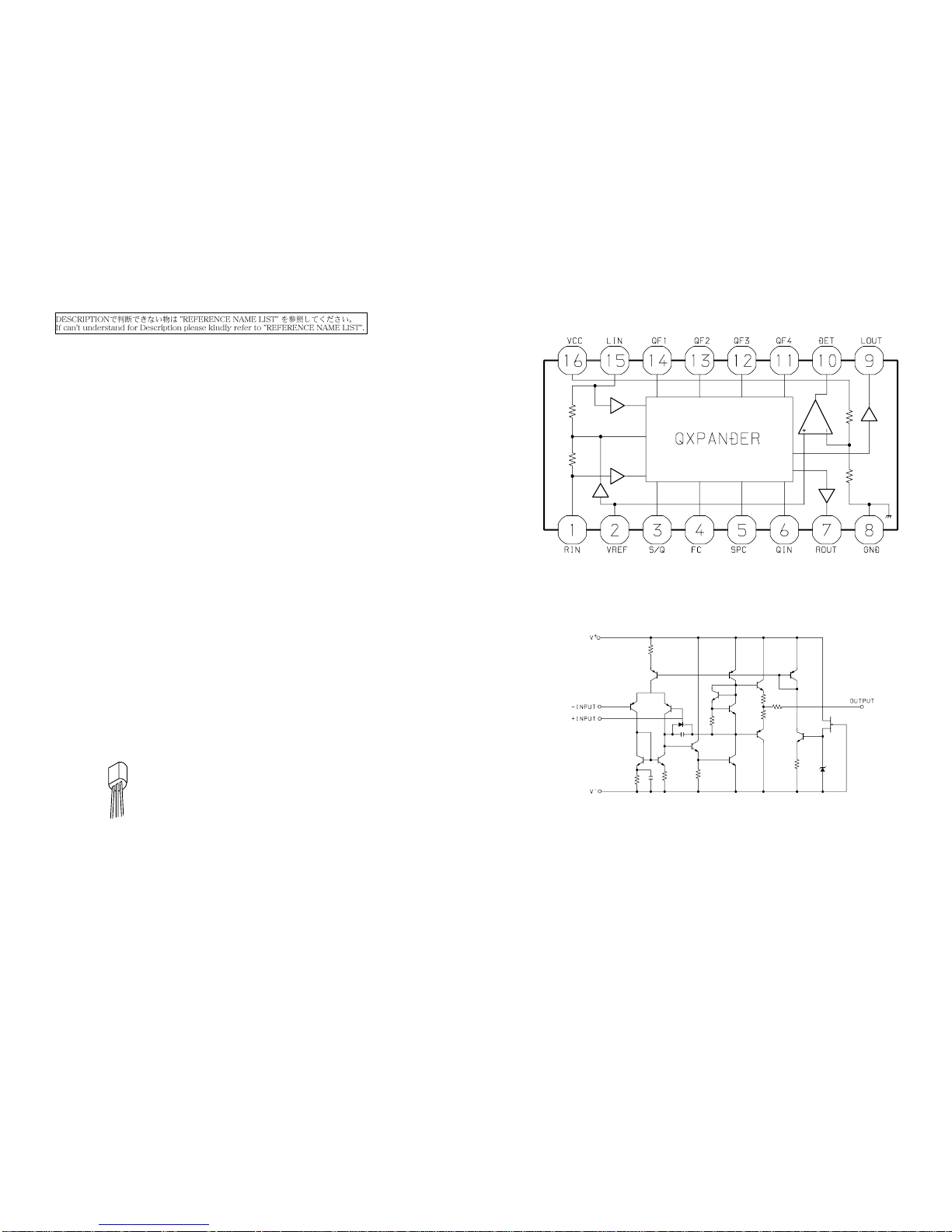

TRANSISTOR ILLUSTRATION

ECB

2SC1815

IC BLOCK DIAGRAM

IC, MM1434XF

IC, NJM4558MD

123456789

10 11 12 13 14

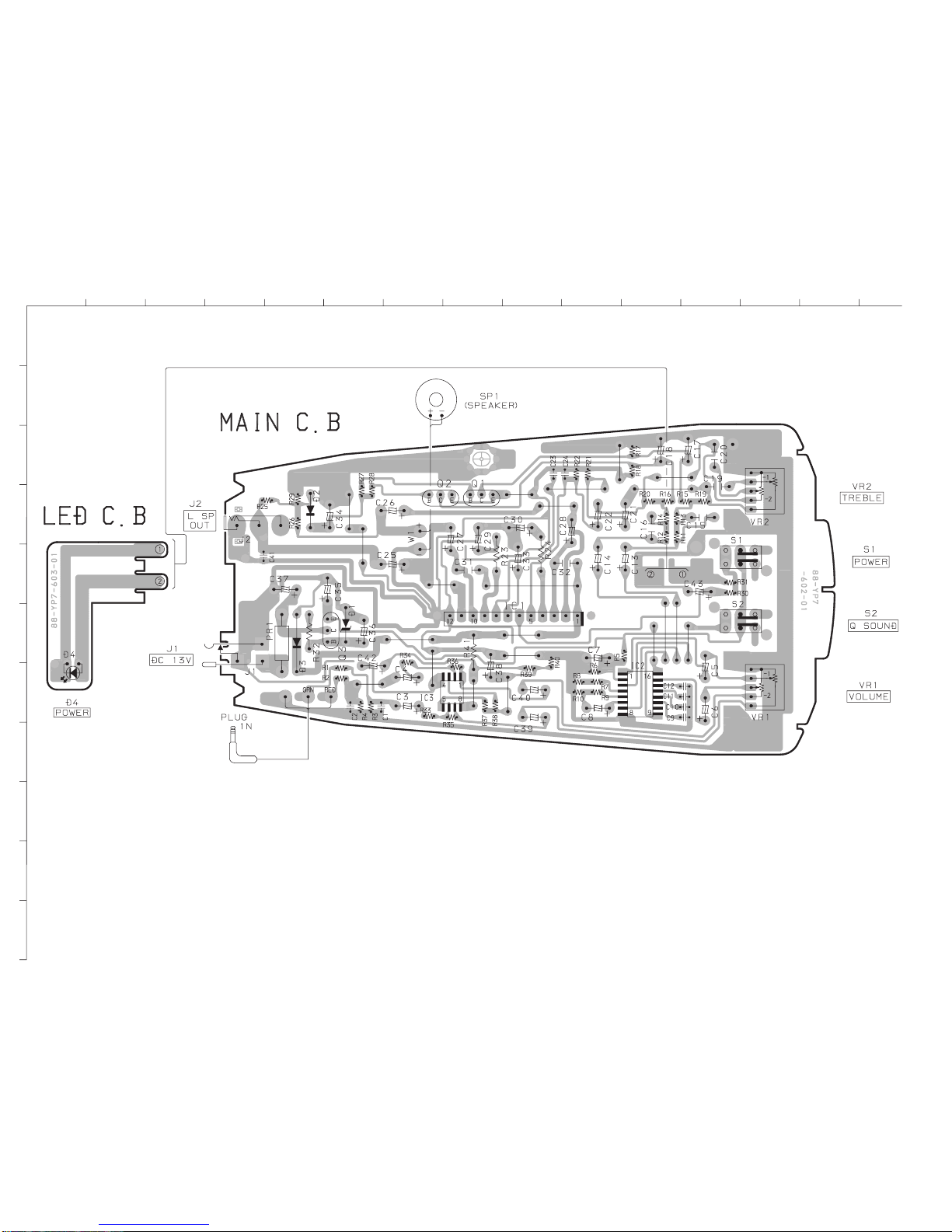

WIRING

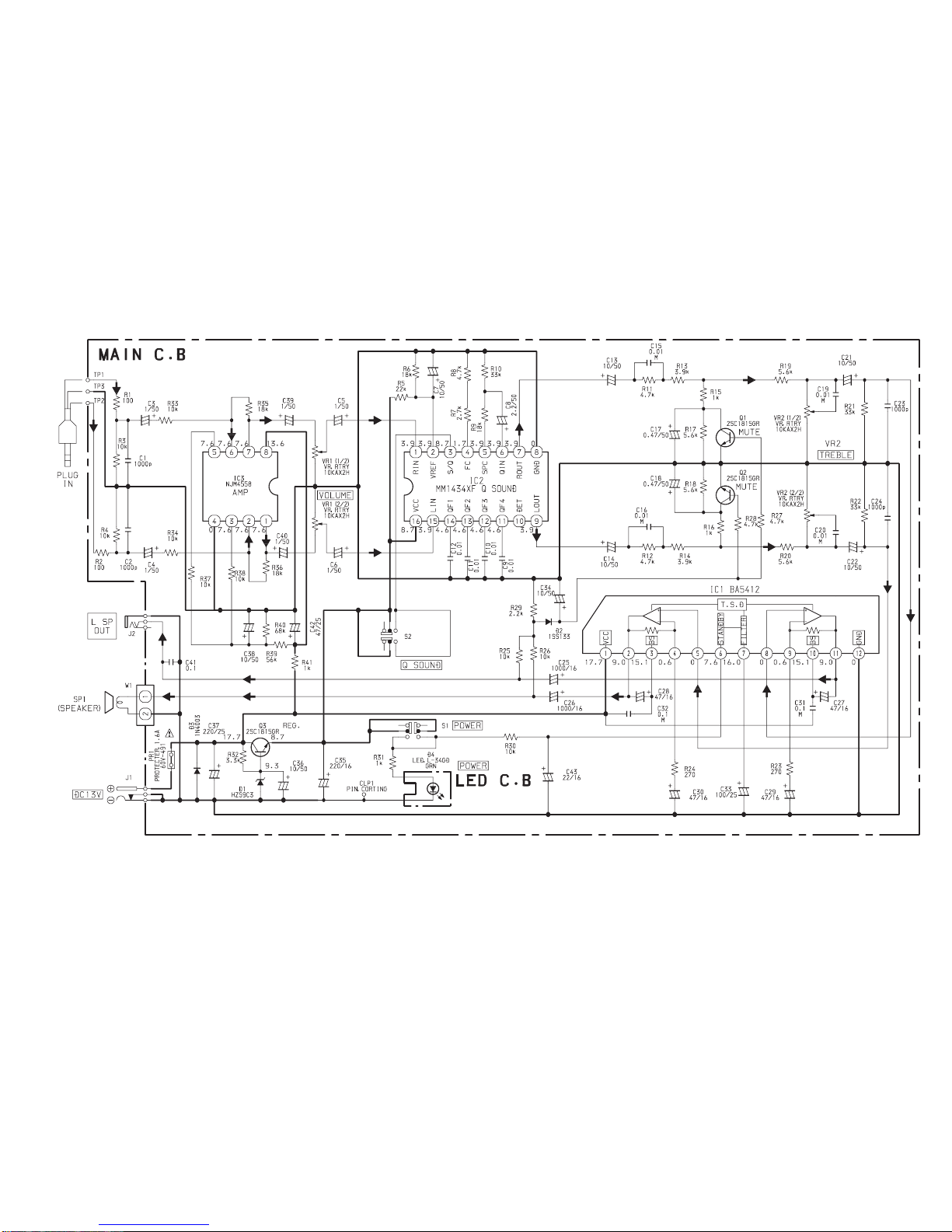

SCHEMATIC DIAGRAM

109

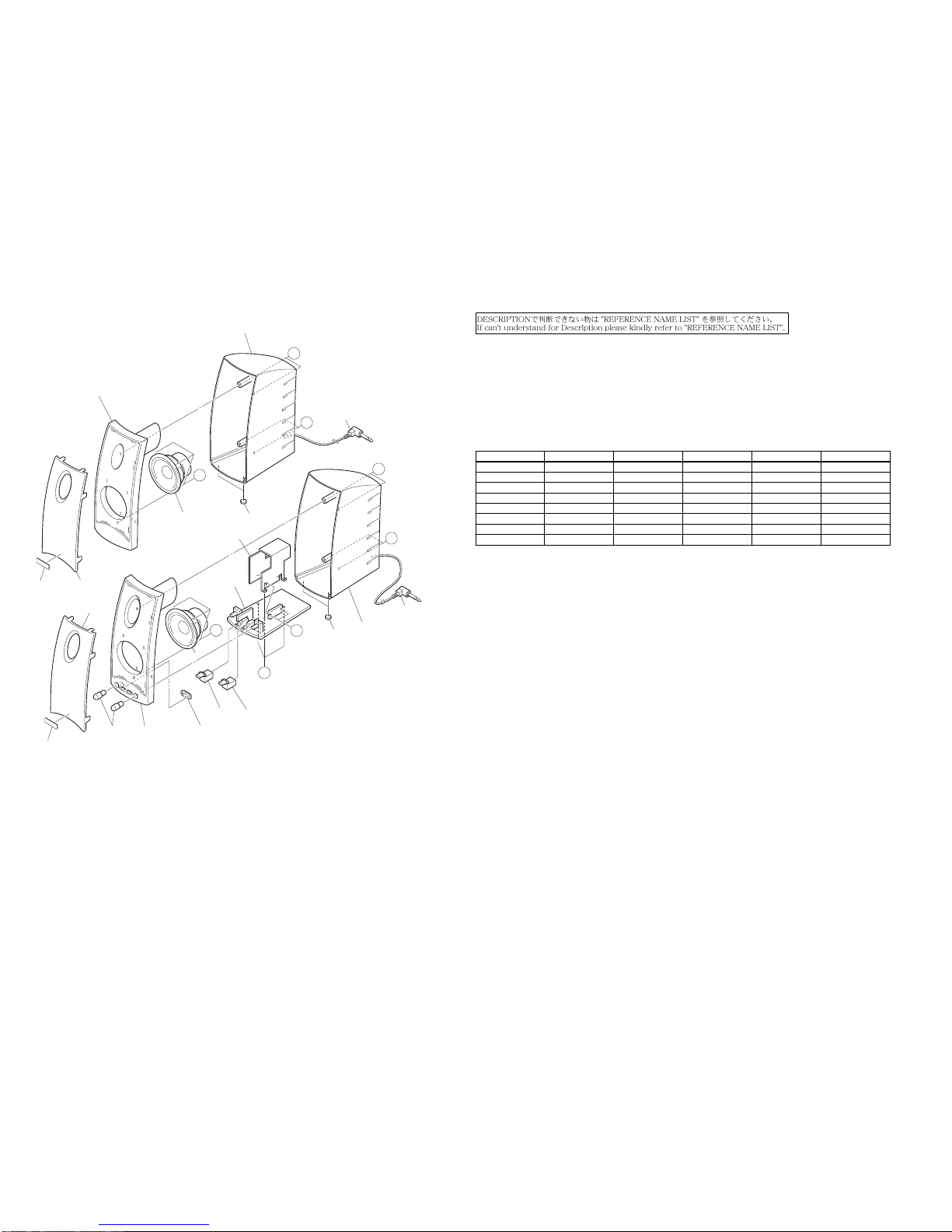

MECHANICAL EXPLODED VIEW 1/1

HT-SINK,POWER IC

P.C.B

REF. NO PART NO. KANRI DESCRIPTION

NO.

MECHANICAL PARTS LIST 1/1

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange

G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver

T Brown V Violet W White

WT Transparent White Y Yellow YT Transparent Yellow

LM Metallic Blue LL Light Blue GT Transparent Green

LD Dark Blue DT Transparent Orange

COLOR NAME TABLE

1 88-YP7-604-010 SPKR,77MM 4OHM

2 85-SP5-612-010 CORD,PLUG 3.5 MO B

3 85-SP3-629-010 CORD,PLUG 3.5 ST B

4 88-YP7-202-010 FOOT,REAR

A 87-067-822-010 BVT2+3-20 W/O SLOT

B 87-067-945-110 VFT2+3-12(F10)

C 87-067-703-010 TAPPING SCREW, BVT2+3-10

ELECTRICAL SECTION

DESCRIPTION REFERENCE NAME

ANT ANTENNAS

C- CHIP

C-CAP CAP, CHIP

C-CAP TN CAP, CHIP TANTALUM

C-COIL COIL, CHIP

C-DI DIODE, CHIP

C-DIODE DIODE, CHIP

C-FET FET, CHIP

C-FOTR FILTER, CHIP

C-JACK JACK, CHIP

C-LED LED, CHIP

C-RES RES, CHIP

C-SFR SFR, CHIP

C-SLIDE SW SLIDE SWITCH, CHIP

C-SW SWITCH, CHIP

C-TR TRANSISTOR, CHIP

C-VR VOLUME, CHIP

C-ZENER ZENER, CHIP

CAP, CER CAP, CERA-SOL

CAP, E CAP, ELECT

CAP, M/F CAP, FILM

CAP, TC CAP, CERA-SOL

CAP, TC-U CAP, CERA-SOL SS

CAP, TN CAP, TANTALUM

CERA FIL FILTER, CERAMIC

CF FILTER, CERAMIC

DL DELAY LINE

E/CAP CAP, ELECT

FILT FILTER

FLTR FILTER

FUSE RES RES, FUSE

MOT MOTOR

P-DIODE PHOTO DIODE

P-SNSR PHOTO SENSER

P-TR PHOTO TRANSISTOR

POLY VARI VARIABLE CAPACITOR

PPCAP CAP, PP

PT POWER TRANSFORMER

PTR, RES PTR, MELF

RC REMOTE CONTROLLER

RES NF RES, NON-FLAMMABLE

RESO RESONATOR

SHLD SHIELD

SOL SOLENOID

SPKR SPEAKER

SW, LVR SWITCH, LEVER

SW, RTRY SWITCH, ROTARY

SW, SL SWITCH, SLIDE

TC CAP CAP, CERA-SOL

THMS THERMISTOR

TR TRANSISTOR

TRIMMER CAP, TRIMMER

TUN-CAP VARIABLE CAPACITOR

VIB, CER RESONATOR, CERAMIC

VIB, XTAL RESONATOR, CRYSTAL

VR VOLUME

ZENER DIODE, ZENER

REFERENCE NAME LIST MECHANICAL SECTION

DESCRIPTION REFERENCE NAME

ADHESHIVE SHEET ADHESHIVE

AZ AZIMUTH

BAR-ANT BAR-ANTENNA

BAT BATTERY

BATT BATTERY

BRG BEARING

BTN BUTTON

CAB CABINET

CASS CASSETTE

CHAS CHASSIS

CLR COLLAR

CONT CONTROL

CRSR CURSOR

CU CUSHION

CUSH CUSHION

DIR DIRECTION

DUBB DUBBING

FL FRONT LOADING

FLY-WHL FLYWHEEL

FR FRONT

FUN FUNCTION

G-CU G-CUSHION

HDL HANDOL

HIMERON CLOTH

HINGE, BAT HINGE, BATTERY

HLDR HOLDER

HT-SINK HEAT SINK

IB INSTRUCTION BOOKLET

IDLE IDLER

IND, L-R INDICATOR, L-R

KEY, CONT KEY, CONTROL

KEY, PRGM KEY, PROGRAM

KNOB, SL KNOB, SLIDE

LBL LABEL

LID, BATT LID, BATTERY

LID, CASS LID, CASSETTE

LVR LEVER

P-SP P-SPRING

PANEL, CONT PANEL, CONTROL

PANEL, FR PANEL, FRONT

PRGM PROGRAM

PULLY, LOAD MO PULLY, LOAD MOTOR

RBN RIBBON

S- SPECIAL

SEG SEGMENT

SH SHEET

SHLD-SH SHIELD-SHEET

SL SLIDE

SP SPRING

SP-SCREW SPECIAL-SCREW

SPACER, BAT SPACER, BATTERY

SPR SPRING

SPR-P P-SPRING

SPR-PC-PUSH P-SPRING, C-PUSH

T-SP T-SPRING

TERM TERMINAL

TRIG TRIGGER

TUN TUNING

VOL VOLUME

W WASHER

WHL WHEEL

WORM-WHL WORM-WHEEL

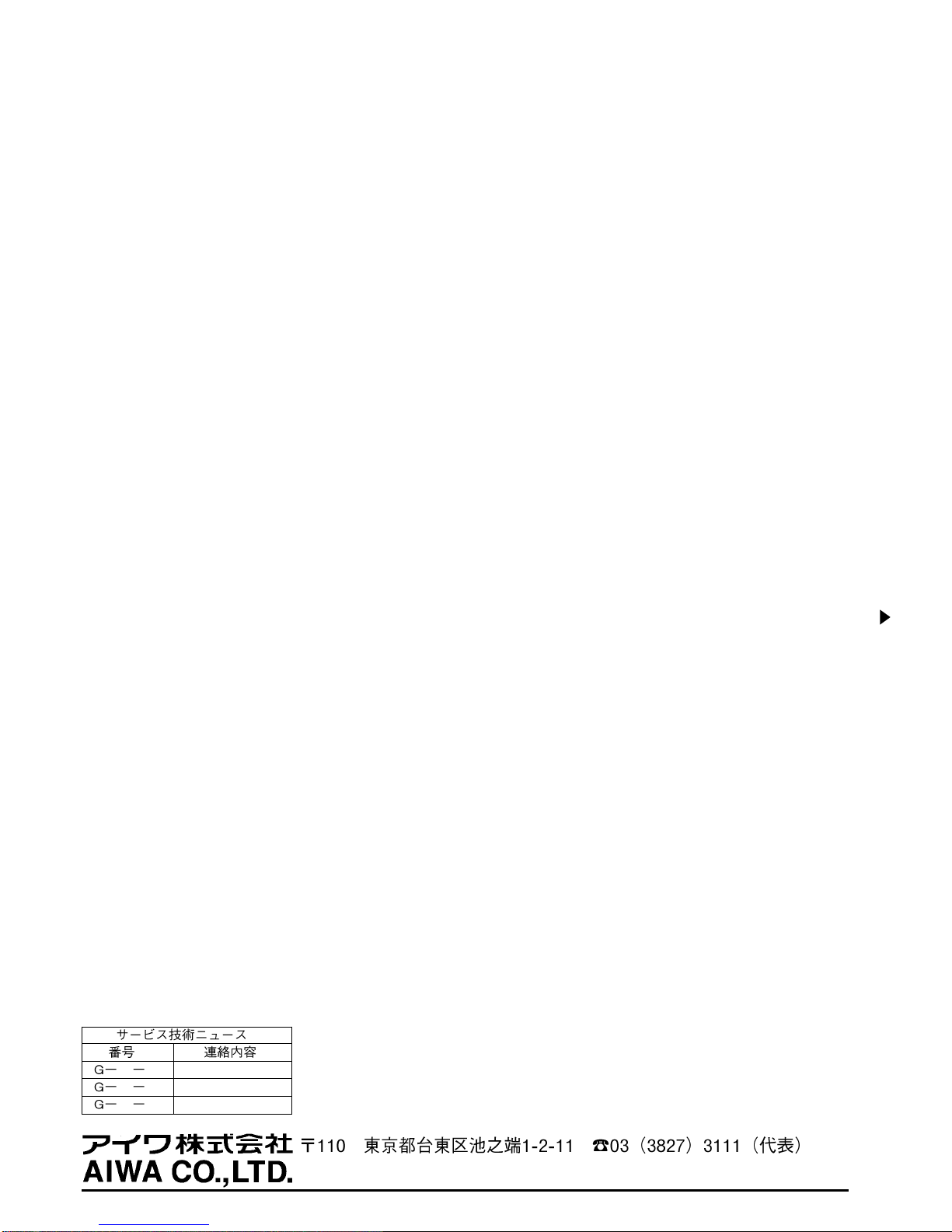

931196 Printed in Singapore

2–11, IKENOHATA1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
