SERVICE MANUAL

COMPACT DISC /

STEREO CASSETTE RECORDER

BASIC TAPE MECHANISM : TN-21ZVC-2000

BASIC CD MECHANISM : CMS-B31TG6

CSD-FD81

CSD-FD83

S/M Code No. 09-003-424-9R1

REVISION

• This Service Manual is the "Revision Publishing" and replaces "Simple Manual",

(S/M Code No. 09-99C-424-9T1).

• If requiring information about the CD mechanism, see Service Manual

of CMS-B31TG6, (S/M Code No. 09-001-341-1N2).

DATA

Tuner section

Frequency range

FM : 87.5 MHz - 108 MHz

Antenna : Rod antenna

AM : 530/531 kHz - 1,710/1,602 kHz

(10/9 kHz/step)

Antenna : Ferrite bar antenna

MW<LH> : 531/530 kHz - 1,602/1,710 kHz

(9/10 kHz/step)

Antenna : Ferrite bar antenna

LW<LH> : 153 - 288 kHz

Antenna : Ferrite bar antenna

Deck section

Track format 4 tracks, 2 channels

Frequency range Normal tape : 50 Hz-12,500 Hz (EIAJ)

Recording system AC bias

Erasing system Magnet erase

Heads Recording/Playback head x 1/

Erasure head x 1

CD player section

Disc Compact disc

Scanning methodd Non-contact optical scanner

(semiconductor laser)

General

Speaker 100 mm cone type (2), 60 mm cone type (2)

Output Headphones jack (stereo mini-jack)

Power output U :

2.5 W + 2.5 W (EIAJ 7 ohms DC)

LH :

5 W + 5 W (DIN MUSIC POWER)

4.5 W + 4.5 W (EIAJ 3.2 ohms, T.H.D. 10%)

3.3 W + 3.3 W (DIN 1% Rated Power)

Power requirements U :

DC 12 V using eight R14 (size C) batteries,

AC 120 V, 60 Hz

LH :

DC 12 V using eight R14 (size C) batteries,

120 V / 220-230 V / 240 V AC, switchable

50/60 Hz

Power consumption U :

12 W

LH :

22 W

Dimensions (W xH xD) 460 (W) x 191.9 (H) x 261.2 (D) mm

(181/8x 75/8x 103/8in.)

Weight 4 kg (8 lbs. 13 oz.) (excluding batteries)

• Design and specifications are subject to change without notice.

SPECIFICATIONS

ACCESSORIES / PACKAGE LIST

DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

1 8A-CH4-903-010 IB,U (ESF) B

1 8A-CHE-902-010 IB,LH (ESP) B<LH>

2 87-A80-036-010 AC CORD SET ASSY,E W/FLTR V<LH>

2 87-A80-109-010 AC CORD,HK7281 BLK U

3 8Z-CK4-962-010 RC UNIT,RC-ZAT04 (VS)

4 87-A91-017-010 PLUG,CONVERSION JT-0476<LH>

–2–

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-

ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-

tävälle näkymättömälle lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som specificeras i

denna bruksanvising, kan användaren utsättas för osynling

laserstrålning, som överskrider gränsen för laserklass 1.

Caution: Invisible laser radiation when

open and interlocks defeated avoid expo-

sure to beam.

Advarsel:Usynling laserståling ved åbning,

når sikkerhedsafbrydere er ude af funktion.

Undgå udsættelse for stråling.

CAUTION

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiation exposure.

ATTENTION

L'utilisation de commandes, réglages ou procédures autres que

ceux spécifiés peut entraîner une dangereuse exposition aux

radiations.

ADVARSEL!

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude

af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1 LASER

product.

The CLASS 1 LASER PRODUCT label is located on the rear

exterior.

This set employs laser. Therefore, be sure to follow carefully the

instructions below when servicing.

WARNING!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT

WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO

CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE

FROM A DISTANCE OF MORE THAN 30cm FROM THE

SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL

PICK-UP BLOCK.

CLASS 1

KLASSE 1

LUOKAN 1

KLASS 1

LASER PRODUCT

LASER PRODUKT

LASER LAITE

LASER APPARAT

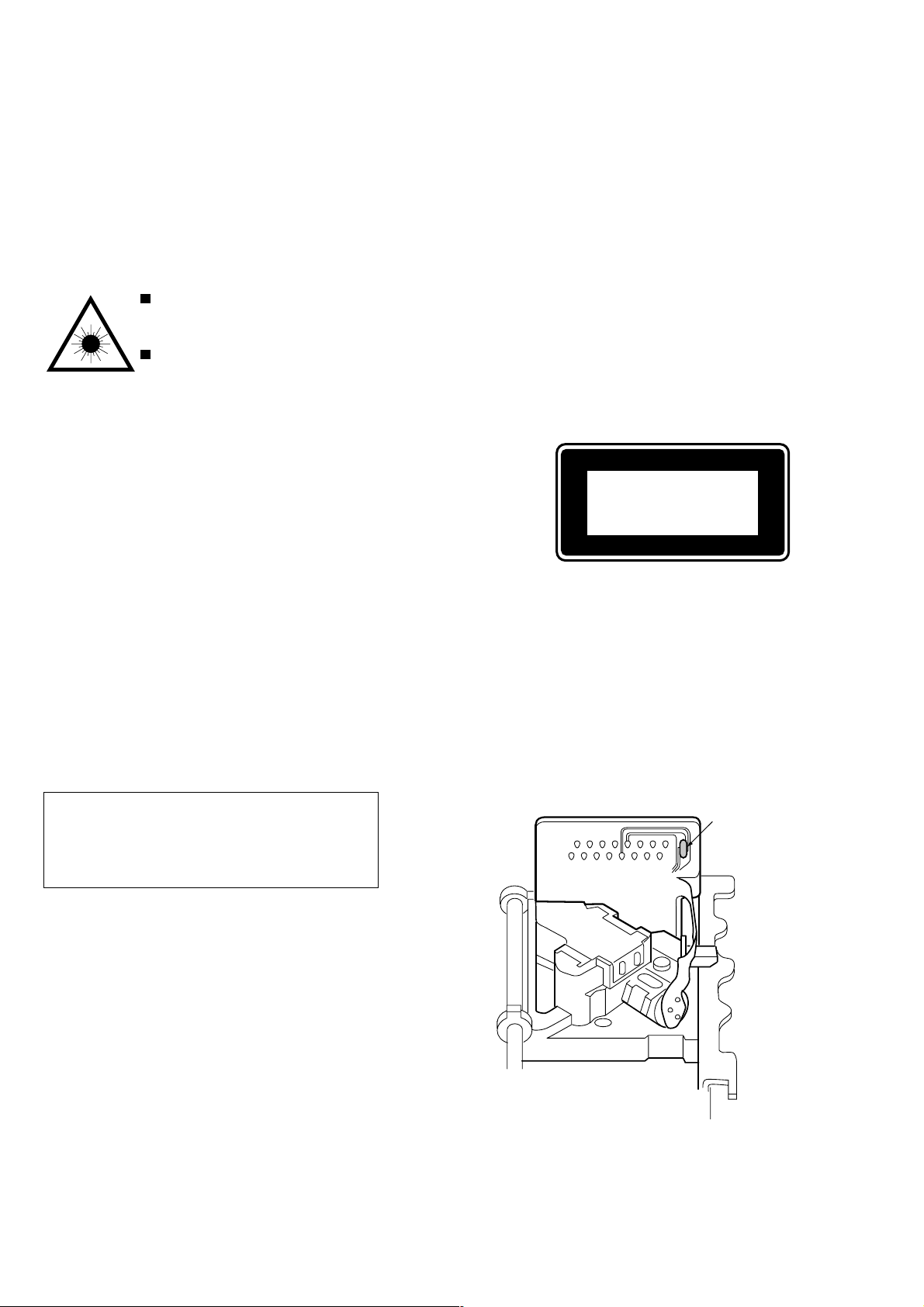

Precaution to replace Optical block

1) After the connection, remove solder shown in

the right figure.

Body or clothes electrostatic potential could ruin

laser diode in the optical block. Be sure ground

body and workbench, and use care the clothes

do not touch the diode.

PICK-UP ASSY. P.C.B

Solder

– 3 –

ELECTRICAL MAIN PARTS LIST

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

87-A21-550-010 IC,TA2149N

87-A21-185-040 C-IC,LC72121M

87-A21-064-010 IC,LA4227<81U>

87-A21-090-010 IC,LA4600<83LH>

87-A21-520-040 C-IC,M61509FP

87-A20-446-010 C-IC,LA9241ML

87-A20-459-010 C-IC,LC78622ED

87-A21-093-010 IC,LA6541D

8A-CH4-661-010 C-IC,LC867132V-5G68

87-A21-431-010 IC,BA4560N

87-A21-245-010 IC,RPM6938-V4

TRANSISTOR

89-327-143-080 TR,2SC2714 (0.1W)

87-026-447-080 TR,2SC1740SR

89-111-624-080 TR,2SA1162Y

87-026-213-080 CHIP-TR,DTC114YK

89-327-125-080 CHIP TR,2SC2712GR

89-318-154-080 TR,2SC1815 (0.4W)

89-112-965-080 TR,2SA1296 (0.75W)

87-026-463-080 TR,2SA933S (0.3W)

87-026-291-080 TR,DTC124XS

89-213-702-080 TR,2SB1370E

87-026-462-080 TR,2SC1740 S(RS 0.3W)

89-109-332-380 TR,2SA933RS

89-113-187-080 TR,2SA1318TU

87-026-239-080 TR,DTC114TK

87-026-210-080 TR,DTC144EK

87-026-464-080 TR,DTC114TS (0.3W)

DIODE

87-020-465-080 DIODE,1SS133 (110MA)

87-017-072-080 ZENER,HZS3B1

87-027-703-080 ZENER,HZ7A1L<81U>

87-027-607-080 ZENER,HZ7B3L<83LH>

87-A40-648-080 ZENER,MTZJ8.2A

87-070-345-080 DIODE,IN4148

87-017-978-080 DIODE,1N4003

87-027-702-080 DIODE,ZENER HZ6C2L (200MA)

87-A40-465-010 DIODE,FR202

MAIN C.B

C211 87-010-805-080 CAP, S 1-16

C212 87-010-805-080 CAP, S 1-16

C215 87-016-460-080 C-CAP,S 0.22-16 B

C216 87-016-460-080 C-CAP,S 0.22-16 B

C231 87-010-213-080 C-CAP,S 0.015-50 B

C232 87-010-213-080 C-CAP,S 0.015-50 B

C233 87-A10-201-080 C-CAP,S0.33-16 KB

C234 87-A10-201-080 C-CAP,S0.33-16 KB

C235 87-016-669-080 C-CAP,S 0.1-25 K B

C236 87-016-669-080 C-CAP,S 0.1-25 K B

C237 87-010-371-080 CAP, ELECT 470-6.3M

C239 87-010-197-080 CAP, CHIP 0.01 DM

C240 87-010-197-080 CAP, CHIP 0.01 DM

C247 87-010-401-080 CAP, ELECT 1-50V

C248 87-010-401-080 CAP, ELECT 1-50V

C310 87-010-248-080 CAP, ELECT 220-10V

C801 87-010-248-080 CAP, ELECT 220-10V

C805 87-012-365-080 C-CAP,S 0.027-25VBK

C806 87-012-365-080 C-CAP,S 0.027-25VBK

C807 87-010-405-080 CAP, ELECT 10-50V

C808 87-010-405-080 CAP, ELECT 10-50V

C809 87-010-401-080 CAP, ELECT 1-50V<81U>

C809 87-010-405-080 CAP, ELECT 10-50V<83LH>

C810 87-010-401-080 CAP, ELECT 1-50V<81U>

C810 87-010-405-080 CAP, ELECT 10-50V<83LH>

C811 87-010-178-080 CHIP CAP 1000P

C812 87-010-178-080 CHIP CAP 1000P

C816 87-010-180-080 C-CER 1500P

C817 87-010-180-080 C-CER 1500P

C821 87-010-401-080 CAP, ELECT 1-50V

C822 87-010-401-080 CAP, ELECT 1-50V

C823 87-010-178-080 CHIP CAP 1000P

C824 87-010-178-080 CHIP CAP 1000P

C829 87-010-178-080 CHIP CAP 1000P

C830 87-010-178-080 CHIP CAP 1000P

C833 87-018-195-080 CAP, CER 1200P-16V

C834 87-010-248-080 CAP, ELECT 220-10V

C843 87-010-197-080 CAP, CHIP 0.01 DM

C844 87-018-124-080 CAP, CER 270P-50V

C845 87-010-178-080 CHIP CAP 1000P

C846 87-010-263-080 CAP, ELECT 100-10V

C851 87-010-186-080 CAP,CHIP 4700P

C852 87-010-178-080 CHIP CAP 1000P

C853 87-018-211-080 CAP, CER 0.01-50

CN201 87-099-018-010 CONN,16P

CN801 87-A60-110-010 CONN,4P V S2M-4W

CNA302 8A-CH4-629-010 CONN ASSY, 6P MA-TU

CNA801 8A-CD9-630-010 CONN ASSY, 4P RPH

FC201 8A-CD9-620-010 FF-CABLE, 16P FR-MAIN

L801 87-007-342-010 COIL,OSC 85K BIAS

SW801 8Z-CD9-609-010 SW,SL 1-6-2 PS62D01

CD C.B

C30 87-010-260-080 CAP, ELECT 47-25V

C263 87-010-178-080 CHIP CAP 1000P

C264 87-010-178-080 CHIP CAP 1000P

C265 87-010-263-080 CAP, ELECT 100-10V<81U>

C266 87-010-545-080 CAP, ELECT 0.22-50V<83LH>

C266 87-010-263-080 CAP, ELECT 100-10V<81U>

C267 87-010-545-080 CAP, ELECT 0.22-50V<83LH>

C267 87-010-112-080 CAP, ELECT 100-16V<81U>

C268 87-010-112-080 CAP, ELECT 100-16V<81U>

C271 87-010-237-080 CAP, ELECT 1000-16V<83LH>

C271 87-010-221-080 CAP, ELECT 470-10V<81U>

C272 87-010-237-080 CAP, ELECT 1000-16V<83LH>

C272 87-010-221-080 CAP, ELECT 470-10V<81U>

C277 87-010-404-080 CAP, ELECT 4.7-50V<83LH>

C278 87-010-405-080 CAP, ELECT 10-50V<81U>

C278 87-010-263-080 CAP, ELECT 100-10V<83LH>

C279 87-010-263-080 CAP, ELECT 100-10V<83LH>

C279 87-010-385-080 CAP, ELECT 220-25V<81U>

C301 87-016-495-000 CAP,E 3300-25 M SMG

C302 87-010-265-080 CAP, ELECT 33-16 M<83LH>

C306 87-010-404-080 CAP, ELECT 4.7-50V

C307 87-010-401-080 CAP, ELECT 1-50V

C308 87-010-221-080 CAP, ELECT 470-10V

C311 87-010-265-080 CAP, ELECT 33-16M

C312 87-010-385-080 CAP, ELECT 220-25V

C321 87-010-197-080 CAP, CHIP 0.01 DM

C322 87-010-263-080 CAP, ELECT 100-10V

C325 87-010-405-080 CAP, ELECT 10-50V

C401 87-010-403-080 CAP, ELECT 3.3-50V

C402 87-010-197-080 CAP, CHIP 0.01 DM

C403 87-010-263-080 CAP, ELECT 100-10V

C404 87-010-248-080 CAP, ELECT 220-10V

C405 87-010-197-080 CAP, CHIP 0.01 DM

C406 87-010-374-080 CAP, ELECT 47-10V

C407 87-010-178-080 CHIP CAP 1000P

C408 87-010-198-080 CAP, CHIP 0.022

C409 87-010-248-080 CAP, ELECT 220-10V

C410 87-010-263-080 CAP, ELECT 100-10V

C411 87-A11-177-080 C-CAP,S 0.15-16 K B

C412 87-010-401-080 CAP, ELECT 1-50V

– 4 –

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

C413 87-016-369-080 C-CAP,S 0.033-25 B K

C414 87-010-405-080 CAP, ELECT 10-50V

C416 87-010-545-080 CAP, ELECT 0.22-50V

C417 87-012-157-080 C-CAP,S 330P-50 CH

C418 87-010-213-080 C-CAP,S 0.015-50 B

C419 87-A11-608-080 C-CAP,S 0.33-25 K B

C420 87-016-369-080 C-CAP,S 0.033-25 B K

C421 87-A11-177-080 C-CAP,S 0.15-16 K B

C422 87-010-183-080 C-CAP,S 2700P-50 B

C423 87-010-956-080 CHIP-CAP,S 0.068-25B

C424 87-010-993-080 C-CAP,S 0.056-25 B

C425 87-010-176-080 C-CAP,S 680P-50 SL

C426 87-A11-608-080 C-CAP,S 0.33-25 K B

C428 87-010-197-080 CAP, CHIP 0.01 DM

C429 87-010-186-080 CAP,CHIP 4700P

C430 87-012-156-080 C-CAP,S 220P-50 CH

C431 87-010-545-080 CAP, ELECT 0.22-50V

C432 87-010-374-080 CAP, ELECT 47-10V

C433 87-010-401-080 CAP, ELECT 1-50V

C434 87-010-184-080 CHIP CAPACITOR 3300P(K)

C435 87-010-197-080 CAP, CHIP 0.01 DM

C436 87-010-374-080 CAP, ELECT 47-10V

C437 87-010-404-080 CAP, ELECT 4.7-50V

C438 87-012-368-080 C-CAP,S 0.1-50 F

C439 87-010-178-080 CHIP CAP 1000P

C441 87-010-197-080 CAP, CHIP 0.01 DM

C442 87-010-312-080 C-CAP,S 15P-50 CH

C445 87-012-368-080 C-CAP,S 0.1-50 F

C446 87-012-368-080 C-CAP,S 0.1-50 F

C447 87-012-368-080 C-CAP,S 0.1-50 F

C448 87-010-315-080 C-CAP,S 27P-50 CH

C450 87-012-140-080 CAP 470P

C451 87-012-156-080 C-CAP,S 220P-50 CH

C455 87-010-263-080 CAP, ELECT 100-10V

C457 87-010-312-080 C-CAP,S 15P-50 CH

C458 87-010-312-080 C-CAP,S 15P-50 CH

C459 87-010-263-080 CAP, ELECT 100-10V

C460 87-015-819-080 CAPACITOR,0.01

C461 87-010-197-080 CAP, CHIP 0.01 DM

C462 87-010-248-080 CAP, ELECT 220-10V

C463 87-A11-155-080 CAP,TC U 0.01-16

C465 87-010-404-080 CAP, ELECT 4.7-50V

C466 87-012-368-080 C-CAP,S 0.1-50 F

C467 87-010-263-080 CAP, ELECT 100-10V

C469 87-012-154-080 C-CAP,S 150P-50 CH

C470 87-010-544-080 CAP, ELECT 0.1-50V

C471 87-010-196-080 CHIP CAPACITOR, 0.1FZ-25Z

C472 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z

C473 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z

C474 87-010-196-080 CHIP CAPACITOR, 0.1FZ-25Z

C475 87-010-197-080 CAP, CHIP 0.01 DM

C476 87-010-236-080 CAP,E 1000-10 SME

C477 87-010-197-080 CAP, CHIP 0.01 DM

C478 87-010-263-080 CAP, ELECT 100-10V

C479 87-010-197-080 CAP, CHIP 0.01 DM

C480 87-010-221-080 CAP, ELECT 470-10V

C481 87-010-405-080 CAP, ELECT 10-50V

C482 87-010-405-080 CAP, ELECT 10-50V

C489 87-012-368-080 C-CAP,S 0.1-50 F

C490 87-012-368-080 C-CAP,S 0.1-50 F

C491 87-010-197-080 CAP, CHIP 0.01 DM

C492 87-010-221-080 CAP, ELECT 470-10V

C493 87-010-180-080 C-CAP,S 1500P-50 KB<81U>

C494 87-A11-155-080 CAP,TC U 0.01-16

C495 87-012-368-080 C-CAP,S 0.1-50 F

C501 87-012-368-080 C-CAP,S 0.1-50 F

C502 87-010-322-080 C-CAP,S 100P-50 CH

C503 87-010-322-080 C-CAP,S 100P-50 CH

C504 87-010-322-080 C-CAP,S 100P-50 CH

C505 87-010-322-080 C-CAP,S 100P-50 CH

C506 87-010-322-080 C-CAP,S 100P-50 CH

C510 87-012-368-080 C-CAP,S 0.1-50 F

C831 87-010-198-080 CAP, CHIP 0.022

CN202 8A-CH4-689-010 CONN,3P V 2.5

CN205 87-A60-109-010 CONN,2P V S2M-2W

CN301 8A-CH4-689-010 CONN,3P V 2.5

CN303 8A-CH4-686-010 CONN, 2P V 2.5

CN304 8A-CH4-686-010 CONN, 2P V 2.5

CN401 87-A60-424-010 CONN,16P V TOC-B

CN403 87-099-201-010 CONN,8P 6216 H

CN802 8A-CH4-692-010 CONN,4P H 2.5<83LH>

CN802 8A-CH4-687-010 CONN,4P V 2.5<81U>

CNA205 8A-CD9-626-010 CONN ASSY,2P DOOR

CNA303 8A-CH4-634-010 CONN ASSY, 2P S-SP.L

CNA304 8A-CH4-635-010 CONN ASSY, 2P S-SP.R

CNA402 8A-CD9-625-010 CONN ASSY,6P CD-ME

CNA802 8A-CD9-631-010 CONN ASSY,4P TP-ME

FC401 8A-CD9-621-010 FF-CABLE, 16P CD-RF

FC403 8A-CD9-622-010 FF-CABLE, 8P CD-FR

L401 87-003-102-080 COIL, 10UH

L404 87-003-152-080 COIL, 100UH

R840 87-029-124-010 RES,FUSE 2.2-1/4

SFR430 87-024-437-080 SFR,100K H RH063MC

SW205 87-036-389-010 SW, PUSH 1-1-1 R8120125

X401 8Z-CD5-633-010 VIB, CER16.93MHZ FCR16.93M2

FRONT C.B

C601 87-010-313-080 CAP, CHIP 18P

C602 87-010-315-080 C-CAP,S 27P-50 CH

C603 87-010-319-080 C-CAP,S 56P-50 CH

C604 87-010-312-080 C-CAP,S 15P-50 CH

C605 87-010-317-080 C-CAP,S 39P-50 CH

C607 87-010-196-080 CHIP CAPACITOR,0.1-25

C608 87-010-196-080 CHIP CAPACITOR,0.1-25

C610 87-010-555-040 CAP,E 100-10 GAS

C611 87-010-196-080 CHIP CAPACITOR,0.1-25

C612 87-A10-189-040 CAP,E 220-10

C613 87-010-495-040 CAP,E 2.2-50 GAS

C614 87-010-196-080 CHIP CAPACITOR,0.1-25

C615 87-010-493-040 CAP,E 0.47-50 GAS

C616 87-010-494-040 CAP,E 1-50 GAS

C617 87-010-178-080 CHIP CAP 1000P

C618 87-010-498-040 CAP,E 10-16 GAS

C620 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z

C625 87-010-196-080 CHIP CAPACITOR,0.1-25

CN601 87-099-033-010 16P 6216 H

CN602 87-099-201-010 CONN,8P 6216 H

CNA603 8A-CD9-624-010 CONN ASSY,4P TU-FR

LCD601 8Z-CH4-635-010 LCD,HLC7365 ZCH-4

LED602 88-CD6-630-010 LED,934ID RED

LED603 88-CD6-630-010 LED,934ID RED

LED604 88-CD6-630-010 LED,934ID RED

LED606 88-CD6-630-010 LED,934ID RED

LED607 88-CD6-630-010 LED,934ID RED

LED610 88-CD6-630-010 LED,934ID RED

LED611 88-CD6-631-010 LED,934GD GRN

LED612 88-CD6-630-010 LED,934ID RED

S601 87-A91-704-080 SW,TACT EVQ 214 05R

S603 87-A91-704-080 SW,TACT EVQ 214 05R

S604 87-A91-704-080 SW,TACT EVQ 214 05R

S605 87-A91-704-080 SW,TACT EVQ 214 05R

S606 87-A91-704-080 SW,TACT EVQ 214 05R

S607 87-A91-704-080 SW,TACT EVQ 214 05R

S608 87-A91-704-080 SW,TACT EVQ 214 05R

S613 87-A91-704-080 SW,TACT EVQ 214 05R

S621 87-A91-704-080 SW,TACT EVQ 214 05R

S622 87-A91-704-080 SW,TACT EVQ 214 05R

S623 87-A91-704-080 SW,TACT EVQ 214 05R

X601 87-030-273-010 VIB,XTAL 32.768K5PPM

X602 87-030-376-080 VIB,CER CSA5.76MG200

– 5 –

DESCRIPTIONREF. NO. KANRI

NO.

PART NO. DESCRIPTIONREF. NO. KANRI

NO.

PART NO.

TUNER C.B

C1 87-010-314-080 C-CAP,S 22P-50V

C2 87-010-316-080 C-CAP,S 33P-50 CH

C3 87-010-314-080 C-CAP,S 22P-50V

C5 87-016-669-080 C-CAP,S 0.1-25 K B

C6 87-010-313-080 CAP, CHIP 18P

C7 87-014-049-080 CAP,PP 470P-100 J

C8 87-010-178-080 CHIP CAP 1000P

C10 87-010-197-080 CAP, CHIP 0.01 DM

C11 87-010-197-080 CAP, CHIP 0.01 DM

C12 87-010-197-080 CAP, CHIP 0.01 DM

C13 87-010-150-080 C-CAP,S 6P-50 CH

C14 87-010-303-080 C-CAP,S 330P-50CH

C15 87-010-178-080 CHIP CAP 1000P

C16 87-010-374-080 CAP, ELECT 47-10V

C17 87-010-198-080 CAP, CHIP 0.022

C18 87-015-835-080 C-CAP,0.047 D

C19 87-010-263-080 CAP, ELECT 100-10V

C20 87-010-404-080 CAP, ELECT 4.7-50V

C21 87-010-197-080 CAP, CHIP 0.01 DM

C22 87-010-197-080 CAP, CHIP 0.01 DM

C23 87-010-197-080 CAP, CHIP 0.01 DM

C24 87-010-303-080 C-CAP,S 330P-50CH

C25 87-016-460-080 C-CAP,S 0.22-16 B

C27 87-A11-067-080 C-CAP,S 1-10 K B

C28 87-016-669-080 C-CAP,S 0.1-25 K B

C29 87-016-669-080 C-CAP,S 0.1-25 K B

C30 87-010-198-080 CAP, CHIP 0.022

C31 87-010-198-080 CAP, CHIP 0.022

C33 87-012-358-080 C-CAP,S 0.47-10 F Z

C34 87-012-358-080 C-CAP,S 0.47-10 F Z

C35 87-015-819-080 CAPACITOR,0.01

C36 87-010-263-080 CAP, ELECT 100-10V

C37 87-010-197-080 CAP, CHIP 0.01 DM

C38 87-010-263-080 CAP, ELECT 100-10V<81U>

C38 87-010-374-080 CAP, ELECT 47-10V<83LH>

C39 87-010-404-080 CAP, ELECT 4.7-50V

C40 87-010-197-080 CAP, CHIP 0.01 DM

C41 87-010-178-080 CHIP CAP 1000P

C42 87-010-178-080 CHIP CAP 1000P

C43 87-010-178-080 CHIP CAP 1000P

C44 87-010-311-080 CAP 12P

C45 87-010-312-080 C-CAP,S 15P-50 CH

C46 87-010-197-080 CAP, CHIP 0.01 DM

C47 87-010-197-080 CAP, CHIP 0.01 DM

C48 87-010-197-080 CAP, CHIP 0.01 DM

C49 87-012-140-080 CAP 470P

C50 87-010-197-080 CAP, CHIP 0.01 DM

C71 87-010-197-080 CAP, CHIP 0.01 DM

C72 87-010-263-080 CAP, ELECT 100-10V

C73 87-010-197-080 CAP, CHIP 0.01 DM

C75 87-010-197-080 CAP, CHIP 0.01 DM

C76 87-010-197-080 CAP, CHIP 0.01 DM<81U>

C91 87-012-140-080 CAP 470P

C92 87-010-197-080 CAP, CHIP 0.01 DM

C93 87-010-197-080 CAP, CHIP 0.01 DM

CF1 87-A91-094-010 FLTR,CDA10.7 MG80A

CF2 87-008-261-010 FILTER, SFE10.7MA5-A

CF3 87-008-261-010 FILTER, SFE10.7MA5-A

CN2 87-099-854-010 CONN,6P S2M-6W

CN3 87-A60-110-010 CONN,4P V S2M-4W

D3 87-A40-616-070 VARI-CAP,SVC384(S/T)

D4 87-A40-128-080 C-VARI-CAP,HVU202A

D5 87-A40-128-080 C-VARI-CAP,HVU202A

L2 87-A50-560-010 COIL,FM BPF(ACD)

L3 8A-CH4-670-010 BAR-ANT,MW 2B-ACH(COI)

L4 87-A50-420-010 COIL,MW OSC(SYN)

L5 87-A50-566-010 COIL,FM RF EX(ACH)

L6 87-A50-567-010 COIL,FM OSC(ACH)

L7 87-A91-308-010 FLTR,PCFAZH- 450T (TOK)

L8 87-005-849-080 COIL,10UH(CECS)

TC1 87-011-254-080 TRIMER,20P LAR

X1 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309

H.P. C.B

C275 87-016-280-080 CAP,E 3.3-50 M BP SME

C276 87-016-280-080 CAP,E 3.3-50 M BP SME

CN204 8A-CH4-687-010 CONN,4P V 2.5

CNA203 8A-CD9-628-010 CONN ASSY,3P MA-HP

CNA204 8A-CH4-633-010 CONN ASSY,4P SP

J251 87-A60-569-010 JACK,HTJ-035-18

KEY C.B

CN605 87-A60-109-010 CONN,2P V S2M-2W

S614 87-A91-704-080 SW,TACT EVQ 214 05R

S615 87-A91-704-080 SW,TACT EVQ 214 05R

BATT1 C.B

C901 87-018-205-080 CAP, CERA-SOL 0.022

C902 87-018-205-080 CAP, CERA-SOL 0.022

C903 87-018-205-080 CAP, CERA-SOL 0.022

C904 87-018-205-080 CAP, CERA-SOL 0.022

CNA901 8A-CD9-627-010 CONN ASSY,3P PWR

F901 87-035-347-010 FUSE,2.5A 250 VT<83LH>

FC901 87-033-213-010 CLAMP,FUSE SMK<83LH>

FC902 87-033-213-010 CLAMP,FUSE SMK<83LH>

PT901 8A-CD9-606-010 PT,U 2.5W<81U>

PT901 8A-CH4-668-010 PT,H<83LH>

SW901 87-A91-369-010 SW,AC SL 2 2 2 SDKGA41700<83LH>

BATT2 C.B

SP C.B

– 6 –

TRANSISTOR ILLUSTRATION

Resistor Code

Chip Resistor Part Coding

Figure

Value of resistor

Chip resistor

Wattage Type Tolerance

1/16W

1/10W

1/8W

1608

2125

3216

Form

LW t

1.6 0.8 0.45

2 1.25 0.45

3.2 1.6

108

118

128

: A

CHIP RESISTOR PART CODE

0.55

Resistor Code

Dimensions (mm)

Symbol

1/16W 1005 5% CJ

1.0 0.5 0.35 104

E C B B C E E C B

E C B

2SA933S

2SA933RS

2SC1740S

2SC1740SR

DTC114TS

DTC124XS

2SB1370E 2SA1296

2SC1815

2SA1318TU

2SA1162Y

2SC2712GR

2SC2714

DTC114TK

DTC114YK

DTC144EK

– 7 –

WIRING - 1 (MAIN / CD)

–8–

101112131415161718192021222324

1234567892526272829303132

SCHEMATIC DIAGRAM - 1 (MAIN / CD : 1 / 2 / H.P. / KEY / BATT1 / BATT2 / SP)

– 9 –

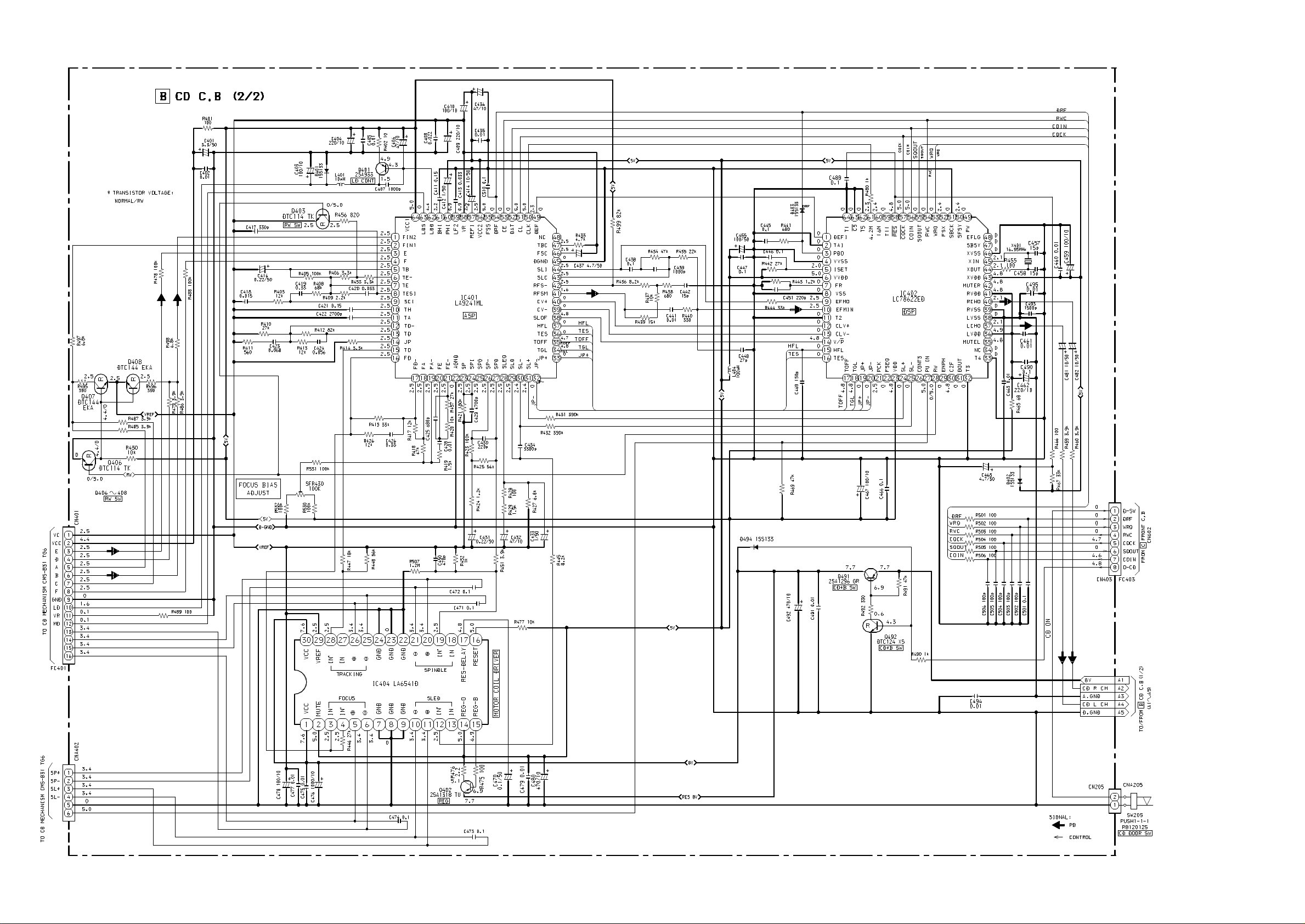

SCHEMATIC DIAGRAM - 2 (CD : 2 / 2)

– 10 –

Ce manuel convient aux modèles suivants

Table des matières

Manuels Enregistreur de CD populaires d'autres marques

Sony

Sony RCD-W50C - Cd/cdr Recorder/player Manuel utilisateur
