Airwell AWSI YIFA060-H13 Manuel utilisateur

INDOR UNIT

OUTDOR UNIT

Type


Model

Floor Ceiling

FAF 060 –N11

AWSI YIFA060–H13

R410A

HEAT PUMP

MAY 2013

SM FAF 060 –1-A. 1GB

Version : 1

1 | S e r v i c e M a n u a l

TABLE OF CONTENTS

1. INTRODUCTION ..................................................................................................................................2

2. PRODUCT DATA

SHEET

.....................................................................................................................3

3. RATING CONDITIONS.........................................................................................................................5

4. OUTLINE DIMENSIONS.......................................................................................................................6

5. PERFORMANCE DATA.......................................................................................................................7

6. ELECTRICAL DATA.............................................................................................................................8

7. WIRING DIAGRAMS & ELECTRICAL CONNECTIONS.....................................................................11

8. REFRIGERATION DIAGRAMS............................................................................................................13

9. TUBING CONNECTIONS.....................................................................................................................14

10. CONTROL SYSTEM.............................................................................................................................15

11. TROUBLESHOOTING..........................................................................................................................25

12. EXPLODED VIEWS AND SPARE PARTS LISTS...............................................................................54

2 | S e r v i c e M a n u a l

INTRODUCTION

1.INTRODUCTION

1.1. General

The FAF Floor Ceiling series is a high-level technology product for residential and commercial application, offering

comfort, low noise operation and energy-efficient.

1.2. Main Features

Suspended ceiling design, installation under ceiling, saving room space, it is very suitable for family or

offices;

Convenient and flexible for indoor unit installation, can be installed under the ceiling or on the floor;

Auto two operation modes, multi fan speed, makes you feel more comfortable;

Shell was formed by mold, the appearance is “slim”, “elegant”, “fashion” and “comfortable”;

Special insulation design, achieves high heat insulation efficiency and no condensation on shell;

Long term air filter, the wash period is two times longer than normal filter, maintenance is free;

Adopting low noise centrifugal fan, strong wind but quiet operation, the silence design achieves harmony

residential living;

All the installation and maintenance can be done in the bottom of unit, saving the maintenance space;

3-phase power supply type units with low ambient temperature cooling function, which makes

the unit can run normally on the condition that the ambient temperature falls down to -15℃;

Standard remote controller and optional wired controller;

Auxiliary electric heater for heat pump unit, with fast heating and low ambient temperature

heating functions;

Failure automatic detection, if there is a failure, the indicator will flash and the failure code will

display on the wired controller, the failure cause is easier to be found.

3 | S e r v i c e M a n u a l

2. PRODUCT DATA SHEET

PRODUCT DATA SHEET

2.1 Indoor Unit Specifications

Model

Indoor

FAF 060 –N11

Outdoor

YIFA 060 –H13

Power Supply

V~,Hz,Ph

380~415,50,3

Capacity

Cooling

Btu/h

54600

16.0

Heating

Btu/h

59700

17.5

Electric Data

Rated Cooling Power Input

5.56

Rated Heating Power Input

5.68

Rated Cooling Current

9.57

Rated Heating Current

9.78

Performance

EER

W/W

2.88

COP

W/W

3.08

Indoor Fan Fotor

Model

YSK-105W-4

Brand

HUATE

Output Power x Fan quantity

105

Capacitor

Speed (Hi/Mi/Lo)

r/min

1380/1100/970

Indoor Coil

a.Number Of Row

b.Tube Pitch(a)x Row Pitch(b)

25.4

c.Fin Spacing

1.6

d.Fin Material

Hydrophilic aluminum fin

e.Tube Outside Dia.and Material

φ9.52 Inner grooved

f.Coil Length x Height x Width

1333

220

38.1

g.Heat Exchanging Area

16.36

Indoor Unit

Indoor Air Flow (Hi/Mi/Lo)

1800/1440/1260

Noise Level(Hi/Mi/Lo)

dB(A)

51/48/42

External Static Pressure

Net Dimension (W*H*D)

1631

660

205

Packing Dimension (W*H*D)

1710

720

280

Net Weight

Gross Weight

Refrigerant Pipe

Liquid Side

9.52

Gas Side

19.05

Max. Refrigerant Pipe Length

Max. Difference In Level

Operation Temperature Range

℃

16~32

Ambient Temperature Range(Cooling/Heating)

℃

-5~49/-10~24

Application Area

64-107

Connection Wiring

Power Wiring( Indoor)

1mm

Power Wiring( Outdoor)

2.5mm

Signal Wiring

1mm

Wireless Remote Controller

YKR-H/009E

Qty’per 20’& 40’&40HQ(Only For Reference)

Set

20/41/43

4 | S e r v i c e M a n u a l

PRODUCT DATA SHEET

2.2 Outdoor Unit Specifications

Model

YIFA 060 –H13

Power Supply

V~,Hz,Ph

380~415,50,3

Max. Input Consumption

7800

Max. Current

20.5

Capacity

Cooling

Btu/h

54600

16.0

Heating

Btu/h

59700

17.5

Model

JT170G-P8Y1

Type

SCROLL

Brand

DAIKIN

Compressor

Capacity

15900

Input

4500

Rated Current(RLA)

8.9

Locked Rotor Amp(LRA)

59.4

Thermal Protection temp.

UP18WA162-46G

Capacitor

Refrigerant Oil

1500

OutdoorFan Motor

Model

YDK68-6-359

code

R60020200600

Brand

WEITELI

Output Power x Fan quantity

68*2

Capacitor

3*2

Speed

r/min

860

Coil

a.Number Of Row

b.Tube Pitch(a)x Row Pitch(b)

19.05

c.Fin Pitch

1.6

d.Fin Material

Hydrophilic aluminum fin

e.Tube Outside Dia.And Material

φ7.94 Inner grooved

f.Coil Length x Height x Width

750

1188

38.1

g.Heat Exchanging Area

38.85

Air Flow Volume

CFM

3059

5200

Noise Level

dB(A)

Dimension(W

D×

Net

945

340

1255

Packing

1090

430

1370

Weight

Net

101

Gross

115

Refrigerant

Type/Quantity

Type

R410A

Charged Volume

Up to 5 meters

Design Pressure

MPa

4.15

Refrigerant Piping

Liquid Side

9.52

Gas Side

19.05

Max. Length

Max. Height

Operation Temperature Range

℃

16~32

Ambient Temp (Cooling/Heating)

℃

-5~49/-10~24

Application Area

64-107

Connection Wiring

Power Wiring Indoor

1mm

Power Wiring Outdoor

2.5mm

Signal Wiring

1mm

Stuffing Quantity

20/40/40H

Unit

20/42/44

5 | S e r v i c e M a n u a l

RATING ONDITIONS

3. RATING CONDITIONS

3.1 Rating Conditions

Power supply

380-415V 3N~/50Hz

Voltage

320 420V

Outdoor

ambient

temperature

Cooling

-5 49℃(Low ambient cooling function)

Heating

-10 24℃

6 | S e r v i c e M a n u a l

OUTLINE DIMENSIONS

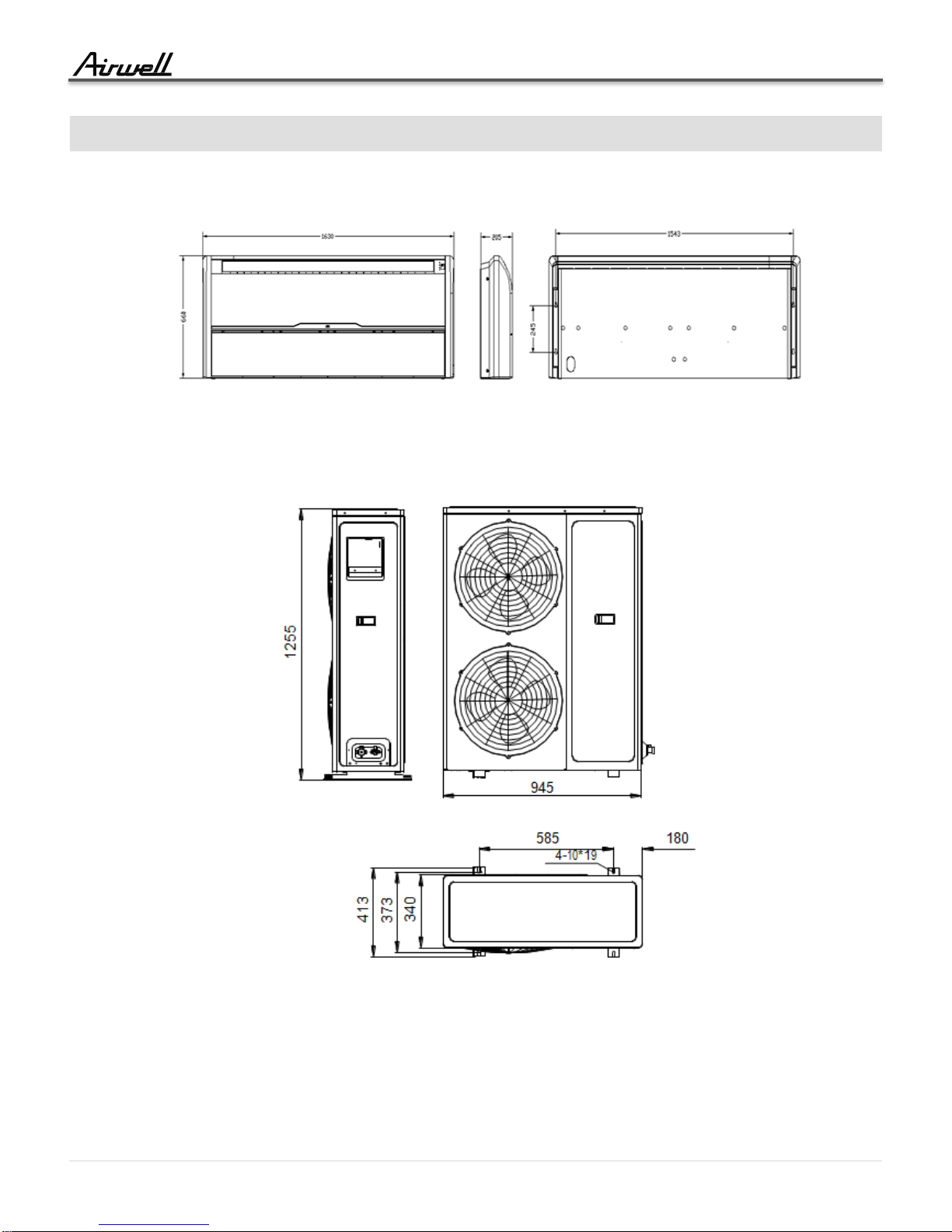

4. OUTLINE DIMENSIONS

4.1 FAF 060 –N11

4.2 YIFA 060 –H13

7 | S e r v i c e M a n u a l

PERFORMANCE DATA

5. PERFORMANCE DATA

5.1 Amendment coefficient of cooling capacity under different indoor/outdoor DB and WB temperature.

Indoor air inlet

temperature℃

Outdoor air inlet DB temperature℃

0.98

0.94

0.89

0.85

0.82

1.05

0.95

0.90

0.87

1.1

1.05

0.95

0.91

1.12

1.07

1.02

0.96

0.93

1.19

1.13

1.08

1.02

0.99

1.26

1.20

1.15

1.08

1.05

Actual cooling capacity calculation

Actual cooling capacity=amendment coefficient of cooling capacity

nominal cooling capacity

—Nominal cooling capacity could be found from the performance parameters list;

—Amendment coefficient of cooling capacity could be found from table above.

5.2 Amendment coefficient of heating capacity under different indoor/outdoor DB and WB temperature.

Indoor air inlet DB

temperature ℃

Outdoor air inletWB temperature ℃

-5

0.65

0.80

1.02

1.13

0.61

0.76

1.02

1.12

0.6

0.75

1.11

1.25

0.59

0.72

0.99

1.1

1.24

0.58

0.71

0.97

1.09

1.23

0.56

0.7

0.96

1.08

1.22

Actual heating capacity calculation

Actual heating capacity=amendment coefficient of heating capacity

nominal heating capacity

—Nominal heating capacity could be found from the performance parameters list

—Amendment coefficient of heating capacity could be found from table above.

8 | S e r v i c e M a n u a l

PERFORMANCE DATA

5.2.1 Amendment coefficients of heating and cooling capacity under different height dropDifferent Cooling Capacity

modified coefficients at different height:

Note: H = Height of Outdoor Unit Height of Indoor Unit

Different Heating Capacity modified coefficients at different height

Note: H = Height of Outdoor Unit Height of Indoor Unit

9 | S e r v i c e M a n u a l

PERFORMANCE DATA

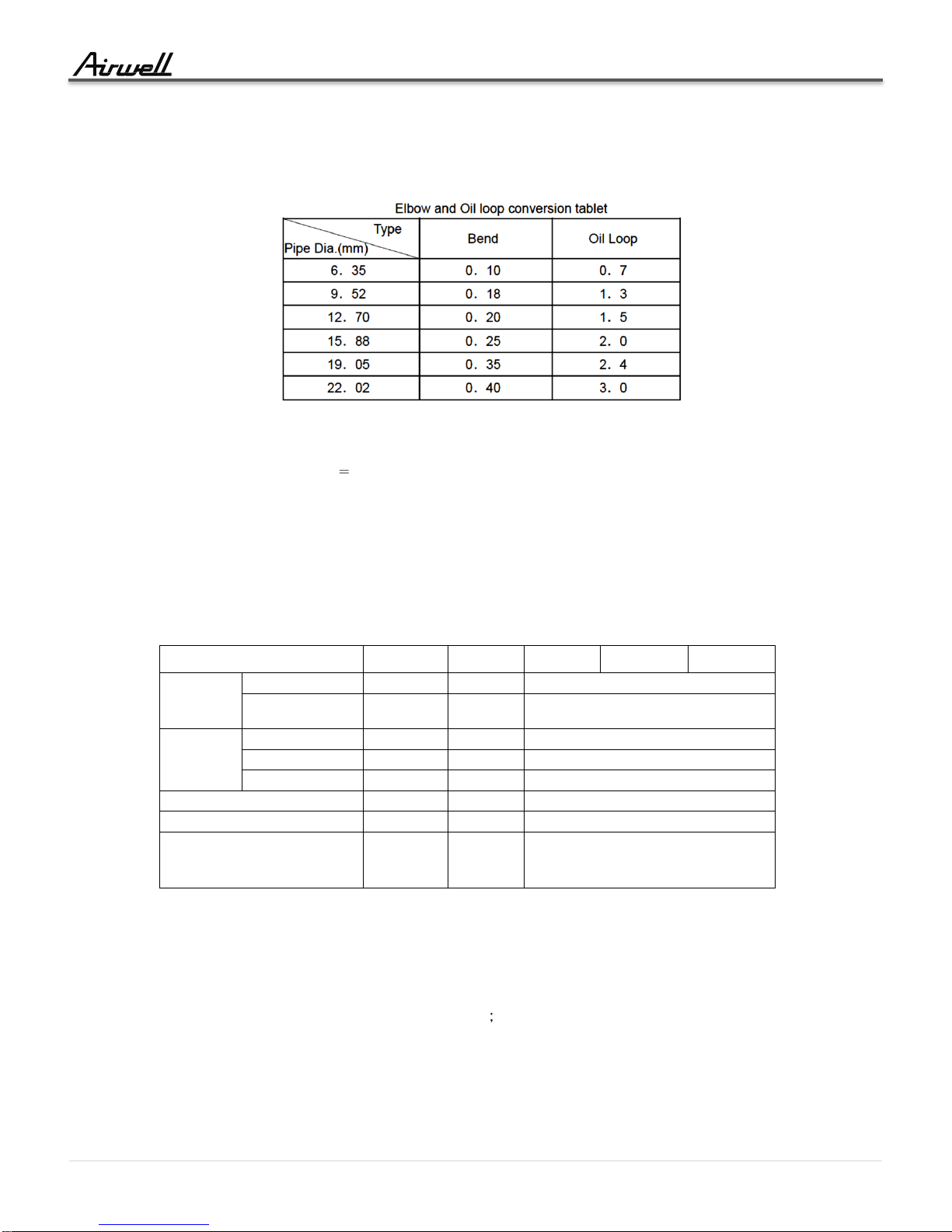

5.2.2 Equivalent pipe length conversion

Equivalent pipe length means converting pipe elbow to straight pipe length after considerate the

pressure loss.

Equivalent pipe length L Actual Pipe length L+ Bend

Qty×

Equivalent pipe bend length+ Oil

Loop Qty

Equivalent Oil Loop length

Sample:

ALCA-H42A5/C5 Actual Pipe length is 25 meters, Gas pipe diameter is 19.05mm. If there’s 5

bends and 2 oil loops during the installation, then the equivalent pipe length should be:

L=25+0.35

5+2.4

2=31.5(m)

Specification of connection pipe for indoor unit and outdoor unit

Cooling Capacity(Btu/h)

18000

24000

36000

48000

60000

Connectio

n Pipe

(mm)

Liquid Pipe

Φ6.35

Φ9.52

Gas Pipe

Φ12.7

Φ15.88

Φ19.05

Max.

Length(m)

Liquid Pipe Dia.

Φ6.35

Φ9.52

Gas Pipe Dia.

Φ12.7

Φ15.88

Φ19.05

Max. Length

Max. Height (m)

Max. Bend Qty

Extra R410a per meter when

the pipe length is more than 5

meter (kg)

0.02

0.07

Caution:

1.The standard Pipe length is 5m, if the pipe length is less than this then no additional charging is necessary. If the pipe length is

more than this then you should charge more refrigerant into the system according to the above Charging Data

2.The thickness of the pipe is 0.5-1.0, bearing pressure is 3.040MPa

3.If the connection pipe is too long, the cooling capacity and stability would be decreased. And the more bend quantity, he

resistance in the piping system would be bigger, then the cooling and heating capacity would be decreased even lead to

compressor broken. We suggest you to use the shortest connection pipe according to the pipe length parameter in this manual.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Airwell Pompe à chaleur

Airwell

Airwell CKD Series Manuel utilisateur

Airwell

Airwell HRW 019 Manuel

Airwell

Airwell LWM8-1P Manuel utilisateur

Airwell

Airwell Aqu@Scop Advance R410A Manuel utilisateur

Airwell

Airwell PAC HT Series Manuel utilisateur

Airwell

Airwell DLS 18 Manuel utilisateur

Airwell

Airwell DAF009 Manuel utilisateur

Airwell

Airwell WELLEA WT RCW30 Manuel utilisateur

Airwell

Airwell CW-AR Manuel

Airwell

Airwell AWSI-DED076-N11 Manuel utilisateur

Airwell

Airwell AWAU-YBDE012-H11 Manuel utilisateur

Airwell

Airwell PNX 30 DCI Manuel utilisateur

Airwell

Airwell AQL20-75 Manuel

Airwell

Airwell AW-XDO009-H11 Manuel utilisateur

Airwell

Airwell WELLEA SPLIT AW-WHPST0410-N91 Instructions d'installation

Airwell

Airwell ODMA-100T-09M22-19 Manuel utilisateur

Airwell

Airwell HRW Series Manuel

Airwell

Airwell SX 12 RCC Manuel utilisateur

Airwell

Airwell GC 30 DCI Manuel utilisateur

Airwell

Airwell Monobloc R32 Instructions d'installation

Airwell

Airwell Monobloc R32 Manuel utilisateur

Airwell

Airwell Wellea Mono Manuel utilisateur

Airwell

Airwell WELLEA MONO SPLIT A R32 Manuel utilisateur

Airwell

Airwell Aqu@Scop HT SPLIT 12-6 Manuel utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
