Airwell DUO OU7-0909 Manuel utilisateur

REFRIGERANT

R410A

HEAT PUMP

COOLING ONLY

TM DUO N A0GB SEPTEMBER - 2005

DUO Outdoor Models

DUO OU7 (9+9)

DUO OU7 (9+12)

Technical Manual

DUO N Series

LIST OF EFFECTIVE PAGES

Service Manual - DUO Series

LIST OF EFFECTIVE PAGES

Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page

(when none indicates no changes in the relevant page). All pages in the following list represent

effected/ non effected pages divided by chapters.

Dates of issue for original and changed pages are:

Original ....... 0 ........ 5 March 2005

Total number of pages in this publication is 44 consisting of the following:

Page

No.

Revision

No. #

Page

No.

Revision

No. #

Page

No.

Revision

No. #

Title....................... 1

A ........................... 1

i............................. 0

1-1 ........................ 1

2-1 - 2-9................ 1

3-1 ........................ 0

4-1 - 4-2................ 1

5-1 - 5-21.............. 2

6-1 ........................ 1

7-1 ........................ 0

8-1 ........................ 0

9-1 ........................ 0

10-1 ...................... 0

11-1....................... 1

12-1 ...................... 1

13-1-13-2.............. 0

• Zero in this column indicates an original page.

*Due to constant improvements please note that the data on this service manual can be modiﬁed

with out notice.

**Photos are not contractual

TABLE OF CONTENTS

Service Manual - DUO Series

Table of Contents

1. INTRODUCTION ...................................................................................................1-1

2. PRODUCT DATA SHEET......................................................................................2-1

3. RATING CONDITIONS..........................................................................................3-1

4. OUTLINE DIMENSIONS .......................................................................................4-1

5. PERFORMANCE DATA AND PRESSURE CURVES ..........................................5-1

6. CHARACTERISTICS SOUND LEVEL ..................................................................6-1

7. ELECTRICAL DATA..............................................................................................7-1

8. WIRING DIAGRAMS .............................................................................................8-1

9. ELECTRICAL CONNECTIONS.............................................................................9-1

10. REFRIGERATION DIAGRAMS.............................................................................10-1

11. TUBING CONNECTIONS......................................................................................11-1

12. CONTROL SYSTEM .............................................................................................12-1

13. TROUBLESHOOTING ..........................................................................................13-1

REFRIGERANT R410A

ALPHA 9 ALPHA 12 WNG 9 WNG 12

AME 20 AME 30 NXE 20 NXE 30

WAF 9 WAF 12 FLO 9 FLO 12

INDOOR

1-1

INTRODUCTION

Series Manual - DUO Series

1. INTRODUCTION

1.1 General

The DUO multi split R410A outdoor unit series, comprise the following ST (cooling only)

and RC (heat pump) models:

• Cooling Only OU7 (9+9) ST, OU7 (9+12) ST, OU7 (12+12) ST

• Heat Pump OU7 (9+9) RC, OU7 (9+12) RC, OU7 (12+12) RC

1.2 Main Features

• R410A refrigerant

• Built in Deicing Controller.

• High COP

• Outdoor coil with hydrophilic louver ﬁns for RC units.

• Metal sheets protected by anti - corrosion paint work allowing long life

resistance.

• Compressor mounted in a soundproofed compartment

• Easy installation and service.

1.3 Tubing Connections

Flare type interconnecting tubing to be produced on site.

For further details please refer to APPENDIX A on this manual, and to the relevant

indoor service Manual,

1.4 Inbox Documentation

Each indoor unit is supplied with its own installation and operation manuals, an

additional instillation guide is provided in the DUO outdoor package.

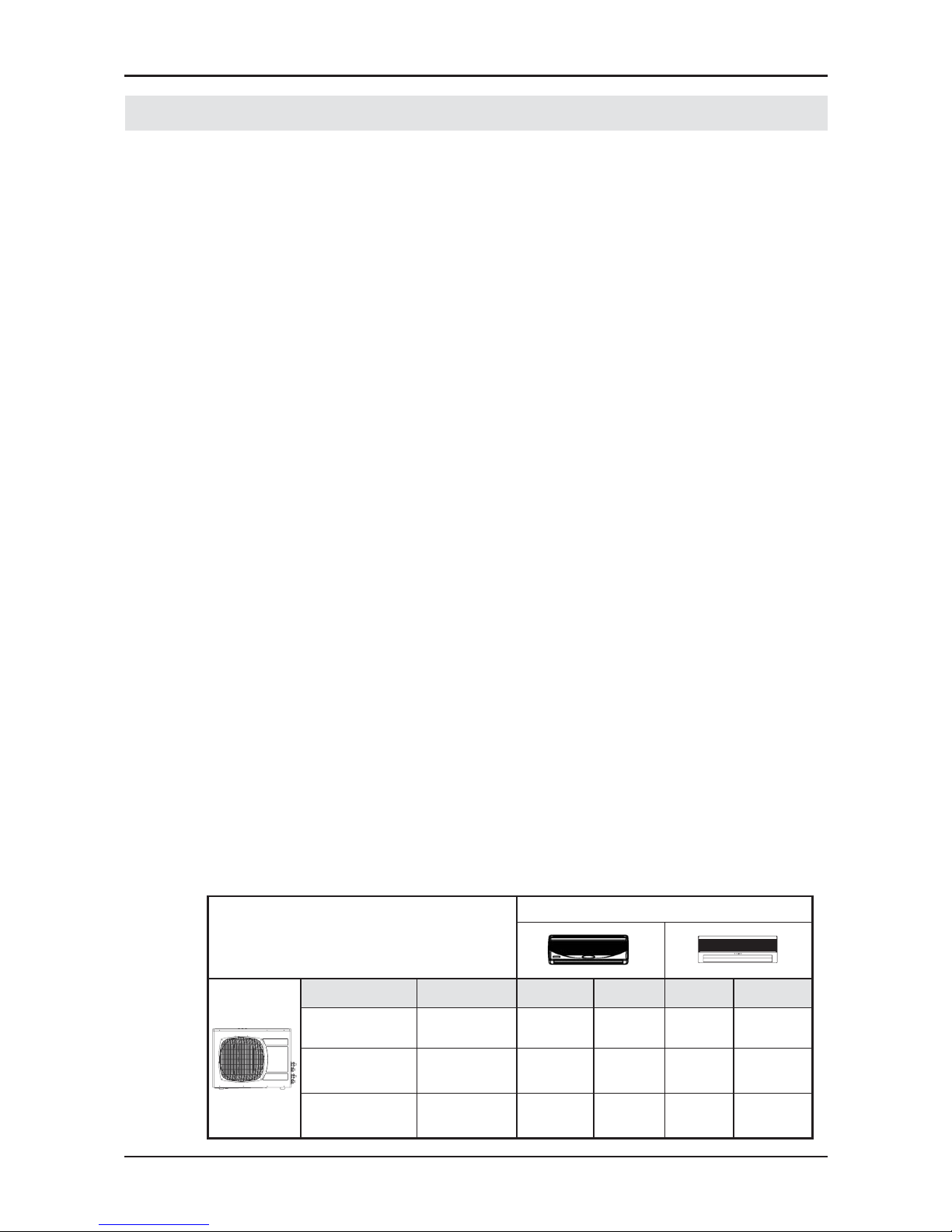

1.5 Matching Table

OUTDOOR UNITS

INDOOR UNITS

MODEL REFRIGERANT WNG9 WNG12 ALPHA 9 ALPHA 12

DUO 9+9 ST/RC R410A √√

DUO 9+12 ST/RC R410A √√√√

DUO 12+12 ST/RC R410A √√

2-1

PRODUCT DATA SHEET

Service Manual - DUO Series

2. PRODUCT DATA SHEET

Model Indoor Unit WNG 9+9

Model Outdoor Unit OU7-0909

Installation Method Wall Mounted

Characteristics Units Cooling Heating

Btu/hr 19520 18315

Capacity(1)

kW 5.72 5.37

Power Input(1) kW 1.9 1.79

COP(1) W/W 3.0 3.0

Power Supply V/Ph/Hz 230/1/50+/-10%

Rated Current A 7.7 7.3

Starting Current A 37.4

Circuit Breaker Rating A 16

Fan Type & Quantity Crossflow*1

Airflow(2) H/M/L m3/hr 450 380 330

External Static Pressure Min-Max Pa N/A

Sound Power Level(3) H/M/L dB (A) 44 46 49

Sound Pressure Level (4) H/M/L dB (A) 28 31 35

Moisture Removal L/hr 2*0.9

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 810*190*285

Weight kg 11

Package Dimensions W/H/D mm 945*395*655

Units per Pallet Units 32

INDOOR

Stacking Height Units 8

Refrigerant Control Capillary tube

Compressor Type, Model Rotary

Fan Type & Quantity Axial*1

Fan Speeds H/L RPM 850

Airflow H/L m3/hr 1520 1100

Sound Power Level H/L dB (A) 66.8

Sound Pressure Level (4) H/L dB (A) 59

Dimensions W/H/D mm 900*680*340

Weight kg 72

Package Dimensions W/H/D mm 985*730*406

Packaged Weight kg 74

Units per Pallet Units 6

Stacking Height Units 2

Refrigerant Type R410A

Refrigerant Charge ST/ RC outdoor gr 750+750 / 730+730

Liquid Line In 2*6.35(1/4")

Suction Line In 2*9.53(3/8")

Max. Tubing Length m 15

OUTDOOR

Connections

Between Units

Max. Height Difference m7

Operation Control Type LC D REMOTE CONTROL

Heating Elements kW NO

Others

1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.

(2) Airﬂow in ducted units; at nominal external static pressure.

(3) Sound power in ducted units is measured at air discharge.

(4) Sound pressure level measured at 1 meter distance from unit.

2-2

PRODUCT DATA SHEET

Revision Service Manual - DUO Series

Model Indoor Unit WNG 9+12

Model Outdoor Unit OU7-0912

Installation Method Wall Mounted

Characteristics Units Cooling Heating

Btu/hr 20230 20910

Capacity(1)

kW 5.93 6.13

Power Input(1) kW 2.07 1.97

COP(1) W/W 2.86 3.1

Power Supply V/Ph/Hz 230/1/50

Rated Current A 9 8.7

Starting Current A 43

Circuit Breaker Rating A 16

Fan Type & Quantity Crossflow*1

Airflow(2) H/M/L m3/hr 450+635 380+550 330+450

External Static Pressure Min-Max Pa N/A

Sound Power Level(3) H/M/L dB (A) 44+49 46+53 49+56

Sound Pressure Level (4) H/M/L dB (A) 28+35 31+39 35+43

Moisture Removal L/hr 0.9+1.3

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 810*190*285

Weight kg 11+11.5

Package Dimensions W/H/D mm 945*395*655

Units per Pallet Units 32

INDOOR

Stacking Height Units 8

Refrigerant Control Capillary

Compressor Type, Model Rotary

Fan Type & Quantity Axial*1

Fan Speeds H/L RPM 850

Airflow H/L m3/hr 1520 1100

Sound Power Level H/L dB (A) 66.8

Sound Pressure Level (4) H/L dB (A) 59

Dimensions W/H/D mm 900*680*340

Weight kg 74

Package Dimensions W/H/D mm 985*730*406

Packaged Weight kg 76

Units per Pallet Units 6

Stacking Height Units 2

Refrigerant Type R410A

Refrigerant Charge ST/ RC outdoor gr 830+670 / 830+670

Liquid Line In 2*6.35(1/4")

Suction Line In 2*9.53(3/8")

Max. Tubing Length m 15

OUTDOOR

Connections

Between Units

Max. Height Difference m 7

Operation Control Type LCD REMOTE CONTROL

Heating Elements kW NO

Others

1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.

(2) Airﬂow in ducted units; at nominal external static pressure.

(3) Sound power in ducted units is measured at air discharge.

(4) Sound pressure level measured at 1 meter distance from unit.

2-3

PRODUCT DATA SHEET

Service Manual - DUO Series

Model Indoor Unit Alpha 9+9

Model Outdoor Unit OU7-0909

Installation Method Wall Mounted

Characteristics Units Cooling Heating

Btu/hr 17400 18425

Capacity(1)

kW 5.1 5.4

Power Input(1) kW 1.84 1.86

COP(1) W/W 2.8 2.9

Power Supply V/Ph/Hz 230/1/50

Rated Current A 7.6 7.7

Starting Current A 37.4

Circuit Breaker Rating A 16

Fan Type & Quantity Crossflow*1

Airflow(2) H/M/L m3/hr 450 350

External Static Pressure Min-Max Pa N/A

Sound Power Level(3) H/M/L dB (A) 52 47

Sound Pressure Level (4) H/M/L dB (A) 40 36

Moisture Removal L/hr 2*0.9

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 680*250*180

Weight kg 7

Package Dimensions W/H/D mm 770*325*265

Units per Pallet Units 36

INDOOR

Stacking Height Units 9

Refrigerant Control Capillary tube

Compressor Type, Model Rotary

Fan Type & Quantity Axial*1

Fan Speeds H/L RPM 850

Airflow H/L m3/hr 1520 1100

Sound Power Level H/L dB (A) 66.8

Sound Pressure Level (4) H/L dB (A) 59

Dimensions W/H/D mm 900*680*340

Weight kg 72

Package Dimensions W/H/D mm 985*730*406

Packaged Weight kg 74

Units per Pallet Units 6

Stacking Height Units 2

Refrigerant Type R410A

Refrigerant Charge ST/ RC outdoor gr 750+750 / 730+730

Liquid Line In 2*6.35(1/4")

Suction Line In 2*9.53(3/8")

Max. Tubing Length m 15

OUTDOOR

Connections

Between Units Max. Height Difference m7

Operation Control Type LC D REMOTE CONTROL

Heating Elements kW NO

Others

1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.

(2) Airﬂow in ducted units; at nominal external static pressure.

(3) Sound power in ducted units is measured at air discharge.

(4) Sound pressure level measured at 1 meter distance from unit.

2-4

PRODUCT DATA SHEET

Service Manual - DUO Series

Model Indoor Unit ALPHA 9+12

Model Outdoor Unit OU7-0912

Installation Method Wall Mounted

Characteristics Units Cooling Heating

Btu/hr 19815 21020

Capacity(1)

kW 5.81 6.16

Power Input(1) kW 2.06 2.09

COP(1) W/W 2.82 2.94

Power Supply V/Ph/Hz 230/1/50+/-10%

Rated Current A 9 9.2

Starting Current A 43

Circuit Breaker Rating A 16

Fan Type & Quantity Crossflow *1

Airflow(2) H/M/L m3/hr 600+450 450+350

External Static Pressure Min-Max Pa N/A

Sound Power Level(3) H/M/L dB (A) 54+52 47+47

Sound Pressure Level (4) H/M/L dB (A) 42+40 36+36

Moisture Removal L/hr 0.9+1.3

Condensate Drain Tube I.D. mm 16

Dimensions W/H/D mm 680*250*180/840*250*180

Weight kg 7+8

Package Dimensions W/H/D mm 930*325*265/770*325*265

Units per Pallet Units 36

INDOOR

Stacking Height Units 9

Refrigerant Control Capillary

Compressor Type, Model Rotary

Fan Type & Quantity Axial*1

Fan Speeds H/L RPM 850

Airflow H/L m3/hr 1520 1100

Sound Power Level H/L dB (A) 66.8

Sound Pressure Level (4) H/L dB (A) 59

Dimensions W/H/D mm 900*680*340

Weight kg 74

Package Dimensions W/H/D mm 985*730*406

Packaged Weight kg 76

Units per Pallet Units 6

Stacking Height Units 2

Refrigerant Type R410A

Refrigerant Charge ST/ RC outdoor gr 830+670 / 830+670

Liquid Line In 2*6.35(1/4")

Suction Line In 2*9.53(3/8")

Max. Tubing Length m 15

OUTDOOR

Connections

Between Units

Max. Height Difference m 7

Operation Control Type LCD REMOTE CONTROL

Heating Elements kW NO

Others

1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and EN14511.

(2) Airﬂow in ducted units; at nominal external static pressure.

(3) Sound power in ducted units is measured at air discharge.

(4) Sound pressure level measured at 1 meter distance from unit.

2-5

PRODUCT DATA SHEET

Service Manual - DUO Series

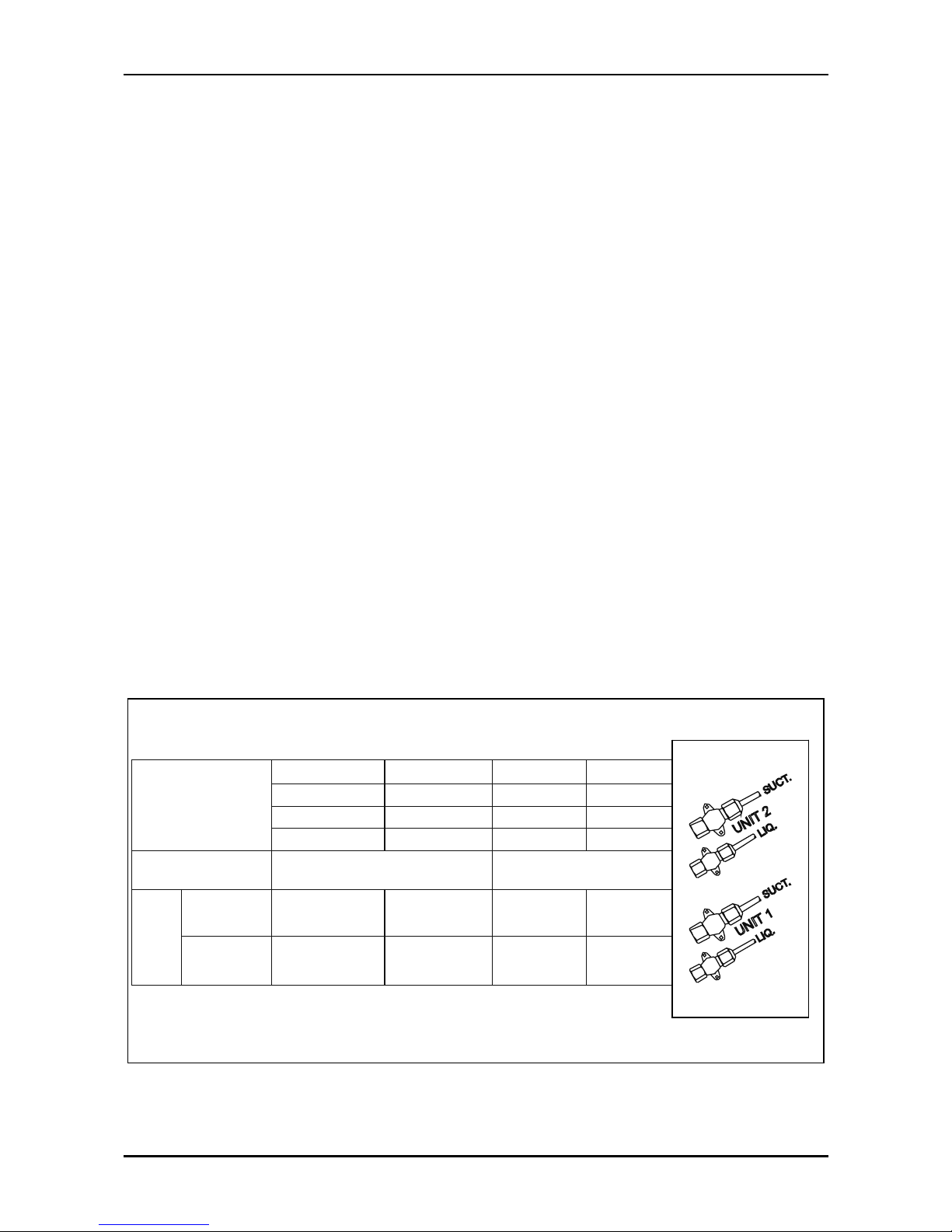

2.1 Capacity & Additional Charge Table

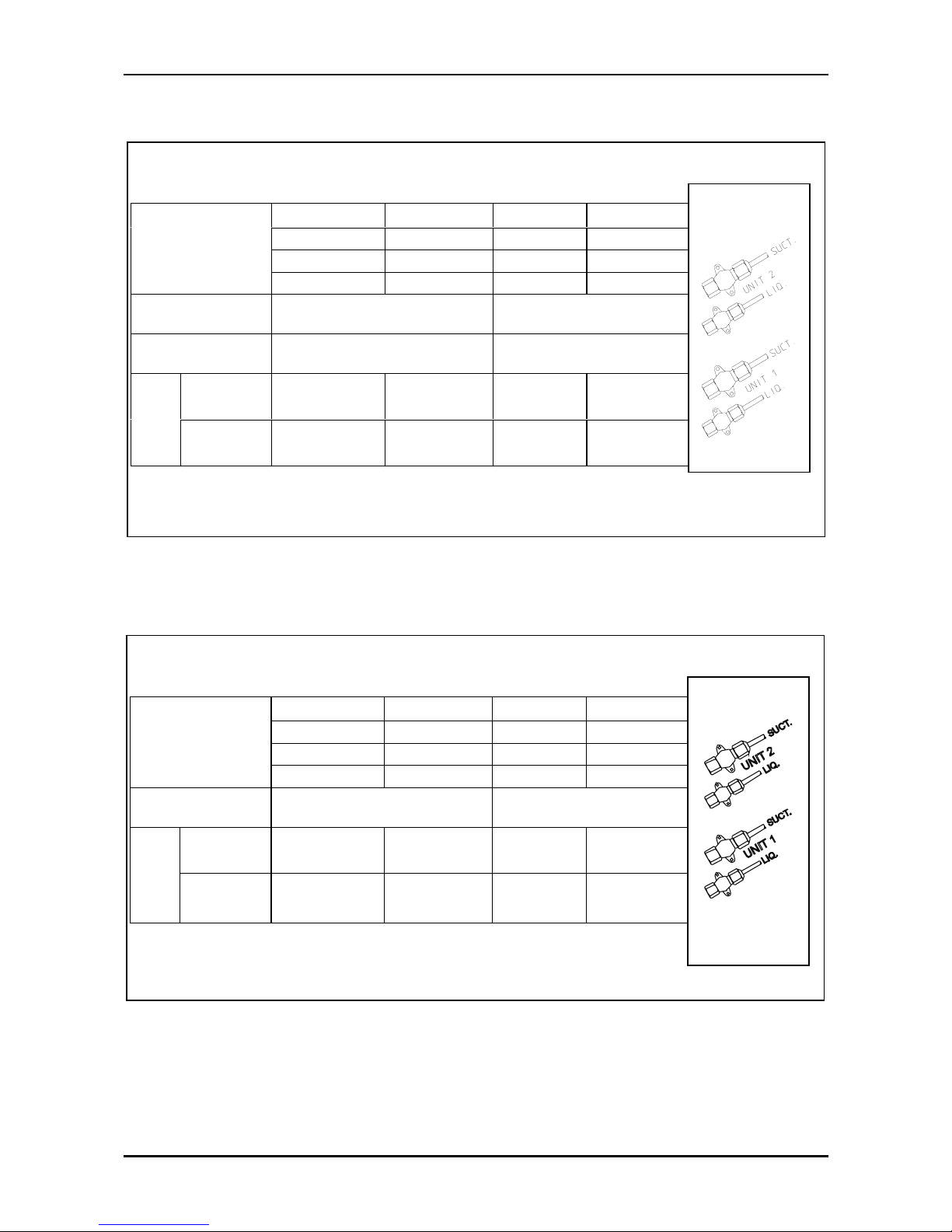

2.1.1 DUO 9+9 RC Additional Refrigerant Charge Lable (as show on unit).

2.1.2 DUO 9+9 ST Additional Refrigerant Charge Lable (as show on unit).

CAPACITY AND ADDITIONAL CHARGE

FOR VARIOUS APPLICATIONS

UNIT 1 UNIT 2 UNIT 1 UNIT 2

ALPHA 9 ALPHA 9 WNG 9 WNG 9

AME 20 AME 20 NXE 20 NXE 20

INDOOR

COOLING

CAPACITY*17400 Btu/h, 5100W 19520 Btu/h, 5720W

ADDITIONAL

CHARGE (gr)

7.5m-15m

* For two units operating simultaneously.

REFRIGERANT R410A Cat.No.433945/01

I38 

8>A

8>A

2-6

PRODUCT DATA SHEET

Service Manual - DUO Series

2.1.3 DUO 9+12 RC Additional Refrigerant Charge Lable (as show on unit).

2.1.4 DUO 9+12 ST Additional Refrigerant Charge Lable (as show on unit).

CAPACITYAND ADDITIONAL CHARGE

FOR VARIOUS APPLICATIONS

UNIT 1 UNIT 2 UNIT 1 UNIT 2

ALPHA 12 ALPHA 9 WNG 12 WNG 9

WAF 12 WAF 9 FLO 12 FLO 9

INDOOR

MAE 30 MAE 20 NXE 30 NXE 20

COOLING

CAPACITY*19815 Btu/h, 5810W 20230 Btu/h, 5930W

HEATING

CAPACITY*21020 Btu/h, 6160W 20910 Btu/h, 6130W

Up to 7.5m0 0 50 50

ADDITIONAL

CHARGE (gr)

7.5m-15m50 50 100 100

* For two units operatingsimultaneously.

REFRIGERANT

R410A

Cat.No.4

/01

944

CAPACITY AND ADDITIONAL CHARGE

FOR VARIOUS APPLICATIONS

UNIT 1 UNIT 2 UNIT 1 UNIT 2

ALPHA 12 ALPHA 9 WNG 12 WNG 9

AME 30 AME 20 NXE 30 NXE 20

INDOOR

COOLING

CAPACITY* 19815 Btu/h, 5810W 20230 Btu/h, 5930W

Up to 7.5m 0 0 90 80

ADDITIONAL

CHARGE (gr)

7.5m-15m 100

* For two units operating simultaneously.

REFRIGERANT R410A Cat.No.433946/01

190

100 180

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Airwell Climatiseur

Airwell

Airwell FVVA-025N-01M22 Manuel utilisateur

Airwell

Airwell DDM Manuel utilisateur

Airwell

Airwell GC 36 DCI Manuel utilisateur

Airwell

Airwell AW-WHPMA18-H93 Manuel utilisateur

Airwell

Airwell YDZC Series Manuel utilisateur

Airwell

Airwell CN 9 Manuel utilisateur

Airwell

Airwell DFMD-100N-01M25 Manuel utilisateur

Airwell

Airwell johnson DCH Series Manuel utilisateur

Airwell

Airwell HKD DCI Series Manuel utilisateur

Airwell

Airwell YEVFD Series Manuel utilisateur

Airwell

Airwell VAR 9 Manuel utilisateur

Airwell

Airwell DSD 40 RCA Series Manuel utilisateur

Airwell

Airwell YAZ318 Manuel utilisateur

Airwell

Airwell Delta 25 Manuel utilisateur

Airwell

Airwell HDLA R32 Series Mode d’emploi

Airwell

Airwell XLM36IRCB Fiche technique

Airwell

Airwell WNG9 Manuel utilisateur

Airwell

Airwell 18 Manuel utilisateur

Airwell

Airwell CD35 Manuel

Airwell

Airwell DNC 955 Manuel utilisateur

Airwell

Airwell GC 18 Manuel utilisateur

Airwell

Airwell Dakota DCI Series Manuel utilisateur

Airwell

Airwell MAY Series Manuel utilisateur

Airwell

Airwell AWSI-HDDE009-H11 Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
