AT90/AT120 User Manual

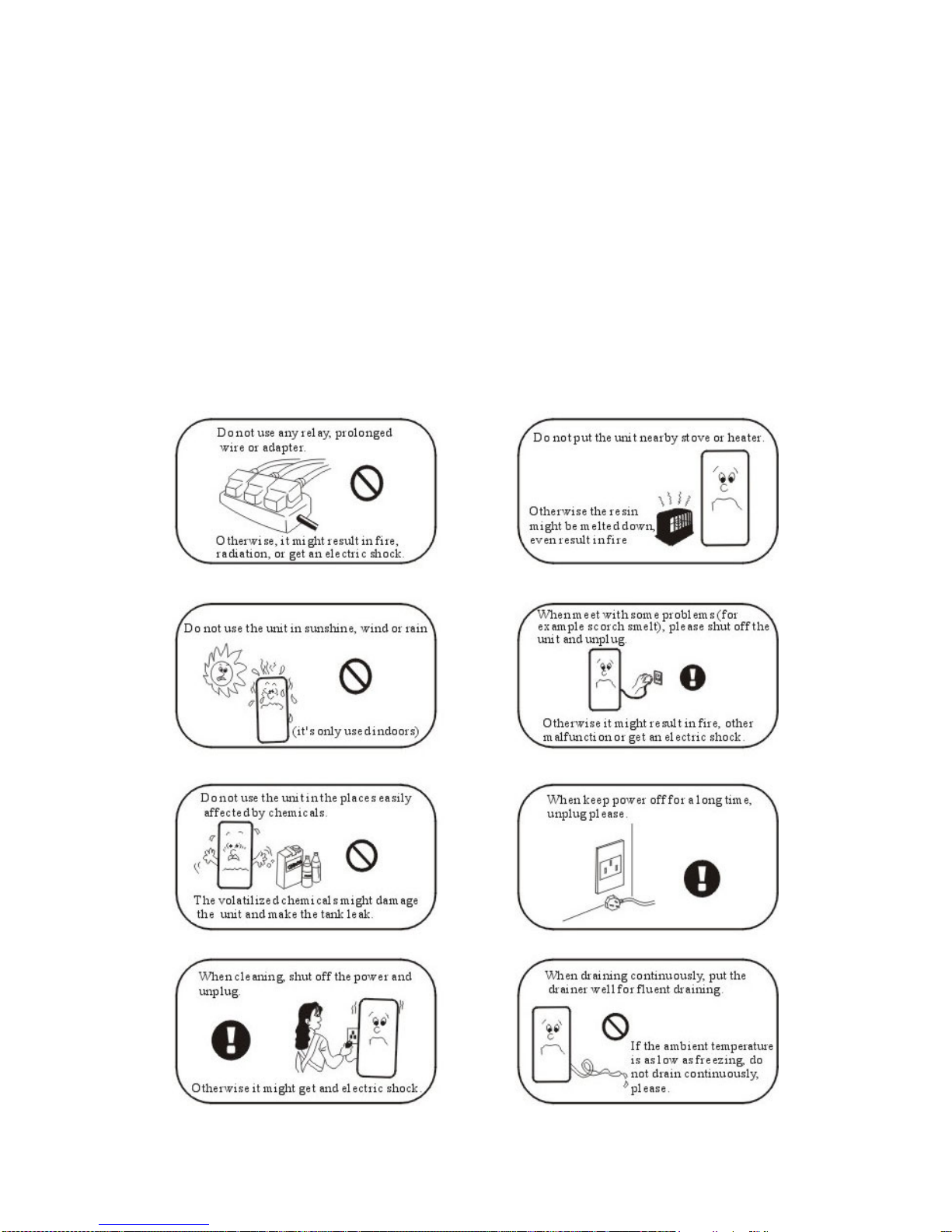

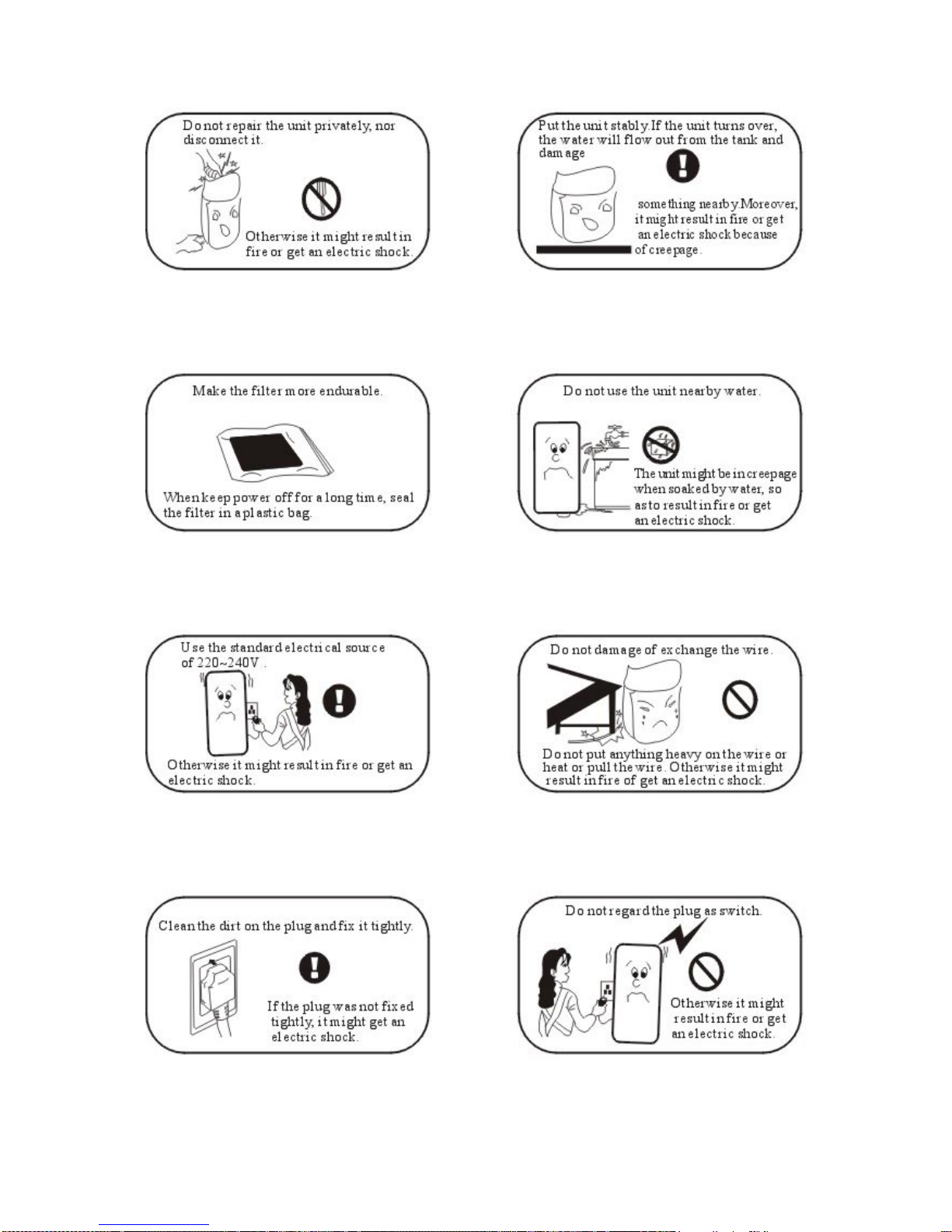

1. Important safety instruction

★ Do not turn on/off the unit constantly by

pulling out/inserting in the plug.

It may cause outlet damage or electric shock

or fire.

★ Do not operate the unit with wet hands.

It may cause electric shock or damaging the unit.

★ Do not put spray canister near air outlet

(within 1M) since the warm wind could cause

the spray canister explode.

★Do not put a pet or house plant where will be

exposed to direct air flow. This could injure the pet

or plant.

★ The plug should be inserted completely.

Remove dirt from the power plug and

securely insert into the outlet.

If dirt adheres to the plug or insertion is

incomplete, it may cause a fire or electric

shock.

★ Do not clean the unit directly with water

It may cause an electric shock and other troubles.

★ Do not install the unit by yourself. Incorrect

install may cause leakage, electric shock or a

fire.

It should be installed by your dealer or similar

qualified person.

★Do not put anything on the unit or do not step on it.

It may cause an injury through dropping and falling

down.

★Do not install the unit where flammable gas

could leak. If gas leaks and collects around

the unit, it may cause an explosion and a fire.

★Do not pull the power cord.

Hold the power plug to disconnect it.

The core wire of the power cord may be

disconnected and it may cause a fire.

★When the unit needs to be cleared, switch off

or turn off the breaker, since the fan rotate at

high speed may cause injury.

★ Do not put any electric appliances under the unit.

The dropping water may cause eroding or some

trouble or electric shock.

★When the unit is not going to used for a long

time, disconnect the power plug or turn off the

breaker.

★ When an abnormality (smell of burning)occurs,

stop the unit and disconnect the power plug or

turn off the breaker. Since it may cause trouble or

electric shock or a fire, etc.

Please consult your dealer or technique service

center.

★ Apply grounding

Do not connect a grounding wire to a gas

pipe, water pipe, lightning rod or ground wire

of a telephone.

If a grounding is incorrect, it may cause and

electric shock.

★ Do not move the unit by yourself. If the installation

is incorrect, it may cause some trouble or water

escaping or electric shock or a fire.

Please consult your dealer or technique service

center.

★ If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent or similarly qualified persons in order to

avoid a hazard.

★ Do not repair the unit by yourself. if this is done

incorrectly, it may cause a fire or electric shock.

Please consult your dealer or technique service

center.

★ The appliance shall be installed in

accordance with national wiring regulation.

★

2. Product introduction

AirTek Dehumidifiers are capable of solving a wide variety of moisture problems. These

workhorses can be placed in indoor swimming pool/spa areas, locker or laundry rooms, harsh

marine environments or industrial environments where moisture control is required. Quiet

operation, digital display, auto defrost, charming appearance and a design which allows you to

place it right next to a wall and you have a dehumidifier that stands out amongst its peers.

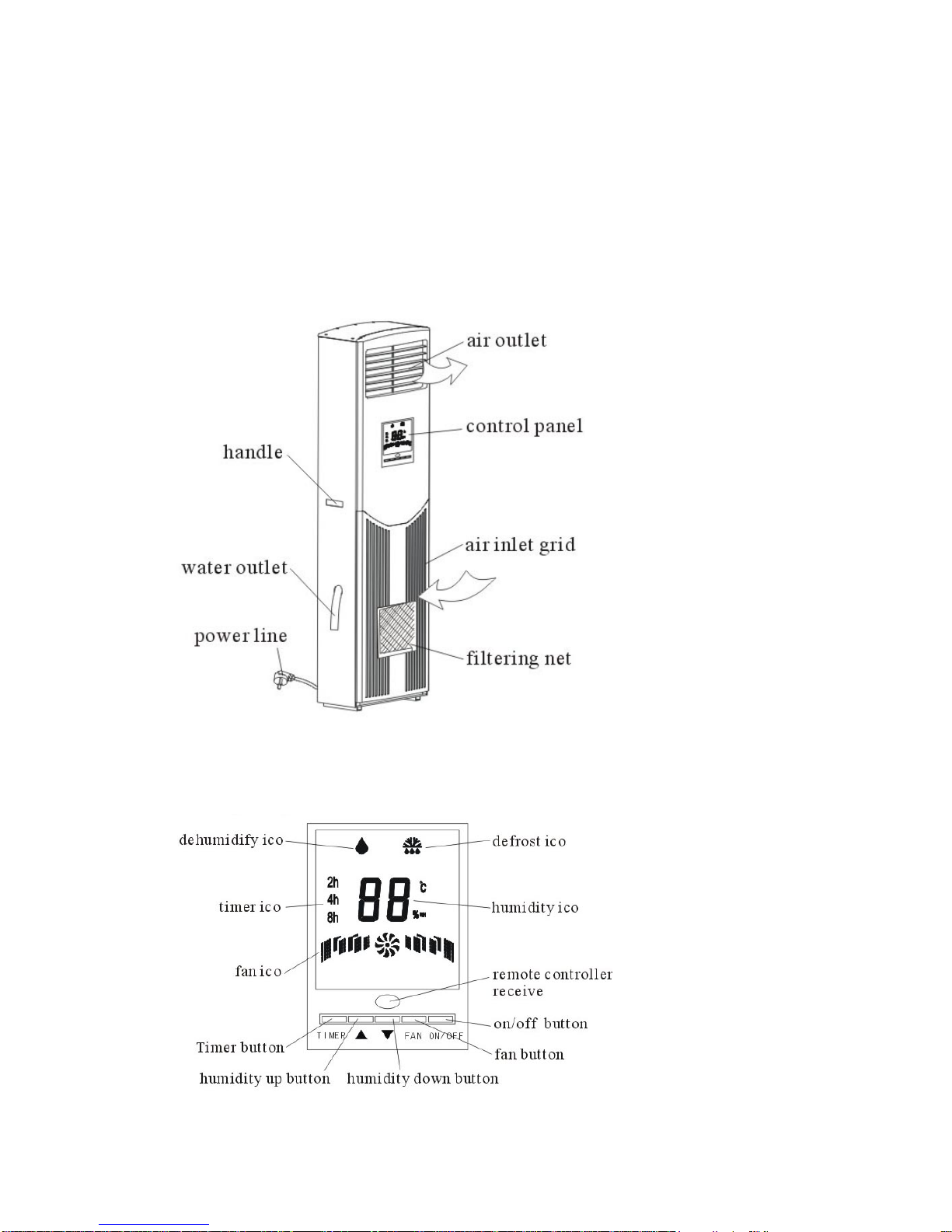

Introduction of configuration

3. Operation instruction

A. Control panel operation instruction

1. Start on

(1) Plug on, the unit gives off a sound like “di”. The “humidity ico” shows the current humidity.

(2) Press ‘On/Off’ Both the ‘Dehumidify Ico’ and ‘Humidity Ico’ lights on, the ‘Humidity Ico’

display the previous set humidity, the initial setting humidity is 60% and 3 seconds later the

‘Humidity Ico’ display current humidity.

(3) Press humidity up or down button to adjust the humidity if needed .If the setting humidity is

3% less than current humidity, the unit runs; if the set humidity is 3%more than current

humidity, the unit stops running.

2. Shut off

Press ‘ON/OFF’ when the unit is running, all the indicators turn off but the “Humidity Ico”

shows the current humidity, the unit stop running.

3. Humidity accommodate

(1) Press the humidity up or humidity down button with the’ Humidity Ico’blinking.3

seconds after the humidity has been adjusted, the ’Humidity Ico’ lights on. The

humidity accommodate is range from 30%to 90%, and it should begin in 60%.

(2) Press the humidity up or down button, the humidity will be rise or drop by 1%; keep

pressing the keys, to rising or dropping the humidity by 5%.

(3) Press humidity down button when the accommodated humidity is on 30%, to make it

in dehumidify mode, the ‘Humidity Ico’ will show the current humidity after 3 seconds

since the ‘Humidity Ico’ shows “CO”.

4. Wind-speed control

High speed mode and low speed mode can be switched in circulation by press the

“fan button” each time. Pretermission is the high-speed mode.

5. Time accommodate

Press the “timer button” to set the time to shut off with the unit running. Press the same button

to set the time to start on. There are three icos marked with “2h”.”4h” and”8h”on them, the time

will be add 2hours by press the “timer button” each time, it can be range from 2 hours to 14

hours which means the three ico all light on. Press the “timer button” when the time has been

set on 14 hours to cancel timing. Press the “ON/OFF” button when the timing system has

started to cancel timing.

The unit will stop working on the time had been set to shut off,” timer ico” lights off. The unit will

start working under previous mode on the time had been set with the “timer ico” lights off. Time

indicators measuring (1means light on 0 means light off)

2h ico 1 0 1 0 1 0 1 0

4h ico 0 1 1 0 0 1 1 0

8h ico 0 0 0 1 1 1 1 0

Time(hours) 2 4 6 8 10 12 14 None

6. Press the button both humidity up and down, the “humidity ico” shows the current

humidity 3 seconds later.

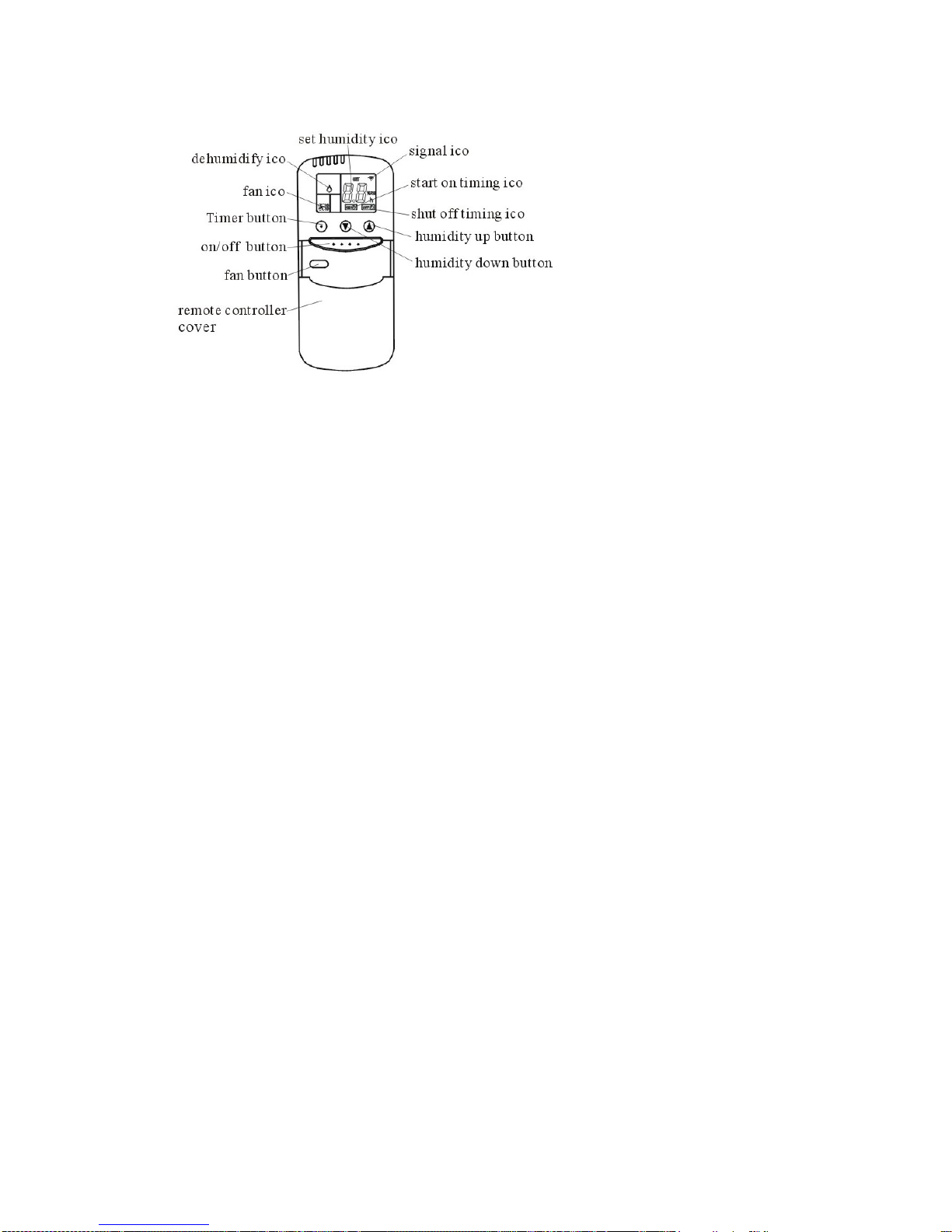

B. Remote controller Instruction

Press any key of the remote controller with the “signal ico” bright to send a signal, the unit

gives off a sound like “di” to receive the signal.

1. Start on

(1).Press “ON/OFF”, the “dehumidify ico” “humidity ico” and “set humidity ico” lights on, display

the previous set humidity. The initial setting humidity is 60%.

2. Shut off

Press “ON/OFF”, when the unit is running; when all the indicators turn off, the unit stops

running.

3. Humidity accommodate

(1)Humidity can be set range from 30% to 90%, the first time should be 60%.

(2)Press the humidity up or down, the humidity will be rise or drop by 1%; keep pressing the

keys, to rising or dropping the humidity by 5%.

(3)Press humidity down key when the accommodated humidity is on 30%, to make it in

dehumidify mode, the “humidity ico” shows “CO”.

4. Wind-speed accommodate

High speed mode and low speed mode can be switched in circulation by press the “fan button”

each time. Pretermission is the high-speed mode.

5. Time accommodate

(1) Set time to shut off .Press the “timer button” to set the time to shut off with the unit running.

Press the button,” shut off timing ico ” lights on” set humidity ico” shows the time needed,

and it will be set after 3 seconds. The unit will stop working on the set time with the “shut off

timing ico” off. Add 2 hours by press the “timer button” each time and it should be range

from 0 to 14 hours. Set 0 hour to cancel timing.

(2) Set time to start on. Press the “timer button” to set the start on time when it is not working.

Press the button with the “start on timing ico” lights on,”set humidity ico” shows the time

needed, and the “set humidity ico” light off after 3 seconds later.

The unit will start working under previous mode automatically on the set time .

6. ‘Set humidity ico’ can not display the environmental humidity or temperature, but set

humidity.

Other functions introduction

1. This dehumidifier can keep a record of the current mode even when the power off, and the

unit will run under previous mode after power supplied again. Please make sure it is

unplug before you leaving.

2. The computer controller has a protective function which can keeping for 3 minutes. The

compressor cannot be restart in 3 minutes since it was been shut off last time, as it cannot

be shut off in3 minutes when it started work.

3. Working in comparative low temperature, defrost system will startup automatically, with the

“defrost ico” lights on. A fan starts working and compressor stop. Since defrost finished,

the “defrost ico” lights off, the fan and compressor restart up.

4. When the dehumidifier lacking of refrigeration, fan and compressor stop working

automatically, humidity indicator on control panel displays “E1”, buzzer gives off a sound

like “di” every 5 minutes.

4. Maintenance and safety

1. Air Filter---- unload and leaning

Air Filter is located at back of air-absorb grille and should be leaned at least two weeks

interval.

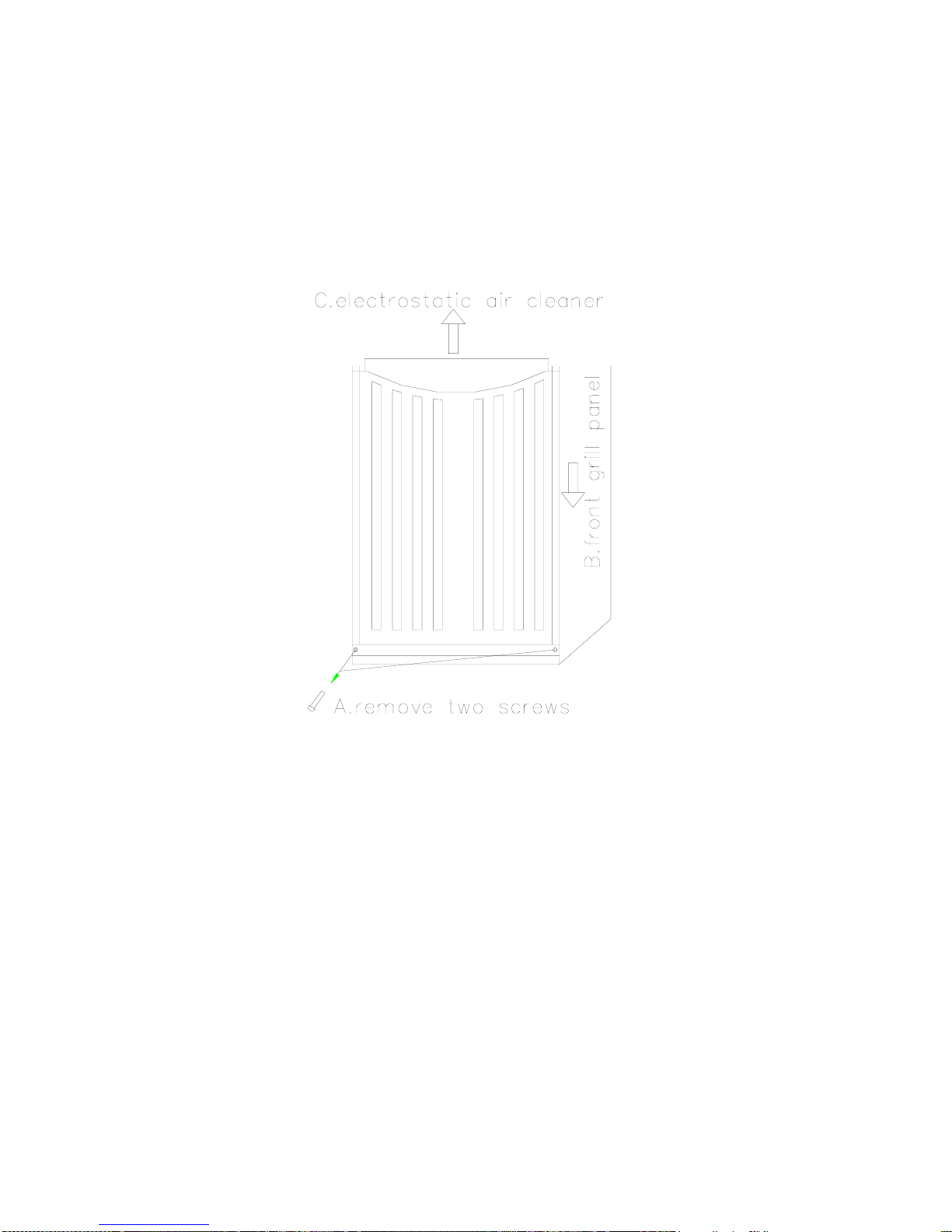

Unload steps:

A. Unload screws.

B. Take off and pull out air-absorb grille by hand.

C. Pull up the air filter

D. Tap the air filter lightly or clean the dirt from it using a vacuum cleaner. if dirt is

conspicuous, wash with a solution of detergent in lukewarm water. Dry well in the shade

and replace the air filter.

Installation steps:

Please see above steps: from D to A.

5. Notice of operation

1. When displace the unit, do not slope over 45·to avoid any damaging of the compressor.

2. The unit should be operated between 5℃～32℃.

3. When dehumidifying, because of the heat resulted from the running compressor, the

indoor temperature will rise 1℃～3℃.It’s normal, and don’t mind.

4. When indoor temperature is below 10℃, and the ambient absolute humidity is quite low, it

is unnecessary to use the machine.

5. Air inlet and air outlet should be at least 10cm away from the wall.

6. Try to seal the room to enhance the dehumidification effect.

6. Support

Malfunctions Analysis Solution

Does not work 1. Power cut

2. Switch off

3. Unplugged

4. Fuse melted

1. Power on

2. Switch on

3. Plug on

4. Exchange fuse

Dehumidify in low

efficiency 1. Filter choked by dirt

2. Some barrier in air inter or

outlet

3. Door or windows open

4. Refrigerant leak

1. Clean the filter

2. Remove the barrier

3. Close the door and

windows and shadow

the sunshine

4. Contact the

manufacturer or seller

Water leak 1. Unit instable

2. Drainer choked 1. Adjust the unit to be

stable

2. Pull out the panel and

remove the barrier

Special noise 1. Unit instable

2. Drainer choked 1. Adjust the unit to be

stable

2. Pull out the panel and

remove the barrier

1. When above malfunctions occur and they could not be removed, contact the supplier or

seller please, do not disassemble the machine privately.

2. When the unit starts or stops running, some noise of refrigerating circulation is not a

malfunction.

3. Hot wind from the air outlet is normal.

7. Instruction of malfunction code

The unit analyze malfunction automatically and display code on the humidity window.

Malfunction display Problem

E1 Short of refrigerant

E2 Temperature sensor

E3 Humidity sensor

E4 Tank full(only forAT120

E5 Sensor of refrigeration pipeline

Parameter list

Model AT 90 AT 120

Electrical source 220-240V/1/50Hz

Dehumidification 90L/day 120L/day

Rated power input 1320W 1500W

Rated power current 6.2A 7.0A

Weight 70kg 73kg

Size(mm) 480X266X1705 480X266X1705

Parameter test operating condition’s =30℃RH=80%

Please be noticed that there are no special notifying for any variation of above parameters.

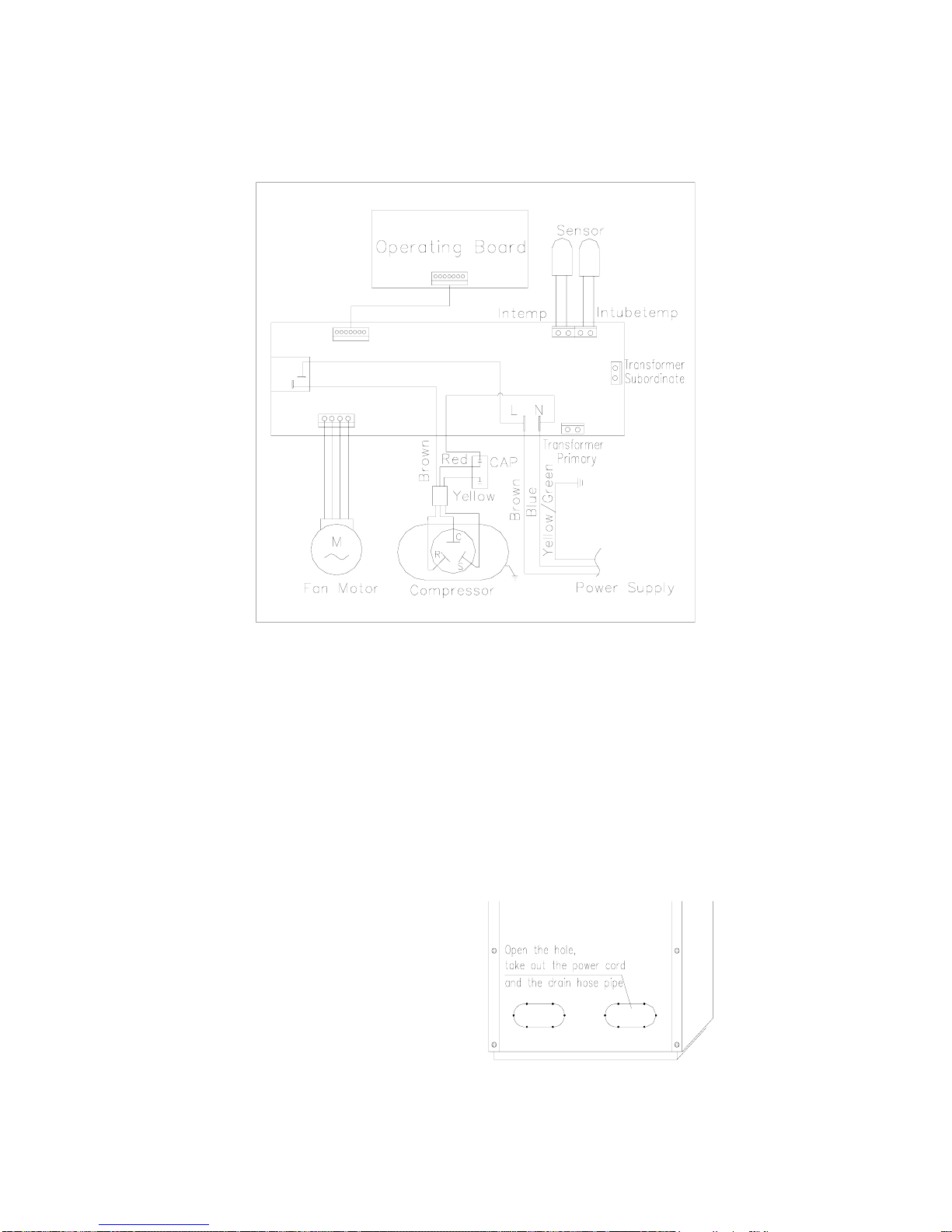

8. Electric Principle Chart

9. Installation Instruction

Notice:

1. Transport

The appliance must stand upright .When moving should not decline over 45 degree.

2. Installation

The appliance should be located on a steady and firm stand.

Installation:

1. Place the dehumidifier on a smooth level floor.

2. Drill a hole through the wall with a diameter

of 65mm .Keep the hole is outward leaning

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AirTek Déshumidificateur

AirTek

AirTek TW15 Manuel d'instructions

Manuels Déshumidificateur populaires d'autres marques

Daitsu

Daitsu CD031IU-DFA Manuel utilisateur

Fehom

Fehom PDGT701BE Manuel utilisateur

Hitachi

Hitachi RD-190GX Manuel utilisateur

Westpoint

Westpoint MDF1-30AE Manuel utilisateur

SOLIS

SOLIS easy dry compact Manuel utilisateur

ENVIROBOSS

ENVIROBOSS EB240 Manuel utilisateur

Sinclair

Sinclair R-9112 Manuel utilisateur

Kenmore

Kenmore 580.54701 Manuel utilisateur

Demargo

Demargo DM828NF Manuel utilisateur

Altrad Lescha

Altrad Lescha LDH 600 Manuel utilisateur

BOMANN

BOMANN LE 1150 CB Manuel utilisateur

SPT

SPT SD-46 Manuel utilisateur

REMKO

REMKO SLN 40 Manuel utilisateur

Haier

Haier HD458 Manuel utilisateur

Logik

Logik L20DHW12 Manuel utilisateur

Frigidaire

Frigidaire FDR30S1 - 30 Pint Capacity Dehumidifier Guide de démarrage rapide

Blitz

Blitz HHD Series Manuel utilisateur

Prem-I-Air

Prem-I-Air PD14DEN Manuel utilisateur
