Remote 1. Standby. Either puts the A100 into standby or wakes it
from standby. When woken from standby it will start in the
previously selected input. Ready Mode cannot be activated
by the remote.
2. Volume up. Increases the volume level of playback.
3. Previous track. Selects either the start of the current track
or the previous track (short press) or scans back through the
current track (long press).
4. Volume down.%FDSFBTFTUIFWPMVNFMFWFMPGQMBZCBDL
5. Input toggle. Scrolls through the available inputs.
6. Next track. Selects the next track to be played (short press)
or scans forward through the current track (long press).
7. Play/ pause. Pauses and restarts playback of the current track.
The A100
1. Right speaker output. Connect the right hand speaker to
these terminals. Push the terminal in to reveal a through hole
to clamp the cable in place. Refer to page 4
2. Airstream Connect/ Airstream direct button. This button
TFSWFT UXP QVSQPTFT " TIPSU QSFTT QVUT UIF " JOUP
"JSTUSFBN %JSFDU NPEF 3FGFS QBHF IPMEJOH EPXO GPS
seconds enables Airstream Connect mode for connecting the
A100 to the network. Refer page 7.
3. Wi-Fi Sharing/ Factory Reset button. This button also serves
UXP QVSQPTFT " TIPSU QSFTT JT SFRVJSFE XIFO DPOOFDUJOH
the A100 to a wireless network (an iOS device needs to be
DPOOFDUFEWJB64#SFGFS UP QBHF 1SFTTBOE IPMEGPS
TFDPOETUPQFSGPSNBGBDUPSZSFTFU3FGFSUPQBHF
4. Digital optical auxillary input. Used for connecting another
device using a standard digital, optical lead (not supplied).

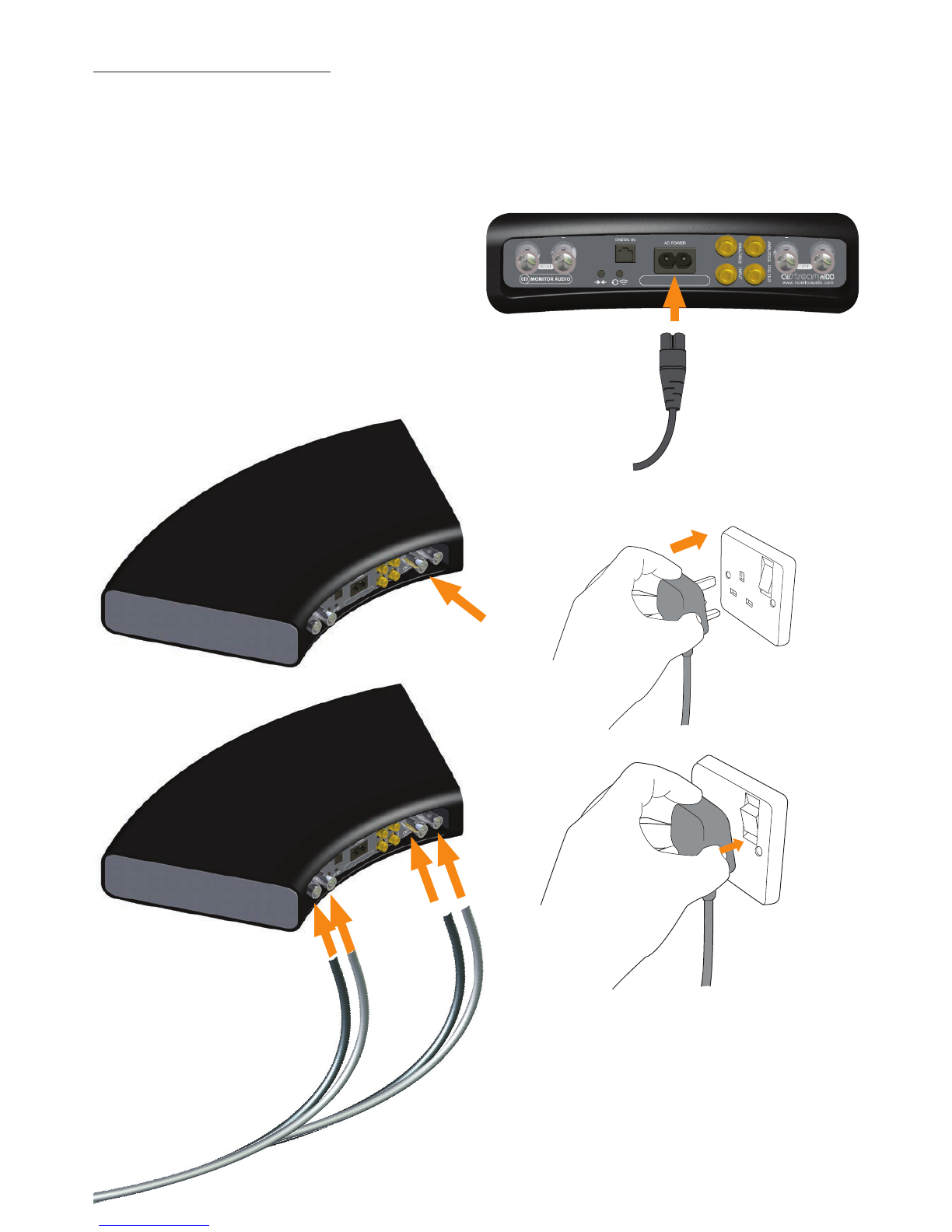

5. Mains power input. Connect the supplied mains lead here.
6. Analogue auxiliary input. Used for connecting another
device using a standard analogue, RCA lead (not supplied).
7. Analogue pre amp output. Used for connecting the A100 to
BOFYUFSOBMQPXFSBNQMJˌFSPSBTVCXPPGFS
8. Left speaker output. Connect the left hand speaker to these
terminals. Push the terminal in to reveal a through hole to
clamp the cable in place. Refer to page 4
9. Volume down.%FDSFBTFTUIFWPMVNFMFWFMPGQMBZCBDL.
10. Volume up. Increases the volume level of playback.
11. AirPlay/ DLNA source select.
12. Digital/ USB source select.
13. Analogue source select. .
14. Infra red receiver
15. USB connector. Used for charging, USB playback (iOS devices
only), wireless set up and updates.
16. Standby. Either puts the A100 into standby or wakes it
from standby. When woken from standby it will start in the
previously selected input. When held down, the A100 enters
Ready Mode. Refer to page 17.
17. Information LED. Refer to page 17 for the key and
FYQMBOBUJPOTPGUIFWBSJPVTDPMPVSTBOEˍBTIJOHQBUUFSOT
3
1
6
7
3
4
5
17
91011 13 14 15 16
134 5 6 7
