AirLive WH-9200AP Manuel utilisateur

H-9200AP

802.11a/b/g Dual Radio

Wireless Base Station

Use

’s Manual

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference. This equipment requires installation

by a professional installer.

This equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

For product available in the USA/Canada market, only channel 1~11 can be operated

in 2.4GHz. Selection of other channels is not possible

This device and its antenna(s) must not be co-located or operation in conjunction

with any other antenna or transmitter.

IMPORTANT NOTE

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any

form or by any means, whether electronic, mechanical, photocopying, recording or otherwise

without the written consent of OvisLink Corp.

Windows™ 95/98 and Windows™2000 are trademarks of Microsoft®Corp.

Pentium is trademark of Intel. All copyright reserved.

AirLive WH-9200AP User’s Manual

Table of Contents

1. Introduction ................................................................................................2

1.1 Overview..............................................................................................2

1.2 Installing WH-9200AP..........................................................................2

1.2.1 Package Content .........................................................................................3

1.2.2 Hardware Presentation ................................................................................3

1.2.3 Configuration Setups ...................................................................................7

2. Wirless Settings .........................................................................................9

2.1 Client + AP Mode...........................................................................9

2.2 Wireless Security.........................................................................11

2.3 Advanced Wireless Settings........................................................20

3. System Management ...............................................................................23

3.1. Change Password .......................................................................23

3.2. System Management Settings.....................................................24

3.3. SNMP Settings ............................................................................26

3.4. Firmware Upgrade.......................................................................28

3.5. Configuration Save and Restore .................................................29

3.6. Reboot System ............................................................................30

3.7. WH-9200AP Emergency Recovery .............................................31

AirLive WH-9200AP User’s Manual

1. Introduction

1.1 Overview

The WH-9200AP is a dream device for WISP to build their wireless networks. The

WH-9200AP features 2 Atheros that run in 5GHz or 2.4GHz frequency band. There is an

intergraded 802.3af POE port to let you run the WH-9200AP at up to 100 meter distance

away from the power source.

Dual Wireless + 2 LAN Ports

The WH-9200AP is equipped with 2 Atheros radios. The radio 1 runs in the 11a 5GHz

mode while the radio 2 runs at the 2.4GHz 11b/g mode. Radio1 can only operate in 5470

to 5725MHz, while Radio2 can only operate in 2.4Ghz Channel 1 to 11.

In addition, 2 programmable LAN ports are available configuration.

802.3af PoE Port

WH-9200AP is equipped with an 802.3af Power over Ethernet port. It thus can be powered

by a PoE PSE and operate at up to 100 meter away.

VLAN & QoS

WH-9200AP provides TAG VLAN feature allows service provider to control service content

of each SSID network all the way back to core router. The QoS feature allows prioritizing

the different package according the 802.11e WMM protocol and triple play (Voice, Video

and Data). Bandwidth control feature allow WH-9200AP to limit the bandwidth on distinct

IP/MAC or on the total device.

IP67 Environmental Protection Enclosure

With IP-67 industrial standard enclosure, WH-9200AP is highly protected against dust and

water. So that WH-9200AP can be used in a hardened environment.

1.2 Installing WH-9200AP

This section describes the installation procedure for the WH-9200AP. It starts with a

summary of the content of the package you have purchased, followed by steps of how to

power up and connect the WH-9200AP. Finally, this section explains how to configure a

Windows PC to communicate with the WH-9200AP.

AirLive WH-9200AP User’s Manual 2

1.2.1 Package Content

The WH-9200AP package contains the following items:

zOne WH-9200AP main unit

z48VDC PoE injector kits

zPole/Wall mount kit

zOne CD of the WH-9200AP

1.2.2 Hardware Presentation

1 2 3 4

LED # Function Color Description

1 LAN - LAN port #2

2 WLAN1 LED Blue

3 WLAN2 LED Green

No Connection: Off

Low Signal: Flash per second

Better Signal: Flash every 2 seconds

Best Signal: Steady On

4 POE/WAN - LAN port #1, compatible with 802.3af PoE. Become

3 AirLive WH-9200AP User’s Manual

WLAN port when operate in Gateway mode

5 Ground Pin - Reference point for electric current

6 Sluice - Sluice out the water in device

N-Type connector for outdoor

antenna of Radio 2. 11b/g

2.4GHz

N-Type connector for outdoor

antenna of Radio 1. 11a

5GHz

AirLive WH-9200AP User’s Manual 4

Antenna 2 Antenna 2

Pole Mount/Wall mount Installation

5 AirLive WH-9200AP User’s Manual

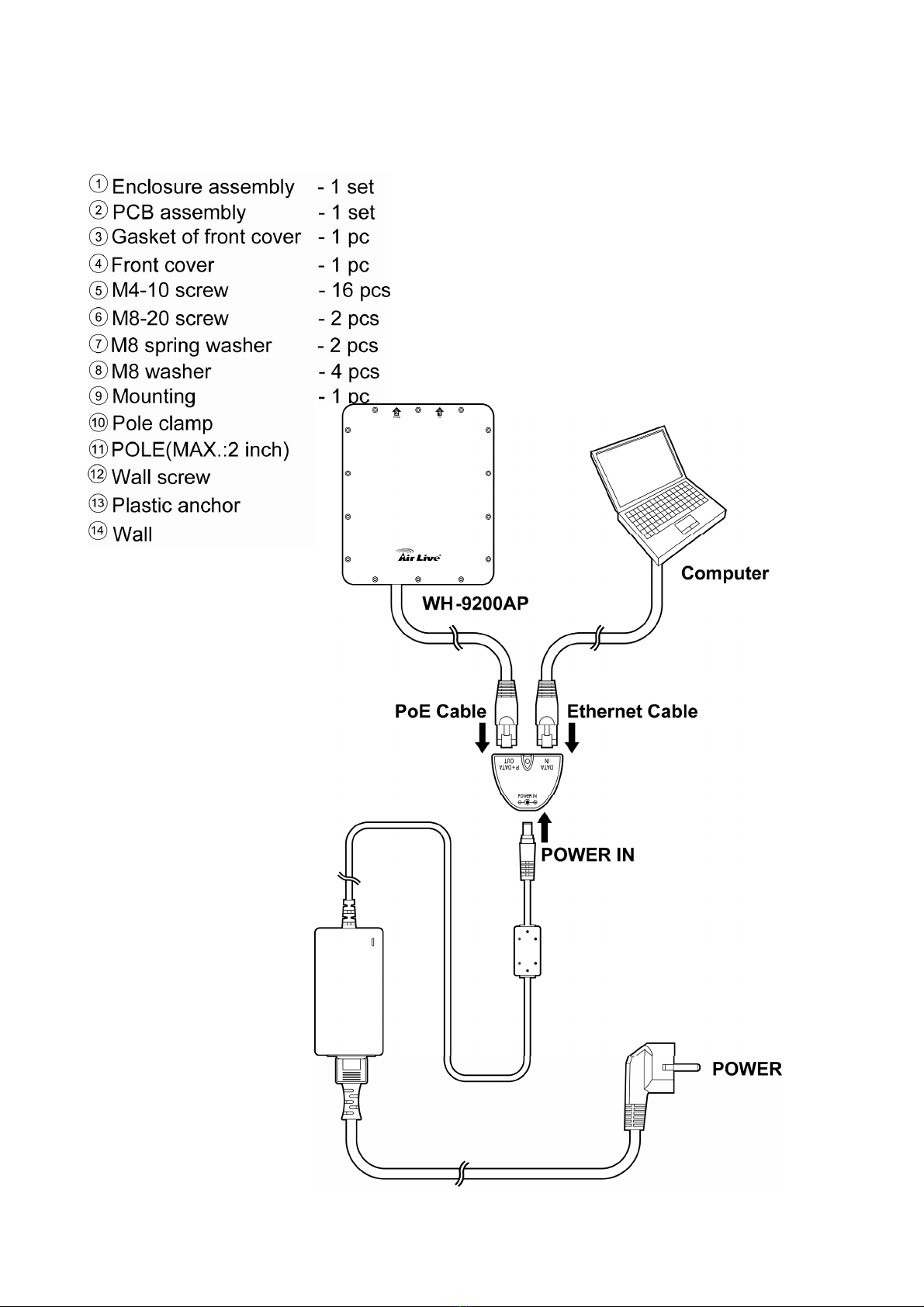

Power Installation

The following image

shows the power

installation of

WH-9200AP. Note that

WH-9200AP is

IEEE802.3af compatible, you

should use the packed

kit or POE Switch for

power injection.

POE

AirLive WH-9200AP User’s Manual 6

1.2.3 Configuration Setups

The factory default settings of WH-9200AP are as following:

Default ValueSettings

Wireless1 Wireless2

Device Name WH-9200AP

Radio 802.11a 802.11b/g

SSID airlive1 airlive2

IP Address 192.168.1.1

DHCP Server Disabled. Available and default enabled when each of

the wireless is configured as a gateway.

DHCP IP Range 192.168.1.2 ~ 192.168.1.254

Access Password airlive

1. Connect to your local area network: connect an Ethernet cable to one of the Ethernet

port.

2. (LAN1, LAN2) of this Wireless Access Point, and the other end to a hub, switch, router,

or another wireless access point.

3. Power on the device: connect the included AC power adapter to the Wireless Access

Point’s power port and the other end to a wall outlet.

7 AirLive WH-9200AP User’s Manual

Access to management interface

1 Please make sure your computer IP is in the same subnet as the WH-9200AP (i.e.

192.168.1.x).

2 Please make sure your computer has wireless network adapter installed.

3 Open the web browser and enter http://192.168.1.1/.

4. Choose Wireless Settings to start.

AirLive WH-9200AP User’s Manual 8
