AirLive N.TOP Manuel utilisateur

N.TOP

Wireless Acess Point

Quick Installation Guide

Support

You can download the

complete guides and

supporting programs from

<http://www.airlive.com/pro

duct/n.top/download>, or

scan the QR code here.

Please consult with the FAQs

<http://www.airlive.com/pro

duct/n.top/faq> before writing

to OvisLink Tech Support

Team for further assistance

For any other question, please read the user

manual in the CD or mail to [email protected]

for technical support.

N.TOP Package Contents

Please check the package contents and contact

your distributor if any part is missing.

N.TOP

Quick Installation Guide User Manual CD

5V DC adapter

VER.20130601

802.11n Ceiling Mount

Long Range PoE AP

N.TOP

Declaration of Conformity

We, Manufacturer/Importer

Declare that the product

802.11n Ceiling Mount Long Range PoE AP

AirLive N.TOP

is in conformity with

In accordance with 2004/108/EC Directive and 1999/5 EC-R & TTE Directive

Clause Description

OvisLink Corp.

5F, No.6, Lane 130, Min-Chuan Rd., Hsin-Tien Dist.,

New Taipei City 231, Taiwan

■

■CE marking

EN 300 328 V1.7.1:2006

EN 301 489-1 V1.8.1:2008

EN 301 489-17 V2.1.1:2009

EN 50385:2002

Electromagnetic compatibility and Radio spectrum matters (ER

transmission equipment operating in the 2.4GHz ISM band And

spectrum modulation techniques; Part 1: technical Characteristi

conditions Part2：Harmonized EN covering Essential requirem

article 3.2 of the R&TTE Directive

Electromagnetic compatibility and Radio spectrum Matters (ER

Electromagnetic compatibility(EMC) standard for radio equipme

Part 17：Specific conditions for Wideband data and HIPERLA

■EN 60950-1:2006+ A11:2009 Safety for information technology equipment including electrical

equipment

Product standard to demonstrate the Compliance of radio base

Fixed terminal stations for wireless Telecommunication System

restrictions or the reference levels related to human exposure t

Frequency electromagnetic fields ( 110 MHz – 40 GHz ) - Gene

Reset the router to factory default settings (clear all

settings) or start WPS function.

Reset: Press this button and hold for 10 seconds to

restore all settings to factory defaults.

WPS: Press this button for less than 5 seconds to start

WPS function.

I/O Interface

ttf

lt tti

(

Power Adapter

Connector

Reset / WPS

Button

LAN Port,

PoE Port

N.TOP Installation

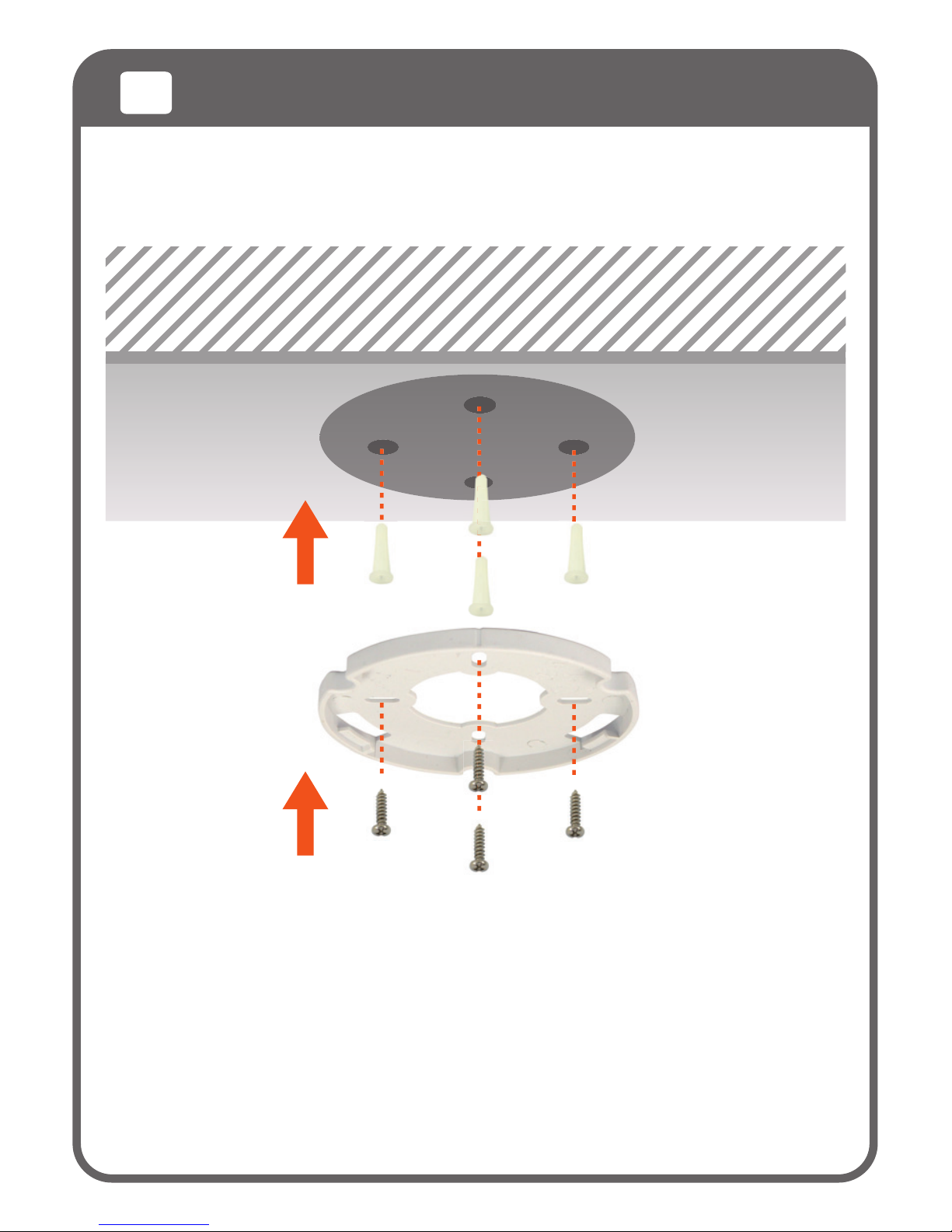

1. Screw the bottom case into the wall.

Ceiling

2. There are two ways to power up N.TOP

(1) Connect N.TOP to 802.3at/af PoE switch via

RJ45 Cable

(2) Connect the 5V/1A adapter to power up

N.TOP

N.TOP Installation

Power

Adapter

PoE Siwtch

LAN

Link / Act

System

Speed

PoE

Mode

123456789101112 131415161718192021 22 23 24 21 22 23 24

20-Port Gigabit + 4-Port UTP/SFP Combo Active PoE Web Smart Switch

POE-GSH2004L-370

3. Put the case screws back.

N.TOP Installation

a. Connect N.TOP to the LAN port of the switch.

b. Connect switch to the LAN port of the router.

c. Connect the PC/NB to the LAN port of the

switch.

Connect N.TOP to Network

N.TOP

Switch

PC/NB Router

7531

8642

8-port POE + 2 Combo Gigabit 802.3at

Device Guard Web Smart Switch

POE-FSH1008AT

7531

8642

LNK

PoE

LNK/ACT

PoE

LNK/ACTPWRRST

G1 G1 G2

The default IP address of N.TOP is

192.168.1.254. Please set your PC/NB to the

same subnet

Enter the N.TOP IP address into browser to visit

the N.TOP UI

The default username/password is admin/airlive

Set up the Network Environment

Management N.TOP

via AirLive Central Wireless

Central Wireless

AirLive
