AirMedia-350
Network Multimedia Player
2.5”/3.5” SATA HDD Media Station
he AirMedia-350 is the next generation home
networked appliance for playing the videos,
photos, and music through internal hard disk
or external sources such as USB HDD, USB
Flash drive and Memory cards (via USB Card
Reader). It also supports network playback of
the digital contents from the PC or NAS on your
home network. This player can be seamlessly
integrated with TV and stereo system for playing
your digital collections in the living room or
anywhere at home.
T
AirMedia-350 featured with HDMI 1.3 and S/PDIF output, internal SATA HDD interface, 10/100Mbps
network port and excellent network sharing. It also supports various file formats such as the high-quality
H.264, MKV, M2TS, FLV and the popular RM/RMVB. AirMedia-350 is small and lightweight, yet powerful
to deliver smooth playback of Full HD video and brings the excitement to your home theater.
Full HD
1080P
HDMI
1.3
USB
Host
x2
S/PDIF
Output
Network-
ready 10/100
Mbps
Wi-Fi
(Optional)
BitTorrent
Client UPnP/
Samba
USB
Client
x1
USB
Host #1
Remote Controller
IR
Receiver
Power
On/Off
Power
LED
LAN
LED
HDD
LED
USB
LED Power
Jack Power
Switch
Ethernet
Port
USB
Host #2
USB
Client
HDMI
Output
S/PDIF
Output
Composite
Video(AV)
Component(YPbPr)
5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan

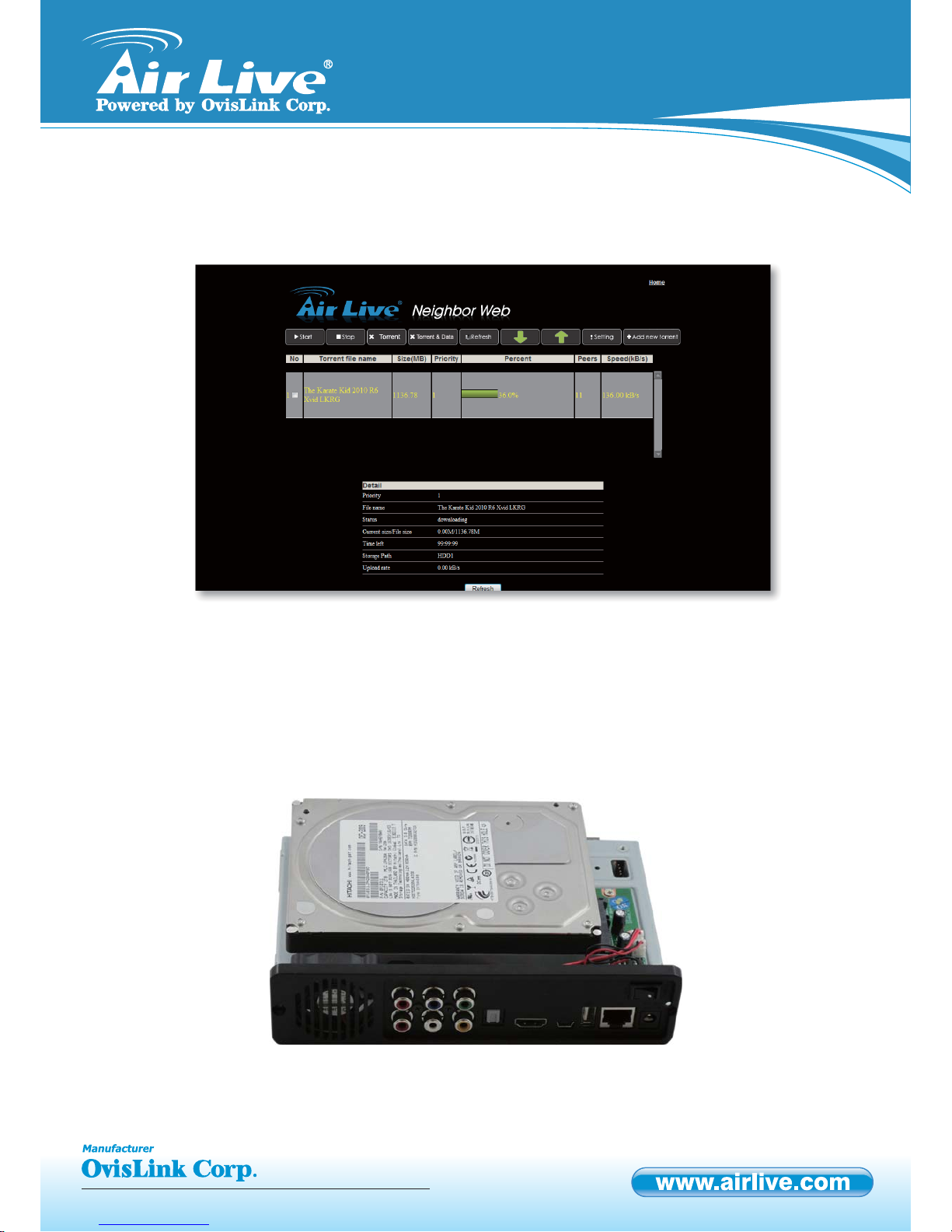

Built-in Bit-Torrent download engine, this engine allows you to download the legally shared contents on
the Internet without leaving your PC power-ON all the time.
BitTorrent Client
AirMedia-350 is capable of installing a 2.5-inch or 3.5-inch SATA hard disk with the capacity up to
2TB. With the internal hard disk firmly installed, your AirMedia-350 is now a Home Media Center with
file storage and sharing capability. Furthermore, AirMedia-350 can be treated as an external hard disk
enclosure for easy file access and quick transfer through PC by connecting the USB cable to the USB
client port (mini USB port) at the back panel.
Internal Disk Drive Bay
*Installing a hard disk drive into AirMedia-350 is not necessary if user only want to do playback via USB external
hard drive or USB flash drive.
5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan
1920 x 1080, High Definition 1080P Playback
1920px
1080px
The easiest way to move your media files from PC to TV
HDTV
PC AirMedia-350 HDTV
Sharing with your family and friends in the comfortable area
AirMedia-350
5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan
Topology
Internet
TV
HDMI
HDMI
S/PDIF
BitTorrent
Download
AirMedia-350 HP-3000E
USB HDD USB Flash
Drive Card Reader Digital Camera
200MbpsPowerline Ethernet Adapter
AV
Mbps
200
Link/Act
Ethernet
POWER
200MbpsPowerline Ethernet Adapter
AV
Mbps
200
Link/Act
Ethernet
POWER
HP-3000E PC
NAS-235
WN-200R
S/PDIF USB
ADSL/
Cable
RJ-45
Optional Accessories
No Ethernet connection available near the TV station? HomePlug Powerline can solve your problem
by simply plug the adapters into the power socket and use your home existing powerline as bridge to
transfer data files.
HomePlug Powerline
Not enough space to store and backup your precious digital/data collections?
AirLive NAS series is available in 1-bay and 2-bay for you to select based on your need. The most
important thing is that AirMedia-350 is capable to playback movies and pictures from your PC, NAS
wired or wirelessly.
NAS
HDMI cable is an essential accessory for connecting AirMedia-350 to the HDTV and perform 1080P
playback. Therefore, AirLive provides a bundle solution kit which includes a certified 1.5 meter length
HDMI cable for those who does not have HDMI cable at home.
HDMI Cable
*Ordering information: AirMedia-350H
5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan
Supported Formats
- Video: MPEG1/2/4,RM/RMVB,VC-1,H.264
- Video File Extension: .mpg, mpeg, dat, vob, iso,
ifo, ts, tp, m2ts, mp4, avi, mkv, mov, wmv, rm,
rmvb, flv, divX, Xvid
- Audio: WMA, MP3, Real Audio, Dolby, DTS
- Image: JPEG,BMP,PNG,GIFSubtitle:
SRT,SUB,SMI,SSA
Internal HDD Slot (Hard Disk not included)
- 2.5” or 3.5” SATA I/II Hard Disk
- 2.5” Hard Disk support up to 640GB
- 3.5” Hard Disk support up to 2TB
I/O Port
- Input:
- DC Power In
- 2xUSB 2.0 Host
- 1xUSB 2.0 Client
- RJ-45 LAN Port
- Output:
- Composite (A/V)
- Component (Y/Pb/Pr)
- S/PDIF Out
- HDMI 1.3
Accessories
- AC-DC Power Adapter
- Remote Control
- 2x AAA battery
- Composite A/V Cable
- A 1.5Meter HDMI Cable
- USB Cable
- Screw Package
- Quick Setup Guide
- CD (Utility & User Manual)
Dimensions
- 190mmx140mmx52mmmm(W x D x H)
Power
- Power Source: 100-240 12VDC, 3A
- Operating Temperature: 5°C~40°C
Specifications
AirLive AirMedia-350 Network Multimedia Player 2.5”/3.5” SATA HDD Media Station
