ARM-201 English
Note on the FCC standard
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences
when the equipment is operating in a commercial area. This equipment generates, uses and may radiate radio
frequency energy, and if not installed in accordance with the user guide, may cause interference in the
transmission of radio communications. If operating in a residential area, it is probable this equipment will cause
harmful interference, in which case the user will be required to try to correct this interference using his own
means.
Note on CE Marking
This is a Class B product. In a residential area this product may cause radio interference, in which case the user
can be required to take the appropriate measures. OvisLink Corp. hereby declares that AirLive ARM-201
meets the basic requisites of directive 99/05/CE, and is therefore liable for the accuracy of these data:
OvisLink Corp.
5F, No.6 Lane 130,
Min-Chuan Rd, Hsin-Tien City,
Taipei, Taiwan
TEL: +886-2-2218-6888
Warranties
This product has undergone various quality controls to ensure proper operation.
This product is covered by a two-year warranty for countries inside European Union. For other countries, the
warranty period is one year only. In the event of any manufacturing fault or breakdown, it will be repaired by
OvisLink Corp. Please contact your supplier for details on the procedure to follow. This warranty shall not be
applicable in the event of damage caused by improper use of the product, accidents, faulty handling or
manipulation nor any future incompatibility with third party products.
English
2
ARM-201 English
Important Information
The ADSL Router default IP address is 192.168.2.1
The default Subnet Mask is 255.255.255.0
The default login name is admin
The default password is airlive
Please use only the power adapter provided with the Router
Back Panel
Descriptions of All Connectors
Port / Switch / Button Description
LINE Connect with phone cable
USB Connect with USB cable to
PC
DEFAULT Reset button.
Port / Switch / Button Description
LAN Connect with Ethernet
Cable to Switch Hub or PC
PWR Connect with power adapter
ON/OFF Power switch button
English
3
ARM-201 English
Installation Steps Software Installation Steps
1. Please install your network cards first
before installing the Router
2. Connect the power and LAN cable to the
router.
3. If you need to change router configuration,
please follow the procedure below:
The Router default IP address is
192.168.2.1. Please make sure your
computer IP is in the same subnet as the
router (i.e. 192.168.2.x)
Open the web browser and enter
192.168.2.1. When asked for Login and
Password, just type admin for login name
and airlive for Password.
Software Support
This Setup wizard can be run in Windows
98SE/Me/2000/XP. The following procedures are
operated in Windows XP. (Procedures are similar
for Windows 98SE/Me/2000.)
Internet: Basic Setting

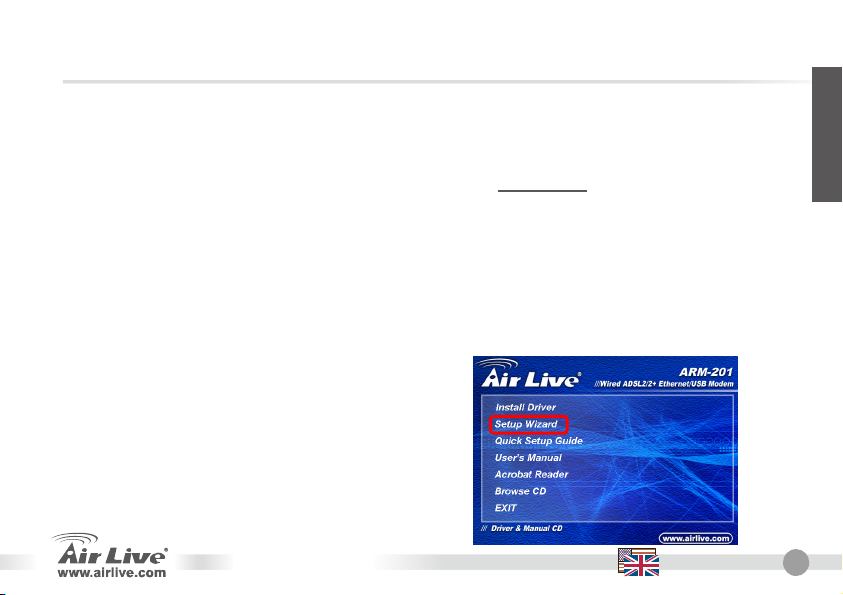

1. Please insert the driver CD that came with
your device into your CD-ROM drive, the
driver CD will auto start and show the
installation guide. If not, please double click
the CD-ROM device icon in "My computer",
and execute autorun.exe. The following
screen will be displayed. Please Click
“Setup Wizard”.
English
4
ARM-201 English
2. Please select the country you have installed
the ADSL router and click “Next”.
3. Please select the ISP (Internet Service Provider)
of your ADSL service.

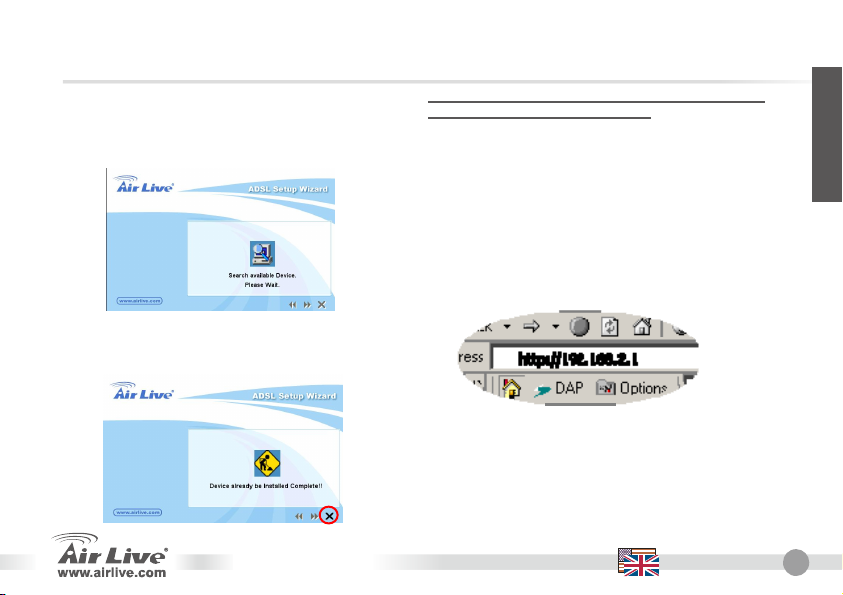

4. If the router cannot be found, please enter the
IP Address and the Password of the router to
search again. Click “Next” to continue.
5. Click “Next” to save the settings and
reboot the router.
English
5
ARM-201 English
6. After saving and rebooting the router, the
ISP settings are all finished. This wizard will
then help to set your computer to obtain IP
Address from the router automatically.
7. The ISP settings are all finished. If you want
to configure more settings, please click
“Finish” to close the wizard
If your ISP is not in the list of setup wizard, please
follow the manually setup wizard.
Manually Setup Wizard in Web
Management
Once your PC has obtained an IP address from
your router, enter the default IP address
192.168.2.1 (router’s IP address) into your PC’s
web browser and press <enter>
The login screen below will appear. Enter the
“User Name” and “Password” and then click <OK>
to login. By default the user name is “admin” and
the password is “airlive”. For security reasons it is
recommended that you change the password as
soon as possible.
English
6
ARM-201 English
The HOME page screen below will appear.
The Home Page is divided into seven
sections: Quick Start, Interface Setup,
Advanced Setup, Access Management,
Maintenance, Status and Help.
In the Quick Start, click “Run Wizard” to start the
configuration.
If your computer does not have Ethernet port,
please follow the ADSL USB installation.
English
7
ARM-201 English
ADSL USB Installation

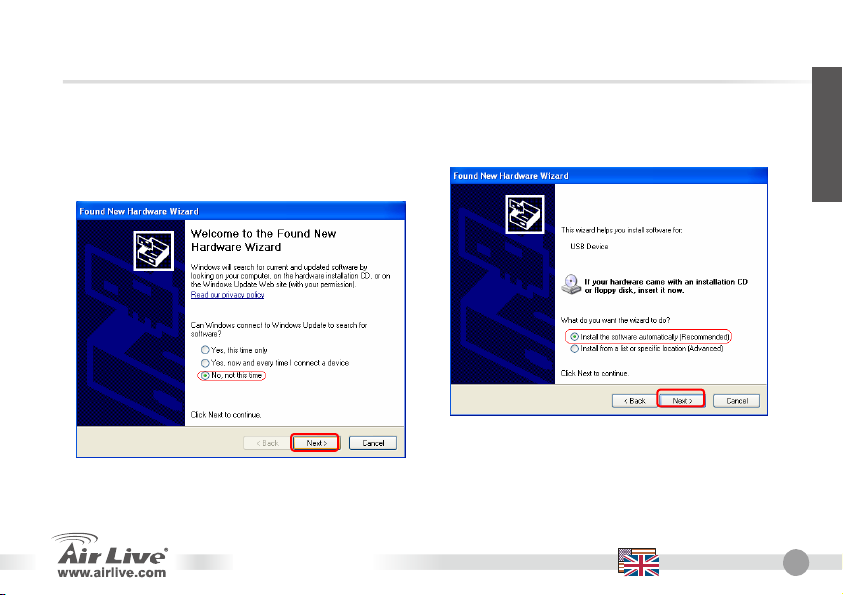

Step 1: Connect ADSL Router and PC with USB cable.
Step 2: Once “Found New Hardware Wizard” window
pops out, click “Next” / “Locate and install
driver software” to continue.
Step 3: The Windows should automatically detect the
device and start the “Found New Hardware
Wizard”. Insert the “AirLive CD” into the
computer and press “next”.
Note: If the computer doesn’t start the installation
wizard automatically, please go to “Control
Panel” and select “Add New Hardware”.
English
