Quick Installation Guide
Model #APSUSB2
Ver. 2A
3-Port USB Print Server
Step 1ConnectoneendoftheEthernetcabletotheRJ-45 port of the PrintServerandattach the other
endof the cable to a router.
Step 2 Makesureall the printers are powered OFF, then connectoneendof the printer cable to the
printerport of the Print Serverandattachtheother end of the cable totheprinter port of the printer.
Step 3 Power ON the printer(s).
Step 4 Plugone end of the power cord intothePrintServer and the other end into an electricaloutlet.
Connecting the Print Server
Section 1
Note: Do not plug thepower cord to the PrintServer until you have reached Step 4 ofthissection.
Warning: OnlyaUSB printer may be connected totheUSB port of the Print Server.Connecting any
otherUSB device to the Print Server may damagethePrintServer.
Section 2
Installing PS Utility

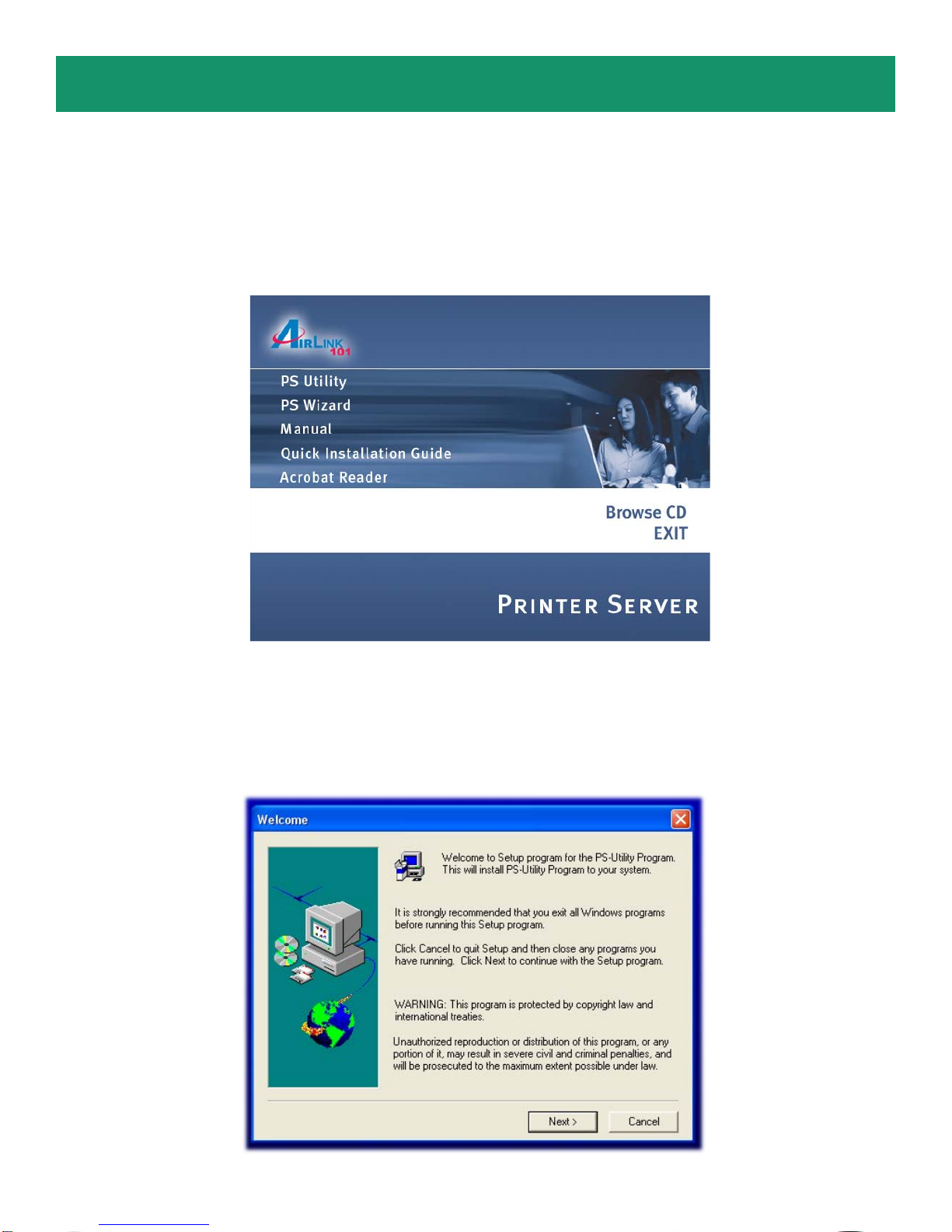

Step 1 Insertthe provided CD and wait for the setup menu to appear.
Step 2 Click on PS Utility.
Step 3 Click Next.
Note: Ifthe setup menu does not appear automatically afteryouhaveinsertedthe CD, go to Start,Run,
type D:\autorun.exe (where D is the letter of your CD drive) and click OK.
Step 4 Click Next.
Step 5 Click Yes.
Step 6 Click Finish.
Section 3
Configuring Network Setting
Before configuring the Print Server’s network setting, please take note of your computer’s
TCP/IP setting.
Step 1 Click on Start, Run, and type command (for Windows 95/98/ME) or cmd (for Windows 2000/
XP) and click OK.
Step 2 At the command prompt, type ipconfig and press Enter.
Step 3 WritedowntheinformationfortheIPAddress,Subnet Mask,and Default Gateway.Youwill
needthese informationlater.
Step 4 Runthe PS Utility by going to Start,(All) Programs, PS Utility, PS Utility v2.00.
Step 5 Make sure the Print Server is listed under the Device Name and click on Change IPAddress.
FortheSubnet Mask and Default Gateway fields,enter the same number as the TCP/IP setting of your
computer.
Step 6 IntheIPAddress field,enter a valid IPaddress,subnetmask,and default gateway that matches
yourlocalareanetwork.
For example:Ifyourcomputer’sIPAddress is192.168.1.100,enter thesamethreenumbers:
192.168.1 inthe corresponding fields.
Note: Youcan leave the last IPAddressnumber 254 as is unless anothernetworkdevice
(i.e.the Default Gateway) is alreadyusing that number. If anothernetwork device isalready using 254,
then changeit to anothernumber that is currentlynot in use(preferably 200 - 253).
Step 7 Click OK.
Step 8 Close the PS Utility program.
Verifying Network Connection
Section 4
Step 1 Runthe PS Utility by going to Start,(All) Programs, PS Utility, PS Utility v2.00.
Step 2 Make sure the print server is detected under the Device Name.
Step 3 Click on Show Web Setup to display the Print Server’s Web Configuration Utility.
Step 4 Click on the Management link and select Printer Status. Make sure the Printer Status for each
ofthe connected ports displays On line.

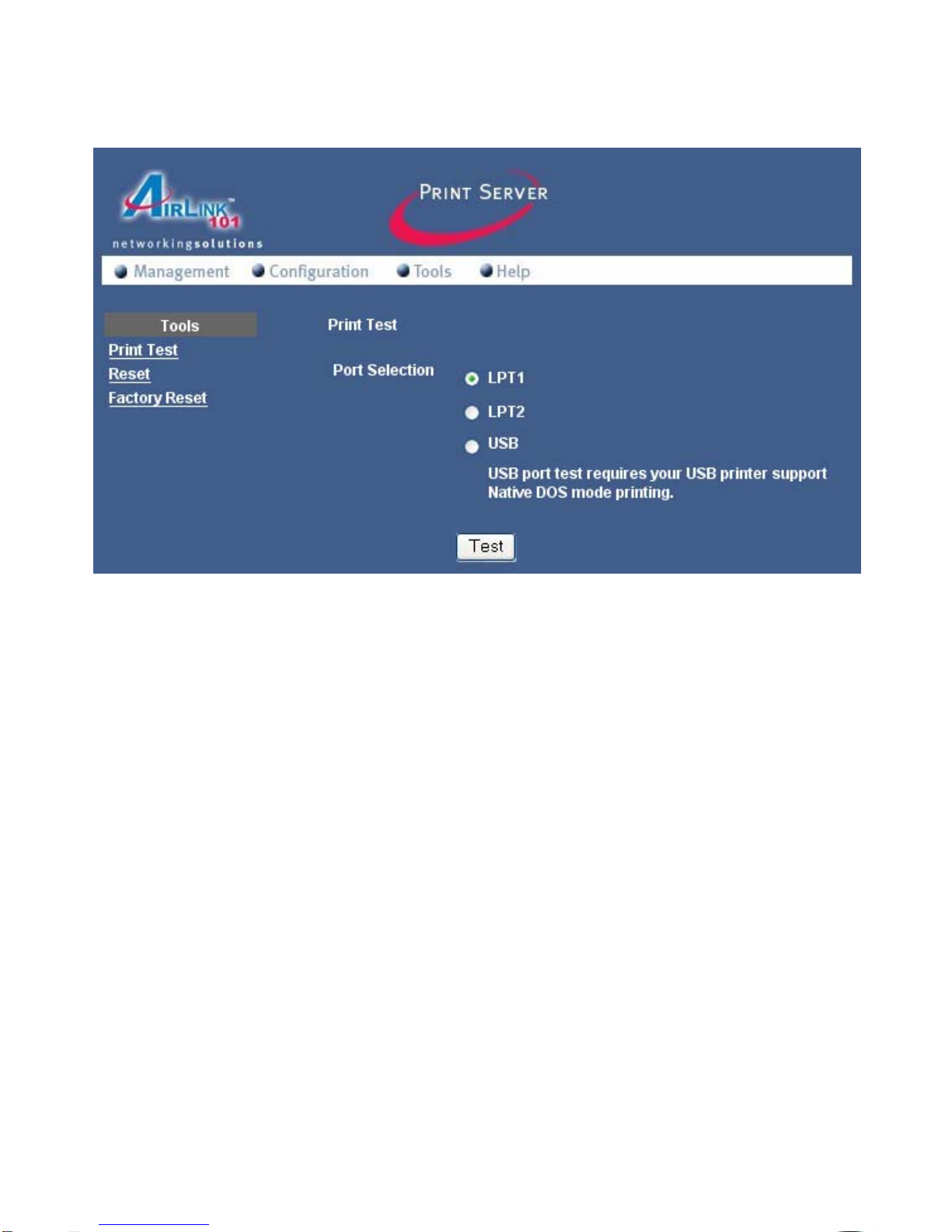

Step 5 Clickon theTools link and select the port that aprinter is connected to and click the Test button.
ThePrint Server willperform a low-levelprinttest, bypassingthe operating systemlayer.Performtheprint
testfor each port that has a printer connectedtoit.
Note:Your printer should print outatest page.If not, verify that theprinterispowered on and all cables
aresecurely connected and try again.Iftheprinter still fails to printatestpage, please check the printer
compatibilitylistonourweb site at www.airlink101.com for a list of compatibleprinters.Ifyourprinter is
noton the list, it maynotbe compatiblewith the Print Server.
Step 6 Oncethe printer successfully prints out atestpage, you may close the webbrowserandproceed
tothenextsection.
Section 5
Running PS Wizard
Warning: Make sure youhaveinstalledthe printer driver locallyonevery computer in yournetwork
beforerunning the PS Wizard.Otherwise,the PS Wizard willnotrun properly. Be sure torunthe PS
Wizardon allthe computersinyour network.
Step 1Insert the provided CD and wait for the setup menu to appear.
Step 2 Click on PS Wizard.
Note: Ifthe setup menu does not appear automatically afteryouhaveinsertedthe CD, go to Start,Run,
type D:\autorun.exe (where D is the letter of your CD drive) and click OK.
Section 4
Step 3 Click Next.
Step 4 Select a printer that isconnected to theprint server and clickNext.
Note: Ifyou have morethanone printer connectedtothe print server,you’ll need tore-runthePS Wizard
againto setup theotherprinters.
