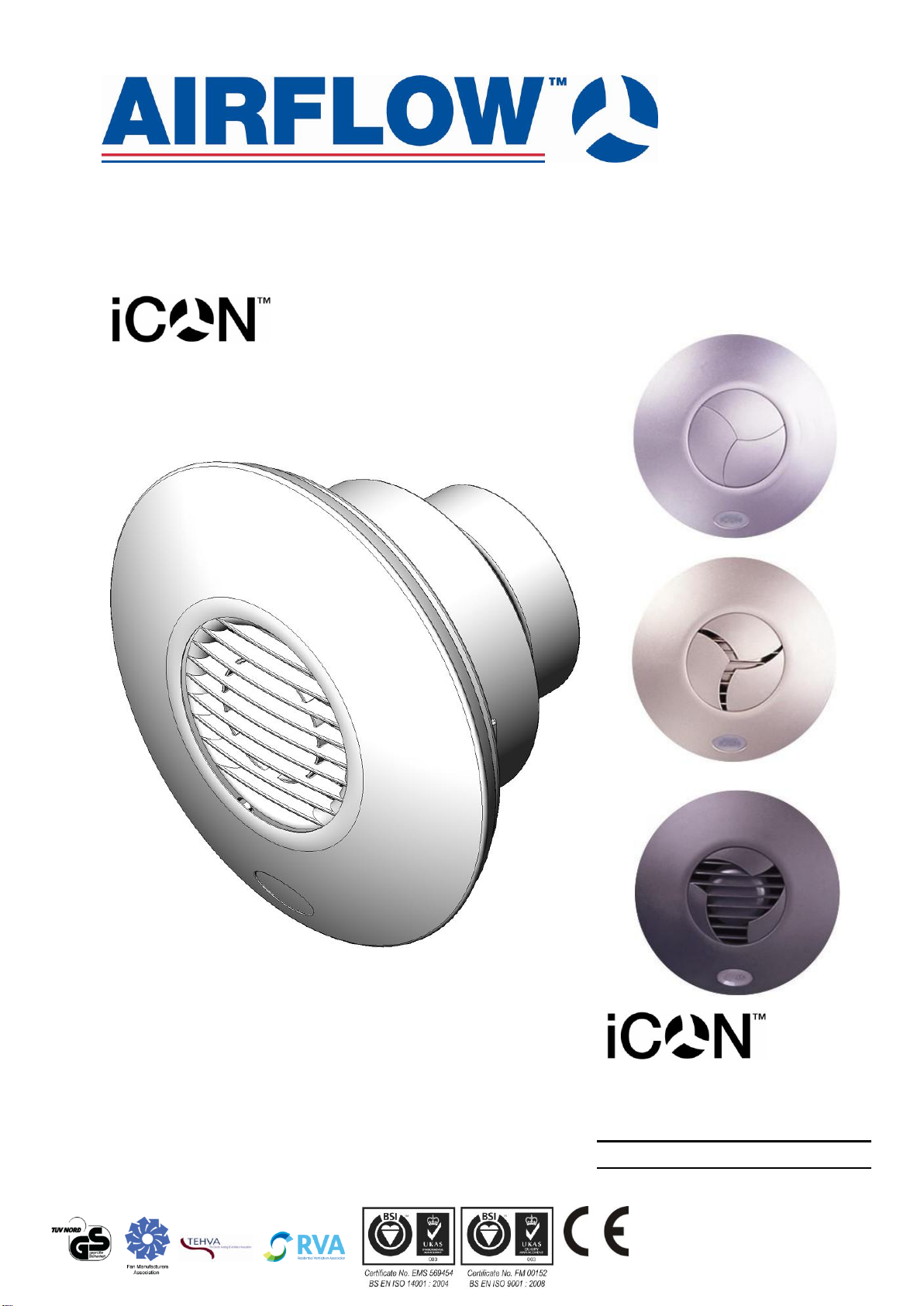

Airflow ICON Guide d'installation

Domestic DC Fans

Installation and Operating Guide

eco

12V SELV Base Models:

iCON eco15S –72683701 (15S)

iCON eco30S –72683801 (30S)

Page 2 of 8

Installation, Maintenance and Use

iCON Domestic DC Fans are available in 2 model sizes and can be fitted into a wall or ceiling.

Each fan requires a suitable size hole through the wall or ceiling which connects into a duct

venting to the outside. The external opening should be covered by a suitable external grill,

available separately from Airflow Developments Ltd.

Model Options

72683701 - 15S -100mm Axial Fan with maximum capacity of 21.9 l/sec.

72683801 - 30S -100mm Mixed Flow Fan with maximum capacity of 34.25 l/sec

iCON Domestic DC Fans can be used as a simple extract fan powered via the SELV power

supply unit (supplied), and connected to either a remote switch, or can be fitted with an

internal control module, supplied to give a range of control options including timer,

humidity, motion sensor, pull cord, trickle speed or a combination of these functions.

Optional control modules are available separately and can be fitted at the time of

installation or retrofitted.

iCON Domestic DC Fans have IPX 4 rated housings, they are double-insulated and are

suitable for fitting in Zone 1 or 2 of bathrooms, toilets, kitchens, utility rooms and inside

shower cubicles as defined in Section 701 BS7161:2008 (IEEE Wiring Regulations, 17th

Edition ). They also comply with the 2010 Building Regulations, Approved Document F. The

power supply unit, supplied with the fan, must be fitted outside of Zones 0, 1 and 2. It is

usually installed outside the room.

Do not place the fan near direct heat sources, e.g. radiant heaters, or where temperatures

can exceed 40°C (104°F).

iCON Domestic DC Fans –15S & 30S

Page 3 of 8

The power supply unit has resettable over current and short circuit protection. An external

3Amp fuse is still required with each power supply. The power supply unit has a Led

indicator to show that the unit is switched on and functioning correctly.

Note: Switches for fans should be selected and sited in accordance with BS7161:2008

All electrical installation to be carried out by an approved electrician in accordance with Part

“P” U.K. Building Regulations and to the latest IEEE standards, or the appropriate regulations

in the country of installation.

ALWAYS ISOLATE THE POWER SUPPLY UNIT AND FAN UNIT FROM THE POWER SUPPLY

BEFORE REMOVING THE COVER.

Mechanical Installation

Power Supply Unit

The power supply unit does not require dismantling and should be installed by a qualified

electrician to BS7161:2008 (IEEE wiring standards 17th Edition). The maximum length of wire

between the power supply and the fan should not exceed 5m using 1.5mm2wire.

NEVER COVER THE POWER SUPPLY UNIT WITH THERMAL INSULATION MATERIALS

Fan Unit

iCON Domestic DC Fans can be recessed in a wall or

ceiling. A mounting skirt is provided for surface

mounting of the 30S.

To avoid the backflow of condensation into the fan in

a ceiling installation it is good practice to fit a

CONDENSATION TRAP to the outlet duct of the fan.

Ensure free running of the fan impeller and that

flexible duct connections are not over tightened to

the fan’s outlet spigot.

Airflow recommend that rigid ducting is used instead

of flexible ducting, this will ensure maximum

performance

CONDENSATION TRAP

Page 4 of 8

Front Cover Removal

The front cover has a bayonet type

fitting. To remove, undo the retaining

screw at the bottom edge of the cover

using a screwdriver, then rotate the

cover a few degrees anticlockwise and

remove. To refit, reverse the above

procedure.

The 15S requires a 110mm diameter hole through the wall, lined with a 100mm id (internal

diameter) duct.

The 30S requires a 110mm diameter hole through the wall, counter bored 160mm diameter

to a depth of 75mm. The 110mm hole should be lined with a 100mm id duct.

Surface Mounting on the Wall

When surface mounting the 30S, the supplied mounting skirt should be used. The 30S

requires a 110mm diameter hole through the wall lined with a 100mm id duct.

Recessing Fans in the Ceiling

When recessing fans in the ceiling, a plywood support (min 18mm thick) should be mounted

between the ceiling joists. Fans should not be fitted to unsupported plaster board.

UNDO THE RETAINING

SCREW AT THE BOTTOM

EDGE OF COVER USING A

SCREWDRIVER.

POSSIBLE CABLE

ROUTING

DUCT

CEILING

PLYWOOD

JOIST

Page 5 of 8

The 15S requires a 110mm diameter hole through the ceiling. The fan should be fixed with

the screws provided, through the plaster board into the support.

The 30S requires a 160mm diameter hole through the ceiling. The fan should be fixed with

the screws provided, through the plaster board into the support.

Surface Mounting Fans in the Ceiling

When surface mounting the 30S, the mounting skirt should be used.

The 30S requires a 110mm diameter hole through the ceiling. The surface mounting skirt to

be fixed, with the screws provided, through the plaster board into the support. The fan is

then fitted into the skirt.

Where flexible duct is used the diameter must be maintained.

POSSIBLE CABLE

ROUTING

DUCT

CEILING

PLYWOOD

JOIST

MOUNTING SKIRT

Page 6 of 8

Refer to instructions supplied with (optional) modules for further information.

Electrical Installation

All electrical installation to be carried out by an approved electrician in accordance with

Part “P” U.K. Building Regulations and to the latest IEEE standards, or the appropriate

regulations in the country of installation.

iCON Domestic DC fans require a 12V dc supply via the power supply unit.

Wiring with no control module fitted.

Optional Modules for iCON Domestic DC Fans

Wiring via control module with external switching.

Wiring via control module with no external switching.

3 AMP

Switched

+12v

12v

POWER SUPPLY

12v

RCD

FUSE

ISOLATOR

3 AMP

POWER SUPPLY

12v

Switched

+12v

12v

FUSE

3 AMP

Switched

+12v

12v

RCD

POWER SUPPLY

12v

FUSE

RCD

ISOLATOR

Page 7 of 8

Maintenance

SAFETY FIRST: ALWAYS ISOLATE THE FAN UNIT FROM THE POWER SUPPLY BEFORE REMOVING THE COVER.

Warranty only covers the fan, not the reinstallation of the fan if required.

When installed according to these instructions the iCON Domestic Fans are completely safe.

The materials used do not constitute a hazard. The module covers are made of a flame retardant material.

Cleaning

The external housing of the fan can be wiped with a damp cloth. Do not use household

cleaners containing abrasives.

Cleaning of the internal parts such as the impeller should be carried out using a soft

brush.

Note: Always ensure that the fan unit is isolated from the power supply before inserting

the brush into the impeller duct.

Never clean any parts of the fan assembly by immersing in water or using a dishwasher.

Warranty

Applicable to units installed and used in the United Kingdom. Airflow guarantees the iCON

Domestic DC Fans for 2 YEARS from date of purchase against faulty material or

workmanship. Extended to 3 when registered @ airflow.com. Warranty only covers the fan,

not the reinstallation of the fan if required.

In the event of any defective parts being found, Airflow Developments Ltd reserve the right

to repair or at our discretion replace without charge provided that the unit:

1. Has been installed and used in accordance with the fitting and wiring instructions

supplied with each unit.

2. Has not been connected to an unsuitable electrical supply.

3. Has not been subjected to misuse, neglect or damage.

4. Has not been modified or repaired by any person not authorised by Airflow

Developments Ltd

5. Has been installed in accordance with latest Building Regulations and IEEE wiring

regulations.

Airflow Developments shall not be liable for any loss, injury or other consequential damage,

in the event of a failure of the equipment or arising from, or in connection with, the

equipment excepting only that nothing in this condition shall be construed as to exclude or

restrict liability for negligence.

This warranty does not in any way affect any statutory or other consumer rights.

Page 8 of 8

Germany

AIRFLOW LUFTTECHNIK GmbH

Postfach 1208

D-53349 Rheinbach

Germany

Tel: +49 (0) 222 69205 0

Fax: +49 (0) 222 69205 11

Email: [email protected]

Web: airflow.de

Czech Republic

AIRFLOW LUFTTECHNIK GmbH

o.s. Praha

Hostýnská 520

108 00 Praha 10

Malešice

Czech Republic

Tel: +42 (0) 2 7477 2230

Fax: +42 (0) 2 7477 2370

Email: in[email protected]

Web : airflow.cz

UK Head-Office

AIRFLOW DEVELOPMENTS Limited

Aidelle House, Lancaster Road

Cressex Business Park

High Wycombe

Buckinghamshire

HP12 3QP

Tel: +44 (0) 1494 525252

Fax: +44 (0) 1494 461073

Email: [email protected]

Web: airflow.com

AIRFLOW DEVELOPMENTS Limited reserve the right in the interest of continuous development to alter any or all specifications without prior notice.

Range of Optional Modules Available

Choose the 12v DC Module

The same Low Voltage Module fits any Low Voltage Fan

PCS –Pull Cord: 72573603

PCTS –Pull cord with Adjustable Timer: 72574204

HTS –Humidity, Pull cord with Timer Overrun: 72574202

PRTS –Motion Sensor with Timer: 72574203

PRHTS –Motion Sensor/Humidity/Timer: 72574201

DTS –Self Delay Start, Pull cord with Timer Overrun: 72682307B

Choice of Anthracite, Sandstone, Chrome and Silver covers

iCON 15 cover Anthracite 52634503B

iCON 15 cover Silver 52634504B

iCON 15 cover Sandstone 52634505B

iCON 15 cover Chrome 52634502B

iCON 30 cover Anthracite 52634506B

iCON 30 cover Silver 52634507B

iCON 30 cover Sandstone 52634508B

iCON 60 cover Anthracite 52634509B

iCON 60 cover Silver 52634510B

iCON 60 cover Sandstone 52634511B

9041549

Issue 4

11/11
