Aircon Mini Split Air Conditioner Manuel utilisateur

OWNER'S MANUAL

Mini Split Air Conditioner

Air-Con Air Condi t i o n e r s

Thank you for choosing an Air-Con air conditioner! Please take time to

it carefully for future reference.

read this owner's manual carefully before operating the unit and store

36,000 Btu/hr

■

Do not dispose this product as unsorted municipal waste.

Collection of such waste separately for special treatment

is necessary.

CONTENTS

Operation and maintenance

Notices for operation.......................................................................1

Notices for use................................................................................3

Names and functions of each part..................................................4

Operation of wireless remote control..............................................5

Clean and care..............................................................................11

Troubleshooting.............................................................................13

Installation service

Notices for installation...................................................................16

Installation dimension diagram......................................................18

Install indoor unit...........................................................................19

Install outdoor unit.........................................................................21

Check after installation and test operation....................................23

This symbol stands for the items

should be forbidden This symbol stands for the items

should be followed

Emergency operation....................................................................10

The figures in this manual may be different with the material objects, please refer

to the material objects for reference.

■Installation and Maintenance of Healthy Filter..............................24

The physical product may differ from the drawing in this manual for different display.

If there are some differences between them, please refer to the physical product as

the standard.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities or lack of experience and knowledge,

unless they have been given supervisionor instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure they are away from the appliance.

★

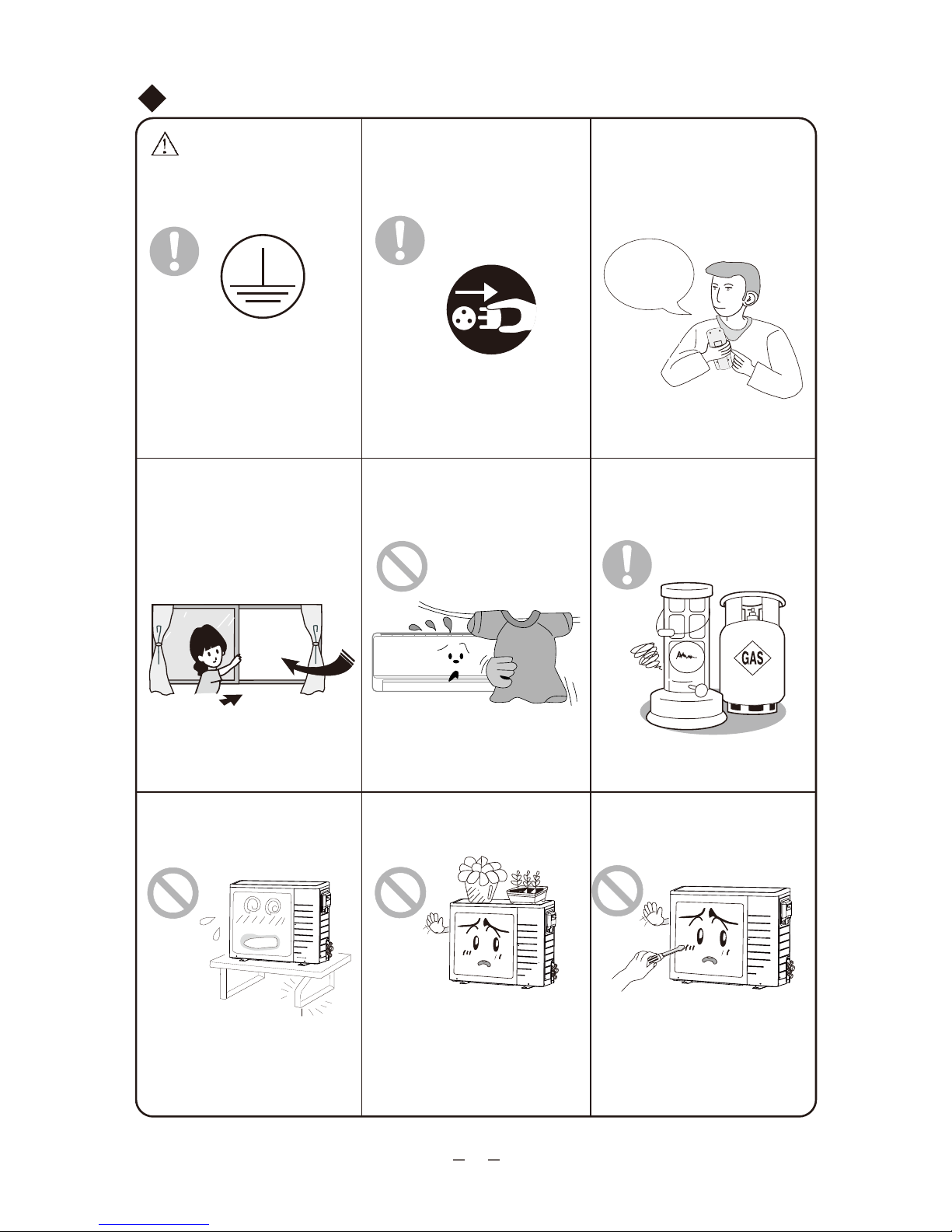

Operation and maintenance-notices for operation

★★

Be sure to pull out the power plug

★

★★

★

Earth: The ground be con-

nected!

If not, please ask the qualified person-

nel to install. Furthermore, don't conn-

ect each wire to the gas pipe, water

pipe, drainage pipe or any other impr-

oper places.

when not using the air conditiiner

for a long time.

Otherwise, the accumulated dust

may cause fire or electric shock.

Select the most appropriate tem-

perature.

Keep room cool-

er than outside

about 5 degree.

It can preclude the electricity wasted.

Don't leave windows and

doors open for a long time

while operating the air conditioner.

It can decrease the air conditioning

capacity.

Don't block the air intake or outlet

vents of both the outdoor and indoor

units.

It can decrease the air conditioning

capacity or cause a malfunction.

Keep combustible spray away

from the units more than 1m.

It can cause afire or explosion.

If it is damaged, it may lead to

the fall of the unit and cause

the injury.

Please note whether the installed

stand is firm enough or not.

Don't step on the top of the

outdoor unit or place something

on it.

As falling off the outdoor unit

can be dangerous.

Don't attempt to repair

the air conditioner by yourself.

The wrong repair will lead to

an electric shock or fire, so

you should contact the service

center to repair.

★ ★

★★

★

Don’t apply the cold wind to

the body for a long time.

It can cause the health problems.

Splashing water on the air

conditioner can cause an electric

shock and malfunction.

Don’t place a space heater

near the air conditioner.

Don’t blow the wind to animals

and plants directly. It can cause

a bad influence to them.

Don’t insert your hands or stick into

the air intake or outlet vents.

Don’t use the air conditioner

for other purposes, such as

drying clothes, preserving foods, etc.

To adjust the airflow direction

appropriately. When operating

the unit, to adjust the vertical air flow dire-

ction by use of remote controller.And then,

Swing louver Guide louver

Please don't cut off or damage the

power cords and control cords.

If they are damaged, please ask the qualified

personnel to change them.

Notices for operation

hold two ends of swing louver to adjust the

horizontal airflow.

Working principle and special functions for cooling

Principle:

Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that

indoor ambient temperature decreased, its cooling capacity will increase or decrease by

outdoor ambient temperature.

Anti-freezing function

If the unit is running in COOL mode and in low termperature, there will be frost formed on

the heat exchanger, when indoor heat exchanger temperature decreased below 32 , the

indoor unit microcomputer will stop compressor running and protect the unit.

Working principle and special functions for heating

Principle:

* Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase

room temperature. This is the heat pump heating principle, its heating capacity will be

reduced due to outdoor temperature decrease.

*If outdoor temperature becomes very low, please operate with other heating equipments.

Defrosting:

*When outdoor temperature is low but high humidity, after a long while running, frost will

form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting

function will act, the heat running will stop for 8-10mins.

*During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.

*During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.

This is due to the defrosting, it isn't malfunction.

*After defrosting finished,the heating will recover automatically.

Anti-cool wind function:

In Heat mode, the following three kinds of status, if indoor heat exchanger hasn't achieve

certain temperature that indoor fan motor will not start, in this way to prevent blowing cool

wind (within 3mins):

The climate type of this unit is according to the nameplate.

Installation must be performed in accordance with the NEC/CEC by authorized person only

Notices for use

（5）

（2）

（1）

（4）

(3)

(6)

（8）

（7）

Names and functions of each part

Indoor unit

Air in

Air out

Front panel

Filter

Guide louver

Wall pipe

Bind tape

Connection wire

Drainage pipe

Remote control

Outdoor unit

⑴

⑹

⑸

⑵

⑻

⑷

⑺

⑶

Air out

Air in

５

●

AUTO

COOL

DRY

FAN

HEAT (Note:no for coolling

FAN FAN speed button

Press this button once, fan speed will change

as below: Auto

Low speed Middle speed

High speed

Note:Under the Dry mode, the fan speed isn't

●

Simpleness swing mode is defaulted for wireless

remote control, in this mode, press this button,

(＋/－)

16～30℃。

●

Names and functions of remote control buttons

Note: Be sure that there are no obstructions between receiver and remote control; Don't drop

or throw the remote control; Don't let any liquid in the remote control and put the remote control

directly under the sunlight or any place where is very hot

Signal transmitter

Remote control

ON/OFF

ON/OFF button

Press this button, the unit will be started or stopped,

which can clear the timer or sleeping function of

last time.

●

only unit)

.PMET button

(＋/－)

When press +button , the setting temp. will b

increased by 1 ,When press -button,the

setting temp. will be decreased by 1

The temp. will be changed quickly

the button continuously and setting temp. range

℃

by pressing

●

Operation of remote control

Swing up and down button

℃

below.

Press this button, the running mode

will change as

Mode button

MODE

FAN

AUTO

OPER

HEALTH

AIR

FILTER

TURBO

ON/OFF

X-FAN

HOUR

HUMIDITY

ON/OFF

MODE

FAN

X-FAN

TURBO

TEMP TIMER

SLEEP LIGHT

could turn on or turn off the Up and down

swing function.

When unit is turned off, synchronously press

"+" and Up and down swing buttons, it could

be switched between the simpleness swing

mode and stationary swing mode, at this time,

blinks 2 seconds.

In Stationary swing mode, press this button,the

angle for Up and down swing as show in below:

When up and down swing louver is working,

when turn off the unit, the siwng louver will

●

immediately stop at current position.

shows up and down swing louver swings back

and forth as show in the above figure.

adjustable, low fan speed is imperative,

but when operating this button, the wireless

remote control will send this signal.

(61 F~86 F).

o o

６

HEALTH function:there is no this function

for this unit. If press this key, the main unit

will click, but it also runs under original status.

wireless remote control, fan speed automatically

rotates, when repress this button, the fan speed

will run at previous setting fan speed.

HEALTH

SAVE

HEALTH

SAVE

FAN

AUTO

OPER

HEALTH

AIR

FILTER

TURBO

ON/OFF

X-FAN

HOUR

HUMIDITY

ON/OFF

MODE

FAN

X-FAN

TURBO

TEMP TIMER

SLEEP LIGHT

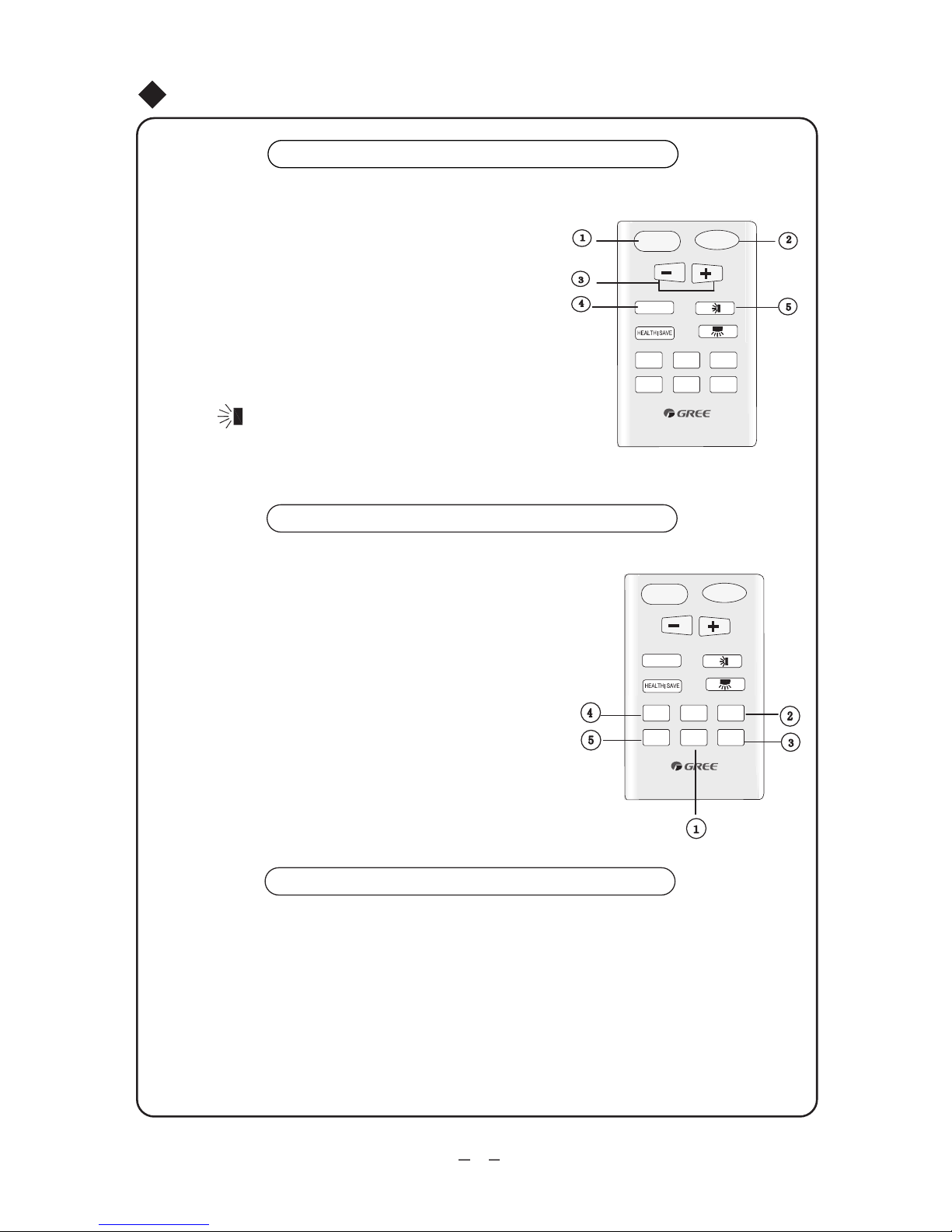

Operation of remote control

TIMER

●

NOTE: This Remote control is universal, it could be used formany units, some buttons

of this control which are not available to this unit will not be described below.

On the status of the unit on, press this

button to set timer off. On the status of

the unit off, press this button to set timer

off. Press this key once, words Hour on(off)

will appear and flicker. In which case, press

+/- button to adjust time (press+/- button

the setting time range is from 0.5 to 24 hr.

;

continuously to change timing value quickly

then remote controller will send out the signal

immediately and hour on/off will stop flickering.

If the time of that no press timer button

under flickering status is above 5s,the timer

setting will quit. If the timer has been set,

press this button once again to quit it.

press this key once again to fix the time,

●

● Save energy function: this unit has no this

function, press this button, the mian unit will

click, "SE" will be displayed on the LCD of

Remote control

TURBO Turbo button

Set turbo on or off(the characters of turbo

will appear or disappear ) by pressing this

●

key under cooling or heating mode.Once

energized, the unit will be defaulted to be

turbo off. This function can not be set under

of turbo won't appear.

auto, dehumidify or fan mode, and characters

button

Timer button

Names and functions of remote control buttons

Left and right swing button

T here is no this function for this unit. If press

this key, the main unit will click, but it also

runs under original status.

●

７

1 , 2 hours later

setting temp.

●

℃

●

NOTE: This remote control is universal, it could be used formany units, some

buttons of this control which are not available to this unit will not be

described below.

Names and functions of remote control buttons

Operation of remote control

X-FAN button

Set X-FAN on (the characters of X-FAN will

appear)or off (the characters of X-FAN

disappear ) by pressing this key under

cool or dehumidify mode. Once energized,

the unit will be defaulted to be X-FAN off.

This function can not be set under auto,

fan or heat mode, and the characters of

X-FAN won't appear.Note:X-FAN (or BLOW

Press this button to select LIGHT on or off

in the displayer. When the LIGHT on is

set,the icon will be displayed and the

indicator light in the displayer will be on.

When the LIGHT off is set, the icon will

be displayed and the indicator light in the

displayer will be off.

Light button

LIGHT

Press this button, enter into SLEEP state,

when repressed, it will quit. The sleep function

and FAN mode.

will be canceled with the stop of the unit.

There is no SLEEP function under AUTO

is the icon for sleep

function.

SLEEP Sleep button

At COOL, X-FAN mode: the SLEEP mode runs

after 1hour, the setting temp. will be increased

by 1 , 2 hour later, setting temp. will be

increased by 2 and then will run at this

setting temperature.

after 1hour, the setting temp

will be

At HEAT mode: the SLEEP mode runs

decreased by

then it will run

at setting temperature.

℃

will be decreased by

Remote control

X-FAN

FAN

AUTO

OPER

HEALTH

AIR

FILTER

TURBO

ON/OFF

X-FAN

HOUR

HUMIDITY

ON/OFF

MODE

FAN

X-FAN

TURBO

TEMP TIMER

SLEEP LIGHT

TEMP Temp. display button

T here is no this function for this unit. If press

this key, the main unit will click, but it also

runs under original status.

●

same function,different name)

Guide for operation-general operation

★

cheduled timer on or timer off.

ON/OFF

MODE

FAN

X-FAN

TURBO SLEEP LIGHT

TEMP TIMER

ON/OFF

MODE

FAN

X-FAN

TURBO SLEEP LIGHT

TEMP TIMER

1.Press ON/OFF button to start the unit after powering

the main unit on.(Note: Power the unit on every time,

the big -guide louver and small-guide louver will be

closed firstly.)

2.Press MODE button to select desired running mode.

3.Press +/ - button to set the desired temperature.

(It is unnecessary to set the temperature at AUTO mode)

4. Press FAN button to set fan speed, the AUTO FAN,

LOW, MID or HIGH could be selected.

5. Press button to set swing mode.

1.Press SLEEP button, set the sleep mode.

2.Press TIMER button, then press +/- button, to set the

3. Press light button to control displayer light on or off.

4. Press X-FAN button to set X-FAN function on or off.

5. Press turbo button to set this function on or off.

Guide for operation-optional operation

Introduction for special function

This function indicates that moisture on evaporator of indoor unit will be blowed after the unit

About X-FAN function

is stopped to avoid mould.

1. Having set X-FAN function on: After turning off the unit by pressing ON/OFF button

indoor fan will continue running for about 10 min. at low speed. In this period,

press X-FAN button to stop indoor fan directly.

2. Having set X-FAN function off: After turning off the unit by pressing ON/OFF button,

the complete unit will be off directly.

Operation of remote control

８

Table des matières

Autres manuels aircon Climatiseur

aircon

aircon ACZEM4C4R18 Manuel utilisateur

aircon

aircon MDV DCTS-12R32IVT IN Manuel utilisateur

aircon

aircon AMTCM4H4R30 Manuel utilisateur

aircon

aircon A16EM4H4R36 Manuel utilisateur

aircon

aircon ACZCI4H4R09 Manuel utilisateur

aircon

aircon ACZEM4H4R09 Manuel utilisateur

aircon

aircon CSTS-12R32IVT IN Manuel utilisateur

aircon

aircon MDV MSAFBU-09HRDN8-QRD0GWX Manuel de réparation

aircon

aircon ASKEC4H4R18 Manuel utilisateur

aircon

aircon Saturn Series Manuel utilisateur

aircon

aircon Split Air Conditioner Manuel utilisateur

aircon

aircon ABSCI4H4S09 Manuel utilisateur

aircon

aircon A17EM4C4M09 Manuel utilisateur

aircon

aircon 38B Manuel utilisateur

aircon

aircon ASKCI4H4R18 Manuel utilisateur

aircon

aircon ACZCI4H4R18 Manuel utilisateur

aircon

aircon A16EW4H4R09 Manuel utilisateur

aircon

aircon ASDDI4H4S24 Manuel d'utilisation

aircon

aircon Eco Power 9000 Manuel utilisateur

aircon

aircon MDV CLFS-18R32IVT IN Manuel utilisateur

aircon

aircon AMTCM4H4R42 Manuel utilisateur

aircon

aircon ABXEM4H4S09 Manuel utilisateur

aircon

aircon A13CH4H4G24 Manuel utilisateur

aircon

aircon A16CM4H4R18 Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

aircon Mini Split Air Conditioner Manuel utilisateur

Manuels Climatiseur populaires d'autres marques
