Air King AIF10X Manuel

Inline Fans

Specifications subject to change. • CFM = cubic feet per minute

Please note: The Home Ventilation Institute (HVI) does not currently have a sound test standard for remote mounted fans.

As a result sound levels (sones) are not listed. In most cases, a remote fan will be quieter than one mounted within the living area.

†Model AIF10X is not ENERGY STAR®Labeled

Inline Exhaust Fan Series

EXHAUST HVI CFM/

MODEL DESCRIPTION DUCT SIZE WATTS @ .2 WG

AIF4X Inline Exhaust Fan 4" 19 100

AIF6Y Inline Exhaust Fan 6" 71 230

AIF8X Inline Exhaust Fan 8" 122 360

AIF10X Inline Exhaust Fan†10" 240 600

Center your ventilation needs

around the power of the AIF Series

Inline Fans.

The AIF Series Inline Fans provide the driving

power of the system, giving it life. Designed for

long life and dependable performance, utilizing

an external rotor motorized impeller gives you

the knowledge that the fan will provide years

of worry-free ventilation.

The AIF Series is constructed of UL-recognized

and UV-protected thermoplastic resin and is

approved for mounting in wet locations.

Inline Fans take the noise away from the room.

Because the fan is remotely mounted, the sound

generated from the fan is minimized allowing

for a peaceful and quiet room.

ENERGY STAR®fans (models AIFX, AIF6Y, AIF8X), give you

the assurance that your room is being properly

ventilated the most efficient way.

FEATURES

•Prewired for simple and quick installation

•ENERGY STAR®models AIF4X, AIF6Y, AIF8X

•Ideal for multiple point exhaust, instead of a

single fan for each installation point

•Able to be used with a variable speed control

•UL approved for wet locations for both

residential and commercial applications and

rated for continuous duty

Inline Fan Kits

Specifications subject to change. • CFM = cubic feet per minute

Please note: The Home Ventilation Institute (HVI) does not currently have a sound test standard for remote mounted fans.

As a result sound levels (sones) are not listed. In most cases, a remote fan will be quieter than one mounted within the living area.

†Model AIK24Y is not ENERGY STAR®Labeled

Inline Exhaust Fan Kit

EXHAUST COLLAR HVI CFM/

MODEL DESCRIPTION DUCT SIZE DUCT SIZE WATTS @ .2 WG

AIK14X Fan/Intake Grill 4" 4" 19 100

AIK16X Fan/Intake Grill 6" 6" 61 190

AIK24Y Fan/2 Intake Grills 6" 4" 80 150

AIK26Y Fan/2 Intake Grills 6" 6" 71 230

Effectively solve your ventilation

needs with the simplicity of an

Inline Fan Kit.

Inline Fan Kits provide the components needed

for most installations. Add the ducting

accessories specific to your installation and

you’re ready to go.

The Inline Fan Kits include an ENERGY STAR®AIF

Series fan along with low profile and

unobtrusive inlet grills for either a single port

or dual port installation. The number of grills

included with the kit will depend on the specific

kit you choose.

DUAL INLET KIT FEATURES

•2 Low profile and unobtrusive inlet grills

•2 Collars with metal back draft damper that

includes a rubber gasket to reduce the sound

level during opening and closing

•Powerful ENERGY STAR®AIF Series fan with

mounting bracket and Y transition

SINGLE INLET KIT FEATURES

•Low profile and unobtrusive inlet grill

•Collar with metal back draft damper that

includes a rubber gasket to reduce the sound

level during opening and closing

•Powerful ENERGY STAR®AIF Series fan with

mounting bracket Models AIK14X, AIK16X

Models AIK24Y, AIK26Y

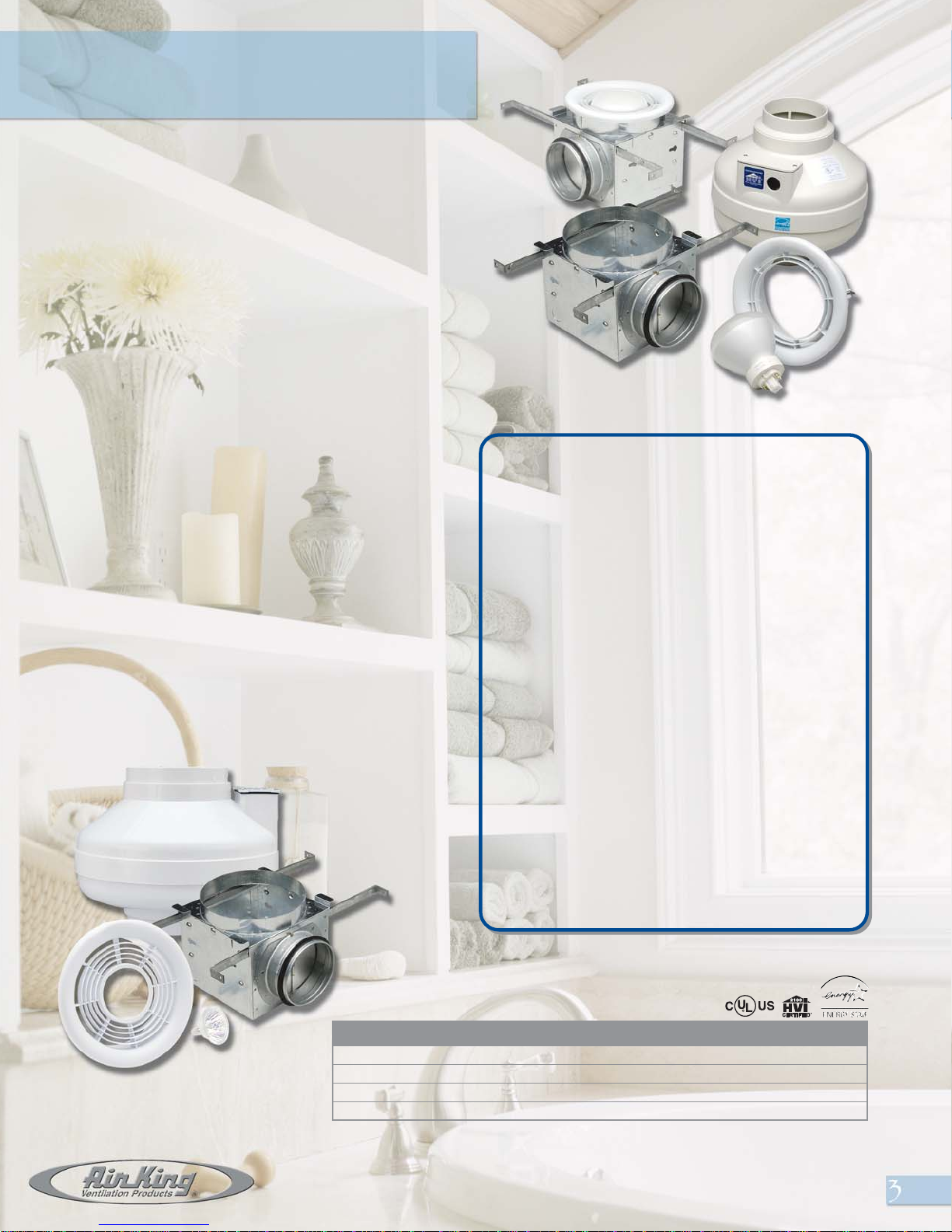

Inline Fan/Light Kits

Specifications subject to change. • CFM = cubic feet per minute

Please note: The Home Ventilation Institute (HVI) does not currently have a sound test standard for remote mounted fans.

As a result sound levels (sones) are not listed. In most cases, a remote fan will be quieter than one mounted within the living area.

†Models AIK14XL and AIK26YL are not ENERGY STAR®Labeled

Inline Exhaust Fan Kits with Light

EXHAUST HOUSING HVI CFM/

MODEL DESCRIPTION DUCT SIZE DUCT SIZE WATTS @ .2 WG

AIK14XL Fan/Intake Grill/Halogen Light†4" 4" 19 100

AIK14XF Fan/Intake Grill/Fluorescent Light 4" 4" 19 100

AIK26YL Fan/2 Intake Grills/2 Halogen Lights†6" 4" 71 230

AIK26YF Fan/2 Intake Grills/2 Fluorescent Lights 6" 4" 71 230

Effectively solve your ventilation

and lighting needs with the

simplicity of an Inline Fan/Light Kit.

Inline Fan Kits provide the components needed

for most installations. Add the ducting

accessories specific to your installation and

you’re ready to go.

The Inline Fan/Light Kits include an ENERGY STAR®

AIF Series fan along with low profile and

unobtrusive inlet grills for either a single port or

dual port installation. Choose from either a bright

Halogen light (models AIK14XL, AIK26YL) or an energy

efficient Fluorescent light (models AIK14XF, AIK26YF).

No need to search for a light bulb with the Inline

Fan/Light Kits, they are included with the unit.

Just one more convenience Air King offers.

DUAL INLET KIT FEATURES

•2 Low profile inlet grills with lights

•2 Housings with metal back draft damper

that includes a rubber gasket to reduce the

sound level during opening and closing

•Powerful ENERGY STAR®AIF Series fan with

mounting bracket and Y transition

SINGLE INLET KIT FEATURES

•Low profile inlet grill with light

•Housing with metal back draft damper that

includes a rubber gasket to reduce the sound

level during opening and closing

•Powerful ENERGY STAR®AIF Series fan with

mounting bracket

Model AIK26YF

Model AIK14XL

Intake Grills

The Air King Intake Grills allow

you to finish your system in style.

Whether you are adding to an existing system

or creating a custom one, Air King offers the

intake grill to finish it with style.

Air King provides the option to customize your

system for your specific needs with our standard

inlet grills or upgrade to a light combination

with either a bright Halogen or energy efficient

Fluorescent lamp.

All intake grills feature a metal back draft

damper that includes a rubber gasket to reduce

the sound level during opening and closing.

GRILL WITH LIGHT FEATURES

•Low profile inlet grill with light

INCLUDES

either a bright Halogen (AIG46HL) or energy

efficient Fluorescent (AIG46F) lamp

•Metal housing for easy installation on or

between joists

•Wiring junction box for easy connection to

power the light fixture

GRILL FEATURES

•Low profile and unobtrusive inlet grill

•Metal collar with mounting straps make

installation quick and easy

•Sized to meet the needs of most installations

with either a 4" or 6" round metal collar that

easily accepts the ducting

Model AIG46HL

Specifications subject to change.

Intake Grills

MODEL DESCRIPTION DUCT SIZE LIGHTING

AIG46HL Intake Grill w/Halogen Lamp 4" 50 Watt

AIG46F Intake Grill w/Fluorescent Lamp 4" 14 Watt

AIG4 Intake Grill 4" N/A

AIG6 Intake Grill 6" N/A

Models AIG4, AIG6

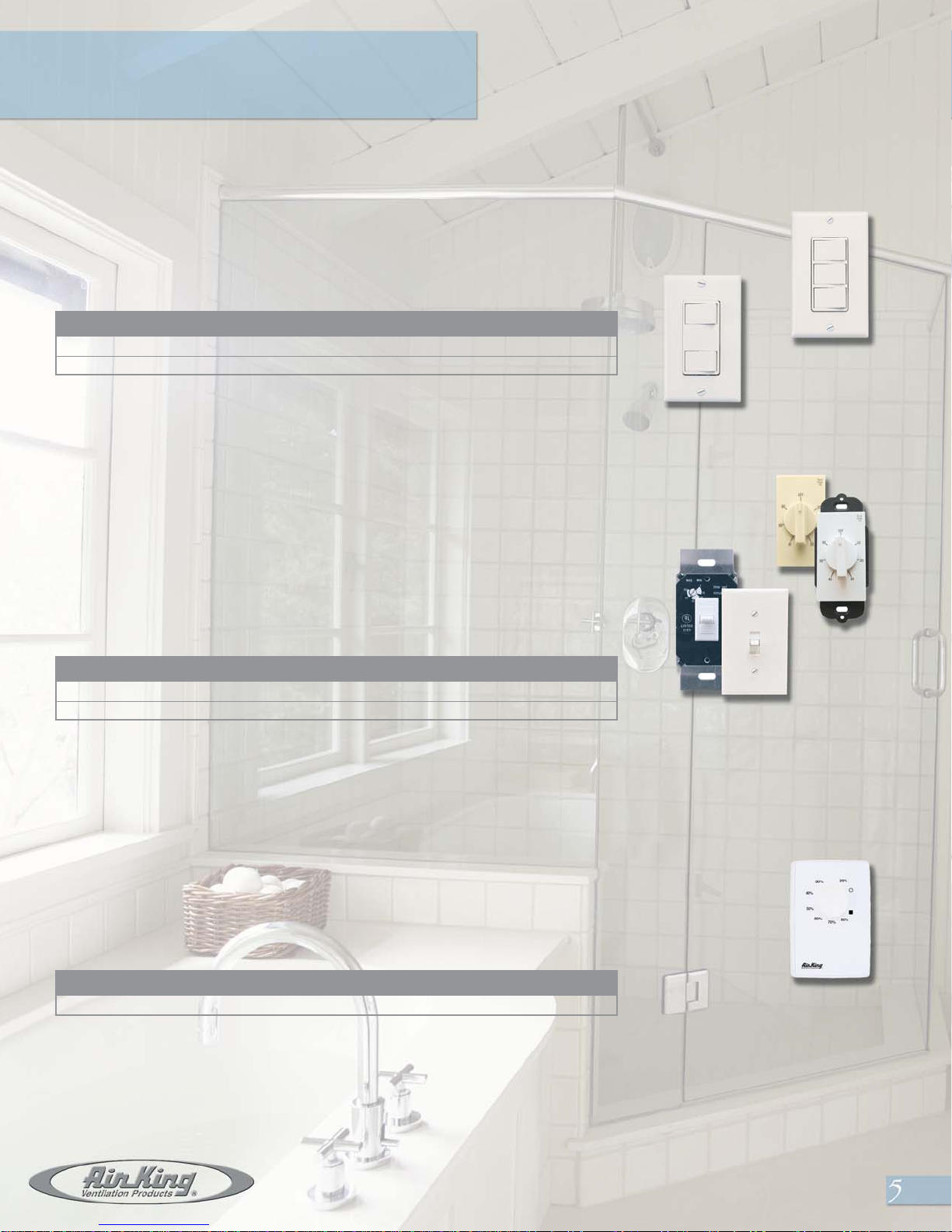

Switches and Timers

On/Off Switches

Energize your system with a decorative switch for independent on/off

control of the fan and any other room lighting, you would like to

control separately.

Timers

Ensure proper ventilation while enjoying the freedom a timer switch

gives you. Model AKT60 gives the user the ability to set the time up to

60 minutes. Model AKDT60 offers automatic control with a delay timer

that turns the light off but allows the fan to run for a preset time before

automatically turning off.

Specialty Controls

Always know that your room is being properly ventilated with the

model DH55 dehumidistat that automatically turns the unit on or off

according to the humidity level of the room and is easily adjusted to

your personal comfort.

Specifications subject to change.

MODEL FUNCTION USES COLOR

AKS2 Double switch for On/Off Control Fan/Light or Fan/Room Light White

AKS3 Triple switch for On/Off Control Fan/Light/Room Light White

Specifications subject to change.

MODEL FUNCTION USES COLOR

AKDT60 Delay Timer Switch Fan/Light or Fan/Room Light White

AKT60 60 Minute Timer Switch Timed Fan Control White/Almond

Specifications subject to change.

MODEL FUNCTION USES COLOR

DH55 Dehumidistat Control On/Off Control according to Humidity White

Model AKS2

Model AKS3

Model AKDT60

Model AKT60

Model DH55

Accessories

Roof, Wall Caps, and Ducting

The finishing touch to any system is the wall or roof cap. Properly

exhaust the air out of the home using a roof or wall cap matched to

your system’s needs. Insulated Flexible Ducting connects all the

components and provides an extra sound barrier for the system.

Light Fixture Lamps

Give light to your room with the lamp designed specifically for your unit.

Back Draft Dampers

Prohibit outside air from coming back into the system with a back draft

damper designed to fit within the ducting.

Specifications subject to change.

MODEL DESCRIPTION CONSTRUCTION

RCB Roof Cap w/damper and bird screen for up to 4" round ducting Black ABS Plastic

RC810 Roof Cap w/spring loaded damper for up to 8" round ducting Aluminum

WC4NS Wall Cap w/damper for 4" round ducting Aluminum

AKIFD4 4" Round Insulated Flexible Ducting, 25' section Metallized Polyester

AKIFD6 6" Round Insulated Flexible Ducting, 25' section Metallized Polyester

AKIFD8 8" Round Insulated Flexible Ducting, 25' section Metallized Polyester

AKIFD10 10" Round Insulated Flexible Ducting, 25' section Metallized Polyester

Specifications subject to change.

MODEL DESCRIPTION WATTS

14WFW Fluorescent lamp UL approved for wet locations 14

50WHA Halogen lamp UL approved for wet locations 50

Specifications subject to change.

MODEL DESCRIPTION DUCT SIZE

BDD4R Inline Metal Back Draft Damper 4" Round

BDD6R Inline Metal Back Draft Damper 6" Round

BDD8R Inline Metal Back Draft Damper 8" Round

BDD10R Inline Metal Back Draft Damper 10" Round

Model RCB Model WC4NS

Model RC810

Model 14WFW

Model 50WHA

Insulated

Flexible Ducting

Back Draft Dampers

AKILC 9-06

For additional information regarding our Ventilation Products or any of our other full lines of

Range Hoods, Building Products, or Air Circulators, please contact the dealer nearest you or:

United States:

820 Lincoln Avenue

West Chester, PA 19380

(877) 304-3785 • Fax (610) 696-8048

Canada:

110 Glidden Road

Brampton, Ontario L6T 2J3

(800) 250-8767 • Fax (905) 456-1015

Autres manuels pour AIF10X

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Air King Ventilateur

Air King

Air King D4D Manuel utilisateur

Air King

Air King K52 Manuel de service

Air King

Air King AS70 Manuel utilisateur

Air King

Air King 9214 Manuel de service

Air King

Air King 9856 Manuel utilisateur

Air King

Air King AK300LS Manuel utilisateur

Air King

Air King 99538 Instructions d'utilisation

Air King

Air King AKF100LS Manuel utilisateur

Air King

Air King ES130D2 Manuel utilisateur

Air King

Air King 2EJR6G/9155G Instructions d'utilisation

Air King

Air King AIK14X Manuel utilisateur

Air King

Air King ESDQIO series Manuel de la liste des pièces

Air King

Air King 9214 Instructions d'utilisation

Air King

Air King BFC90 Manuel utilisateur

Air King

Air King Ak912 Manuel utilisateur

Air King

Air King 9224 Instructions d'utilisation

Air King

Air King AKLC70DW Manuel utilisateur

Air King

Air King 9936C Manuel utilisateur

Air King

Air King 9723 Manuel de service

Air King

Air King AK150LS Series Manuel utilisateur

Air King

Air King Qufresh F130D Manuel utilisateur

Air King

Air King FRAS50 Manuel utilisateur

Air King

Air King BFC90 Manuel utilisateur

Air King

Air King 9124 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
