Aiphone MK-DVF-HID Manuel utilisateur

Vandal Resistant Black & White Video Door Station

With Built in Proximity Card Reader

MK-DVF-HID

(front view)

MK-DVF-HID

(back view)

- INSTRUCTIONS-

The MK-DVF-HID is an MK-series Black & White video door station and an HID ProxPoint Plus

Card Reader, built onto the same stainless steel faceplate. The card reader provides electronic

access to a building through a separate Access Control System, which is not supplied by

Aiphone.

11-⅝”

INSTALLATION:

1. For flush mounting, cut hole in wall and use supplied back box.

Box dimensions are 4-½”W x 10-⅜”H x 1-¾”D.

2. For surface mounting, use the SBX-DVF-P surface mount box.

This box can mount to a standard 1- gang box or to any flat surface.

20" pigtail cable

Wiegand Wire Color

+ DC (5-16V) Red

Ground Black

Data0 Green

Data1 White

Shield Ground Drain

Green LED Orange

Red LED Brown

Beeper Yellow

Hold Blue

Card Present Violet

Pg. 1

Connecting the Reader to the Host:

Connect the reader to the host according to the

wiring table below and the host installation guide.

5-¾”

MK-DVF-HID

PS-1820UL

Output to Host

Access Control System

WIRING DIAGRAM:

TESTING AND OPERATION:

When power is applied to the card reader, the LED will flash green three (3) times while

the beeper beeps simultaneously. The LED will then turn red. This indicates that the

microcontroller is operating properly.

Present an ID card to the reader. (Hold card directly in front of reader.) The LED will

momentarily turn green while the beeper beeps once, indicating that the card was read

successfully.

CARD READER:

Power Source: 5 ~ 16V DC

Absolute Max. Voltage: 18V DC

Current Requirements: 30mA (Avg); 75mA (peak)

Terminations: Color-coded pre-wired pigtail

Wiring Distance: 500'

Operating Temperature: -10°~60°C / 14°~140°F

Operating Humidity: 0-95% relative humidity

non-condensing

SPECIFICATIONS: CAMERA:

Camera unit: CCD Camera

Scanning line: 525 lines

Min. illumination: 1 Lux at 1'

Terminations: Screw terminals

Wiring Distance: 330' w/871802 wire

980' w/MYW-BA & 851602 wire

Dimensions(camera): 5-¾” W x 11-⅝” H x 1-5/16" D

With SBX-DVF-P: 5-15/16" W x 11-¾” H x 2-13/16" D (Top)

1-15/16" D (Bottom)

Aiphone Communication Systems

1700 130th Ave. N.E.

Bellevue, WA 98005

(425) 455-0510

FAX (425) 455-0071

Toll Free Technical Support:

1-800-692-0200

E-mail [email protected]m

Pg. 2

MK-DVF-HID Instr.

0706JDJS

FCC WARNING:

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference that may cause undesired operation.

For proper regulatory compliance, the drain wire should be disconnected at the

power supply end of the cable.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

The Reader is intended to be powered from a limited power source output of a

previously certified power supply.

MK-1GD

1A1

1A2

Autres manuels Aiphone Système d'interphone

Aiphone

Aiphone GF-NS Manuel utilisateur

Aiphone

Aiphone JK-1SD Manuel utilisateur

Aiphone

Aiphone IP MULTIFUNCTIONAL MASTER STATION AN-8500MS Manuel utilisateur

Aiphone

Aiphone JP-4HD Manuel utilisateur

Aiphone

Aiphone IS-SS-RA Manuel utilisateur

Aiphone

Aiphone TA-12F Manuel utilisateur

Aiphone

Aiphone GT-DMB-N Manuel utilisateur

Aiphone

Aiphone IE-2AD(U) Manuel utilisateur

Aiphone

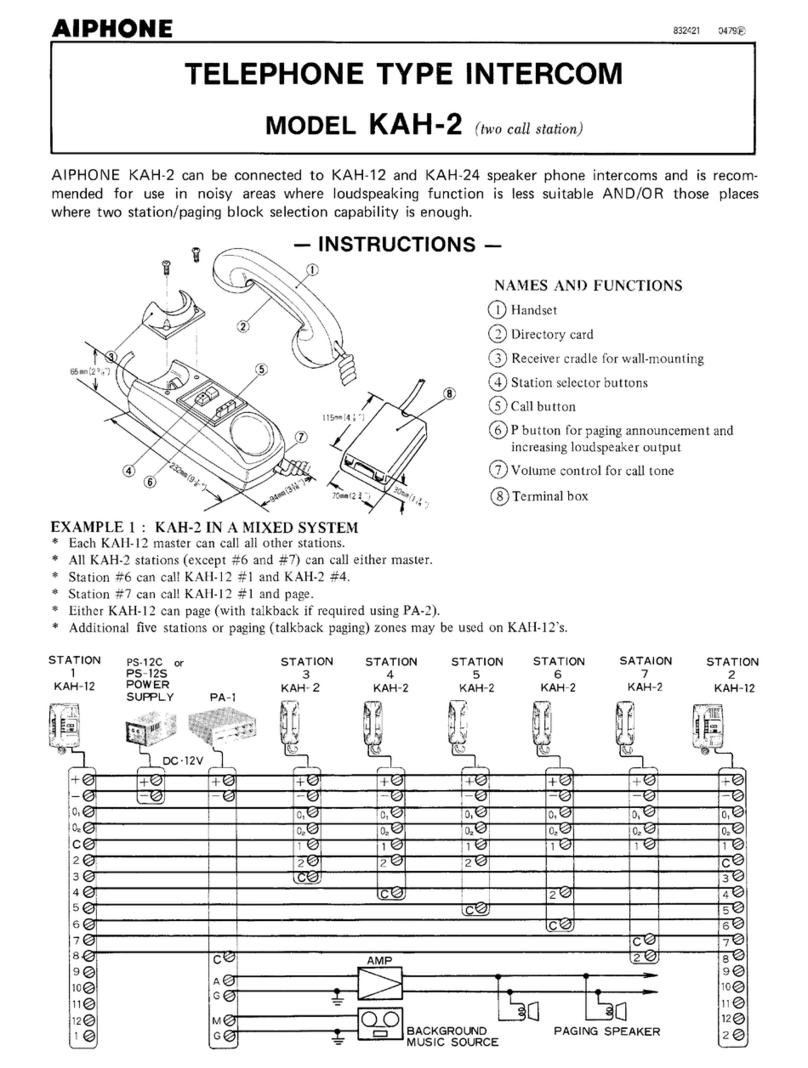

Aiphone KAH-2 Manuel utilisateur
