Aiphone IX-DVF-PR Manuel utilisateur

The IX-DVF-PR is an IX Series video door station with a built-in AC-PROX-1G proximity card reader. The card reader uses a standard

Wiegand interface to connect to a compatible access control system.

IX-DVF-PR

INSTALLATION GUIDE

IX-DVF-PR Dimensions: 11-11/16" H x 7" W x 1-15/16" D

Back Box Dimensions: 10-7/16" H x 5-13/16" W x 2-3/8" D

For ush mounting, recess the supplied back box into the wall,

then attach the mounting bracket using the four provided bracket

screws.

For surface mounting, use the SBX-IDVFRA surface mount box.

This box can mount to a standard single-gang box or to any at

surface.

The IX-DVF-PR is congured as an IX-DVF door station using

the IX Support Tool or IXG Support Tool. Refer to the appropriate

Quick Start Programming Guide for instructions.

Installation and Conguration

• Camera with manual vertical adjustment +15º, 0º, or -8º

• Two contact outputs, six trigger inputs

• Built-in RFID proximity reader

• Stainless steel faceplate

• SIP and ONVIF® Prole S compliant

• MicroSD™ card slot

• 802.3af PoE

Features

1. Camera

2. Microphone

3. White LED for low light illumination

4. Speaker

5. Function Indicator

6. Call Button

7. Card Reader

Names and Functions

Package Contents

IX-DVF-PR

Security Driver

Flush mount backbox

and tamper-resistant screws

IX-DVF-PR

Door Station

For more details about the features and information above, please contact Technical Support.

205/23

Aiphone Corporation | www.aiphone.com | (800) 692-0200

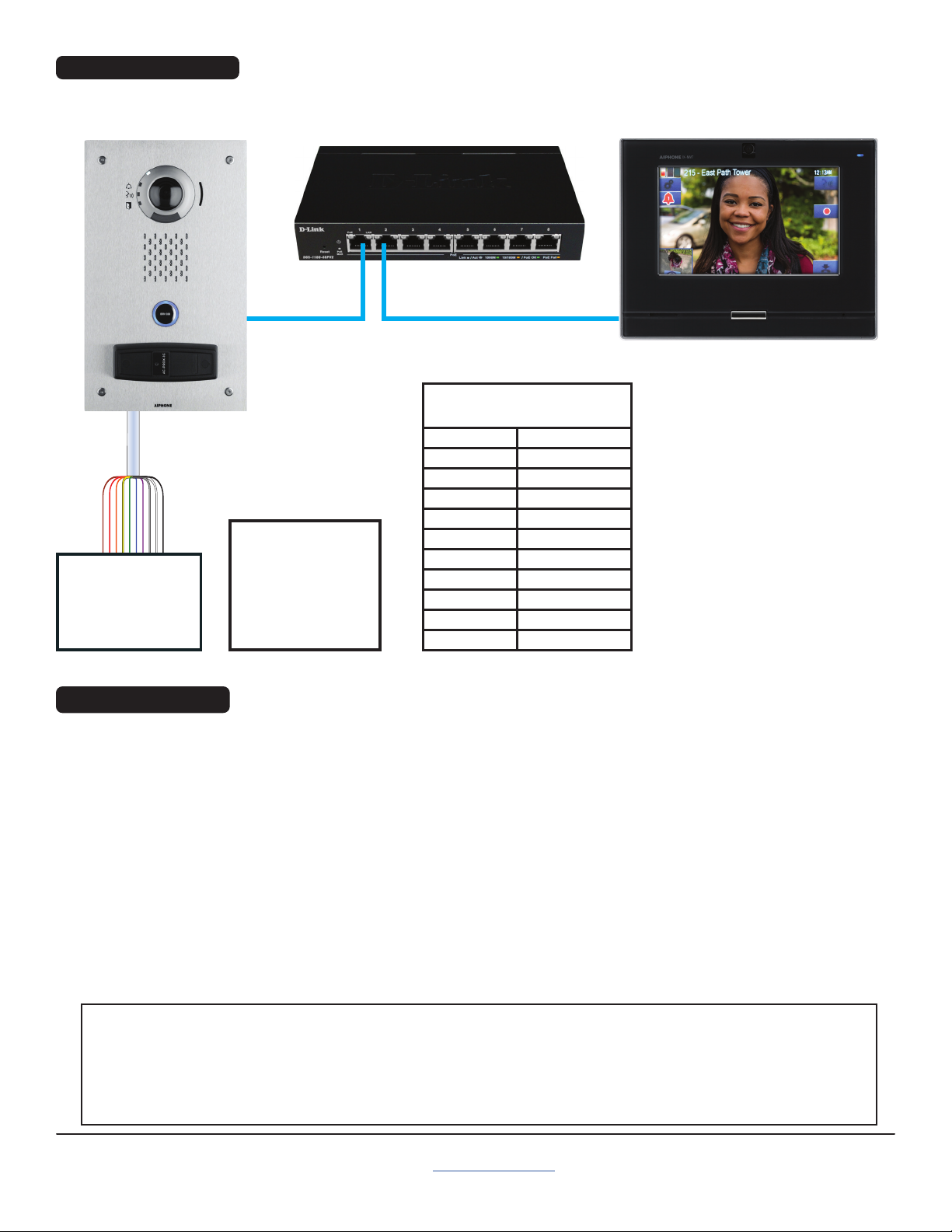

Wiring Diagram

FCC WARNING:

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference that may cause undesired operation.

For proper regulatory compliance, the drain wire should be disconnected at the power supply end of the cable.

Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Specications

Card Reader

Reader Type: 125-kHz Proximity Reader

Reader Model: AC-PROX-1G

Power Source: 5 ~ 16V DC

Current: 30mA (average); 75mA (peak)

Terminations: Color-coded pre-wired pigtail

Wiring Distance: 500'

Operating Temp: -31°~150°F (-35°~66°C)

Operating Humidity: 0% to 90% relative humidity

non-condensing

Door Station

Power Source: PoE (IEEE 802.3af class 0) or

24V DC (PS-2420UL)

Power Draw: 5.28W

Camera Unit: 1/3" CMOS 1.23 megapixel

Min. Illumination: 5 Lux

Terminations: RJ45 jack for audio/video

Pigtail for door release

Operating Temp: -40°~140°F (-40°~60°C)

Wiring Distance: 330'

Dimensions: 11-11/16" H x 7" W x 1-15/16" D

w/ SBX-IDVRA: 11-11/16" H x 7" W x 3-5/16" D

Connect theConnect the

reader to thereader to the

access controlaccess control

host accordinghost according

to the host'sto the host's

installation guide.installation guide.

Wiegand Wiring

Conductor Function

Red 5 ~ 16V DC

Black Ground

Green Data 0

White Data 1

Brown Red LED

Orange Green LED

Yellow Card Present

Blue Beeper

Violet eaPower

Drain Shield Ground

Access

Control Host

PoE Switch

Cat-5e/6Cat-5e/6

IX-MV7-*IX-DVF-PR
