Agilent

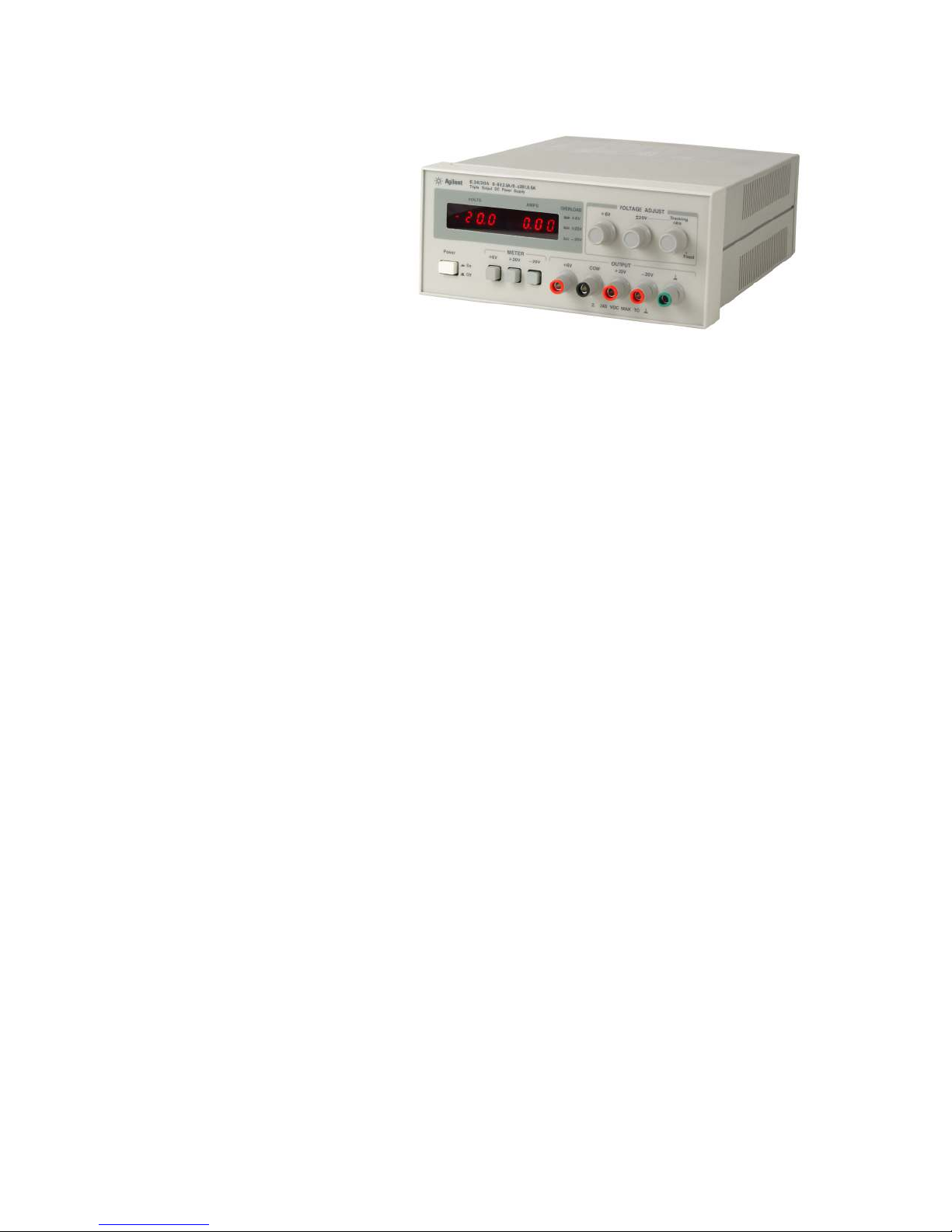

E3620A and E3630A

Non-Programmable DC Power Supplies

Data Sheet

Reliable power, repeatable

results

• Linear power supply

• Dual or triple output

• 10-turn voltage and current

control

• Low noise and excellent

regulation

Affordable, full-featured

benchtop power supplies

provide excellent

performance and ﬂexibility

Multiple-output non-

programmable models

The E3620A and E3630A low-cost

benchtop power supplies give you the

performance of system power supplies

at a decent price. Both supplies provide

clean power with excellent regulation

and a fast transient response.

With multiple supplies in a compact

unit, the E3620A and E3630A provide

excellent performance while saving

space on your bench. Both instruments

feature a tight 0.01 percent line and

load regulation and a low normal mode

noise speciﬁcation of less than 0.35

mV to ensure clean power for precision

circuitry. With a common mode

current speciﬁcation of less than 1 µA,

both multiple-output power supplies

minimize the power line current

injection.

The E3620A and E3630A feature

separate digital panel meters so you

can monitor the voltage and current

simultaneously. They also protect your

DUT against overload and short-circuit

damage.

Smooth turn-on and turn-off transitions

keep power spikes out of your

circuits. Auto-tracking permits equal

or proportional voltage sharing, and

allows control of output voltage from

one master unit. The master and slave

supplies have the same output

polarity with respect to a common bus

or ground. This operation is useful

where simultaneous turn-up, turn-down

or proportional control of all power

supplies is required.

E3620A dual-output power

supply

The 50-watt E3620A dual-output power

supply provides two 0 V to 25 Vdc

outputs with the maximum current of 1

A to satisfy most bench requirements.

The outputs are completely

independent and isolated.

E3630A triple-output power

supply with auto-tracking

feature

The 35-watt E3630A triple-output power

supply provides three DC outputs: 0

to 6 V with a maximum current of 1

to 2.5 A and 0 to 20 V and 0 to %20

V with a maximum current of 0.5 A.

An auto-tracking feature lets you use

one voltage control to adjust the +20

V and %20 V outputs simultaneously.

The outputs track each other to within

1 percent, making it easy to adjust

the power supply for circuits requiring

balanced voltages.

Speciﬁcations

E3620A E3630A

Features Isolated dual

outputs, 10 turn pots CV, CL

Tracking, CV, CL (±20 V)

CV, CF (+6 V)

Number of outputs 2 3

Number of Output

Ranges

1 1

DC Output Rating 25 V, 1 A

25 V, 1 A

+6 V, 2.5 A

+20 V, 0.5 A

%20 V, 0.5 A

Load and Line

Regulation < 0.01% + 2 mV

Ripple and Noise (20 Hz to 20 MHz)

Normal mode voltage < 350 µVrms, < 1.5 mVpp

Normal mode current –

Common mode current < 1 µArms

Transient Response

Time

< 50 µsec following a change in output current from full load to half load for output to recover within:

15 mV

Meter Accuracy ±0.5% + 2 counts at 25 ºC ±5 ºC

Meter Resolution

Voltage 10 mV (0–20 V), 100 mV (>20 V) 10 mV

Current 1 mA 10 mA

Isolation 240 Vdc

Ordering information

E3620A Dual-output Power Supply

E3630A Triple-output Power Supply

Standard shipped accessories

Product Reference CD, power cord

Power options

Opt. 0E3 230 Vac ± 10%

Opt. 0EM 115 Vac ± 10%

Opt. 0E9 100 Vac ± 10%

Other options

Opt. 1CM or 34190A rackmount kit*

(Only applicable for E3620A)

Opt. UK6 Commercial calibration

certiﬁcate with test result data

E3600A-100 Test lead kit

Manual sets

Please visit

www.agilent.com/ﬁnd/manuals

for the latest revisions of manuals.

Rackmount kits*

E3620A

To rackmount two instruments

side-by-side

• Lock-link Kit (P/N 5061-9694)

• Flange Kit (P/N 5063-9212)

or 34191A

To rackmount one or two instruments in

a sliding support shelf

• Support Shelf (P/N 5063-9255)

• Slide Kit (P/N 1494-0015)

required for support shelf

For a single instrument, also order ﬁller

panel (P/N 5002-3999)

* Rackmounting with 1CM or lock-link/

ﬂange kit requires

• Agilent or customer support rails

• Agilent Support Rails-E3663AC.

Supplemental characteristics

E3620A E3630A

Control Mode CV/CL CV/CL (±20 V)

CV/CF (+6 V)

Temperature Coefﬁcient per ºC

Voltage < 0.02% + 1 mV

Current –

Output Drift

Voltage Less than 0.1% + 5 mV total drift for 8 hours after initial warm-up of 30 minutes

Current N/A

Temperature Range

Derate output current 50% between 40 ºC to 55 ºC

Cooling Convection cooling

Isolation ±240 Vdc

AC Input 100 Vac ±10%, 47–63 Hz (opt. 0E9)

115 Vac ±10%, 47–63 Hz (std)

230 Vac ±10%, 47–63 Hz (0E3)

Weight 5.0 kg (11.0 lbs) net, 6.25 kg (13.8 lbs) shipping 3.8 kg (8.4 lbs) net, 5.1 kg (11.3 lbs) shipping

Size 88.1 mm H x 212.3 mm W x 392.4 mm D

3.5” H x 8.4” W x 15.4” D

88.1 mm H x 212.3 mm W x 318.4 mm D

3.5” H x 8.4” W x 12.5” D

Warranty Three year for E3600 Series power supplies

Three months for standard shipped accessories

Product Regulation Certiﬁed to CSA 22.2 No. 231; conforms to IEC 1010-1; carries CE mark; complies with CISPR-11, Group 1, Class A,

KC South Korean EMC Mark, Canadian ICES/NMB-001, Australian C Tick Mark

myAgilent

www.agilent.com/find/myagilent

A personalized view into the information most relevant to you.

Three-Year Warranty

www.agilent.com/find/ThreeYearWarranty

Beyond product specification, changing the ownership experience.

Agilent is the only test and measurement company that offers

three-year warranty on all instruments, worldwide.

Agilent Channel Partners

www.agilent.com/find/channelpartners

Get the best of both worlds: Agilent’s measurement expertise and

product breadth, combined with channel partner convenience.

www.agilent.com

www.agilent.com/ﬁnd/trustedpower

For more information on Agilent

Technologies’ products, applications or

services, please contact your local Agilent

office. The complete list is available at:

www.agilent.com/find/contactus

Americas

Canada (877) 894 4414

Brazil (11) 4197 3600

Mexico 01800 5064 800

United States (800) 829 4444

Asia Paciﬁc

Australia 1 800 629 485

China 800 810 0189

Hong Kong 800 938 693

India 1 800 112 929

Japan 0120 (421) 345

Korea 080 769 0800

Malaysia 1 800 888 848

Singapore 1 800 375 8100

Taiwan 0800 047 866

Other AP Countries (65) 375 8100

Europe & Middle East

Belgium 32 (0) 2 404 93 40

Denmark 45 45 80 12 15

Finland 358 (0) 10 855 2100

France 0825 010 700*

*0.125 €/minute

Germany 49 (0) 7031 464 6333

Ireland 1890 924 204

Israel 972-3-9288-504/544

Italy 39 02 92 60 8484

Netherlands 31 (0) 20 547 2111

Spain 34 (91) 631 3300

Sweden 0200-88 22 55

United Kingdom 44 (0) 118 927 6201

For other unlisted countries:

www.agilent.com/find/contactus

(BP-11-07-13)

Product specifications and descriptions in

this document subject to change without

notice.

Published in USA, January 8, 2014

5968-9727EN
