Installation
Instructions
Built-In
Bottom-Freezer
Refrigerator
MP36BF2
2
Table of Contents
Warnings and Important Information _____________________________________________3
Professional Bottom-Freezer
Dimensions ______________________________________________________________ 6
Specifications_____________________________________________________________ 7
Cutout Dimensions _________________________________________________________8
Anti-Tip Dimensions (36”) __________________________________________________ 9
Cabinet Information (Professional) _____________________________________________ 10
Cabinet Information (Professional with flush mount trim) __________________________ 11
Custom Side Panel Dimensions (Professional) ___________________________________ 12
Custom Side Panel Dimensions (Professional with flush mount trim) ________________ 13
General Information__________________________________________________________ 14
Unpacking & Moving_________________________________________________________ 16
Flush Mount Side Trim Installation _____________________________________________ 17
Installation __________________________________________________________________ 17
Hinge Adjustment________________________________________________________ 18
Kickplate Installation______________________________________________________ 21
Door Stop Adjustment ____________________________________________________ 21
System Specifications and Data ____________________________________________ 22
Final Installation__________________________________________________________ 23
Performance Checklist________________________________________________________ 24
Control Panels_______________________________________________________________ 25
Service & Registration ________________________________________________________ 26
33
IMPORTANT – Please Read and Follow!
• Make sure that incoming voltage is the
same as unit rating. An electric rating
plate specifying voltage, frequency,
wattage, amperage, and phase is attached
to the product.
• To reduce the risk of fire, electrical shock,
or injury to persons, installation work and
electrical wiring must be done by a
qualified technician in accordance with all
applicable codes and standards, including
fire-rated construction.
• The installer should leave these
instructions with the consumer who should
retain them for local inspector’s use and
for future reference.
DANGER
WARNING
You will be killed or seriously injured if
you don't follow instructions.
You can be killed or seriously injured if
you don't follow instructions.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. ALWAYS read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded
by the safety alert symbol and the word
“DANGER” or “WARNING.” These
words mean:
4
IMPORTANT – Please Read and Follow!
A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local
laws, or local ordinances.
• The required use of a GFI is normally related to the location of a receptacle with respect to
any significant sources of water or moisture.
• AGA Marvel will NOT warranty any problems resulting from GFI outlets which are not
installed properly or do not meet the requirements below.
If the use of a GFI is required, it should be:
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard)
• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible
5
WARNING
TIP OVER HAZARD
Appliance is top heavy
and tips easily when not
completely installed. Keep
doors closed until appliance
is completely installed and secured per
installation instructions.
Use two or more people to move and
install appliance. Failure to do so can
result in death or serious injury.
WARNING
ELECTRICAL SHOCK
HAZARD
Disconnect power or turn
power disconnect switch to
OFF position before removing top grille.
Failure to do so can result in death or
electrical shock.
IMPORTANT – Please Read and Follow!
Most of the unit’s weight is at the top. Extra care is needed when moving the unit to prevent
tipping. Use cardboard shipping material or plywood under unit until it is installed in the
operating position to protect floor surface.
It is your responsibility to:
• comply with installation specifications and dimensions.
• properly install unit.
• remove any moldings or decorative panels that prevent the unit from being serviced.
• make sure that you have these materials (not provided with your unit), which are necessary
for proper installation:
• 1/4” (6 mm) copper tubing with shutoff valve
• 6– #8 x 3” (7.6 cm) wood screws (longer screws may be required)
• 1– Saddle valve (do not use self-piercing feature of the valve)
• assure that floor will support unit, door panels and contents (approximately
1200 pounds [540 kg]).
• provide a properly grounded electrical outlet.
• assure that location will permit appliance doors to open 90º minimum.
6
Dimensions (Bottom-Freezer)
36” Bottom-Freezer
24”
(61.0 cm)
35”
(88.9 cm)
52”
(132.1 cm
)
23–1/16”
(58.5 cm
)
3–19/32”
(9.1 cm)
36”
36”
(91.5 cm)
(91.5 cm)
36”
(91.5 cm)
9–5/32”
(23.3 cm)
82–3/4”
(210.2 cm)
min.
to
84–1/16”
(213.5 cm)
max.
20–3/4”
(52.7 cm)
22–3/16”
(56.4 cm)
1–1/2”
(3.8 cm)
26”
(66.0 cm)
24”
(61.0 cm)
35”
(88.9 cm)
52”
(132.1 cm
)
23–1/16”
(58.5 cm
)
3–19/32”
(9.1 cm)
36”
36”
(91.5 cm)
(91.5 cm)
36”
(91.5 cm)
9–5/32”
(23.3 cm)
82–3/4”
(210.2 cm)
min.
to
84–1/16”
(213.5 cm)
max.
20–3/4”
(52.7 cm)
23–3/8”
(59.4 cm)
1–1/2”
(3.8 cm)
26”
(66.0 cm)
Note: Flush Mount Trim (PBIRFTKSS) purchased separately.
36” Bottom-Freezer with
Flush Mount Trim
7
Specifications (Bottom-Freezer)
36” Bottom Freezer
Description MP36BF2
Overall width 36” (91.5 cm)
Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 22-3/16” (56.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26” (66.0 cm)
Cutout width 35-5/8” (90.5 cm) min. to 35-3/4” (90.8 cm) max.
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi;
maximum 120 psi
Overall interior dimensions
Refrigerator
Freezer
Total capacity
15.3 cu. ft. (434 liters)
5.1 cu. ft. (145 liters)
20.4 cu. ft. (579 liters)
Approximate shipping weight 565 lbs. (254.3 kg)
36” Bottom Freezer with Flush Mount Trim
Description MP36BF2 w/Flush Mount
Overall width 36” (91.5 cm)
Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall depth from rear To front edge of side trim: 23-3/8” (59.4 cm)
To front of top grille: 24” (61.0 cm)
To front of handle endcap: 26” (66.0 cm)
Cutout width 36” (91.5 cm)
Cutout height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout depth 24” (61.0 cm) min.
Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with
grounded 3-prong plug attached to product
Maximum amp usage 9.9 amps
Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi;
maximum 120 psi
Overall interior dimensions
Refrigerator
Freezer
Total capacity
15.3 cu. ft. (434 liters)
5.1 cu. ft. (145 liters)
20.4 cu. ft. (579 liters)
Approximate shipping weight 565 lbs. (254.3 kg)
8

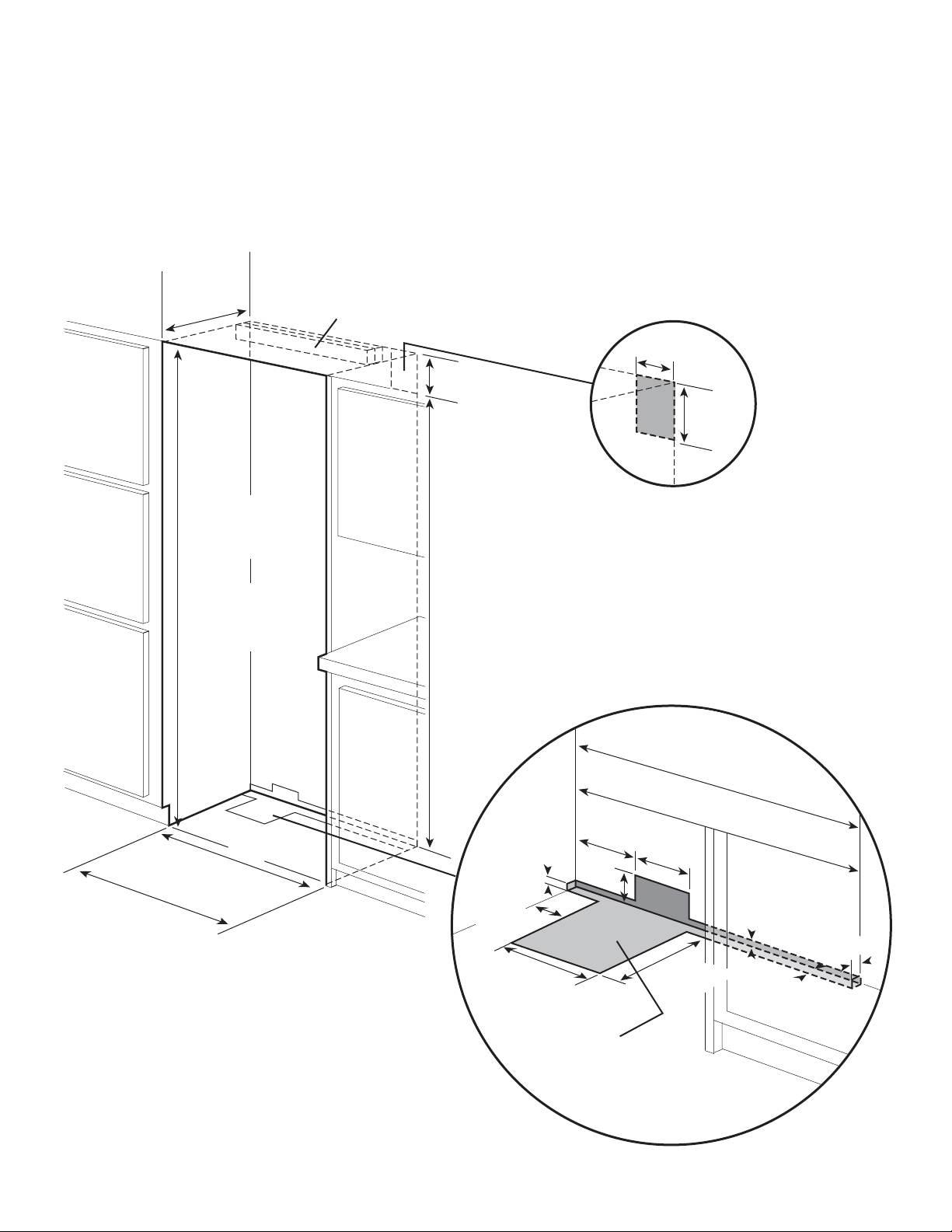

Cutout Dimensions (Bottom-Freezer)
9”
(22.9 cm)
73-3/8”
(186.4 cm)
82–7/8”
(210.5 cm) min.
anti-tip board &
opening height
84–1/16”
(213.5 cm) max.
anti-tip board &
opening height
35–5/8”
(90.5 cm) min.
to
35–3/4”
(90.8 cm) max.
36”
(91.5 cm)
PFlush Mount only
24”
(61.0 cm)
Electric Outlet Location
Water Line Entry Area
6–3/4”
(17.1 cm)
7–5/8”
(19.4 cm)
3”
(7.6 cm)
5/8”
(1.6 cm)
5/8”
(1.6 cm)
10–1/2”
(26.7 cm)
5/8”
(1.6 cm)
10–3/4”
(27.3 cm)
1”
(2.5 cm)
3–5/8”
(9.2 cm)
Optional floor
water line entry
35–5/8”
(90.5 cm)
36”
(91.5 cm)
Flush Mount only
See Anti-Tip board installation
6”
(15.2 cm)
9”
(22.9 cm)
36” Bottom-Freezer
9
Anti-Tip Dimensions (Bottom-Freezer)
36” Bottom-Freezer
Two 2”x 4” Mounting Boards
3” (7.6 cm) x 3-1/2” (8.9 cm)
NOTE: If unit is installed deeper than
24” (61.0 cm), then shim behind the mounting
boards by the difference.
NOTE: If unit is installed deeper than
24” (61.0 cm), then shim behind the mounting
boards by the difference.
One 2”x 4” Mounting Board
3” (7.6 cm) x 3-1/2” (8.9 cm)
Bottom of anti-tip board is 3–7/8” (9.8 cm) below opening height.
NOTE: Top of unit must be placed firmly under anti-tip board.
Anti-Tip Location
Flush Mount Anti-Tip Location
79–3/8”
(201.6 cm) min.
to bottom of
anti-tip board
80–1/2”
(204.6 cm) max.
to bottom of
anti-tip board
29–1/2”
(74.9 cm)
3–1/2”
(8.9 cm)
3”
(7.6 cm)
29–1/2”
(74.9 cm)
3–1/2”
(8.9 cm)
1.5”
(3.8 cm)
10
Cabinet Information (Professional)
Door
Wall
1–13/16”
(4.6 cm)
Space if 24”
standard
cabinet
depth is
used
3/4”
(1.9 cm)
Full End
Panel
24”
(61.0 cm)
Standard
Cabinet
Depth
1–3/4”
(4.4 cm) Offset
5/16”
(0.8 cm)
Professional models fit “semi-flush” in standard 24” (61.0 cm) deep cabinet openings. The door
face protrudes 1-3/4” (4.4 cm) from the cabinet face. The handle protrudes an additional
2-1/2” (6.4 cm) into the room.
Top View
1–13/16”
(4.6 cm)
Space if 24”
standard
cabinet
depth is
used
Door
24”
(61.0 cm)
Standard
Cabinet
Depth
Wall
3/4”
(1.9 cm)
Full End
Panel
1–3/4”
(4.4 cm) Offset
Countertop
Overhang
Ce manuel convient aux modèles suivants
4
Table des matières
Langues :
Autres manuels AGA marvel Réfrigérateur
AGA marvel
AGA marvel 61ARM Manuel
AGA marvel
AGA marvel 6CRF Manuel
AGA marvel
AGA marvel M36SS Manuel
AGA marvel
AGA marvel Marvel 61RF Manuel
AGA marvel
AGA marvel M24AR Instructions de montage
AGA marvel
AGA marvel M36SS Manuel
AGA marvel
AGA marvel ML24RFP0 Series Manuel
AGA marvel
AGA marvel 17CAR Manuel
AGA marvel
AGA marvel Mercury MMCFDR23 Manuel utilisateur
AGA marvel
AGA marvel MP36BF2 Manuel utilisateur
AGA marvel
AGA marvel MO15RAS Manuel
AGA marvel
AGA marvel MS24RD Manuel
AGA marvel
AGA marvel 6GARMP Caractéristiques techniques
AGA marvel
AGA marvel MP15BC Manuel
AGA marvel
AGA marvel 4EAF Manuel
AGA marvel
AGA marvel MO24RD Manuel
AGA marvel
AGA marvel 3CARM Manuel utilisateur
AGA marvel
AGA marvel ML24RF Manuel
AGA marvel
AGA marvel AMPROFD20 Manuel utilisateur
AGA marvel
AGA marvel 30ARM Manuel
