AFLAMO FUSION Manuel utilisateur

AFLAMO FUSION

OPERATION MANUAL

FUSION

Wall Mounted / Built-inElectric Fireplace

AC 220V-240V 50Hz

WARNING

Read and understand this entire owner’s manual, including all safety

information, before plugging in or using this product. Failure to do so could

result in fire, electric shock, or serious personal injury.

CAUTION

Keep this owner’s manual for future reference. If you sell or give this

product away, make sure this manual accompanies this product.

www.aflamo.com

Polski s. 14

Deutsche S. 27

Italiano p. 40

Español p. 53

Français p. 66

Český s. 79

Slovenský s. 92

Nederlands blz. 105

IMPORTANT SAFETY INFORMATION!

WARNING

When using electrical appliances basic precautions should always be followed to reduce the

risk of fire, electric shock and injury to persons, including the following:

Read all instructions before using this fireplace.

Always unplug fireplace when not in use.

Do not operate any fireplace with a damaged cord or plug or after the fireplace malfunctions,

has been dropped damaged in any manner, return fireplace to authorized service facility for

examination, electrical or mechanical adjustment, or repair.

Indoor use only, do not use outdoors.

This fireplace is not intended for use in bathrooms, laundry areas and similar indoor locations.

Never locate fireplace where it may fall into a bathtub or other water container.

Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar

coverings. Arrange cord away from traffic area and where it will not be tipped over.

To disconnect fireplace, turn controls to off, then remove plug from outlet.

Use this fireplace only as describes in this manual. Any other use not recommended by the

manufacturer may cause fire, electric shock, or injury to persons.

Replacement of the lamps should be done only while the fireplace is disconnected from the

supply circuit.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their

safety.Children should be supervised to ensure that they do not play with the appliance.

Preparation

This product includes a GLASS panel! Always use extreme caution when handling

glass. Failure to do so could result in personal injury or property damage.

Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts

and assembly steps are grouped for wall-hanging or recessing use. Check the parts list to make sure

nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.

You will need the following tools (not included): Phillips screwdriver; stud finder; level; tape

measure; electric drill; 1/4”wood drill bit, hammer.

www.aflamo.com

Parts and Hardware

A –Fireplace

B-Wood Screws

C- Drywall anchors

D-Remote Control

E-Ember bed strip

F - Log-set

G-Decorative

Crystals - Large

H-Decorative

Crystals -Small

I-Wall Bracket

Fixed on back of firebox

J- “L”bracket

Specification and Dimension

Installation Overview

Your appliance facilitates three different installation configurations: three-sided, two-sided, and

single-sided.

www.aflamo.com

Three-sided installation

•

Glass exposed on front, left, AND right sides.

•

Appliance is fully recessed into the wall with

both sides open.

Two-sided installation

•

Glass exposed on front AND left OR right sides.

•

Appliance is fully recessed into the wall with

one side open.

Single-sided installation

•

Glass exposed on front ONLY.

•

Appliance is fully recessed into the wall.

www.aflamo.com

Installation / Rough Framing

Model Number W D H

FUSION 800mm 165mm 407mm

Note:

Appliance is NOT load-bearing. Carefully consider weight of ﬁnishing materials when constructing rough framing.

Ensure installation complies with all local building codes and requirements.

All viewing options (single-sided, two-sided [left or right], and three-sided) use the same framing dimensions.

www.aflamo.com

NOTE: Install the fireplace in such a way that, in the event of a failure, it can be

removed from the wall for service purposes.

Note:

When installed fully recessed into the wall, please fix the fireplace with

supplied short wood screws (B) under the ember bed. see below illustration

www.aflamo.com

Wall Mounted Installation

Due to the many different materials used on different walls, it is highly recommended

that you consult your local builder before you install this appliance on the wall.

A.Select a location that is not prone to moisture and is located at least 36" (914mm)

away from combustible materials such as curtain drapes, furniture, bedding, paper,

etc.

B.Have two people hold the appliance against the wall to determine the final

location.

C.Place unit face down on a soft, non abrasive surface. Remove the bracket from

the back of the unit by removing the screws, refer to below figure

D.Mark out location, then mount the bracket(s) onto the wall using the supplied

screws. This bracket

MUST have the hooks facing upward and be level. NOTE: It is strongly

recommended that the

mounting bracket (I) be

Screwed into the wall studs

Where possible. If the wall

Studs cannot be used, ensure

That the supplied plastic anchors are used to affix the bracket to the wall and

the bracket is adequately secured.

E. With the wall mounting bracket installed have two people lift the appliance up and

insert the two hooks on the bracket into the two slots on the back of the appliance.

F. Check the appliance for stability ensuring that the bracket will not pull free from

the wall.

Wall Bracket Illustrated

www.aflamo.com

“L”Shape bracket installation

A.Remove the silver screw at the bottom of the appliance. (Fig 1-1). Set the screw

aside.

B.Using the screw previously removed, attached the L-bracket (J) to the bottom of the

fireplace box.(Fig 1-2)

C.Install the plastic anchor (C) into the drywall, then install the longer screw (B)

(supplied) into the hole of the L-bracket into the wall anchor to secure the fireplace

from coming off the hooks.(Fig 1-3)

Fig 1-1

Fig 1-2

Fig 1-3

www.aflamo.com

Log-set / Crystals Installation

(NOTE:Please make the installation according to the embers which you liking.)

A. Place the ember-bed strip (E) in position with the matte surface facing upwards. Carefully place

the small crystal embers (H) into the bottom tray on the front of the appliance as illustrated. Apply an

even layer from side to side. Fig. 2-1, Fig. 2-2

C. Randomly place the large crystal embers (G) on top of the small crystals embers. Fig. 2-3.

Figure 2-1. Figure 2-2. Figure 2-3.

Optional one piece Log-set installation

Carefully place the wood log-set (F) into the designed ember slot Fig.3

Log-set (Figure 3.)

www.aflamo.com

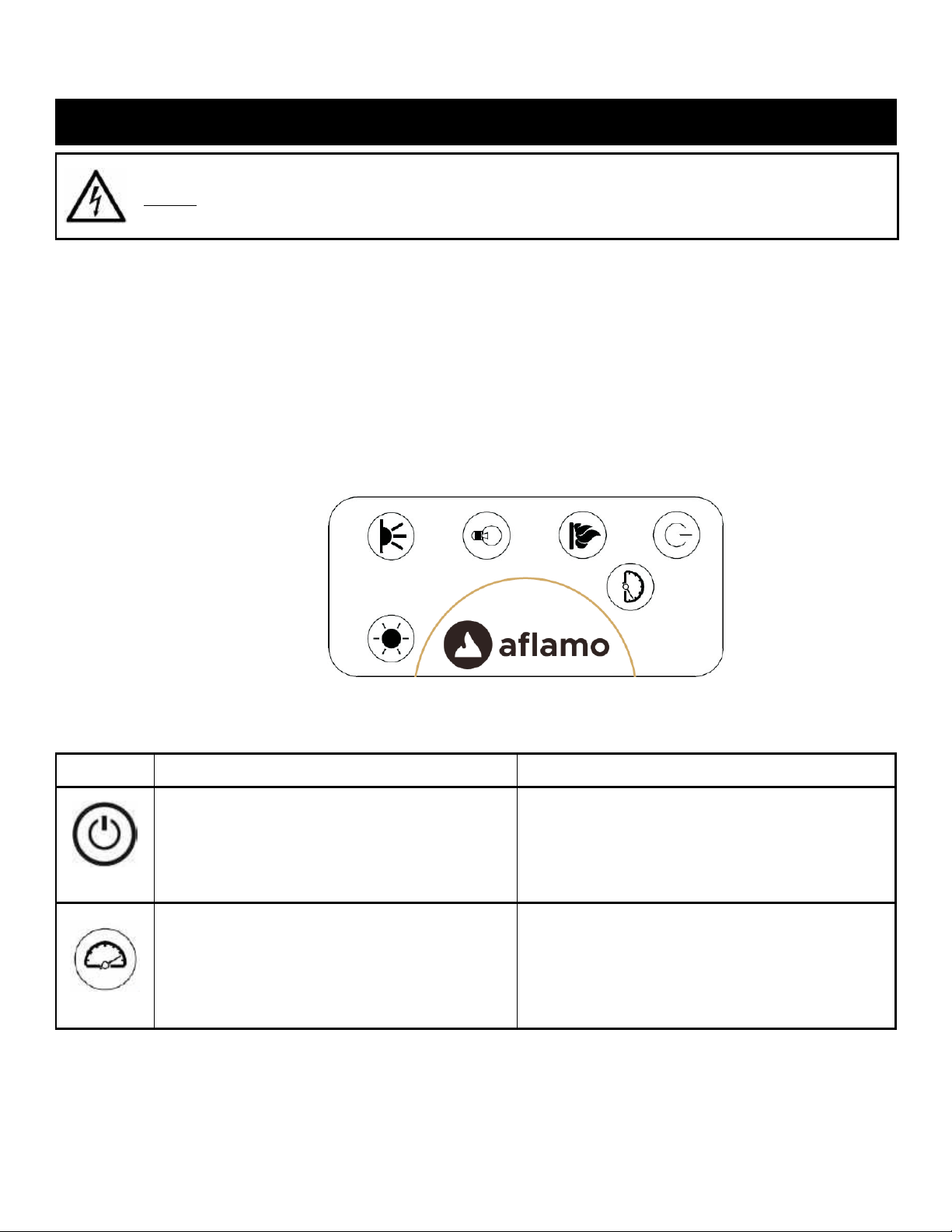

Operation

Read and understand this entire owner’s manual, including all safety information,

before plugging in or using this product. Failure to do so could result in electric shock,

fire, serious injury, or death.

Power

Plug the power cord into a AC 220-240 Volt outlet (see IMPORTANT SAFETY INFORMATION on

Pages 2 ). Make sure the outlet is in good condition and that the plug is not loose. NEVER exceed

the maximum amperage for the circuit. DO NOT plug other appliances into the same circuit.

Methods of Operation

This electric fireplace can be operated ONLY by the REMOTE CONTROL.

Before operating, please review the IMPORTANT SAFETY INFORMATION on Pages 2, and heed all

warnings.

Remote Control Operation

BUTTON

FUNCTION

ACTION & INDICATION

POWER

ON: Enables control panel functions and

remote control. Turns on flame effect.

OFF: Disables control panel functions and

remote control. Turns off flame effect.

1. Press once. Indicator light turns on.

Power turns on. All functions enabled.

2. Press again. Flame effect turns off. Unit

goes to standby. All functions turn off.

SPEED

Flame speed button:Controls the speed

of the flame.There are 3 flame speed

settings: 01 (slowest), 02 (Medium),

03 (fastest)

1. Press once. Flame speed gets changing.

2. Press again until desired setting is

reached. Display shows the setting.

The Default setting is 03 (fastest)

Remote Control

www.aflamo.com
