LE1950

USER’S MANUAL

V20303

19” LED HDTV

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the television.

WARNING:

Safety:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCTTO RAIN OR MOISTURE.

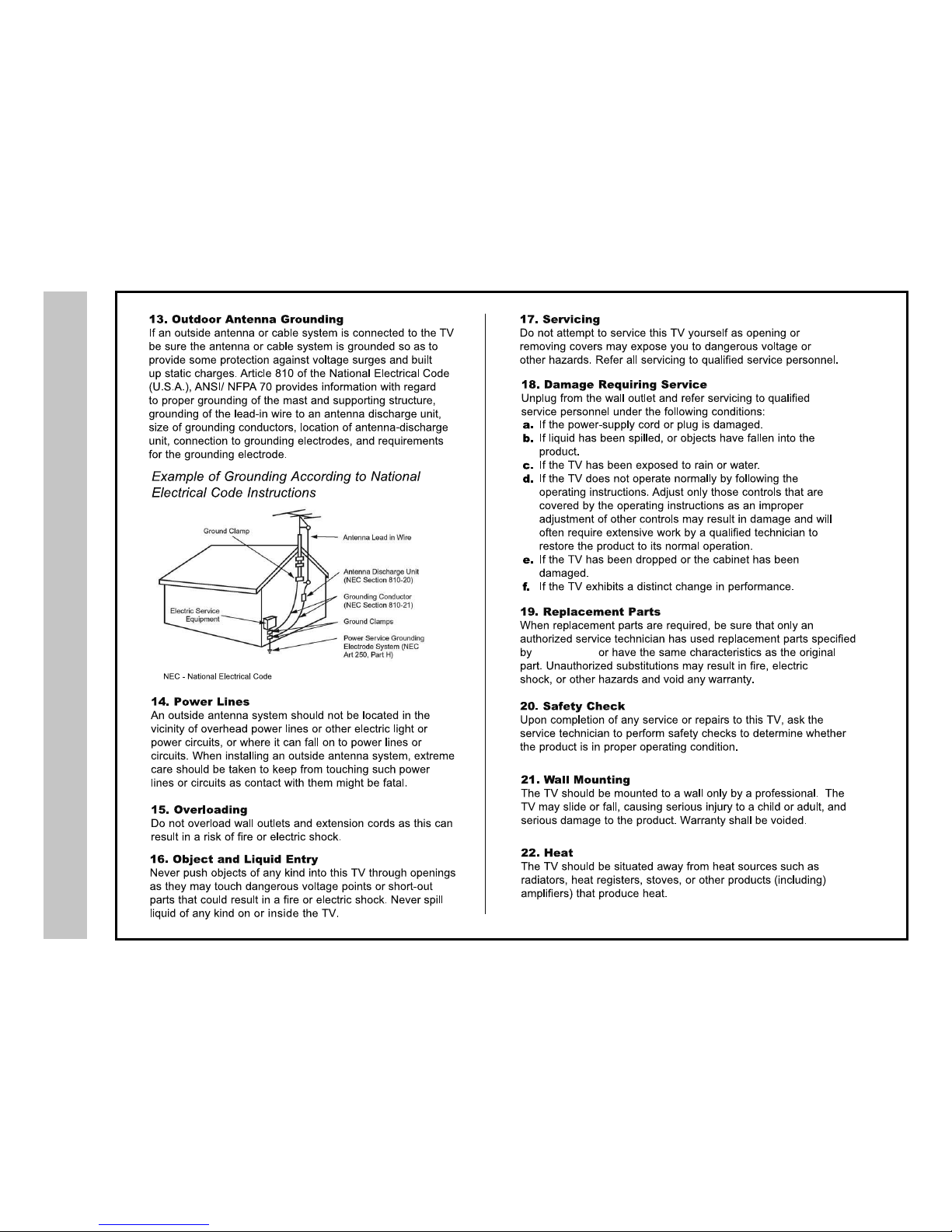

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall

be connected to the grounding system of the building, as close to the point of the cable entry as practical.

FCC REGULATORY INFORMATION:

This television has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This television generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this television does cause interference

to other electronic equipment, which can be determined by turning the television off and on, then the user is

encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and television.

- Connect the equipment into an outlet on a circuit different from that to which the television is connected.

- Consult your dealer or an experienced radio/TV technician for assistance.

Any changes or modifications not expressly approved by the party responsible for compliance may void the user’s

authority to operate the equipment.

TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS ARE INSIDE. REFER TO QUALIFIED PERSONNEL ONLY.

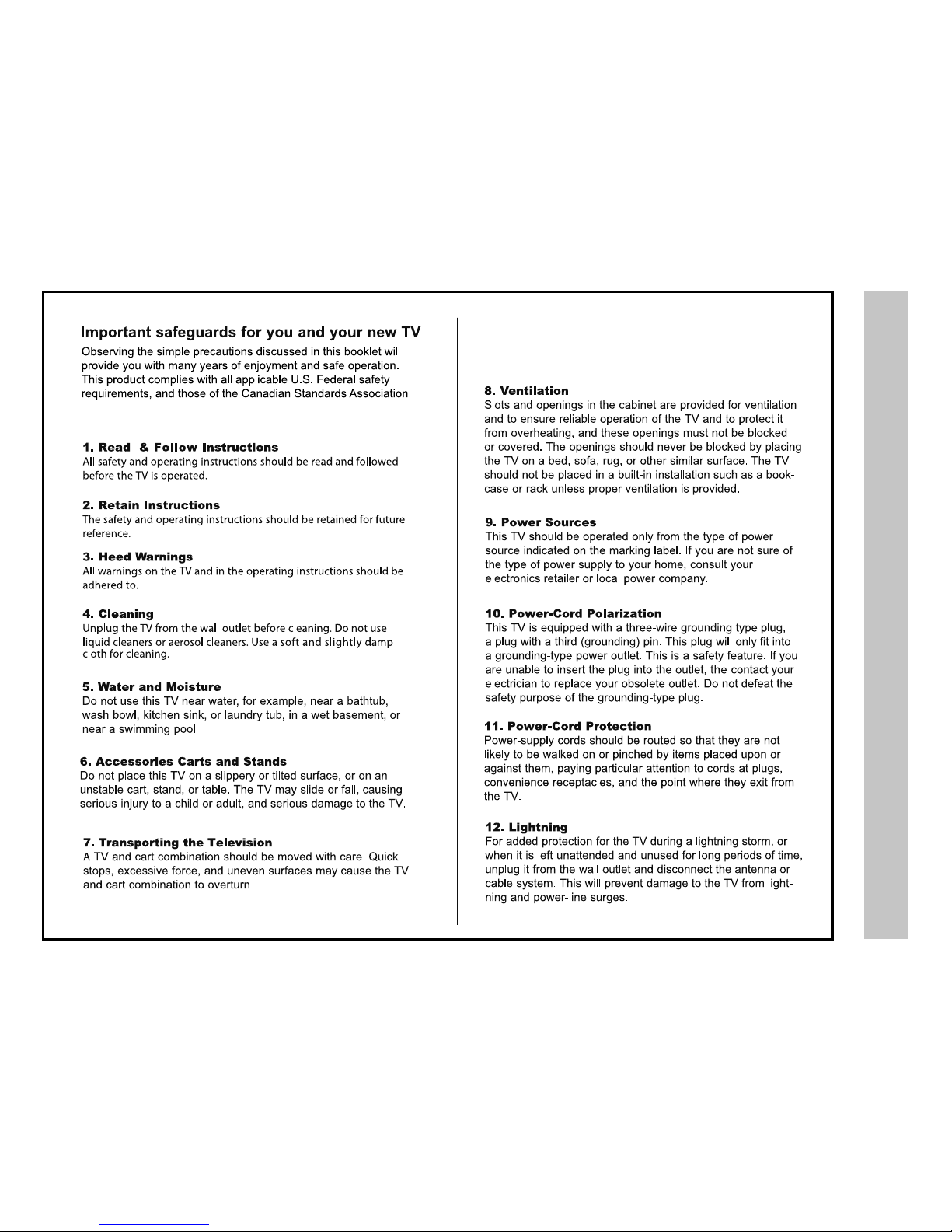

Safety Instructions

CAUTION

Safety Instructions

KCPI/Afnity

Table of Contents

Safety Instructions ................................................................................................

Table of Contents .................................................................................................

Introduction / What’s In the Box ...........................................................................

Remote Control

Remote Control Battery Install .............................................................................

Remote Control Overview ....................................................................................

TV Overview

Side Panel ............................................................................................................

Rear Panel ...........................................................................................................

Pedestal Removal / Wall Mounting ......................................................................

Installation

Connection to Antenna & Cable / Satellite Box......................................................

Connection to HDMI Inputs ...................................................................................

Connection to Component (YPbPr) Input .............................................................

Connection to AV Composite Input........................................................................

Connection to a Personal Computer .....................................................................

Connection to a Receiver / Amp ...........................................................................

Initial TV Setup

Initial Setup Wizard ...............................................................................................

Picture Settings

Contrast ................................................................................................................

Brightness .............................................................................................................

Color .....................................................................................................................

Tint (AV mode only)...............................................................................................

Sharpness .............................................................................................................

Color Temperature ................................................................................................

Specications .....................................................................................................

Troubleshooting ..................................................................................................

Warranty ..............................................................................................................

1-3

Sound Settings

Bass / Treble / Balance .........................................................................................

Surround ...............................................................................................................

Audio Language ....................................................................................................

Channel Settings

Favorite .................................................................................................................

Show/Hide ............................................................................................................

Channel Label ......................................................................................................

DTV Signal ...........................................................................................................

Zoom Modes ........................................................................................................

Parental Controls

Parental Lock ........................................................................................................

Parental Control - US ............................................................................................

Parental Control - Canada ....................................................................................

Setup Settings

Closed Caption .....................................................................................................

Menu Language ....................................................................................................

Clock .....................................................................................................................

Others Settings

Blue Background ..................................................................................................

Reset ....................... ............................................................................................

Introduction

Thank you for purchasing the energy efcient Afnity LE1950 HD LED television.

It has been designed to enjoy today’s high denition television experience. With a

display resolution of 1,366 x 768 (720p) you are assured of one of the nest quality

televisions available today. View HDTV and digital broadcasts over-the-air when

connected to an antenna. Choose an outdoor antenna for the best possible recep-

tion. Visit www.antennaweb.org.

Your television offers both analog and digital inputs including anHigh Denition Mul-

timedia Interface (HDMI) interconnects that offer the purest audio and video digital

signal when connected to compatible HD sources (ie: HD set-top box, high deni-

tion blu-ray player or gaming console). Other video inputs include an HD compo-

nent, composite, and VGA terminal for connection to a computer. A coaxial digital

audio (SPDIF) jack is included to connect through your home amplier/receiver to

provide a spectacular home theater sound experience.

Your new television is an ENERGY STAR certied device which meets energy

saving standards to reduce power consumption and the associated cost of use.

We recommend that you read the user manual thoroughly before use to

familiarize yourself with the installation and adjustment options available to

you, thereby enjoying all the features of the LE1950 for many years to come.

For peace of mind and valuable services, please take a moment to register your

product at www.kcpi.us

The LE1950 package includes the

following items. Save the carton

& packing for future shipping.

• Pedestal Base / Hardware

• Pedestal Instructions

• Remote Control

• AAA Batteries (2)

• Quick Start Guide

• User Manual • Remote Control

• AAA Batteries x 2

LED TV

with

Pedestal Stand

What’s In The Box

• AC Power Cord

Remote Control

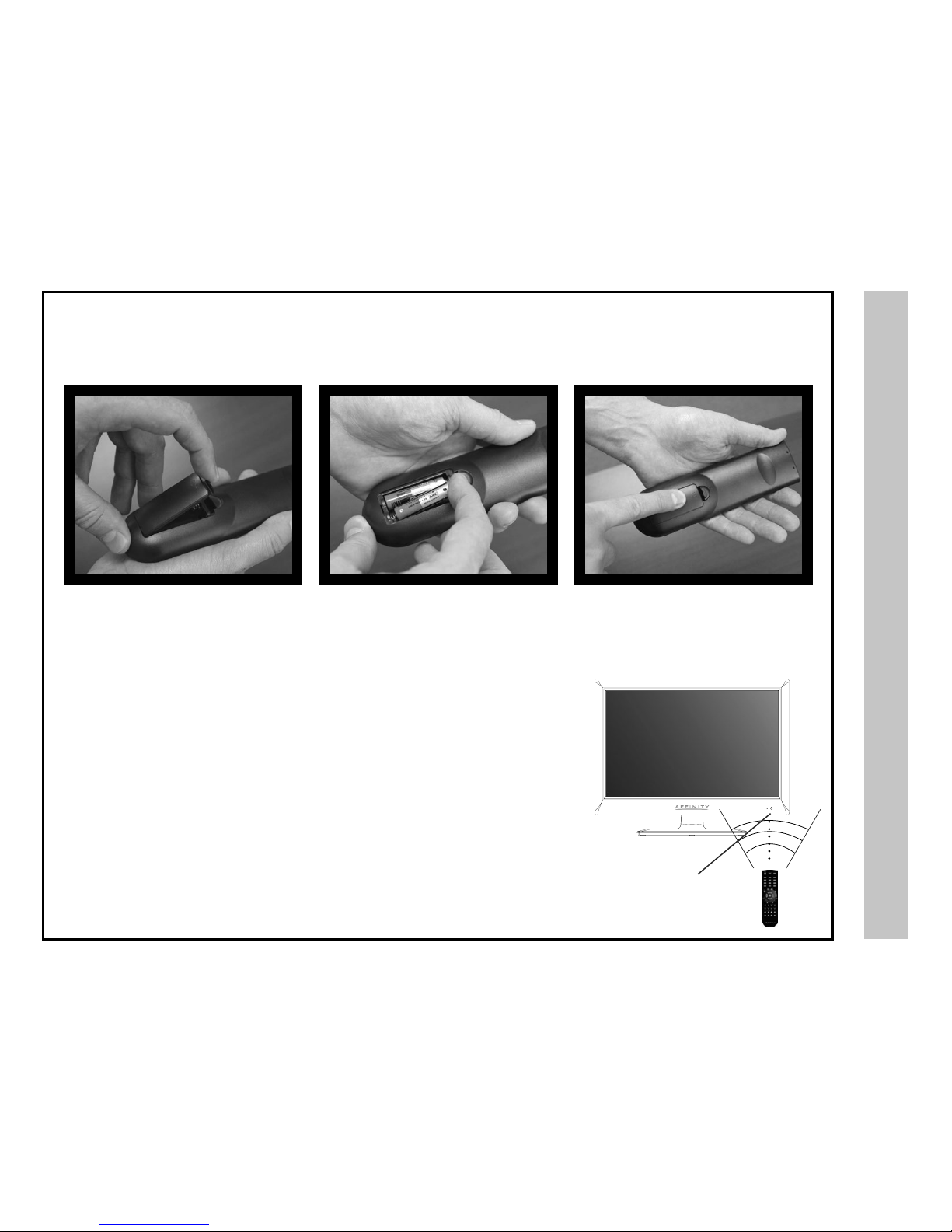

Your remote control handset is powered by two (2) AAA type batteries

• To insert batteries, turn the remote

control over and remove the battery

cover.

• When pointed towards the television, the effective range is approximately 12 feet from the

front of the IR receiver, 30° to the left and right, 20° up and down.

• To avoid damage from possible battery chemical leakage, remove the batteries if you do

not plan to use the remote control handset for an extended period of time. Do not mix bat-

teries of different age and/or type. Always discard used batteries safely.

• Do not expose remote control to liquids, direct sunlight or sources of excessive heat.

• The IR receiver will not work properly if TV is in direct sunlight, the remote control is

pointed off-axis or an object is in the IR path.

• Place two (2) AAA batteries into the

compartment with correct polarity.

• Replace the cover.

NOTE: Improper use of batteries can result in a chemical leakage or explosion.

Battery Install

30° 30°

IR Receiver

Remote Control

Overview

Functions Using the Remote Control Handset

1. Power – Turn the television display On/Off.

2. Source – Press to display all input sources on screen.

3. Mute – Press to temporarily turn sound off. Press again to resume.

4. Numbers / Dash – Select desired TV channel directly. For example: to select digital channel four,

press “4” “-” “1” (4-1).

5. Repeat – Press to select between the current and previously viewed TV channel.

6. Menu – Press to display the Main menu.

7. Info – Provides information on the currently viewed program.

8. EPG/Guide – Press to review scheduled programming for the current channel viewed.

9. Exit – Press to exit a menu that is displayed.

10. qpt uArrows/ OK – Navigate menus to make selections. Press OK to conrm.

11. Volume +/- – Adjust volume up and down.

12. Channel+/- – Scan channels up and down.

13. CCD – Select closed caption subtitles (if available) OFF > ON > CC on Mute (pg. 22)

14. MTS – Press to select an alternate audio language (if applicable)

15. Freeze – Pause and still-frame the current image on the display. Press again for live TV.

16. Channel List – Displays channel lists on the screen.

17. Zoom – Select viewable display options: Normal > Wide > Zoom > Cinema.

18. Picture Mode – Select from various preset picture modes: Dynamic > Standard > Movie > User.

19. Audio Mode – Select Dynamic, Standard, Movie or User sound modes.

20. Sleep – Press to activate the Sleep function to turn off the TV automatically; 5 Min > 10 Min > 15 Min >

30 Min > 45 Min > 60 Min > 90 Min > 120 Min > 180 Min > 240 Min > OFF.

21. FAV – Press to display a list of favorite TV channels you have added.

22. Add/Erase – Add and erase favorite channels.

23. FAV- – Press to scan to a lower channel from your list of favorites.

24. FAV+ – Press to scan to a higher channel from your list of favorites.

NOTE: When using the remote control, point it directly at the TV.

6 9

14 16

22 23

17 20

Remote Code: 08F7

1. Power - Press the POWER button to turn the LED display ON/

OFF (standby). When the power is on, the green LED illuminates.

The screen image will appear within a few seconds.

2. Source - After connecting your DVD, cable box, etc., select

the appropriate input source to view. Press the SOURCE button to

display input options.

3. Menu - Press the MENU button to display menu settings. .

4/5. Volume (VOL+ / VOL-) - Press the VOL+ / VOL- buttons

to adjust volume up or down.

6/7. Channel (CH+ / CH-) - Press the CH+ / CH- buttons to

select a channel in TV mode.

TV Overview

Stand by - Red light

TV on - Green light

IR Receiver

Side Panel

Front & Side Panel

Source Select

Component

HDMI

10 11

1. Earphone Jack - Connect a stereo headphone (3.5mm) for private

listening.

2. PC-Audio Jack- An optional 3.5mm audio cable for sound when using

VGA.

3. RF Input - Connect antenna or cable for television reception.

Note: Use an outdoor antenna, cable or satellite for best reception.

4. VGA Input - Connect an optional VGA cable from your personal com-

puter.

5/6. Video L/R – AV input - Connect an external device to the compos-

ite VIDEO (Y) and AUDIO (L/R) output jacks found on most video equip-

ment.

NOTE: There is one set of audio L/R input jacks for use with either your

Component YPbPr or AV installation.

7. HDMI Input - Supports enhanced high denition video and up to 5.1

channel digital audio from one cable.

8. DC IN - Connect to power adapter.

9. SERVICE - For service technician use only.

10. Component YPbPr - Connect to an AV device that features compo-

nent (YPbPr) video and audio output jacks. (See #8 below to connect audio

jacks.)

11. SPDIF/Coax - Connect an optional coaxial digital cable through a

compatible amp/receiver to enjoy superior audio sound.

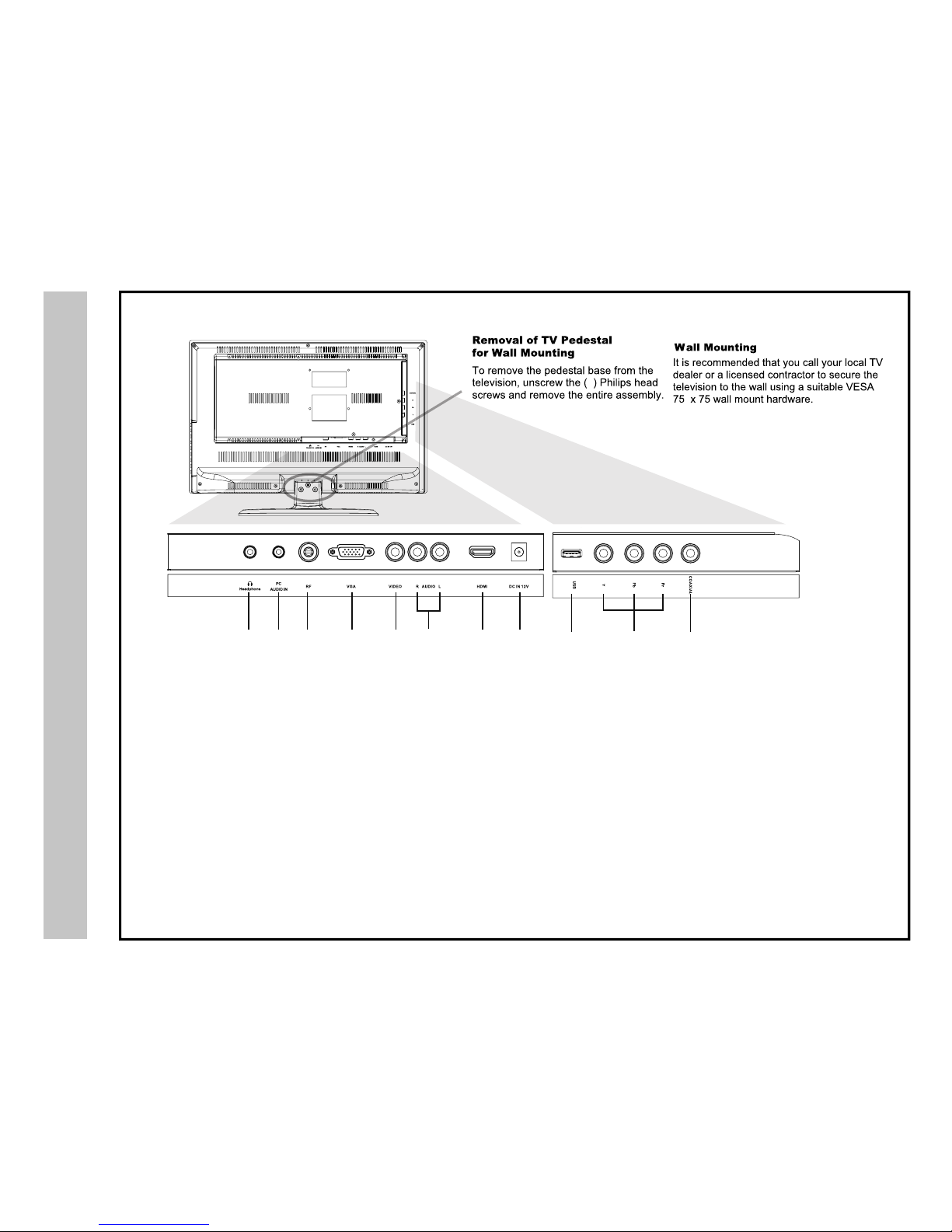

TV Overview

Rear Panel

& Pedestal Removal

TV REAR PANEL

1 23 4 5 6 7 8 9

Upgrade

Autres manuels pour LE1950

Table des matières

Autres manuels Affinity Téléviseur LED

Affinity

Affinity LE3951 Manuel utilisateur

Manuels Téléviseur LED populaires d'autres marques

LG 43UF680T-TA Manuel utilisateur

Samsung

Samsung QE43LS03A Manuel utilisateur

Philips

Philips 55PUS6272/12 Manuel utilisateur

TCL

TCL L40E3020F Manuel utilisateur

Seiki

Seiki SC-55AU300 Manuel utilisateur

Sharp

Sharp AQUOS LC-60LE650U Manuel utilisateur

Durabase

Durabase L24H472S4VD Manuel utilisateur

LG 32LH51 series Manuel utilisateur

Tesla

Tesla 43K625BUS Manuel utilisateur

Changhong Electric

Changhong Electric UD55GHE6000Ai Manuel utilisateur

LG LN41 Series Manuel utilisateur

Sharp

Sharp LC-32LE511E Manuel utilisateur

Samsung

Samsung The Terrace LST7T Series Manuel utilisateur

Saba

Saba SB40FDS195 Manuel utilisateur

LG TL43 Series Manuel utilisateur

LG 22LN413Y-TD Manuel utilisateur

Philips

Philips 43PFT5102 Manuel utilisateur

SWEDX

SWEDX SS-42K15 Manuel utilisateur
