AEROPOWER Powersky X6 Manuel utilisateur

A E R O P OW E R V E NTI L A T I O N CO. , L T D

INSTALLATION

GUIDE

Powersky○

RX6

HARDWARE

The fan hardware that suspends the fan and the wing is located on the hardware kit. Before installing,

ensure you have the following hardware.

Installation Hardware Kit 1

Upper Yoke Hardware

Extension Tube Hardware

Lower Yoke Hardware

Main Fan Unit Hardware

•(4) M12 x 50 MM Bolt

•(8) M12 Flat Washer

•(4) M12 Nylock Nut

•Shackle

•(2) M16 x 120 MM Bolt

•(4) M16 Flat Washer

•(2) M16 Nylock Nut

•(2) M16 x 120 MM Bolt

•(4) M16 Flat Washer

•(2) M16 Nylock Nut

•(4) M12 x 25 MM Bolt

•(8) M12 Flat Washer

•(4) M12 Nylock Nut

Airfoil And Winglet Hardware Kit

Airfoil Hardware

Winglet Hardware

Guy Wire 2

•(12) M10 x 50 MM Bolt

•(24) M10 Flat Washer

•(12) M10 Nylock Nut

•(24) M4 Flat Washer

•(24) M4 x 10 MM Bolt

•(4) Locking Carabiner

•(4) 10MM Beam Clamp

•(4) M10 X 25MM Eyebolt

•(4) M10 Nylock Nut

•(4) Gripples

•(4) Guy Wire

1. Square washers are included and are only used when the fan is mounted to the angle iron. The number of square washers required depends on the number of angle

irons used.

2. The guy wire is only supplied when it is necessary to limit the fan shake. If the extension tube is 4 ft (1.2 meters) or longer, the fan is susceptible to strong winds or the

like or the fan is close to the building structure. Aero Power Solutions recommends the use of guy wire.

Parts

Check that you have all the necessary parts before installation. If you order multiple fans, be sure to classify

the components of each fan separately. Each fan has different grades and is not interchangeable.

(2) Beam Clips Upper Yoke2 Lower Yoke Hub Cover Main Fan Unit

(2) Spacers1

Airfoil Winglet Airfoil Retainer Extension Tube3Controller

1. Spacers are only used if the beam flange exceeds 3/8” (10 mm).

2. Ensure you have the correct upper yoke for your mounting method. The upper yoke may differ from

the illustration.

3. Safety cable is attached to extension tube.

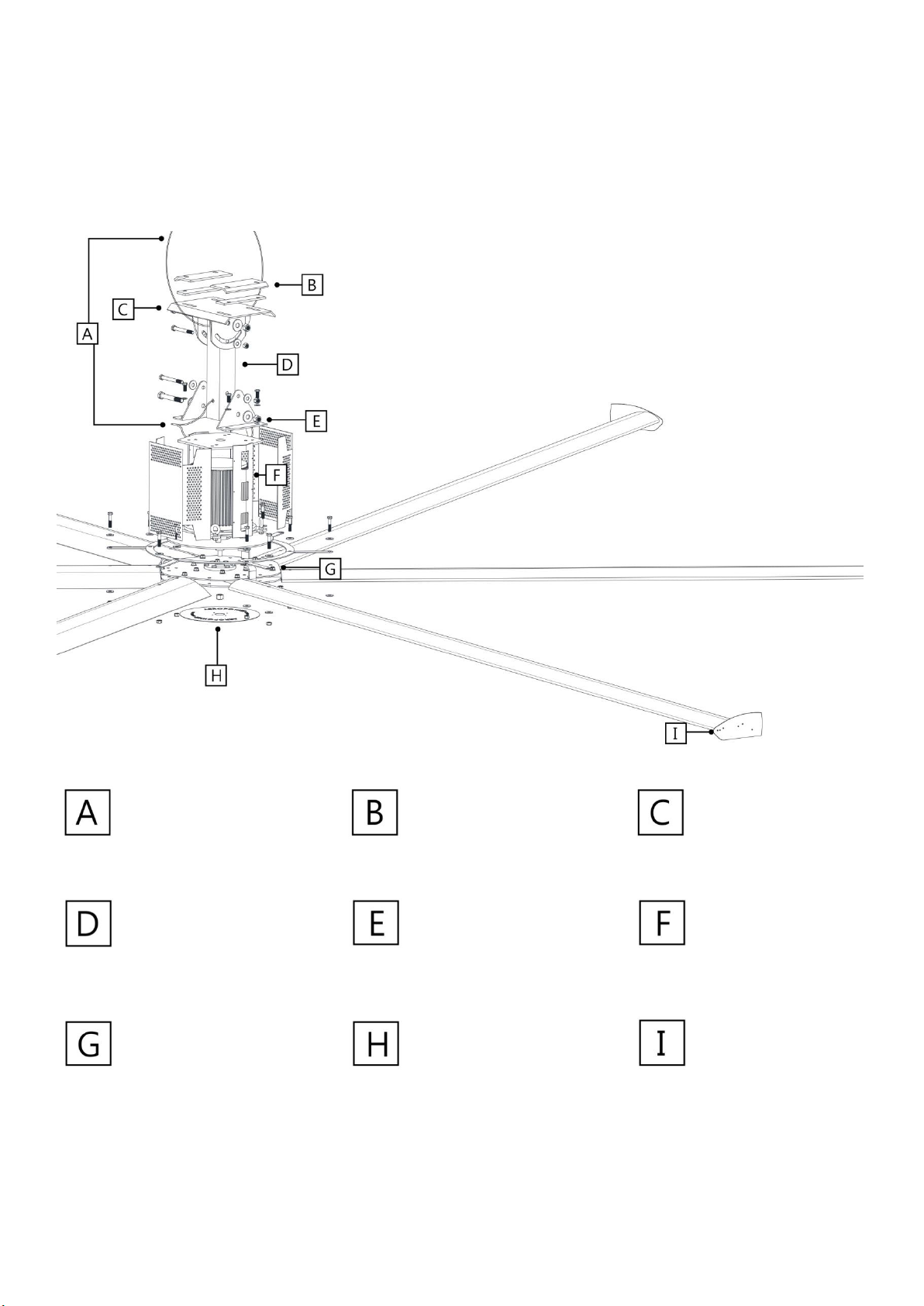

DECOMPOSITION

If you lose any parts or hardware required for installation, please contact customer service.

1. Used only if mounting fan to an I-beam. Spacers are used only when the I-beam flange exceeds 3/8”(10 mm).

Safety Cable

Beam Clips1

Spacers1

Upper Yoke

Extension Tube

Lower Yoke

Main Fan Unit

Hub

Hub Cover

Winglets

INSTALLATION LOCATION

Before installation, confirm the following requirements to check that the building structure and fan location

are in compliance with Aero Power Solutions' safety guidelines.

☐If the fan's extension boom is 4 inches (1.2 meters) or longer or the installation structure requires, the

cable must be used to limit fan shake. If the fan is close to any building equipment, Aero Power Solutions

recommends fixing the fan with a cable to ensure safety.

☐When installing the fan, the fan must be perpendicular to the ground.

☐The distance between all fan parts and obstacles is ≥2 ft (61 cm). No obstacles such as lights, cables,

sprinklers or other structural components are allowed in the fan installation area.。

Net space distance guide

If fan usage does not meet these requirements, please contact customer service to discuss other fan

installations or select other fans.

General spacing

☐The distance between the center of the fan must not be less than 2.5x the diameter of the fan.

☐When installing the fan, the fan must be at least 10 ft (3 meters) above the floor.

Ceiling pitch

Depending on the fan size, the fan must be installed at the following distances. The distance between the fan

and the ceiling is the distance between the top of the winglet and the ceiling.

Powersky®X6

Fan diameter

Distance from the ceiling

10 ft（3.0 meters）

4 ft（1.2 meters）

13 ft（4.0 meters）

5 ft（1.5 meters）

16 ft（4.9 meters）

6 ft（1.8 meters）

Understanding roof pitch

To ensure the fan is properly mounted, the fan must always hang plumb to the ground and the yoke must be

installed using the bolt holes at the widest locations possible. To accommodate building structures on which

the standard upper yoke does not allow the fan to properly orient itself, the 90-Degree Offset mount should

be purchased.

The example below shows one situation in which the 90-Degree Offset mount must be used so that the fan

hangs plumb to the ground and the widest stance for the upper yoke is ensured. If you are uncertain of your

roof pitch or do not have the correct mount to properly hang your fan, consult a structural engineer or contact

Aero Power Fans Customer Service.

Pre-Installation

Mechanical installation

•A 16-ft (4.9-m) Powersky®X6 fan weighs, at maximum, 275 lbs (125 kg). A suitable means for lifting the

weight of the fan, such as a scissor lift, and at least two (2) installation personnel will be required.

•Aero Power Fan can only be mounted to an I-beam or angle irons. If mounting to an I-beam, the I-beam

must be part of the existing building structure. Do not mount the fan to a single purlin, truss, or bar joist.

Consult a structural engineer for installation methods not covered in the guide.

•The mounting structure must be able to withstand the torque forces generated by the fan.

•Fans mounted on fabricated I-beams, which are common in steel buildings, could cause the beam to flex

and the fan to move significantly during operation. If this flexing causes a clearance problem, we suggest

installing the I-Beam Stabilizer kit.

•If the fan’s extension tube is 4 ft (1.2 m) or longer or if the mounting structure requires it, the fan’s lateral

movement must be secured using guy wires. If the fan is close to any building fixtures it is recommended

to secure the fan with guy wires as a safety measure.

•Adhere to the safety requirements in the table below when selecting where to mount the fan.

Safety requirement

Minimum distances

Clearance

≥2 ft from all fan parts. The fan installation area must be free of obstructions such as lights, cables,

sprinklers, or other building structure. See the tables on pp. 2–3 for recommended minimum ceiling

clearances.

Airfoil height

≥10 ft above the floor

HVAC equipment

≥1x fan diameter if above diffuser. ≥2x fan diameter if below diffuser. Refer to the illustration below.

Fan spacing

2.5x fan diameter, center-to-center

Radiant/IR heaters

See the manufacturer’s requirements for the minimum clearance to combustibles.

INSTALLATION

WARNING：The fan cannot be installed unless the structure of the installed fan is strong, undamaged,

and can support the load and installation method of the fan. Structural engineers should verify that the

structure is appropriate before installing the fan. The customer and/or end user is solely responsible for

confirming the stability of the installation structure.

Aero Power Solutions hereby expressly disclaims any liability, or do not use Aero Power Solutions to

provide or install any of the materials or hardware described in the instructions.

NOTICE：Before installation, make sure you have a upper yoke that fits the slope of the roof.

WARNING：Make sure there are no people under the fan during installation!

Overview

PowerSky X6 can only be hung from I-beams or bar joists. For structural installation methods not covered in

this manual, please consult a structural engineer.

I-Beam

•It is not recommended to install the fan on the

prefabricated I-beam.

•Do not install the fan directly on the I-beam.

•The I-beam must be part of the existing building

structure.

Angle Iron

•Do not install a fan from a single purlin, truss or

bar joists.

•The unsupported angle iron span should not

exceed 3.7 meters.

•The angle iron must be fixed to the roof structure

at each end.

1a. Prepare The I-beam

NOTICE

If you install the fan on the angle iron, continue reading the next page.

Measure the width of the beam edge of the suspended fan. Select the mounting hole that matches the width

of the I-beam as shown in the figure below.

Continue with step 2.

Small upper yoke

13-3/4 inches x10 inches

（349 mm x 258 mm）

I-beam width

5 inches to 9-7/8 inches

（127 至250 mm）

Large upper yoke

18-1/2 inches x10 inches

（470 mm x 258 mm）

I-beam width

9-7/8 inches to 14-5/8 inches

（250 至371 mm）

1b.Prepare Angle Irons

WARNING：Do not install a fan from a single purlin, truss or bar joists.

WARNING：The unsupported angle iron span should not exceed 12 ft (3.7 meters).

WARNING：Angle iron must be fixed to the roof structure at each end.

For mounting the fan on the I-beam, see the previous page. For structural installation methods not covered

in this manual, please consult the structural engineer.

A. Select proper angle irons

Using the table and diagrams below, select the proper angle irons for fan installation.

Note: Angle irons and angle iron hardware are not included with the fan.

Angle iron span

（Between installation points）

Minimum angle iron size

（Width X Height X Thickness）

Number of angle irons

required

6 ft（1.8 m）or less

2.5”x2.5”x0.25”

（6.4 cmx 6.4 cm x 0.6 cm）

6 ft to 8 ft（1.8 m to 2.4 m）

3”x3”x0.25”

（7.6 cm x 7.6 cm x 0.6 cm）

8 ft to12 ft（2.4 m to 3.7 m）

3”x3”x0.25”

（7.6 cm x 7.6 cm x 0.6 cm）

*Two pairs of angle irons. Pairs should be placed back to back and fastened in center

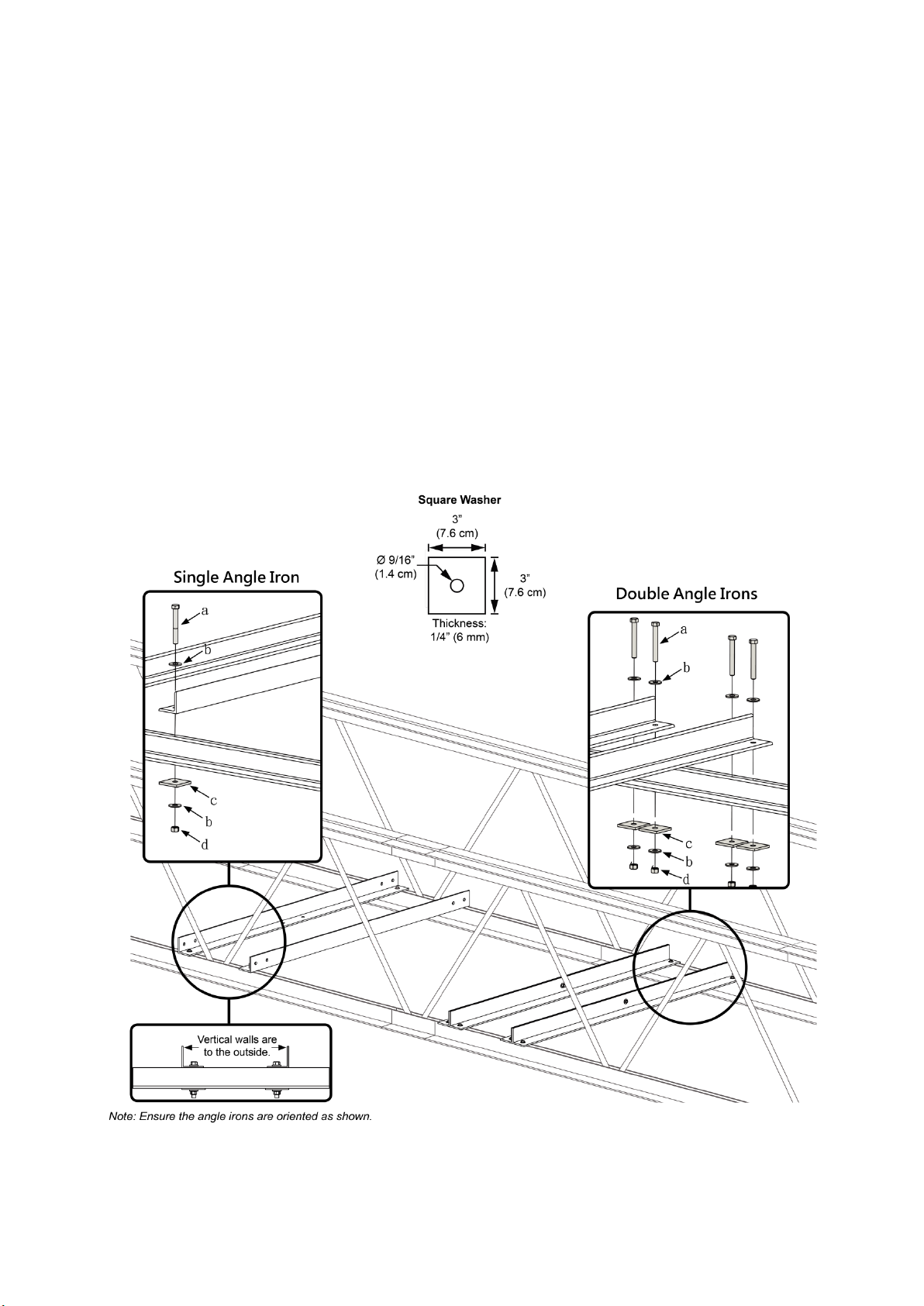

B. Fasten angle irons to roof structure mounting points

Fasten the angle irons to the roof structure mounting points at each end with Grade 8 hardware. Do

not fully tighten the hardware.

Single Angle Iron

Position the angle irons so that the horizontal legs

face each other (vertical legs are on the outside).

Double Angle Irons

Position the angle irons with fan mounting holes on

the inside, facing each other.

Grade 8 Angle Iron Hardware (Installer-Supplied):

a. (4 or 8) M12 GR 8 Bolt

b. (8 or 16) M12 GR 8 Washer

c. (4 or 8) 2”x 3”(51 x 76 mm) Rectangular Washer (APF-supplied; see diagram)

d. (4 or 8) M12 GR 8 Nylock Nut
