Length of Arm in each position hole:
Position 1 –940mm (37”)
Position 2 –1120mm (44”)
Position 3 –1300mm (51-3/16”)
Position 4 –1480mm (58-17/64”)
Load Rating Specifications for each arm position hole:
Position 1 –2000kg (4409lbs)
Position 2 –1500kg (3306lbs)
Position 3 –1000kg (2204lbs)
Position 4 –500kg (1102lbs)
Maximum Lift Height with arm fully retracted - 1990mm (78-11/32")
Maximum Lift Height with arm fully extended - 2350mm (92-33/64")
DO NOT exceed the maximum capacity for the respective position
Use only on a hard level surface
Never attempt to move when loaded across floors that have cracks or other obstacles which might impede movement of the
wheels
Never work directly under a supported engine
Be sure the engine crane is stable before commencing work
Inspect the crane is in good working condition, not worn, and not missing parts before each use
Do not use when tired and or under the influence of Drugs and Alcohol
Children are not allowed to use. When stored keep out of reach of children
Stay alert. Use caution and common sense when using the Engine Crane
Always check all bolts and moveable parts are secure before lifting engine
Don’t fully tighten bolts until the end
Never attempt to lift an engine with folding legs lifted.
Use with AF98-2064 Engine leveling tool for awkward loads and for greater ease of use

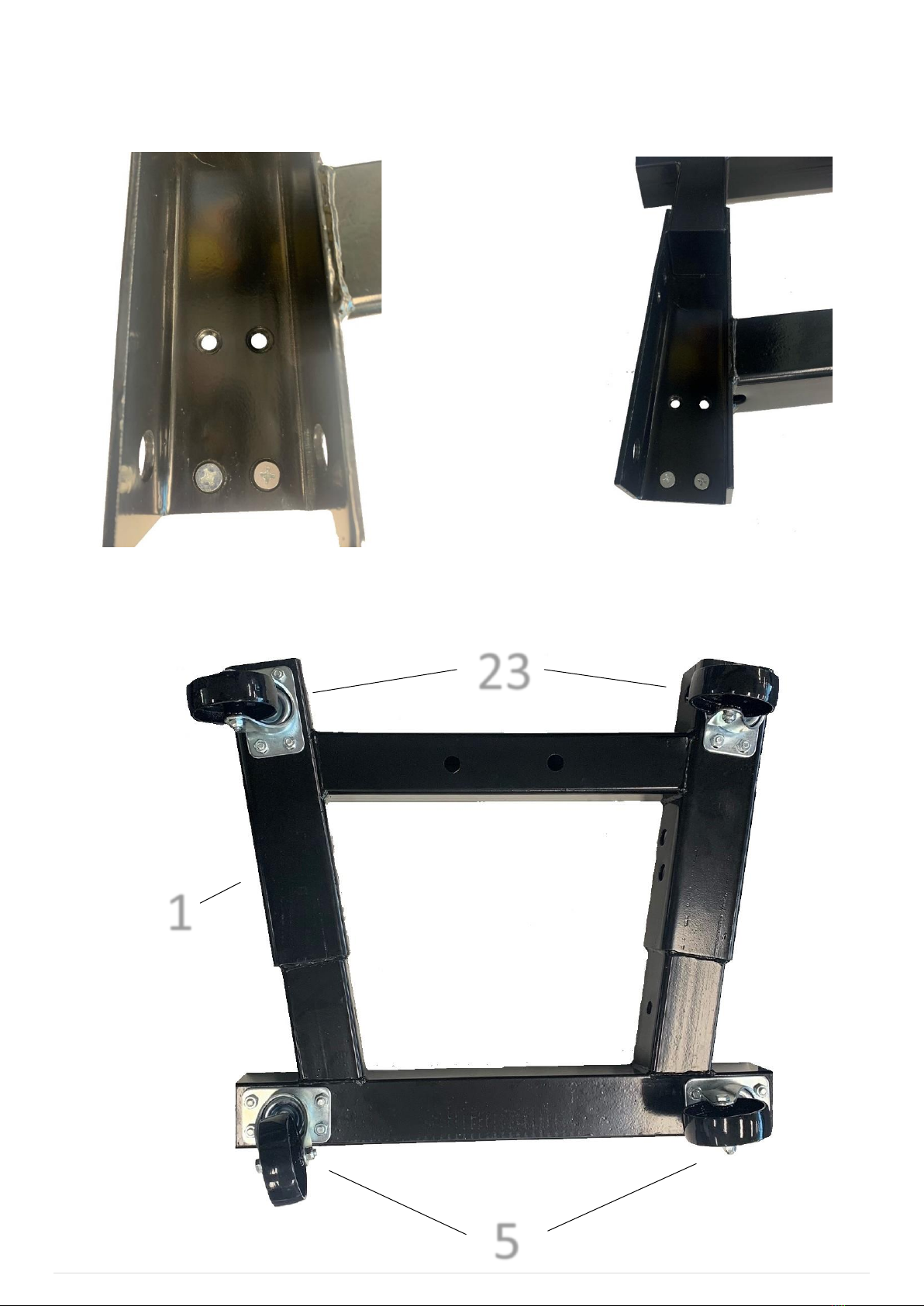

Assistance when assembling is recommended as some parts can be heavy and cumbersome
Failure to follow these instructions and warnings may result in damage to the equipment and or serious personal injury
