Door / Window Sensor 7 Basic user guide (ZWA011/ZWA041)

Modiﬁed on: Thu, 3 Jun, 2021 at 2:02 PM

Aeotec Door / Window Sensor 7.

Aeotec Door / Window Sensor 7 was developed to record the condition of doors or windows with Z-Wave Plus

(http://aeotec.com/z-wave-plus). It is powered by Aeotec’s Gen7 (https://aeotec.com/z-wave-home-automation/z-wave-

gen7.html) technology and S2 framework. You can find out more about Door / Window Sensor 7 (https://aeotec.com/z-

wave-door-window-sensor) Basic by following that link.

To see whether Door / Window Sensor 7 Basic is known to be compatible with your Z-Wave system or not, please

reference our Z-Wave gateway comparison (http://aeotec.com/z-wave-gateways) listing. The technical specifications of

Door / Window Sensor 7 (https://aeotec.freshdesk.com/a/solutions/articles/6000218908-door-window-sensor-7-technical-

specifications-) Basic can be viewed at that link.

Familiarize yourself with your Door / Window Sensor 7.

Package contents:

.

Sensor Unit.

.

Cover

.

Big Magnet.

.

Small Magnet.

.

Double-Sided Tape large (×2).

.

Double-Sided Tape small (x2).

.

Screws (×4).

Dowels( x4).

18/06/2021

Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk

https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-

2/9

Important safety information.

Please read this and other device guides carefully. Failure to follow the recommendations set forth by Aeotec Limited may

be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or reseller will not be held

responsible for any loss or damage resulting from not following any instructions in this guide or in other materials.

Keep the product and batteries away from open flames and extreme heat. Avoid direct sunlight or heat exposure. Always

remove all batteries from products that are being stored and not used. Batteries may damage the appliance if they leak.

Do not use rechargeable batteries. Ensure correct polarity when inserting the batteries. Improper battery use may damage

the product.

Door / Window Sensor 7 is intended for indoor use in dry locations only. Do not use in damp, moist, and/or wet locations.

It contains small parts; keep away from children.

18/06/2021

Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk

https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-

3/9

Quick Start

Pre-Installation of Door / Window Sensor 7 Basic.

Open the cover by pressing the clip on the side and pulling the cover upwards.

Insert a fresh 1 * 1/2 AA battery, but pay attention to the polarity

Install your Door / Window Sensor 7.

The sensor can be mounted either on the moving part or on the fixed part of a door or a window. Mounting can be

accomplished either using the tape by peeling off the protection foil or using two screws with the holes inside the battery

compartment. If the tilt detection on a window (only normal windows, no roof windows) shall be used the sensor device

must be placed on the moving part of the window and the magnet on the window frame. The sensor comes with two types

of magnets:

The standard magnet covered by the plastic part, mountable beside the sensor. Make sure the two indicating lines

on sensor enclosure and magnet are opposite to each other. The image on the right-hand side shows the position

of magnet and sensor body.

A slim "naked" magnet to be mounted behind the sensor in case the sensor body is placed on the side of a window.

For German-style windows where the window sits on top of the window frame mounting on the side of the window

is highly recommended. The sensor can be placed on any position of the door or the window.

18/06/2021

Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk

https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-

4/9

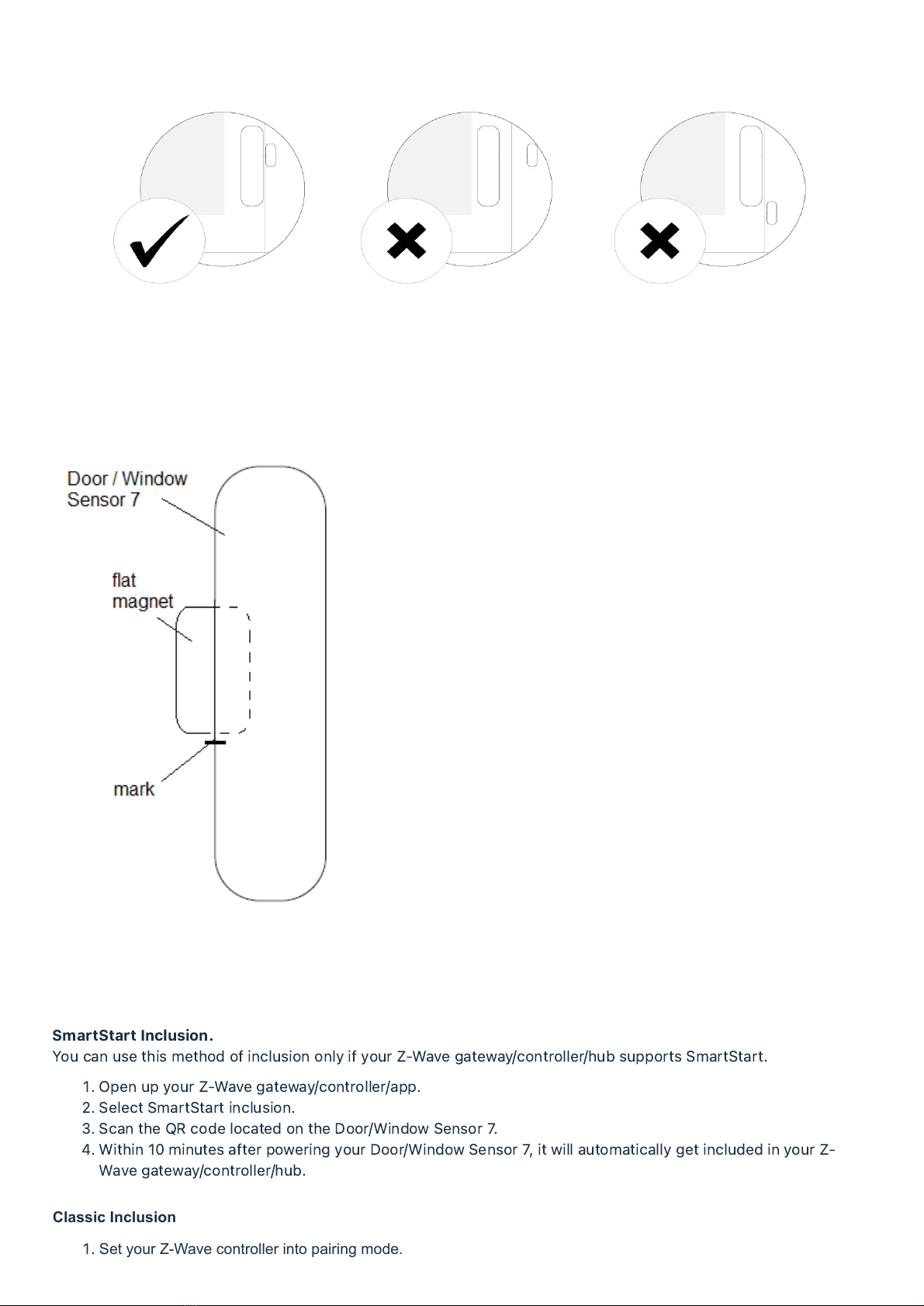

Installation of the flat magnet

When installing the flat magnet in a hidden location, make sure that it is on the longer side as seen from the mark on the

Door / Windows Sensor 7 Basic.

Adding your Door / Windows Sensor 7 Basic to Z-Wave network.

your

ontro

lle

supports

.

your

ontro

lle

.

elec

.

oor

nsor

.

nut

pow

your

oor

nsor

ill

utom

icall

ded

your

ontro

lle

Classic Inclusion

.

Set your Z-Wave controller into pairing mode.

18/06/2021

Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk

https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-

5/9

.

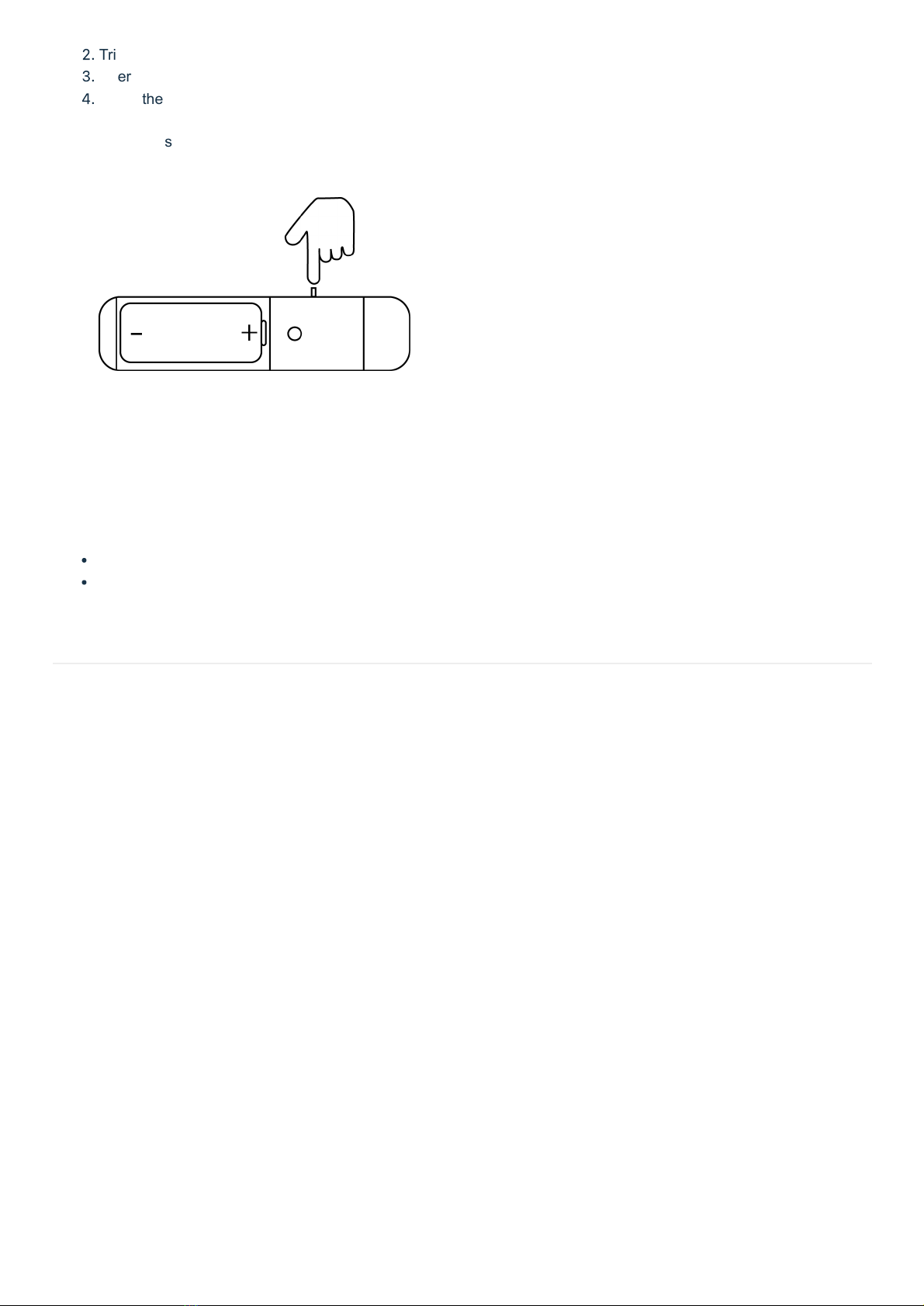

Triple-click the tamper switch on Door / Window Sensor 7 - this begins to blink five times

.

After completion of the inclusion, it lights up once before it goes out.

.

Close the cover

Note: Closing the cover is important! If the housing is not closed, the sensor is permanently awake. Only when the

cover is closed does the sensor change to the idle state.

Functions of Door / Window Sensor 7.

Open/Close/Tamper

Once installed the sensor will report "open" and "close" status changes to a central Z-Wave controller using notification

commands.

Open/Close utilizes Notification Report.

Tamper utilizes Notification Report.

18/06/2021

Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk

https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-

6/9

Advances functions.

ommun

ica

ili

omm

cla

heal

oor

nsor

your

ill

ell

you

oor

nsor

heal

onn

your

syst

deb

ggi

onn

ssu

.

.

ble



click

.

cce

fail

Firmware-Update over the Air.

This device is capable of receiving a new firmware 'over the air'. The update function needs to be supported by the central

controller. Once the controller starts the update process, perform the following action to confirm the firmware update:

.

Wake Up the device by removing the cover.

.

The hit the tamper switch once.

Send a wake-up notification.

In order to send your sensors new configuration commands from your Z-Wave controller or gateway, it will need to be

woken up.

.

Wake Up the device by removing the cover.

.

The hit the tamper switch once.

Note: Door / Window Sensor 7 Basic remains awake until the housing is closed again.

Remove your Door / Window Sensor 7 Basic from Z-Wave network.

Your sensor can be removed from your Z-Wave network at any time. You'll need to use your Z-Wave network's main

controller/gateway. To do this, please refer to the part of your gateway's respective manual that tells you how to remove

devices from your network.

.

Set your Z-Wave controller into unpair mode.

.

Triple-click the tamper switch on Door / Window Sensor 7 within 1.5 seconds - this will cause the LED to blink five

times.

.

After a successful exclusion, it will light up its LED for 2 seconds then deactivate.

Reset your Door / Windows Sensor 7 Basic.

This device also allows being reset without any involvement of a Z-Wave controller. This procedure should only be used

when the primary controller is inoperable.

To manually factory reset:

18/06/2021

Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk

https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-

7/9

.

Remove the cover of Door / Window Sensor 7

.

Press and hold tamper switch for 5 seconds until the red LED blinks.

.

Release the tamper switch

.

Immediately press and hold the tamper switch for 5 seconds until the red LED blinks.

Association Groups.

Association groups allow Door Window Sensor 7 to directly control Z-Wave devices without the use of a Z-Wave

Controller to maximize communication eﬃciency.

GroupNumber MaxNodes Description

1 5 Lifeline

2 5 Control devices when a magnet or external dry

contacts trips

3 5 Sends our alarm message when magnet controlled or

external dry sensor trips.

4 5 Sends alarm messages when tamper is tripped

Parameter Configurations.

Parameter 3: Door/Window State.

This parameter allows setting Door / Window Sensor 7 state when the magnet is close to the sensor.

Size: 1 Byte, Default Value: 0

Setting Description

0 closed when the magnet is near

1 opened when the magnet is near

Parameter 4: Visual LED Indications.

This parameter defines events indicated by the visual LED indicator. Disabling events might extend battery life.

Size: 1 Byte, Default Value: 7, Range: 0 - 7

Setting Description

0 no indications

1 indication of opening/closing status change

2indication of wake up (1 x click or

periodical)

4 indication of device tampering

Parameter 5: Range test after double click.

Allows enabling the activation of Z-Wave range test with double click of a Tamper Switch 2.

Size: 1 Byte, Default Value: 0

Setting Description

0 Disable

1 Enable

Parameter 6: Group 2 Association Triggers.

18/06/2021

Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk

https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-

8/9

This parameter defines events that result in sending On/Off commands to devices added to the 2nd Association Group.

These commands are sent alternately to switch the devices On and Off. Commands represent the values of BASIC SET

command frames. This parameter is inactive in external dry-contact mode (parameter “Operation Mode” set to 1).

Size: 1 Byte, Default Value: 0

Setting Description

0 switch after opening and closing

1 switch after opening

2 switch after closing

Parameter 7: Commands sent to associated devices on Group 2.

Command frames sent to devices added to the 2nd association group.

Size: 1 Byte, Default Value: 2

Setting Description

0 On

1 Off

2 On and Off

Parameter 8: Values of ON command frame sent to Group 2 Association.

The value of 0 turns OFF the device, 255 turns it On. In the case of associating the Dimmer or Roller Shutter module,

values

Size: 1 Byte, Default Value: 255

Setting Description

0 - 99 allow setting an Associated device to a

specified level (0 is OFF)

255 ON

Parameter 9: Value of OFF command frame sent to Group 2 Association.

The value of 0 turns OFF the device, 255 turns it On. In the case of associating the Dimmer or Roller Shutter module,

values.

Size: 1 Byte, Default Value: 0

Setting Description

0 - 99 allow setting an associated device to a

specified level. (0 is OFF)

255 ON

Parameter 10: Time Delay of ON command from Group #2.

The time period after which On command frame will be sent.

Size: 2 Byte, Default Value: 0

Setting Description

0 -

32400 Time set in seconds

Parameter 11: Time Delay of OFF command from Group #2.

The time period after which the OFF command frame will be sent.

Size: 2 Byte, Default Value: 0

Setting Description

18/06/2021

Aeotec Door Window Sensor 7 Basic guide : Aeotec Help Desk

https://help.aeotec.com/support/solutions/articles/6000230382-door-window-sensor-7-basic-user-guide-zwa011-zwa041-

9/9

0 -

32400 Time in seconds

Parameter 12: Delay of tamper alarm cancellation.

The time period after which a tamper alarm will be canceled.

Size: 2 Byte, Default Value: 0

Setting Description

0 -

32400 Time in seconds

Parameter 13: Reporting tamper alarm cancellation.

Reporting cancellation of tamper alarm to the controller and 3rd Association Group.

Size: 1 Byte, Default Value: 1

Setting Description

0 do not send tamper cancellation report

1 send tamper cancellation report

Parameter 255: Factory reset.

This parameter helps reset conﬁguration parameters and the device to factory defaults.

Size: 1 Byte, Default Value: 0

Setting Description

1 Reset Parameter

1431655765 Factory default (exclude the device)

Autres manuels pour Door / Window Sensor 7

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Aeotec Accessoires

Aeotec

Aeotec TriSensor Manuel utilisateur

Aeotec

Aeotec Water Sensor 7 Pro Manuel utilisateur

Aeotec

Aeotec MULTISENSOR 6 Manuel utilisateur

Aeotec

Aeotec Water Sensor 7 Pro Manuel utilisateur

Aeotec

Aeotec Water Sensor 7 Pro Manuel utilisateur

Aeotec

Aeotec Doorbell Gen5 Manuel utilisateur

Aeotec

Aeotec AEO ZWA008-C Manuel utilisateur

Aeotec

Aeotec DSB05106-ZWUS Manuel utilisateur

Aeotec

Aeotec MultiSensor 7 Manuel utilisateur

Aeotec

Aeotec MultiSensor Manuel utilisateur

Aeotec

Aeotec Water Sensor 7 Pro Manuel utilisateur

Aeotec

Aeotec GP-AEOMPSEU Manuel utilisateur

Aeotec

Aeotec MULTISENSOR 6 Manuel utilisateur

Aeotec

Aeotec AEOEZW120 Manuel utilisateur

Aeotec

Aeotec ZW187 Manuel utilisateur

Aeotec

Aeotec Z-Wave Multisensor DSB05-ZWEU Manuel utilisateur

Aeotec

Aeotec Button Manuel utilisateur

Aeotec

Aeotec Door / Window Sensor 7 Manuel utilisateur

Aeotec

Aeotec Water Sensor 7 Pro Manuel utilisateur

Aeotec

Aeotec ZW089 Manuel utilisateur

Aeotec

Aeotec AEOEZW112 Manuel utilisateur

Aeotec

Aeotec GP-AEOWLSEU Manuel utilisateur

Aeotec

Aeotec TriSensor ZWA005 Manuel utilisateur

Aeotec

Aeotec Door / Window Sensor 7 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
