COMPATIBLE CURRENT
PROBES & SENSORS FOR
POWER QUALITY METERS
E N G L I S H User Manual
www. .com information@itm.com1.800.561.8187
Copyright © Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments. All rights reserved.
No part of this documentation may be reproduced in any form or by any means (including electronic storage and retrieval or
translation into any other language) without prior agreement and written consent from Chauvin Arnoux®, Inc., as governed
by United States and International copyright laws.
Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments
This documentation is provided “as is,” without warranty of any kind, express, implied, or otherwise. Chauvin Arnoux®,
completeness of the text, graphics, or other information contained in this documentation. Chauvin Arnoux®, Inc. shall not be
the user of the documentation has been advised of the possibility of such damages.
www. .com information@itm.com1.800.561.8187
Thank you for purchasing an AEMC current probe.
For best results from your instrument and for your safety, read the enclosed
operating instructions carefully and comply with the precautions for use. These
Measurement category IV corresponds to measurements taken at the
source of low-voltage installations.
Example: power feeders, counters and protection devices.
Measurement category III corresponds to measurements on building
installations.
-
trial devices.
Measurement category II corresponds to measurements taken on cir-
cuits directly connected to low-voltage installations.
Example: power supply to domestic electrical appliances and portable
tools.
www. .com information@itm.com1.800.561.8187
The protection assured by the current probe can be compromised if it is used in a
way that is not recommended by the manufacturer.
Comply with the rated maximum voltage and current, and the measurement
category. Do not use the current probe on networks where the voltage or
Comply with the conditions of use (e.g. temperature, humidity, altitude, degree
of pollution, location).
Do not use the current probe if its housing is open, deteriorated, or incorrectly
reassembled. Before each use, check the integrity of the insulation of the unit,
jaws, clamps, housing, and leads.
Do not subject the current probe to water or other liquids.
Keep the jaw contacts of the clamp absolutely clean.
Use suitable personal protective equipment when hazardous voltages may be
accessible in the installation where the measurement is made.
Any repairs must be carried out by accredited skilled personnel.
www. .com information@itm.com1.800.561.8187
Current Probes & Sensors for Power Quality Meters
1.1 Receiving Your Shipment......................................................................4
1.2 Ordering Information.............................................................................4
2.1 Control Features...................................................................................5
2.1.1 AmpFlex® Models 193-24-BK, 193-36-BK & 196-24-BK ..........5
2.1.2 MiniFlex® Model MA193-BK .....................................................6
2.1.3 AC/DC Current Probe Model J93 .............................................7
2.1.4 AC Current Probe Models MN93-BK & MN193-BK..................8
2.1.5 AC Current Probe Model MR193-BK........................................9
2.1.6 AC Current Probe Model SL261.............................................10
2.1.7 AC Current Probe Model SR193-BK ......................................11
4.1 Electrical .............................................................................................14
4.2 Environmental.....................................................................................15
4.3 Mechanical..........................................................................................15
4.4 Safety..................................................................................................16
5.1 Cleaning..............................................................................................17
5.2 Battery Replacement ..........................................................................17
5.2.1 Model MR193 .........................................................................17
5.2.2 Model SL261 ..........................................................................17
5.2.3 Model J93...............................................................................18
5.3 Repair and Calibration........................................................................19
5.4 Technical and Sales Assistance..........................................................19
5.5 Limited Warranty.................................................................................20
5.6 Warranty Repairs................................................................................20
www. .com information@itm.com1.800.561.8187
Current Probes & Sensors for Power Quality Meters
Upon receiving your shipment, make sure that the contents are consistent with the
packing list. Notify your distributor of any missing items. If the equipment appears
at once, giving a detailed description of any damage. Save the damaged packing
container to substantiate your claim.
The current probes in this manual are compatible only with AEMC® Power
Analyzers (see § 4 for meter compatibility).
AmpFlex® Sensor 24" Model 193-24-BK ..........................................
AmpFlex® Sensor 36" Model 193-36-BK ..........................................
AmpFlex® Sensor 24” Model 196A-24-BK........................................
MiniFlex® Sensor 10" Model MA193-10-BK......................................
MiniFlex® Sensor 14" Model MA193-14-BK......................................
AC/DC Current Probe Model J93 .....................................................
AC Current Probe Model MN93-BK..................................................
AC Current Probe Model MN193-BK................................................
AC Current Probe Model MR193-BK................................................
AC Current Probe Model SR193-BK ................................................
AC/DC Current Probe Model SL261* ...............................................
* Adapter for SL261 - BNC Adapter............................................
www. .com information@itm.com1.800.561.8187
Current Probes & Sensors for Power Quality Meters
2
3
4
1
1. Flexible sensor
2. Sensor opening connector
3. Shielded lead
4. Custom 4-pin input connector (available standard or IP 67 compliant,
depending on instrument)
www. .com information@itm.com1.800.561.8187
Current Probes & Sensors for Power Quality Meters
2
3
4
1
1. Flexible sensor
2. Sensor opening device
3. Shielded lead
4. Custom 4-pin input connector
www. .com information@itm.com1.800.561.8187
Current Probes & Sensors for Power Quality Meters

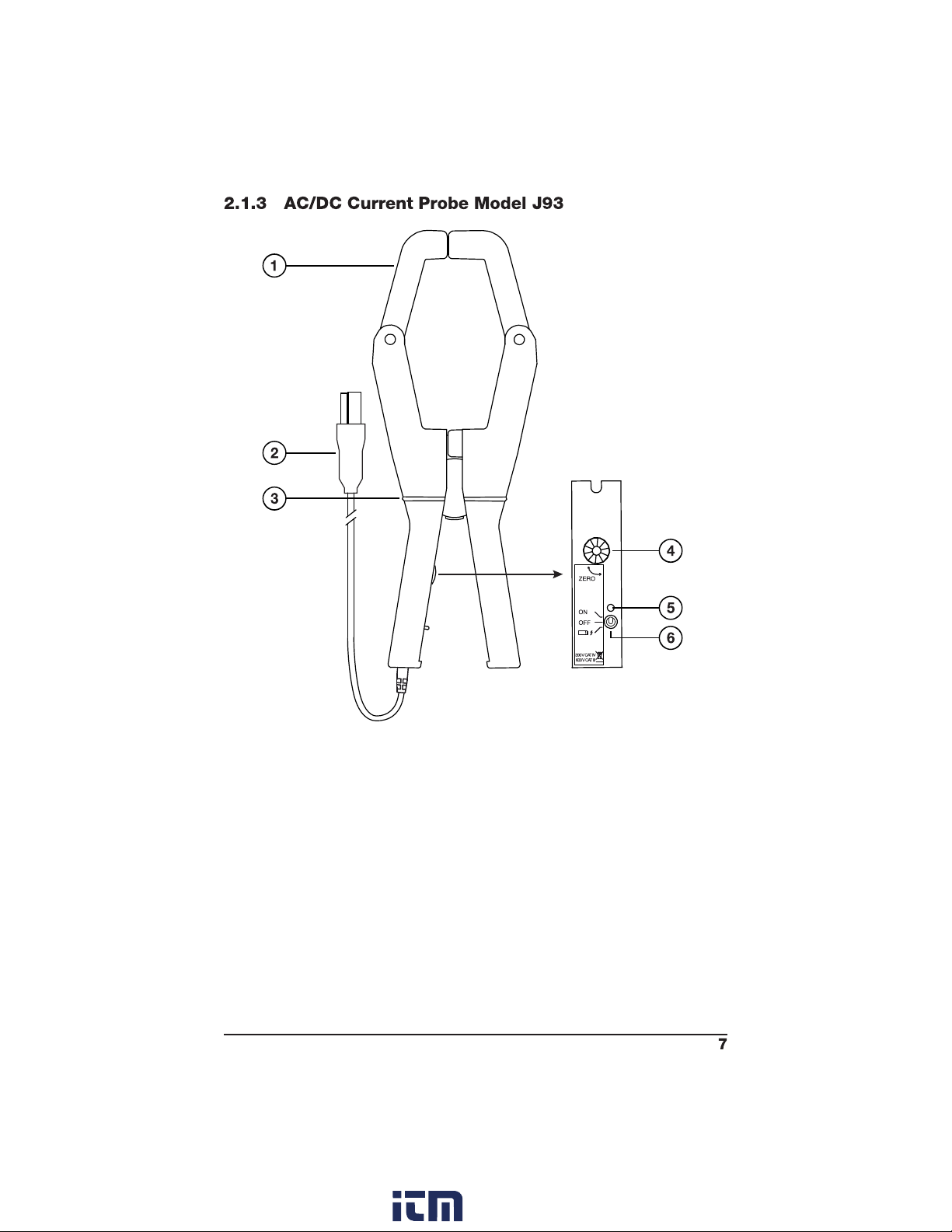

1. Jaws
2. 4-point CA connector
3. Safety guard
4. Zero adjustment knob
5. Power ON/ Low battery indicator
6. Three-position switch: ON, OFF, battery test
www. .com information@itm.com1.800.561.8187
Current Probes & Sensors for Power Quality Meters
5
4
2
3
6
1
1. Jaws
2. Protective guard
3. Two-position range switch (MN193 only)
4. Jaw opening lever
5. Shielded lead
6. Custom 4-pin input connector
