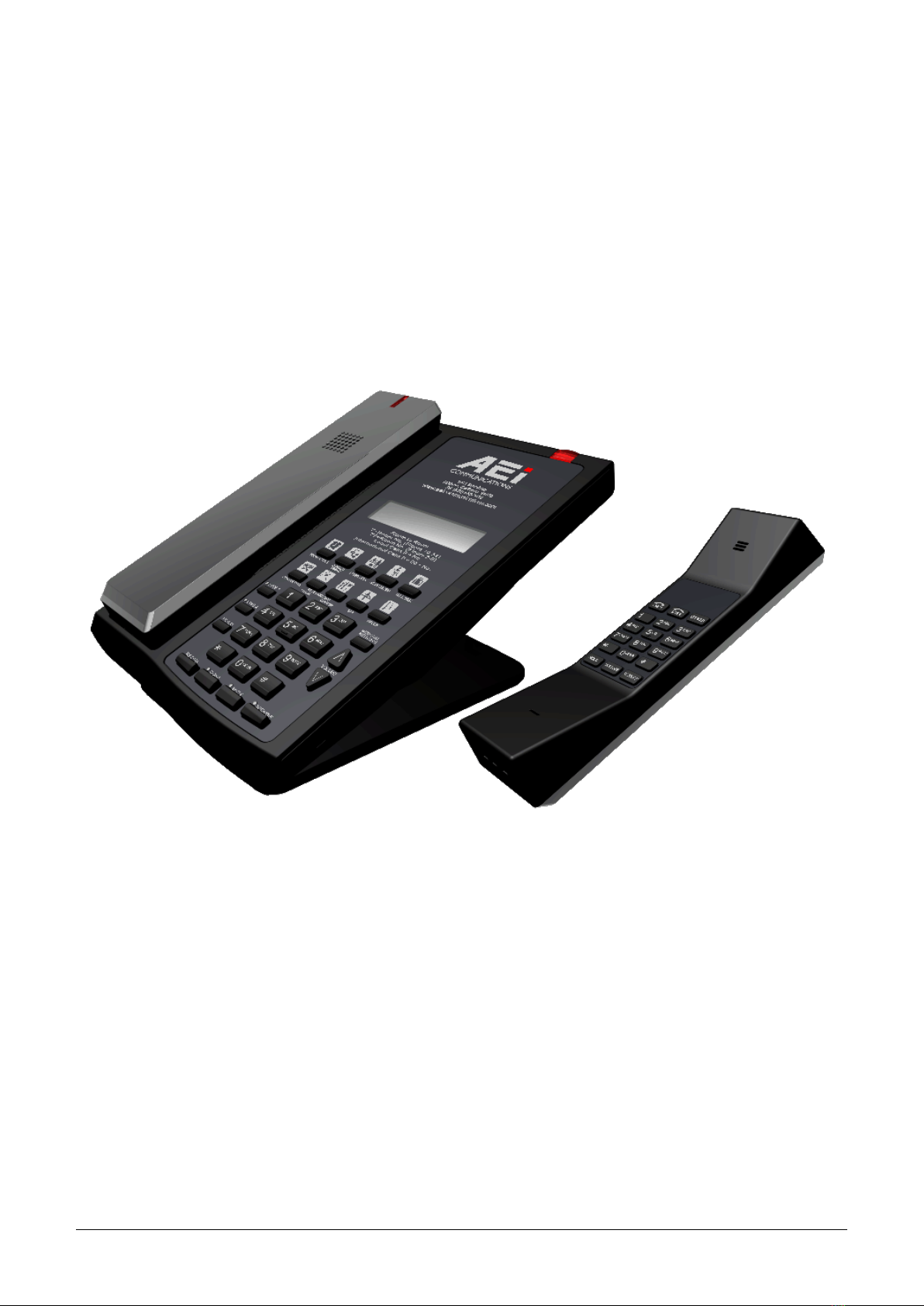

AEI COMMUNICATIONS SSP-8210-SMK Manuel utilisateur

SIP DECT Phone

SSP-8210-SMK /SSP-8110-SMK

QIG

V 1.02

1 Over view

This phone is a full-feature telephone that provides voice communication. Read this QIG carefully to learn how to

operate this product and take advantage of its features.

When unpacking the phone, ensure all the following items are present and undamaged. If anything appears to be

missing or broken, contact your dealer for a replacement.

1. Base Unit

2. Cordless Handset

3. Stand

4. Battery

5. AC Adaptor

6. RJ-45 Cable

7. Quick Installation Guide (This document)

2 Product Description

The following contains important information to help you familiarize with the functions of the VoIP phone.

1. Base unit keys

Name

Description

Message waiting

indicator

To indicate an incoming call or unread messages.

Display screen

To display calls and status information.

Speed dial keys

Press to dial the preset number.

LINE 1 / LINE 2

To indicate a line been used as the following status:

Name

Description

- Idle: No LED indication.

- Pre-dialing a call: Green LED.

- In call: Red LED.

- In on-hold call: Blinking red LED.

Alphanumerical keys

Press these keys to enter phone numbers and texts.

Function keys

HOLD

Press to put an active call on hold.

REDIAL

Press to call the last number dialed.

CONF

Press to activate the three-way conference call.

MUTE

Press to mute a call.

SPEAKER

Press to activate the speakerphone for hands free

conversations.

MESSAGE

Press to retrieve voice messages.

VOLUME

Press to increase or decrease the volume of the ringer

tone or speakerphone.

2 Handset keys

Name

Description

Message waiting

indicator

To indicate an incoming call or unread messages.

LINE 1 / LINE 2

To indicate a line been used as the following status:

- Idle: No LED indication.

- In call: Red LED.

- In on-hold call: Blinking red LED.

SPEAKER

Press to activate the speakerphone for hands free

conversations.

Alphanumerical keys

Press these keys to enter phone numbers and texts.

Function keys

MESSAGE

Press to retrieve voice messages.

HOLD

Press to put an active call on hold.

VOLUME

Press to increase or decrease the volume of the ringer

tone, handset, or speakerphone.

NO.

Name

Description

LAN port

Connects to HUB, ADSL, or Switch(PSE)

DC 6V Power jack

Connects to AC power adapter. (Optional. While base

unit is not powered via a PSE)

Handset jack

Connects to handset.

The following illustration shows how to connect the power and LAN ports of VoIP phone.

Power outlet

HUB

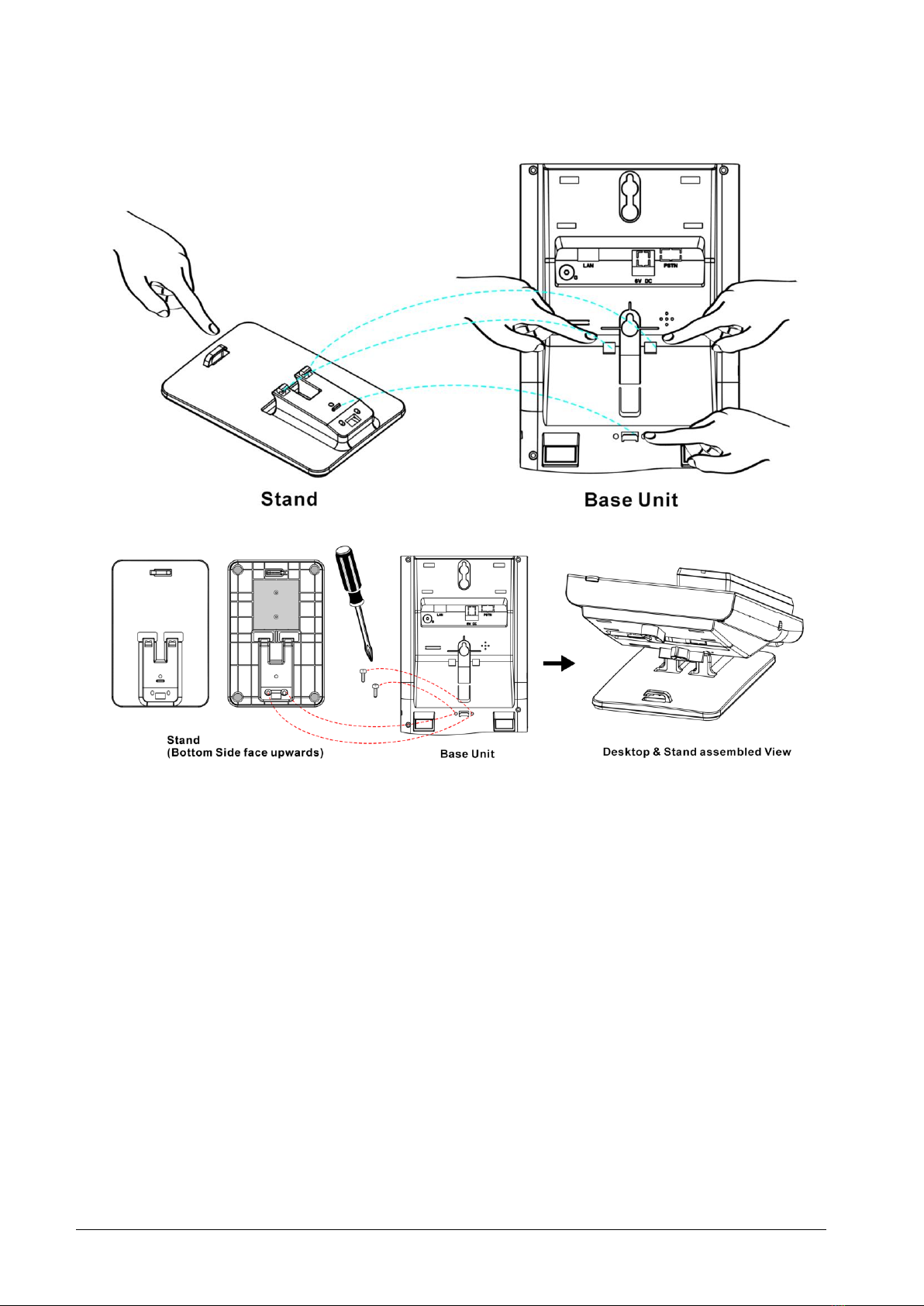

The following illustration shows how to install the phone and stand.

The following illustration shows how to install the handset and battery.

3 Operation

An incoming call is indicated by a ringing tone and a flashing indicator at the top of both handset and base units. You

can answer the call by doing one of the followings:

Pick up the handset to answer the call.

Press the Line (Line1/Line2) key on the base or handset to answer the call.

Dialing with the Keypad

Enter the telephone number with the alphanumerical keypad.

After entering the number you want to call, press the #key to force dialing or wait for 4 seconds before the number

is dialed automatically.

You can use the 10 pre-assigned speed dial hotkeys, to configure the most commonly dialed numbers. Use the function

to dial a number quickly, instead of keying in a complete number.

To call a number using speed dialing, follow the steps below:

Press the speed dial hotkey that has been pre-assigned to the phone number and the call will start automatically.

While a call is in progress, a number of additional options are available.

For hands free operation, you can use the built‐in speaker to talk on the phone. To use the speakerphone, follow the

steps below:

While talking on the phone, press the SPEAKER key on the phone to enable the Speakerphone function.

Press SPEAKER key again to terminate the call.

You may want to put a call on hold temporarily while doing some work or attending to a second incoming or outgoing

call. To put a call on hold, do one of the following:

Press the HOLD key on the phone to put the call on hold.

When you receive a second call, press the next available LINE key to attend to the new call, and the first call will be

put on hold automatically.

You would need to charge the handset battery before using the handset.

Install the battery into the handset.

Place the handset onto the base unit and base unit will start to charge the handset automatically.

The charging indicator lights up in red during charging progress. The LED goes off after the handset battery is

fully charged.

If the message waiting indicator at top of handset or base unit lights up in red, it indicates that there are one or more

new messages in voicemail box.

Press the MESSAGE key on the phone to retrieve voice messages.

(An external ITSP or PBX must support voice message feature. And you need to set a voice message code before using

the voice mail feature.)

5 Support

To configure through the web browser, do the following:

Ensure the phone is powered up and connected to a DCHP network.

Press MUTE*112*113#, the IP address is displayed on the LCD screen.

Open your browser (such as Internet Explorer, Firefox, etc.) and type in the web address of the phone. For

example, if the IP address you obtain in step 4 above is 192.168.1.2, enter the web address: http:// 192.168.1.2:8000.

When the Web login front page is displayed. Enter the user name and the password and click Login.

The administrator’s user name and password are “admin”and “1234”respectively.

For technological support, please email to [email protected].
