1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
www.aeg.com2
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children of less than 8 years of age and persons with
very extensive and complex disabilities shall be kept
away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do
not play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•WARNING: Unattended cooking on a hob with fat or
oil can be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch
off the appliance and then cover flame e.g. with a lid
or a fire blanket.
•CAUTION: The appliance must not be supplied
through an external switching device, such as a timer,
ENGLISH 3
or connected to a circuit that is regularly switched on
and off by a utility.
•CAUTION: The cooking process has to be supervised.
A short term cooking process has to be supervised
continuously.
•WARNING: Danger of fire: Do not store items on the
cooking surfaces.
•Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
•Do not use the appliance before installing it in the
built-in structure.
•Do not use a steam cleaner to clean the appliance.
•After use, switch off the hob element by its control and
do not rely on the pan detector.
•If the glass ceramic surface / glass surface is cracked,
switch off the appliance and unplug it from the mains.
In case the appliance is connected to the mains
directly using junction box, remove the fuse to
disconnect the appliance from power supply. In either
case contact the Authorised Service Centre.
•If the supply cord is damaged, it must be replaced by
the manufacturer, an authorized Service or similarly
qualified persons in order to avoid a hazard.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by
the manufacturer of the appliance in the instructions
for use as suitable or hob guards incorporated in the
appliance. The use of inappropriate guards can cause
accidents.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
WARNING!
Risk of injury or damage to
the appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
www.aeg.com4
• Follow the installation instructions
supplied with the appliance.
• Keep the minimum distance from
other appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture from causing
swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance next to a
door or under a window. This
prevents hot cookware from falling
from the appliance when the door or
the window is opened.
• Each appliance has cooling fans on
the bottom.
• If the appliance is installed above a
drawer:
– Do not store any small pieces or
sheets of paper that could be
pulled in, as they can damage the
cooling fans or impair the cooling
system.
– Keep a distance of minimum 2 cm
between the bottom of the
appliance and parts stored in the
drawer.
• Remove any separator panels
installed in the cabinet below the
appliance.
2.2 Electrical Connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation
make sure that the appliance is
disconnected from the power supply.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Make sure the appliance is installed
correctly. Loose and incorrect
electricity mains cable or plug (if
applicable) can make the terminal
become too hot.
• Use the correct electricity mains
cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the
cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug (if applicable) or to the
mains cable. Contact our Authorised
Service Centre or an electrician to
change a damaged mains cable.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
2.3 Use
WARNING!
Risk of injury, burns and
electric shock.
• Remove all the packaging, labelling
and protective film (if applicable)
before first use.
• This appliance is for household
(indoors) use only.
ENGLISH 5
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Set the cooking zone to “off” after
each use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is
cracked, disconnect immediately the
appliance from the power supply. This
to prevent an electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.
• When you place food into hot oil, it
may splash.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and
oils when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• Do not keep hot cookware on the
control panel.
• Do not put a hot pan cover on the
glass surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or
cookware fall on the appliance. The
surface can be damaged.
• Do not activate the cooking zones
with empty cookware or without
cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron,
aluminium or with a damaged bottom
can cause scratches on the glass /
glass ceramic. Always lift these
objects up when you have to move
them on the cooking surface.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
2.4 Care and cleaning
• Clean the appliance regularly to
prevent the deterioration of the
surface material.
• Switch off the appliance and let it cool
down before cleaning.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
www.aeg.com6
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Before the installation
Before you install the hob, write down the
information below from the rating plate.
The rating plate is on the bottom of the
hob.
Serial number ...........................
3.2 Built-in hobs
Only use the built-in hobs after you
assemble the hob into correct built-in
units and work surfaces that align to the
standards.
3.3 Connection cable
• The hob is supplied with a connection
cable.
• To replace the damaged mains cable,
use the cable type: H05V2V2-F which
withstands a temperature of 90 °C or
higher. The single wire must have a
diameter of minimum 1,5 mm². Speak
to your local Service Centre. The
connection cable may only be
replaced by a qualified electrician.
WARNING!
All electrical connections
must be made by a qualified
electrician.
CAUTION!
Connections via contact
plugs are forbidden.
CAUTION!
Do not drill or solder the wire
ends. It is forbidden.
CAUTION!
Do not connect the cable
without cable end sleeve.
One-phase connection
1. Remove the cable end sleeve from
black and brown wires.
2. Remove an insulation of the brown
and black cable ends.
3. Merge the black and brown cable
ends.
4. Apply a new wire end sleeve on the
common cable end (special tool
required).
Cable cross section 2x1,5 mm²
N
L1
N
L
220-240 V~ 400V 2~N
L2
One-phase connection - 220 - 240 V~ Two-phase connection - 400 V 2 ~ N
Green - yellow Green - yellow
N Blue and blue Blue and blue N
L Black and brown Black L1
Brown L2
ENGLISH 7
3.4 Assembly
If you install the hob under a hood,
please see the installation instructions of
the hood for the minimum distance
between the appliances.
min.
50mm
min.
500mm
65 ±1mm
490±1mm
55±1mm
If the appliance is installed above a
drawer, the hob ventilation can warm up
the items stored in the drawer during the
cooking process.
Find the video tutorial "How to install
your AEG Induction Hob - Worktop
installation" by typing out the full name
indicated in the graphic below.
www.youtube.com/electrolux
www.youtube.com/aeg
How to install your AEG
Induction Hob - Worktop installation
www.aeg.com8
4. PRODUCT DESCRIPTION
4.1 Cooking surface layout
1
2
1Induction cooking surface
2Control panel
4.2 Control panel layout
1 2 4 5 63 10 117
12
8
13
9
14
Use the sensor fields to operate the appliance. The displays, indicators and sounds
tell which functions operate.

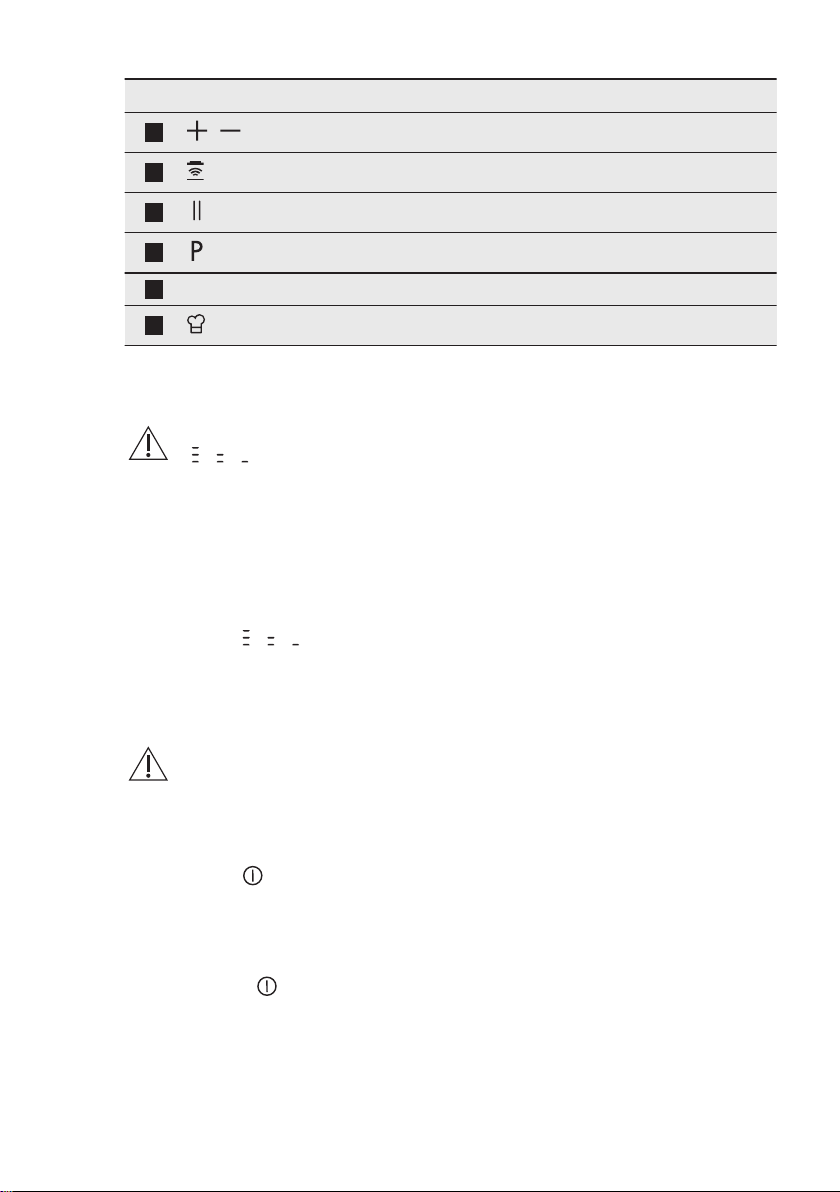

Sensor field Comment
1To activate and deactivate the hob.
2To activate and deactivate Lock or Child Safety Device.
3To show the active zone.
4CountUp Timer indicator.
5Count Down Timer indicator.
6- Timer display: 00 - 99 minutes.
7To activate and deactivate Bridge and to switch between the
modes.
8To select Timer functions.
ENGLISH 9
Sensor field Comment
9 / To increase and decrease the time.
10 To activate and deactivate Hob²Hood.
11 To activate and deactivate Pause.
12 To activate PowerBoost.
13 - To set a heat setting: 0 - 9.
14 To activate and deactivate PowerSlide.
4.3 OptiHeat Control (3 step
Residual heat indicator)
WARNING!
/ / As long as the
indicator is on, there is a risk
of burns from residual heat.
The induction cooking zones produce the
heat necessary for the cooking process
directly in the bottom of the cookware.
The glass ceramic is heated by the heat
of the cookware.
The indicators / / appear when a
cooking zone is hot. They show the level
of the residual heat for the cooking zones
you are currently using.
The indicator may also appear:
• for the neighbouring cooking zones
even if you are not using them,
• when hot cookware is placed on cold
cooking zone,
• when the hob is deactivated but the
cooking zone is still hot.
The indicator disappears when the
cooking zone has cooled down.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Activating and
deactivating
Press and hold to activate or
deactivate the hob.
Control bars come on after you activate
the hob and go off after you deactivate
the hob. When the hob is deactivated
you can see only .
When you activate the hob and place the
cookware in the correct position, the hob
recognizes it and the appropriate control
panel lights up. The red cooking zone
indicator appears above the control bar
and indicates the position of the pot.
5.2 Automatic Switch Off
The function deactivates the hob
automatically if:
• you do not place any cookware on the
hob for 50 seconds,
• you do not set the heat setting for 50
seconds after you place the
cookware,
• you spill something or put something
on the control panel for more than 10
seconds (a pan, a cloth). When you
hear the acoustic signal, the hob
deactivates. Remove the object or
clean the control panel.
• the hob gets too hot (e.g. when a
saucepan boils dry). Let the cooking
zone cool down before you use the
hob again.
www.aeg.com10
Table des matières
Langues :
Autres manuels AEG Plaque
AEG
AEG HGB64420SM Manuel utilisateur
AEG
AEG IKE85651FB Manuel utilisateur
AEG
AEG HK884406XG Manuel utilisateur
AEG
AEG HC451220EB Manuel utilisateur
AEG
AEG HG775450 Manuel utilisateur
AEG
AEG C65301K Manuel utilisateur
AEG
AEG HG694340XB Manuel utilisateur
AEG
AEG HD955100NB Manuel utilisateur
AEG
AEG 79902 Manuel utilisateur
AEG
AEG EGG6345 Manuel utilisateur
AEG
AEG 11000 M Fiche technique
AEG
AEG 111 K Manuel utilisateur
AEG
AEG HG745451 Manuel utilisateur
AEG
AEG HK654250XB Manuel utilisateur
AEG
AEG HE604060XB Manuel utilisateur
AEG
AEG EEE45502BM Manuel utilisateur
AEG
AEG HG755820UM Manuel utilisateur
AEG
AEG IAE63851IB Manuel utilisateur
AEG
AEG HK764070FB Manuel utilisateur
AEG
AEG HGB64200SM Manuel utilisateur
