EN User Manual

Tumble Dryer

LAVATHERM T3DBN79V

CONTENTS

1. SAFETY INFORMATION.............................................................................................3

2. SAFETY INSTRUCTIONS.............................................................................................5

3. ACCESSORIES............................................................................................................. 7

4. PRODUCT DESCRIPTION...........................................................................................8

5. CONTROL PANEL....................................................................................................... 8

6. PROGRAMME TABLE................................................................................................. 9

7. OPTIONS....................................................................................................................10

8. SETTINGS...................................................................................................................12

9. BEFORE FIRST USE................................................................................................... 12

10. DAILY USE................................................................................................................13

11. HINTS AND TIPS..................................................................................................... 14

12. CARE AND CLEANING.......................................................................................... 14

13. TROUBLESHOOTING.............................................................................................16

14. TECHNICAL DATA..................................................................................................17

15. INSTALLATION........................................................................................................18

16. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION

1369/2017........................................................................................................................21

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you

impeccable performance for many years, with innovative technologies that help

make life simpler - features you might not find on ordinary appliances. Please

spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com/webselfservice

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.aeg.com

1. SAFETY INFORMATION

Before beginning the installation and use of this

appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or

damages that are the result of incorrect installation or

usage. Always keep the instructions in a safe and

accessible location for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent

disability.

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away from the appliance unless continuously

supervised.

•Children of less than 3 years of age should be kept

away from the appliance unless continuously

supervised.

•Do not let children play with the appliance.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•If the appliance has a child safety device, it should be

activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

ENGLISH 3

1.2 General Safety

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing

machine, use the stacking kit. The stacking kit,

available from your authorized vendor, can be used

only with the appliance specified in the instructions

supplied with the accessory. Read it carefully before

installation (refer to the Installation leaflet).

•Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite

side, that would prevent the appliance door from

being fully open.

•The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

•CAUTION: The appliance must not be supplied

through an external switching device, such as a timer,

or connected to a circuit that is regularly switched on

and off by a utility.

•Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the

mains plug is accessible after installation.

•Ensure good air ventilation in the room where the

appliance is installed to avoid the backflow of

unwanted gases into the room from appliances

burning gas or other fuels, including open fires.

•Exhaust air must not be discharged into a flue which is

used for exhausting fumes from any appliances

burning gas or other fuels.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Do not exceed the maximum load of 7 kg (refer to the

"Programme chart" chapter).

•Do not use the appliance if items have been soiled

with industrial chemicals.

www.aeg.com

•Wipe away lint or packaging debris that has

accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint

filter before or after each use.

•Do not dry unwashed items in the tumble dryer.

•Items that have been soiled with substances such as

cooking oil, acetone, alcohol, petrol, kerosene, spot

removers, turpentine, waxes and wax removers should

be washed in hot water with an extra amount of

detergent before being dried in the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes

or pillows fitted with foam rubber pads should not be

dried in the tumble dryer.

•Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s

instructions.

•Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

•WARNING: Never stop a tumble dryer before the end

of the drying cycle unless all items are quickly

removed and spread out so that the heat is

dissipated.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature can be lower

than 5°C or higher than 35°C.

• The floor area on which the appliance

is to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

when it is being moved.

• The rear surface of the appliance

must be put against a wall.

• When the appliance is in its

permanent position, check if it is

levelled correctly with the aid of a

spirit level. If it is not, adjust the feet

accordingly.

ENGLISH 5

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the

E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, electric shock,

fire, burns or damage to the

appliance.

• This appliance is for household use

only.

• Do not dry damaged (torn, frayed)

items that contain padding or fillings.

• If laundry has been washed with a

stain remover, carry out an additional

rinse cycle before starting a drying

cycle.

• Dry only fabrics that are suitable to

dry in the appliance. Follow the

cleaning instruction on the item label.

• Do not drink or prepare food with the

condensed water/distilled water. It

can cause health problems to people

and pets.

• Do not sit or stand on the open door

of the appliance.

• Do not dry dripping wet clothes in the

appliance.

2.4 Care and cleaning

WARNING!

Risk of injury or damage to

the appliance.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use any abrasive products,

abrasive cleaning pads, solvents or

metal objects.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

www.aeg.com

3. ACCESSORIES

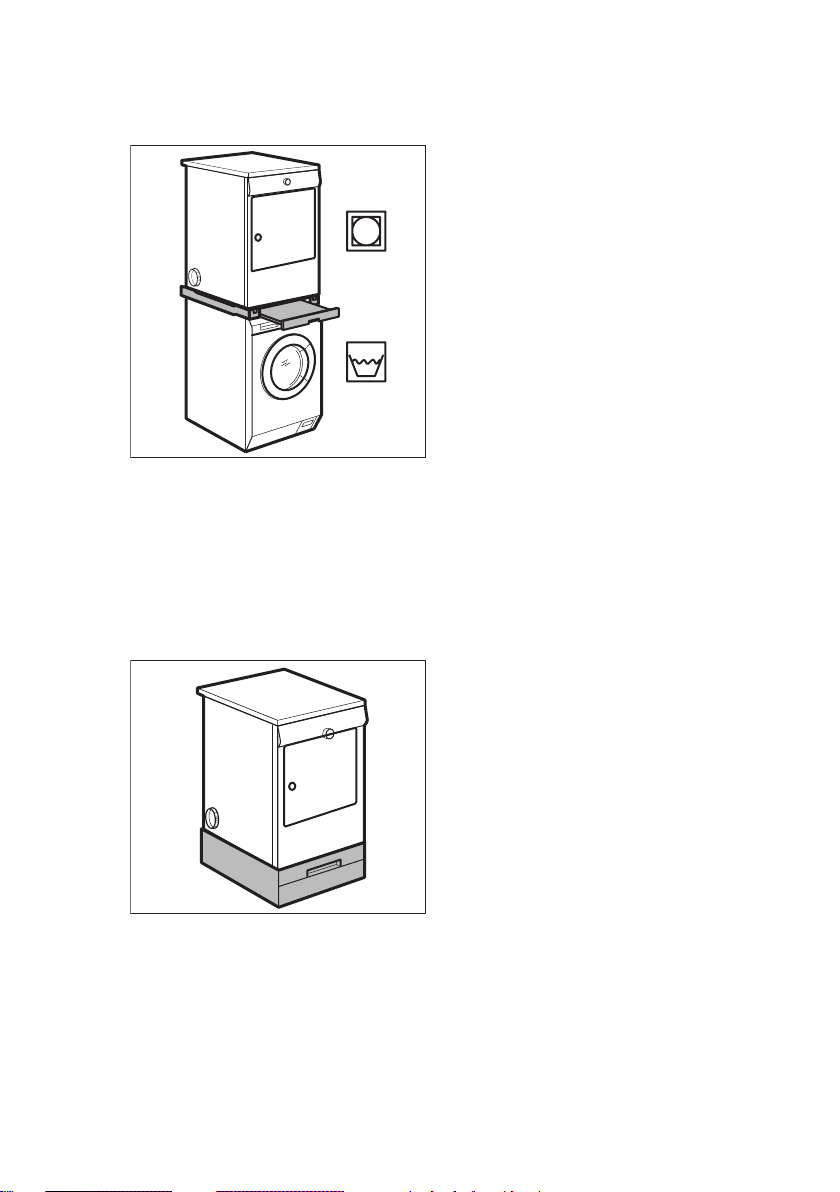

3.1 Stacking kit

Product name: SKP11.

Available from your authorized dealer.

Stacking kit can be used only with the

washing machines specified in the

leaflet. See leaflet attached. Read

carefully the instructions supplied with

the kit.

3.2 Pedestal with the drawer

Product name: PDSTP10.

Available from your authorized dealer.

To put the appliance higher at the level

which helps to easy load and remove the

laundry.

The drawer can be use for laundry

storage e.g. : towels, cleaning products

and more. Read carefully the instructions

supplied with the accessory.

3.3 Vent kit

Universal kit for vented dryers where an

outdoor outlet is not possible. The tank

collects lint and condensation, thus

avoiding dirt and damage due to

moisture in the room where the tumble

dryer is placed.

Read carefully the instructions supplied

with the kit.

ENGLISH 7

4. PRODUCT DESCRIPTION

1Control panel

2Appliance door (reversible)

3Primary Filter

4Adjustable feet

5Plastic ring

6Side/rear ventilation opening

7Rating plate

5. CONTROL PANEL

1 2 3

456789

1Programme knob and OFF switch 2Display

www.aeg.com8

3Push button Startuitstel

4Push button Start/Pauze

5Push button Tijd

6Push button Zoemer

7Push button Anti-kreuk

8Push button Lage Temp.

9Push button Behoedzaam

5.1 Display

Indicators Description

Drying phase

Cooling phase

Crease guard

Filter

Delay start

Child lock

Programme duration

- Time programme interval (10 min. - 3h.)

- Delay start interval (30 min. - 20h.)

6. PROGRAMME TABLE

Programmes Type of load Load (max.)1) /

Fabric mark

Katoen

Extra Droog Drying level: extra dry. 7kg/

Kastdroog+ Drying level: strong dry. 7kg/

Kastdroog 2) 3) Drying level: cupboard dry. 7kg/

ENGLISH 9

Programmes Type of load Load (max.)1) /

Fabric mark

Strijkdroog2) Drying level: suitable for ironing. 7kg/

Synthetica

Extra Droog Drying level: extra dry. 3kg/

Kastdroog 2) Drying level: cupboard dry. 3kg/

Strijkdroog Drying level: suitable for ironing. 3kg/

Speciaal

Tijd With this programme you can use the Tijd

option and set the programme duration. 7kg/

Opfrissen Refreshing textiles that were in storage. 1kg

Beddengoed Bed linen such as single and double sheets,

pillowcases, duvet cover. 2kg/

Jeans

Leisure clothing such as jeans, sweat-shirts

of different material thicknesses (e.g. at the

neck, cuffs and seams). 7kg/

Sportkleding Sportswear, thin and light fabrics, microfib-

er, polyester. 2kg/

Strijkvrij

Easy care fabrics for which a minimum of

ironing is necessary. The drying results can

be different from one type of fabric to an-

other. Shake the items before putting them

in the appliance. When the programme has

ended, immediately remove the items and

put them on a hanger.

1kg (or 5 shirts)/

Wol opfrissen

Refreshing a wool fabrics. Wool items be-

come soft and cosy. Remove the items im-

mediately after the programme end.

1kg

1) The maximum weight refers to dry items.

2) For test institutes only: Standard programmes for tests are specified in the EN 61121 document.

3) The Katoen Kastdroog ECO programme is the “Standard cotton programme” according to

Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is the

most efficient programme in terms of energy consumption for drying wet cotton laundry.

7. OPTIONS

7.1 Behoedzaam

With this option you can set a delicate

drying programme that has a low

temperature. Use this option with a

fabrics that have the symbol on the

fabric label (e.g. acrylic, viscose).

www.aeg.com10

Table des matières

Autres manuels AEG Séchoir

AEG

AEG Lavatherm 530 Electronic Manuel utilisateur

AEG

AEG Lavatherm 620 Manuel utilisateur

AEG

AEG LAVATHERM 740 MICROCOMPUTER Manuel utilisateur

AEG

AEG T8DEC949S Manuel utilisateur

AEG

AEG TR848P4B Manuel utilisateur

AEG

AEG T7DBE38S Manuel utilisateur

AEG

AEG Minerva 25 Manuel utilisateur

AEG

AEG LAVATHERM T36840 Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

AEG

AEG TR832J84F Manuel utilisateur

AEG

AEG TR832W84G Manuel utilisateur

AEG

AEG TR708L2OZ Manuel utilisateur

AEG

AEG T75175AV Manuel utilisateur

AEG

AEG TR71CWZ84 Manuel utilisateur

AEG

AEG LAVATHERM 75280AC Manuel utilisateur

AEG

AEG LAVATHERM 8DEE945R Manuel utilisateur

AEG

AEG LAVATHERM 8DEE48S Manuel utilisateur

AEG

AEG LAVATHERM 88595IS Manuel utilisateur

AEG

AEG LAVATHERM 86280IC Manuel utilisateur

AEG

AEG LAVATHERM 57760 electronic Manuel utilisateur

AEG

AEG LAVATHERM 56740 Manuel utilisateur

AEG

AEG TR9W75680 Manuel utilisateur

AEG

AEG TR939M4OBC Manuel utilisateur

AEG

AEG T8DBG942R Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire
